New ZF Shifter

Hi guys,

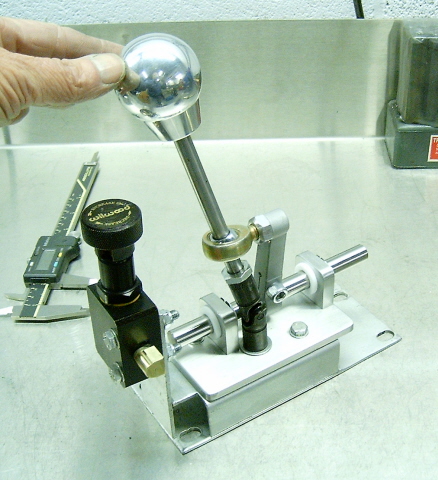

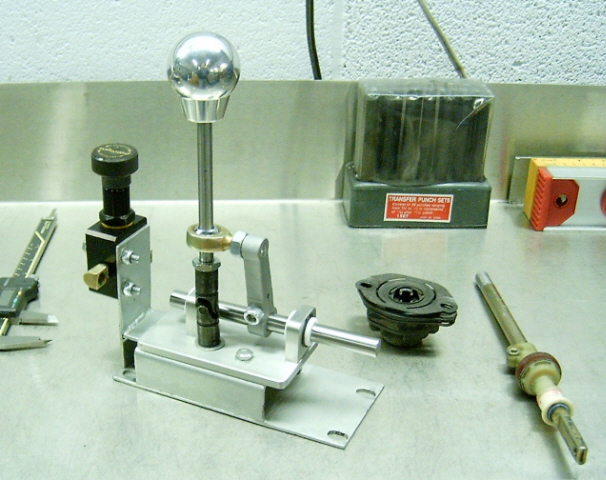

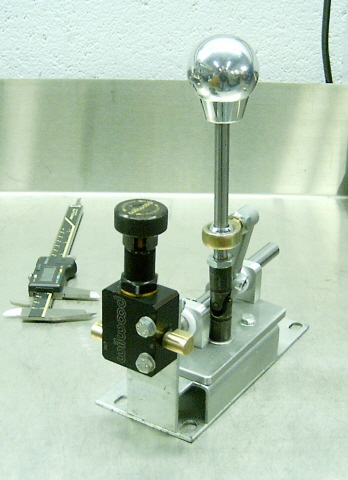

Here's the new CAV shifter for center shift ZF equipped cars. This is bolt-in part that replaces the stock unit. This also is the way we're going on new ZF applications and Getrag upgrades.

Combined with the firewall blanking panel, interconnecting shift rods and u-joints you have a very precise working part with no donor parts or compliance from rubber and spring loaded components in the shifter assembly.

There will be a Right Hand Drive version of the part released next week. It will allow right hand drive cars with center shift to be converted to right hand shift as per the original GT40, without cutting and welding as our previous part required.

The plates and shift lever arm are CNC cut, the bushing are custom PTFE and the selector shaft is hardened steel. Parts are being made now, great upgrade for a winter project
Attached Thumbnails
Click image for larger version

Name:	RCS401a.jpg
Views:	542
Size:	175.0 KB
ID:	16195  Click image for larger version

Name:	RCS401b.jpg
Views:	539
Size:	97.8 KB
ID:	16196  Click image for larger version

Name:	RCS401c.jpg
Views:	534
Size:	146.3 KB
ID:	16197
