Re: Chuck and Ryan's RCR Build

Fuel Vents

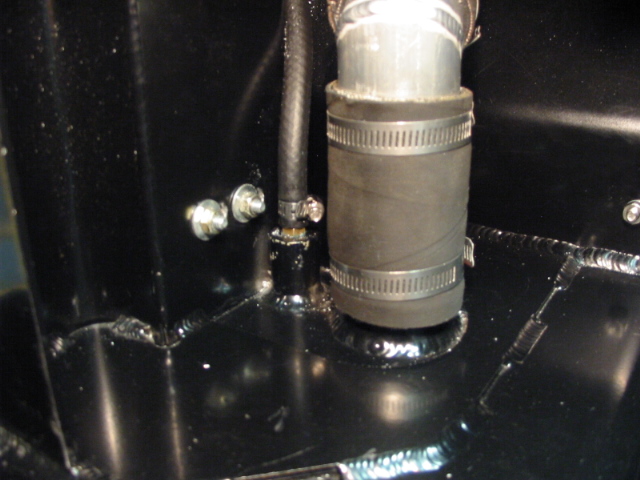

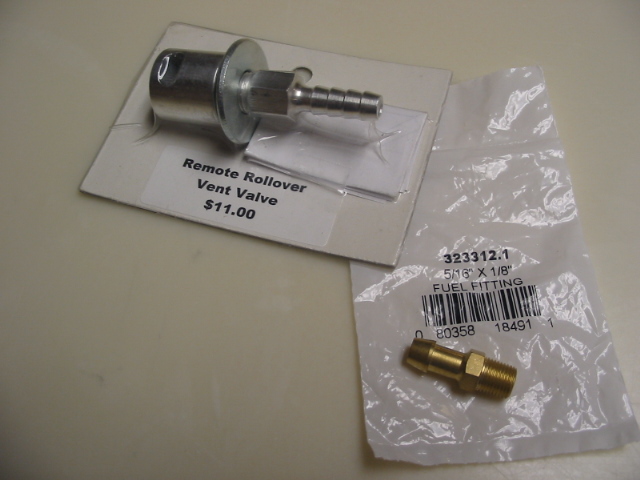

The RCR has a threaded opening adjacent to the fuel filler for a vent. A 5/16” x 1/8” fitting fits perfectly.

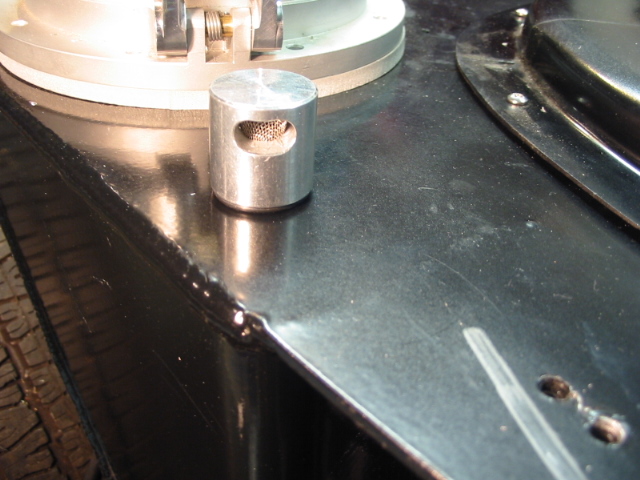

A roll over vent valve was obtained from Street Rods by Michael, Inc. www.srbymichael.com. A 5/16” section of fuel line completes the package.
