Re: Any help please
Some more
Attached Thumbnails

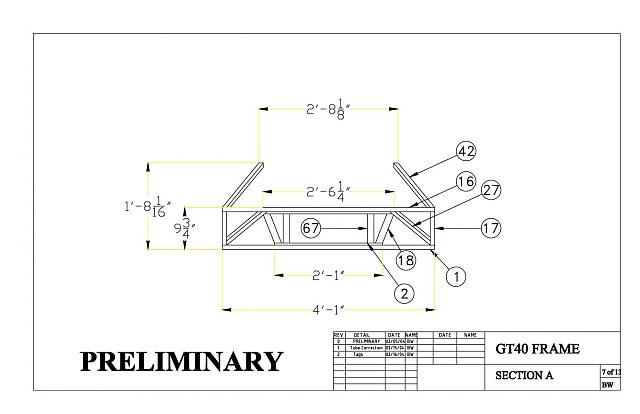

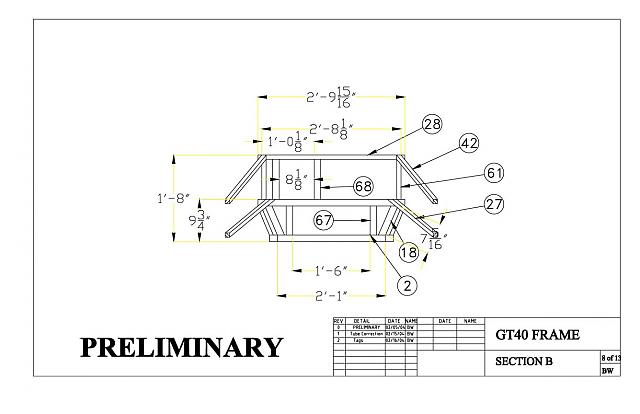

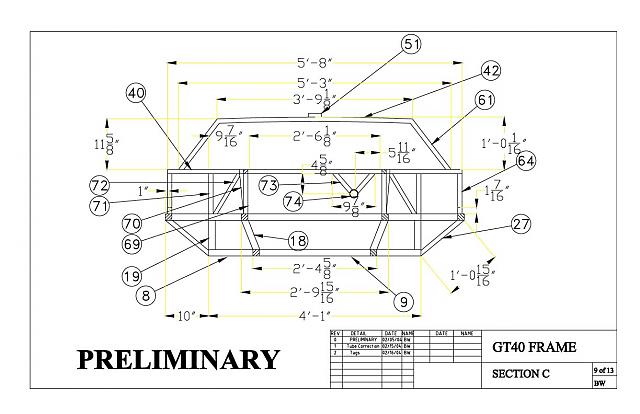

Click image for larger version Name: GT40 Section A.jpg Views: 2446 Size: 26.7 KB ID: 27829   Click image for larger version Name: GT40 Section B.jpg Views: 2287 Size: 28.6 KB ID: 27830   Click image for larger version Name: GT40 Section C.jpg Views: 2541 Size: 40.3 KB ID: 27831   Click image for larger version Name: GT40 Section D.jpg Views: 2231 Size: 36.3 KB ID: 27832   Click image for larger version Name: GT40 Section E.jpg Views: 2160 Size: 30.9 KB ID: 27833

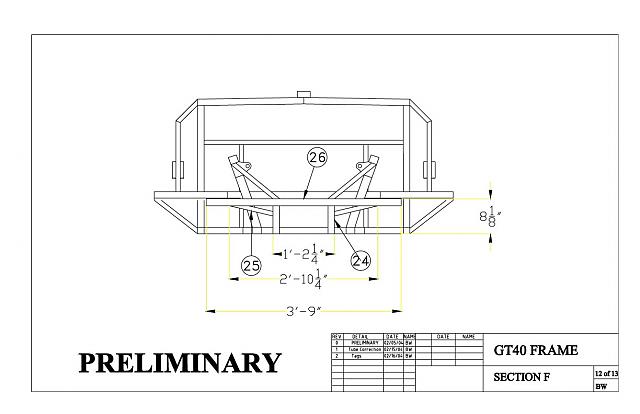

Click image for larger version Name: GT40 Section F.jpg Views: 2150 Size: 27.5 KB ID: 27834
