Thread: Help - GT40 Space Frame Drawings and Plans
View Single Post
Old 03-22-08, 03:43 PM   #36 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
GT40: England Suffolk
Posts: 1,668
Rep Power: 24 Chris Melia is a glorious beacon of light
Re: Any help please
just a few more
Attached Thumbnails

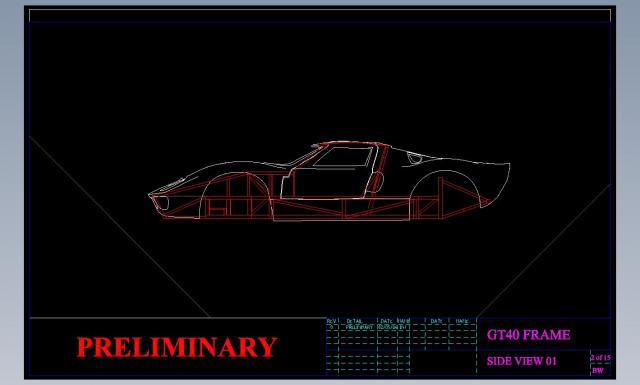

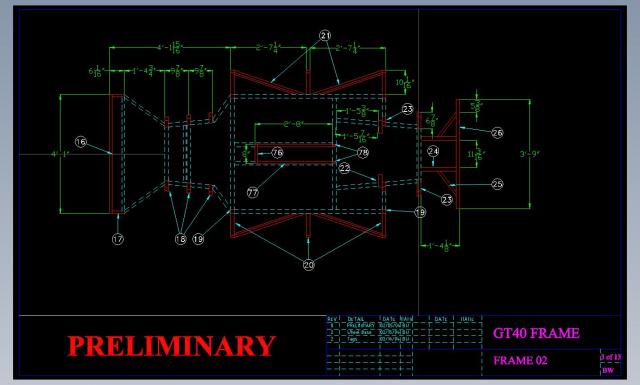

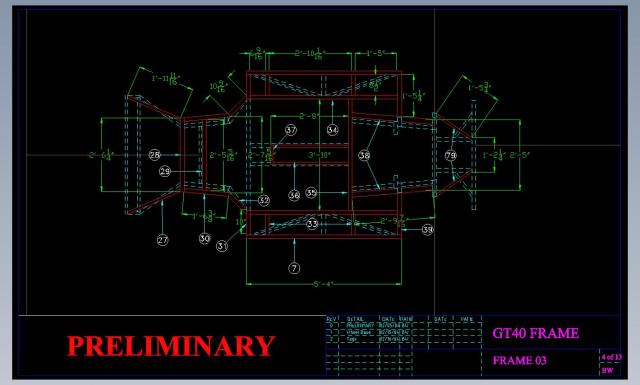

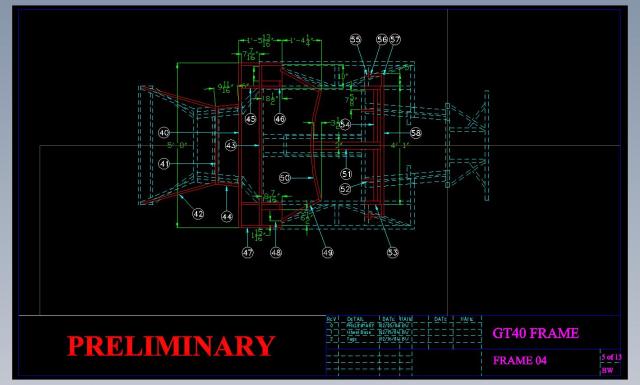

Click image for larger version Name: GT 40 Frame0301.jpg Views: 102 Size: 22.3 KB ID: 28425  Click image for larger version Name: GT 40 Frame0302.jpg Views: 70 Size: 31.8 KB ID: 28426  Click image for larger version Name: GT 40 Frame0303.jpg Views: 81 Size: 32.5 KB ID: 28427  Click image for larger version Name: GT 40 Frame0304.jpg Views: 86 Size: 32.8 KB ID: 28428
Chris Melia is offline   Reply With Quote
