Rune · 02-17-08, 01:52 PM

Mike, I will not comment this, I'm only a builder . This tread will only contain pictures and comments from the building prosess.

Rune

Rune · 05-12-08, 04:31 PM

Here are some pictures from the building prosess , it has been a lower building activity then normal for a while now due to the fact that GOX Teknik need a new building to meet the huge request for products both replica and monocoque. You need lots of special machines and space to do the perfect clone of a GT40
So then the new GOX factory building is almost completed 5500 square ft. (550 m2)

Rune · 05-12-08, 04:34 PM

Pictures

Rune · 05-12-08, 04:42 PM

Two more.

Willem · 05-26-08, 04:28 PM

Hey Rune, I've been at Görans place in 2006, and it's nice to see there so much progress, the old place was a bit crowded if I might say.
When do you think to have a rolling chassis?

Rune · 05-26-08, 11:57 PM

Hi. I think the chassis will be rolling before the end of 2008. There are one(the first one) rolling on its own wheel already.

czan · 05-27-08, 01:07 AM

Quote:

Originally Posted by bune

Hi. .... There are one(the first one) rolling on its own wheel already.

This thread is worthless without pics .

Rune · 08-31-08, 04:23 PM

Just to give You a small update on the monocoque project .

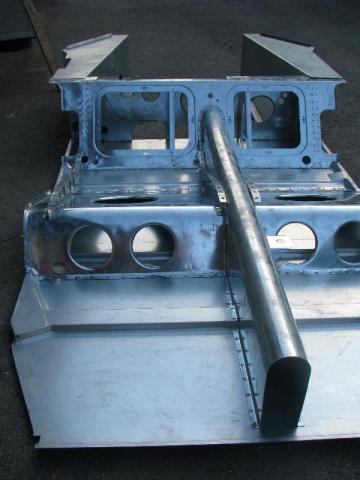

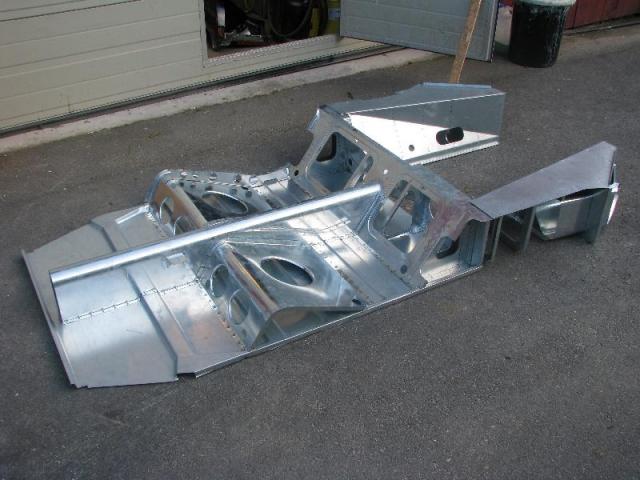

Things seems to take more time than planned (I still have a famely that want some time etc), but we are steady moving foreward with the project . Here are some pictures that show the floor spotvelded to other parts .

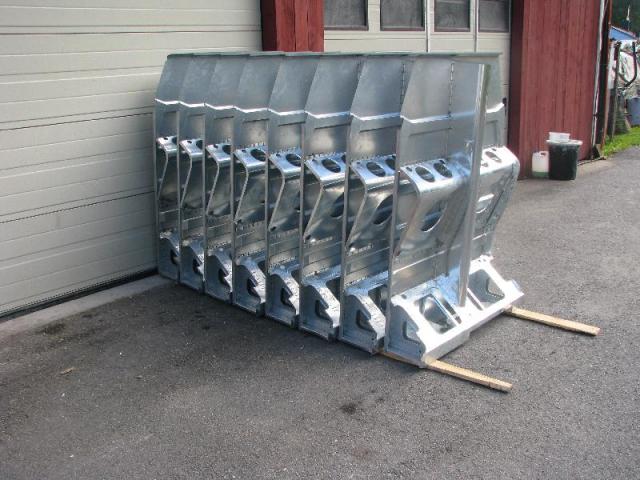

Most parts are now pressed, bent, rolled and velded together to bigger parts. The assembly have started. The first 8 floors outside the old workshop.
Rune

dennism · 08-31-08, 10:59 PM

Hello Rune
I was wondering if you could take a picture of the rear suspension lower trailing arm chassis attachment point construction
The top trailing arm attachment is always visible but the bottom has been a bit of a mystery since it's hidden
Keep posting
The pictures are fantastic!!
Dennis

Rune · 09-01-08, 09:13 AM

I'll try to do so for You , but remind me if I forget it.
John Shand might have a good photo from the angle You ask , he have done this lower trailing suspension arm as rar as I can see from his pictures.

Regards Rune

**devaney** · 09-05-08, 09:24 PM

Rune, Keep them coming-looks great, thanks for the pics. Mike

David S. · 09-05-08, 10:17 PM

If I were to do a mono chassis and used galvanized steel I would cut it with waterjet. The fumes from plasma cutter and welding galvanized are not very good for your lungs. Good ventilation and a resporator would be advised. Nice work though Rune.
Dave

Rune · 09-06-08, 08:13 AM

We left the cutting to someone else for this project so our lungs ar ok , they use a laser cutter , but the spotvelding produce lots of fumes so ventilation is a must.

David S. · 09-06-08, 03:48 PM

Rune most of the welders that welded galvanized wore a resperator that had a canister that hung off the back of the neck connected by two hoses to the mask or air supply. Ventilation is a must for sure to prevent metal fume fever. One of the first signs is sore throat, play safe wear a good resperator, I like your work.
Dave
