Old 01-29-09, 04:12 PM   #81 (permalink)
RamboLambo
2 Tenths
New Zealand

Join Date: Feb 2002
Location: Whangarei NZ
GT40: Whangarei New Z
Posts: 271
Re: Carbon GT mono

Urs. Great project. Just a question about making the a-arms.

Are they made in 2 halves first and then joined or somehow made in one peice? If they are made in 2 halves, how did you join them?
__________________
Bruce
RamboLambo is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 01-29-09, 04:42 PM   #82 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

It would be not good to build them in 2 halfs .You have a to great delaminating chance.
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 01-29-09, 08:53 PM   #83 (permalink)
aero's Avatar
aero
4 Tenths
United States

Join Date: Jul 2004
Location: Portland, OR - USA
GT40: Currently designing scratch built mid engine sports car.
Posts: 414
Re: Carbon GT mono

Urs - you are using a core (like a foam) inside the layers of CF right? Or are the arms solid CF? You must be getting a great price on all that carbon....
__________________
Currently designing a sports car:

Mid engine (what else is there?)
Audi 3.6 V8. (ok, there are others)
40" high (what else is there?)
aero is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 01-30-09, 02:36 AM   #84 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

yes they are fully filled with CF.
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 01-30-09, 05:33 PM   #85 (permalink)
RamboLambo
2 Tenths
New Zealand

Join Date: Feb 2002
Location: Whangarei NZ
GT40: Whangarei New Z
Posts: 271
Re: Carbon GT mono

Ahh I see how you are making the arms now. They are not a 2-peice moulding, just a single mould and the arms are totally flat on the bottom.
If they are filled with CF and resin, what is the weight of the arms then?
I would have thought with the amount of resin in the arms the weight would be very close to that of either a large diameter/thin wall tube or perhaps even a machined billet aluminium unit. Do you feel the small amount of weight versus layup time/overall strength is worth the effort?
__________________
Bruce
RamboLambo is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 02-01-09, 08:27 AM   #86 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

hello rambo
you have also to think about ,what you have to pay for a carbon brake disk!! and you throw them away after some races or in bad case after one race.
the weight of one piece is 1,4kg and it s till oversized .It s no problem to build them in cro mo or alu,But we wanna try to build as much as we can in CF.
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 02-05-09, 02:45 PM   #87 (permalink)
Linarde
Portugal

Join Date: Feb 2009
Location: Portugal
GT40: None...
Posts: 8
Re: Carbon GT mono

Looks great. Keep up the good work
Linarde is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 03-30-09, 06:10 AM   #88 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

Hello !
after a lot of work in our company,a nice ski holiday and correcting a stupid failure!! i took a new builded set of lower and upper a arms out of the molds
I have the bad feeling, that it will be not the only part that i build two or more times!!

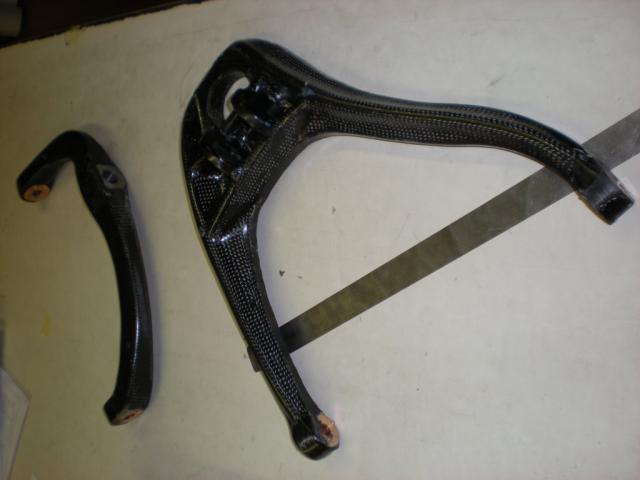

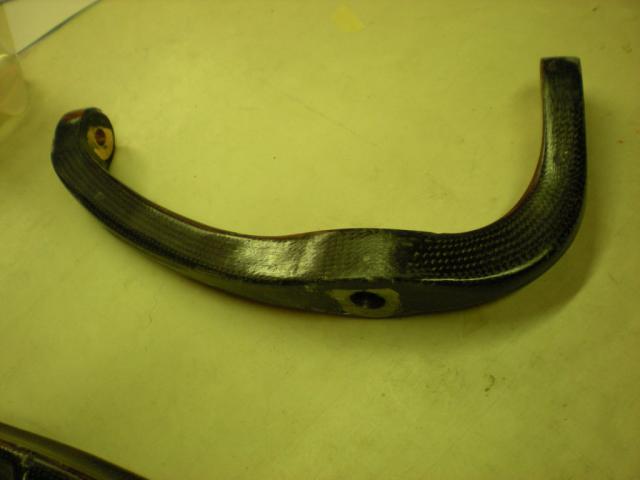

here some pictures from the new arms.
this week i will laminate the arms of the right side and after it goes to fit them on the chassis.
Attached Thumbnails
Click image for larger version

Name:	neu 28.3.09 007_1024x768.jpg
Views:	363
Size:	21.2 KB
ID:	37575   Click image for larger version

Name:	neu 28.3.09 006_1024x768.jpg
Views:	411
Size:	24.8 KB
ID:	37576
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-03-09, 07:19 AM   #89 (permalink)
Dom
Dom9's Avatar
Dom9
Rookie
United Kingdom

Join Date: Jan 2008
Location: London
Posts: 54
Re: Carbon GT mono

Just found this thread now - Awesome build!

Keep up the good work and keep us updated!
Dom9 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-10-09, 09:54 AM   #90 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

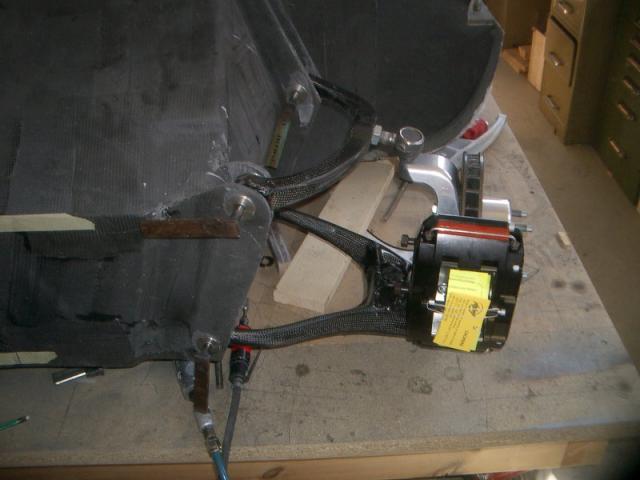

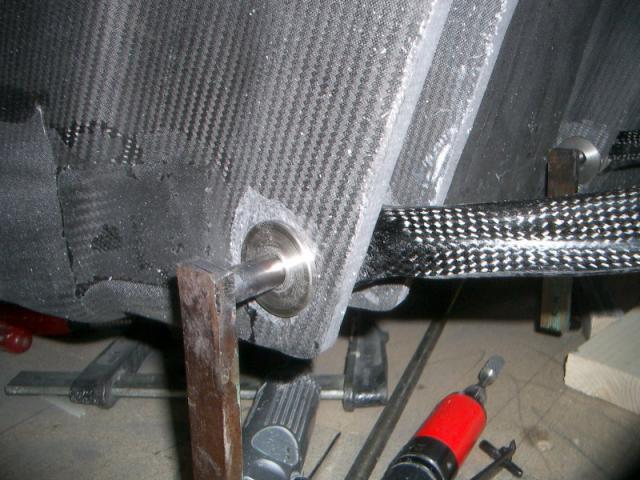

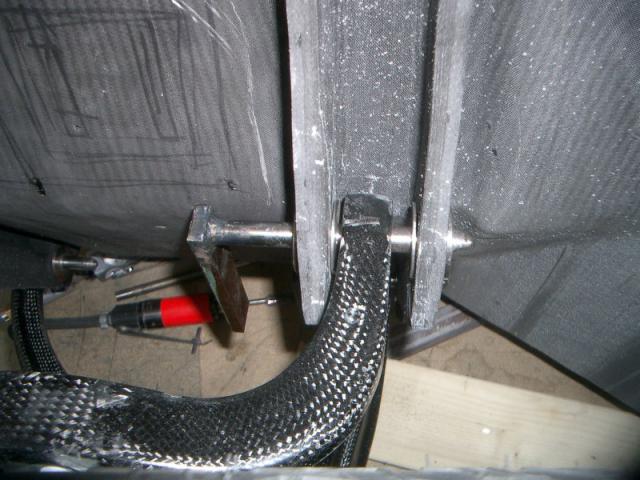

now i drilled the holes in the chassis tu glue in the bearings for the suspension axles.

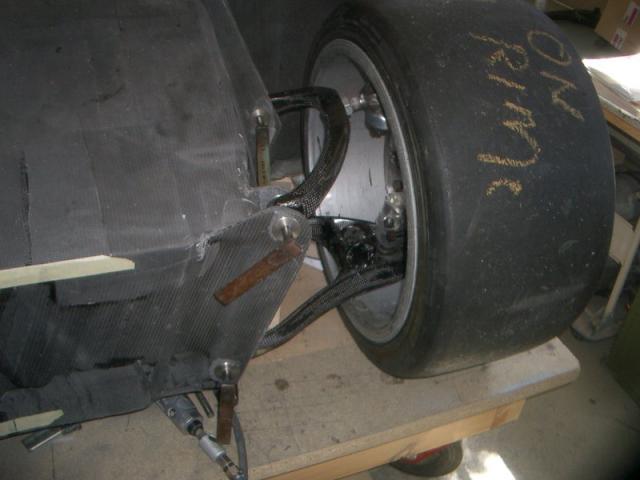

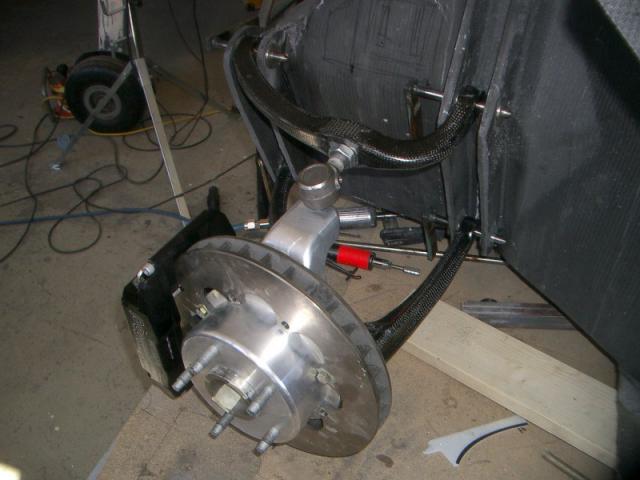

I mounted a wheel to see how it looks and it doesnt look bad.
here some pictures.
Attached Thumbnails
Click image for larger version

Name:	IMGP1946_800x600.jpg
Views:	408
Size:	51.8 KB
ID:	37823   Click image for larger version

Name:	IMGP1947_800x600.jpg
Views:	510
Size:	31.5 KB
ID:	37824   Click image for larger version

Name:	IMGP1951_800x600.jpg
Views:	410
Size:	32.7 KB
ID:	37825   Click image for larger version

Name:	IMGP1950_800x600.jpg
Views:	540
Size:	37.2 KB
ID:	37826   Click image for larger version

Name:	IMGP1948_800x600.jpg
Views:	444
Size:	54.9 KB
ID:	37827

Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-10-09, 10:11 AM   #91 (permalink)
EGLITOM's Avatar
EGLITOM
9 Tenths
Germany

Join Date: Sep 2007
Location: Germany
GT40: RCR40;LR331;G50
Posts: 993
Re: Carbon GT mono

Hi Urs,

nice to see your progress. Is there any specific reason for mounting the Caliper in the front position. If not i would say you have the uprights of left and rights side interchanged.

Thanks
TOM
__________________
RCR EUROPE
www.s-performance.de
EGLITOM is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-10-09, 11:12 AM   #92 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

Hello Tom

You are right its not the right way ,they are mounted but was only fun to look how it would look ,in this case with the caliper on the other side.
My hands were faster than the brain!!
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-15-09, 10:50 AM   #93 (permalink)
Dom
Dom9's Avatar
Dom9
Rookie
United Kingdom

Join Date: Jan 2008
Location: London
Posts: 54
Re: Carbon GT mono

Urs, without reading the thread again... Were there any hard points built into the chassis during construction? Liek any aluminium spigot things where the suspension will load the chassis, or are you putting them in after, as per the photo above, to spread the load? i assume if you just mounted the wishbones direct to the carbon pick up points on the chassis, the carbon would just crack?
Dom9 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-15-09, 01:56 PM   #94 (permalink)
Lynn Erickson
Rookie
United States

Join Date: Feb 2009
Location: So Cal
GT40: custom mid eng.
Posts: 89
Re: Carbon GT mono

Quote:
Originally Posted by Dom9 View Post
Urs, without reading the thread again... Were there any hard points built into the chassis during construction? Liek any aluminium spigot things where the suspension will load the chassis, or are you putting them in after, as per the photo above, to spread the load? i assume if you just mounted the wishbones direct to the carbon pick up points on the chassis, the carbon would just crack?
My entire aircraft is made of glass and carbon, no metal except the engine and bolts. the hard points are many layers of carbon the taper out into the structure. adding metal into a carbon structure is a bad idea and just aids in cracking. The metal and carbon do not flex the same and do not stay bonded well. The carbon will cause the metal to corrode through electrolysis. aluminum is the worst.
Lynn Erickson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-16-09, 03:00 AM   #95 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

Quote:
Originally Posted by Dom9 View Post
Urs, without reading the thread again... Were there any hard points built into the chassis during construction? Liek any aluminium spigot things where the suspension will load the chassis, or are you putting them in after, as per the photo above, to spread the load? i assume if you just mounted the wishbones direct to the carbon pick up points on the chassis, the carbon would just crack?
We have glued in steel bearings(no problems with corrosion) which you see on the pictures.
To resist the cracking you have to arrange the layers in the right way ,and one of the most important things is ,that they not all end at the same place .It s difficult to discribe all the things.
For hard points where you bolt on some metal parts on the chassis,you have to cut out the foam ,and strengthen it with some cfk layers.
greetings from switzerland

Last edited by Merlin2222; 04-16-09 at 03:05 AM.
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-16-09, 10:45 AM   #96 (permalink)
jimbo's Avatar
jimbo
Silver Supporter
United States

Join Date: Nov 2001
Location: Annapolis, MD
GT40: Mark VI, #1149
Posts: 1,458
Re: Carbon GT mono

Very cool. Are those the brakes you are using? What make are they?
__________________
Mark I monocoque under construction
Safir Mk I body
ZF-2 transaxle
302 w/Webers
jimbo is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 05-04-09, 11:59 AM   #97 (permalink)
leonmac's Avatar
leonmac
A Tenth
Oman

Join Date: Sep 2008
Location: New Zealand
GT40: M20 replica
Posts: 143
Re: Carbon GT mono

Hi Urs........ I have been watching your build and its great stuff, I have a question. I see you have used alloy front uprights, Did you consider CF units or is it not practical or strong enough or did you just not consider it. I'm sought of thinking about it for the rear up rights??? what are your thoughts.
Cheers leon
leonmac is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 05-05-09, 02:45 AM   #98 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

@Jimbo
in front we have 6 pot wilwood and rear 4 pot wilwood.

@Leon
We have the front and rear uprights from RCR,It would be also possible,to build uprights also in carbon ,but we dont want to overdo things
maybe for ultra ultra light gt40.
greetings from switzerland
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 05-05-09, 06:11 AM   #99 (permalink)
Dom
Dom9's Avatar
Dom9
Rookie
United Kingdom

Join Date: Jan 2008
Location: London
Posts: 54
Re: Carbon GT mono

Thanks for the reply Urs... Great stuff!

I am really enjoying this thread!

Keep up the good work!
Dom9 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 05-06-09, 05:49 PM   #100 (permalink)
Urs
Merlin2222's Avatar
Merlin2222
A Tenth
Switzerland

Join Date: May 2007
Location: europe
Posts: 115
Re: Carbon GT mono

Here some new pictures .

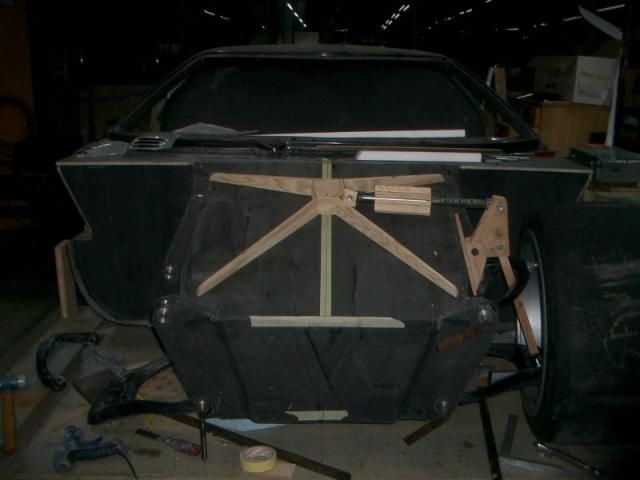

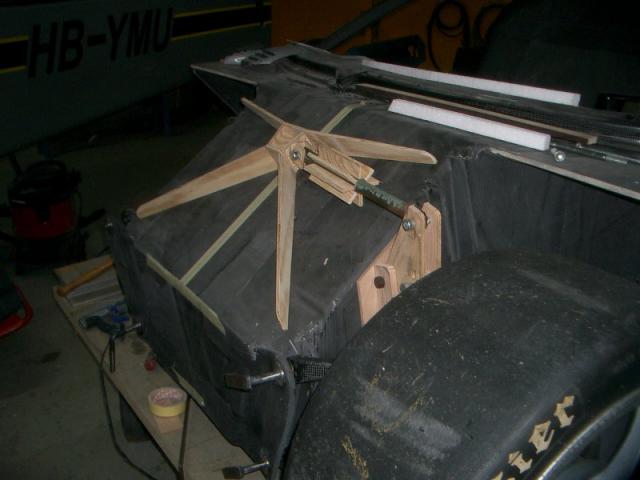

I try to fit the linkage!!

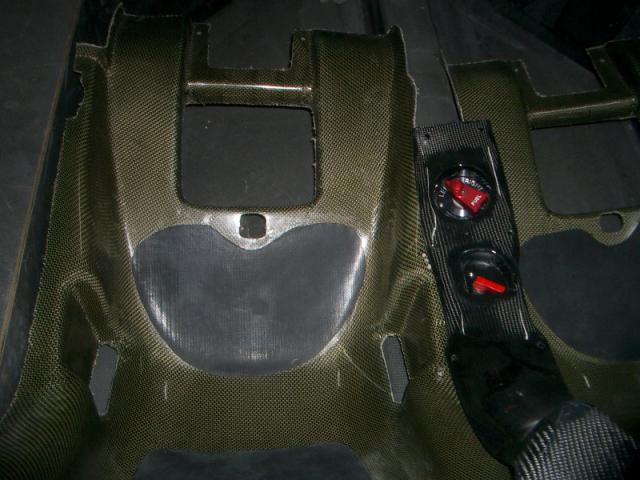

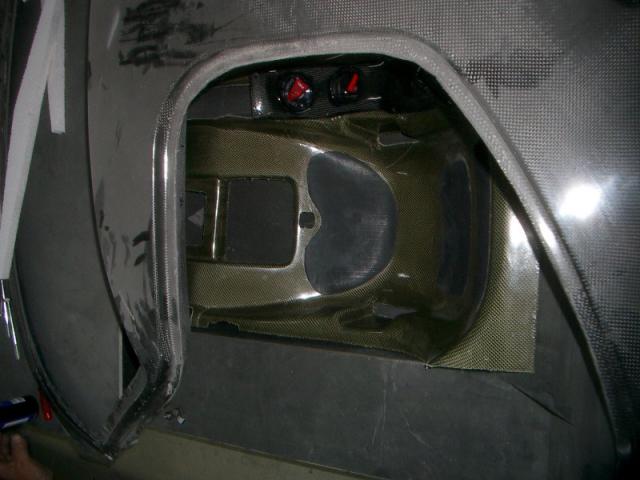

Also a picture of our planes seats in the carbon mono,but the seats would need some changes!¨

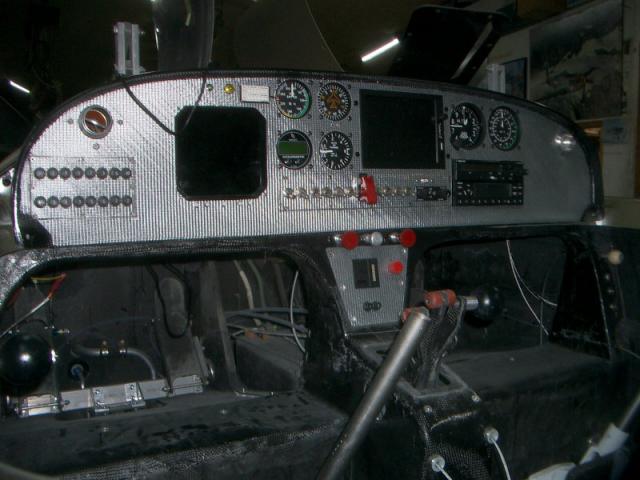

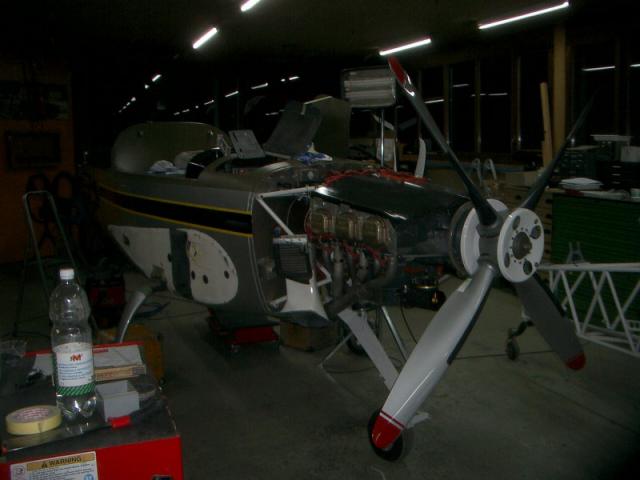

And also a picture from our new two seater aerobatic trainer cockpit.
Attached Thumbnails
Click image for larger version

Name:	IMGP1968_800x600.jpg
Views:	375
Size:	29.2 KB
ID:	38575   Click image for larger version

Name:	IMGP1969_800x600.jpg
Views:	371
Size:	32.2 KB
ID:	38576   Click image for larger version

Name:	IMGP1972_800x600.jpg
Views:	386
Size:	45.4 KB
ID:	38577   Click image for larger version

Name:	IMGP1971_800x600.jpg
Views:	363
Size:	36.9 KB
ID:	38578   Click image for larger version

Name:	IMGP1973_800x600.jpg
Views:	442
Size:	43.5 KB
ID:	38579

Click image for larger version

Name:	IMGP1974_800x600.jpg
Views:	398
Size:	31.2 KB
ID:	38580
Merlin2222 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 01:22 AM.
