Carbon GT mono

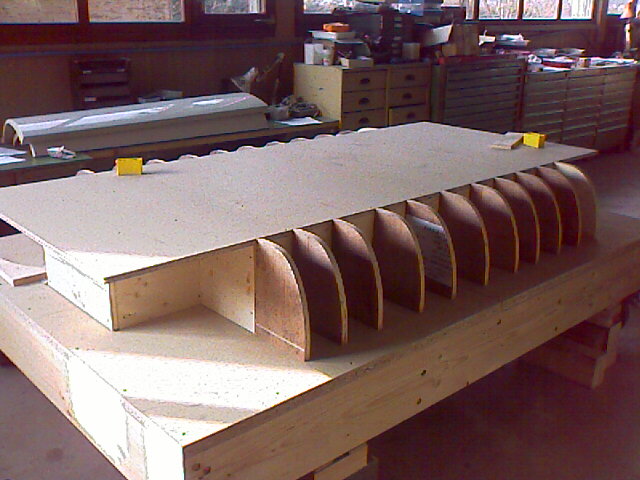

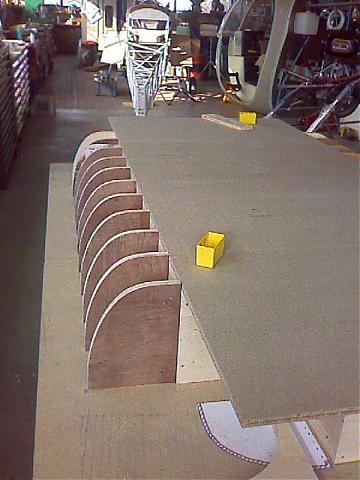

Now we started with the build of a carbon mono of a gt.It s a great challenge !I hope we could do it to the end!
We start with the forms of the bottom and the tank Radius.
Attached Thumbnails
Carbon GT mono-image_037-jpg   Carbon GT mono-image_038-jpg
Merlin2222 is offline   Reply With Quote
Old 15th January 2008, 08:40 AM   #2
superflyte's Avatar
superflyte
5 Tenths
Australia

Join Date: Jun 2007
Location: Melbun
GT40: Absolute Pace
Posts: 596
Re: Carbon GT mono

I like this thread already! Where do I send my deposit cheque for the second tub out of the molds?

All the best,

Troy.
superflyte is offline   Reply With Quote
Old 15th January 2008, 09:31 AM   #3
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

we are happy when we can get one out of the molds!!there are a lot of things to do and to know.When it s unusable for a gt40 then we use it for a plane
but i will call you back.
Merlin2222 is offline   Reply With Quote
Old 15th January 2008, 02:14 PM   #4
Russ Noble's Avatar
Russ Noble
Lifetime Premier Supporter
New Zealand

Join Date: Jul 2004
Location: Christchurch,NZ
GT40: Scratch Kiwi 40
Posts: 2,034
Re: Carbon GT mono

Urs,

This is going to be one helluva interesting build!

Be sure to keep us posted with pics, and detail the problems you have to overcome, and the factors you have to take into account as the build progresses.

Good luck with this project, I'm sure many of us will be following it avidly.

Cheers
__________________
Kiwi 40. Scratchbuilt Gulf Mk1, forged, dry sumped 351W. 930 LSD & spraybar, 10s & 14s.It goes, now to make it faster!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Russ Noble is offline   Reply With Quote
Old 22nd January 2008, 08:54 AM   #5
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

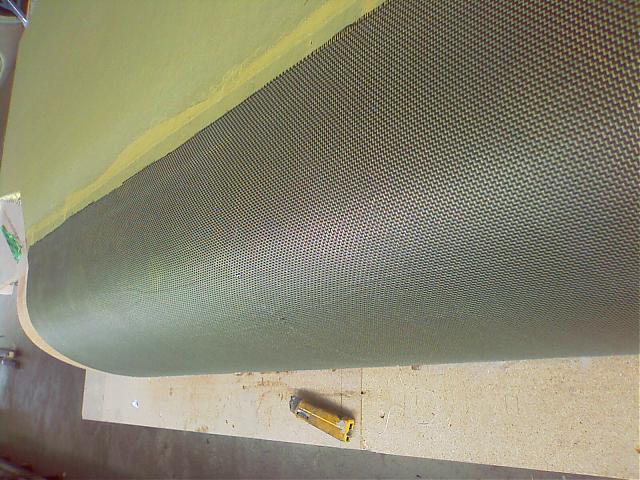

we laminated an vacumed the Bottom of the car .Today i removed plastics and so
and there was a nice picture to see.
Attached Thumbnails
Carbon GT mono-carb-mono1-jpg   Carbon GT mono-carb-mono2-jpg   Carbon GT mono-carb-mono3-jpg
Merlin2222 is offline   Reply With Quote
Old 25th January 2008, 07:50 AM   #6
roclery's Avatar
roclery
3 Tenths
Australia

Join Date: Jan 2005
Location: Perth, Western
Posts: 384
Re: Carbon GT mono

Very nice. Looking forward to many more pictures!
__________________
Regards
Richard
roclery is offline   Reply With Quote
Old 27th January 2008, 09:02 PM   #7
Doc Watson's Avatar
Doc Watson
Lifetime Premier Supporter
United Kingdom

Join Date: Feb 2005
Location: England
GT40: mono Mk I, zf-0
Posts: 783
Re: Carbon GT mono

A good start... looks like your using carbon/kevlar weave, how many layers? and are you using epoxy resin? do you have a sketch of all the components? and how will they be attached to each other? If I had the time/money and knowledge then I would love to do what your doing hence the questions as my limit on using CF is for wing spars in RC models. And remember if all else fails.... anything with a big enough engine will fly ;-)

Good luck with the build.

Andy
__________________
Andy
Doc Watson is offline   Reply With Quote
Old 29th January 2008, 07:50 AM   #8
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

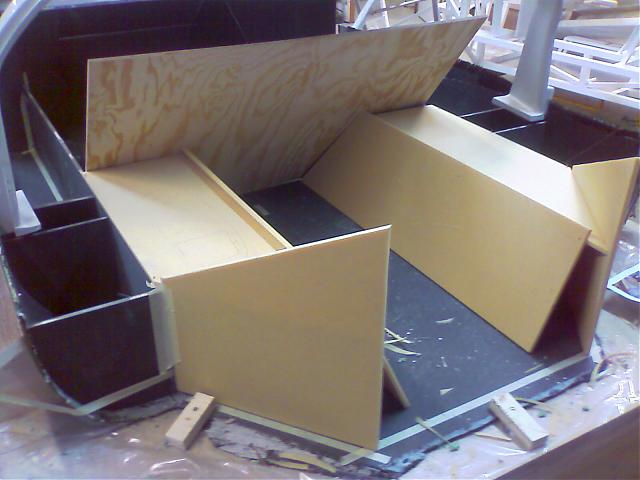

Now i turned the bottom.
We have until now on the under side from sandvich away 4 diagonal uni layers 2 uni on length and two uni from site to side,one Kevlar layer and only on the tanks carbon kevlar with possibility to let it be visible.
on the inner side of the sandvich we have only 2 layers now.
now i build up with plywood.
Attached Thumbnails
Carbon GT mono-chassis-1-jpg   Carbon GT mono-chassis-3-jpg   Carbon GT mono-chassis-4-jpg   Carbon GT mono-chassi-2-jpg
Merlin2222 is offline   Reply With Quote
Old 29th January 2008, 08:24 AM   #9
FRPGUY
5 Tenths
United States

Join Date: Nov 2002
Location: Norwell, Mass.
GT40: Norwell, Mass.
Posts: 535
Re: Carbon GT mono

Urs,
What type of core material are you using?
__________________
may no resin cure before it's time
FRPGUY is offline   Reply With Quote
Old 31st January 2008, 03:56 AM   #10
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

we use PVC herex 10mm as Core
Merlin2222 is offline   Reply With Quote
Old 31st January 2008, 02:15 PM   #11
Andy Sheldon's Avatar
Andy Sheldon
9 Tenths
United Kingdom

Join Date: Oct 2001
Location: England
GT40: Tornado TS40
Posts: 990
Re: Carbon GT mono

Urs

Are you going to use your spaceframe?

Thanks

Andy
__________________
TORNADO SPORTS CARS est 1984
The Worlds Leading Manufacturer of Ford GT40 Replica Cars

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Manufacturer of the Microsoft Xbox Forza GT40
Andy Sheldon is offline   Reply With Quote
Old 31st January 2008, 02:51 PM   #12
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

a car sampler who buys two planes from us he also has 3 Zondas he wants a carbon mono now we first have to build something that brings money
What do you think about a carbon mono?
Merlin2222 is offline   Reply With Quote
Old 14th February 2008, 03:20 AM   #13
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

Now some new pictures

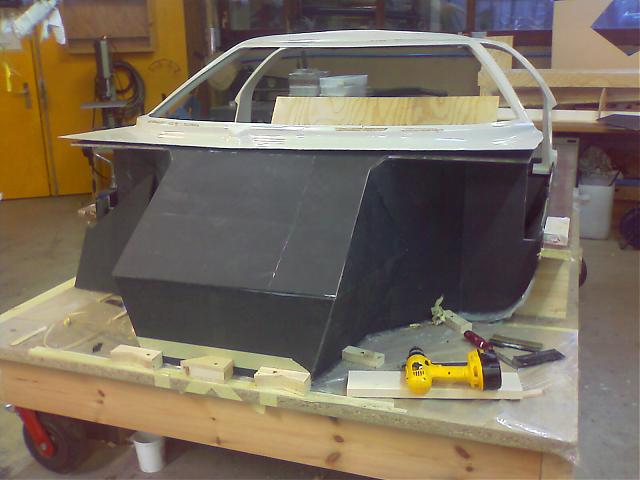

we ordered a roush 427 IR and we are on the waiting list for a ZFQ
And im in helpful contacts for suspension parts.im searching also engine measurings to get forward with the engine cutout in the rear.
Attached Thumbnails
Carbon GT mono-msw-gt19-jpg   Carbon GT mono-msw-gt20-jpg   Carbon GT mono-msw-gt21-jpg
Merlin2222 is offline   Reply With Quote
Old 14th February 2008, 08:23 AM   #14
Big-Foot's Avatar
Big-Foot
Administrator
United States

Join Date: Jan 2007
Location: Kenyon, MN
GT40: Gulf Cart
Posts: 6,570
Re: Carbon GT mono

Suspension attachment points will be really interesting with this project!

Keep up the good work!
__________________
Regards - Randy
-- Youth and talent are no match for old age and treachery!
GT40 RCR40 #45 G50-331-Weber IDAs ((Sold))
My build site:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Big-Foot is offline   Reply With Quote
Old 14th February 2008, 08:46 AM   #15
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

yes it will be a great challenge.But it will be a nice challenge
Merlin2222 is offline   Reply With Quote
Old 14th February 2008, 09:57 AM   #16
Scott Calabro's Avatar
Scott Calabro
10 tenths
United States

Join Date: Oct 2006
Location: Southwick, Ma.
GT40: Tornado TS40
Posts: 1,711
Re: Carbon GT mono

Urs,

Have you been here, or taken any online courses?

http://www.abaris.com/Index.asp

What is your plan for fuel storage?

Best regards,

Scott
__________________
Tornado Sports Cars USA Rep.
Scott Calabro is offline   Reply With Quote
Old 14th February 2008, 09:58 AM   #17
Fran Hall RCR
Moderator
gt40fran's Avatar
gt40fran
I Have No Life
United States

Join Date: Sep 2001
Location: Michigan
GT40: RCR
Posts: 7,721
Re: Carbon GT mono

It should be great with your new RCR uprights and big brake package....
__________________
FRAN HALL replica manufacturer.....

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
gt40fran is offline   Reply With Quote
Old 14th February 2008, 10:22 AM   #18
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

Quote:
Originally Posted by Scott Calabro View Post
Urs,

Have you been here, or taken any online courses?

http://www.abaris.com/Index.asp

What is your plan for fuel storage?

Best regards,

Scott
I took a course at my fathers company

first we thought about fuel directly in the chassis frame like in our planes but we would now put in some rubber tanks we know one whos building tanks.
Merlin2222 is offline   Reply With Quote
Old 14th February 2008, 10:23 AM   #19
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

Quote:
Originally Posted by gt40fran View Post
It should be great with your new RCR uprights and big brake package....
i cant wait until they are here!!
Merlin2222 is offline   Reply With Quote
Old 11th March 2008, 04:45 AM   #20
Urs
Merlin2222's Avatar
Merlin2222
2 Tenths
Switzerland

Join Date: May 2007
Location: europe
Posts: 275
Re: Carbon GT mono

Now i had a short brake in bulding the mono.
We get a little daughter 3 weeks ago ! now i had a short baby brake

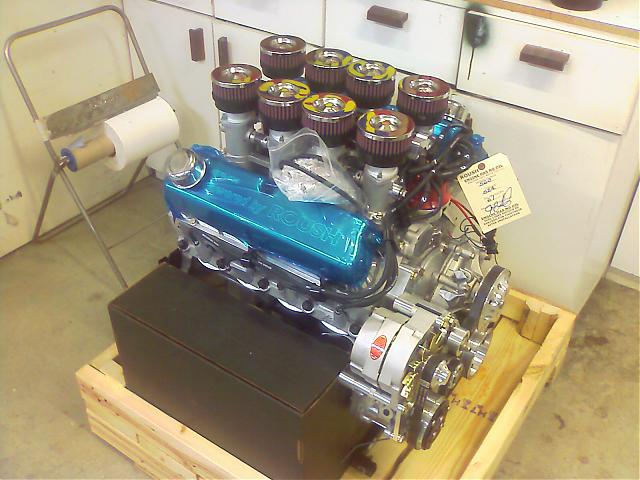

Yesterday we get the engine from Roush
It s a 427 IR and it s a real masterpiece.And it s amazing what you get for the price.

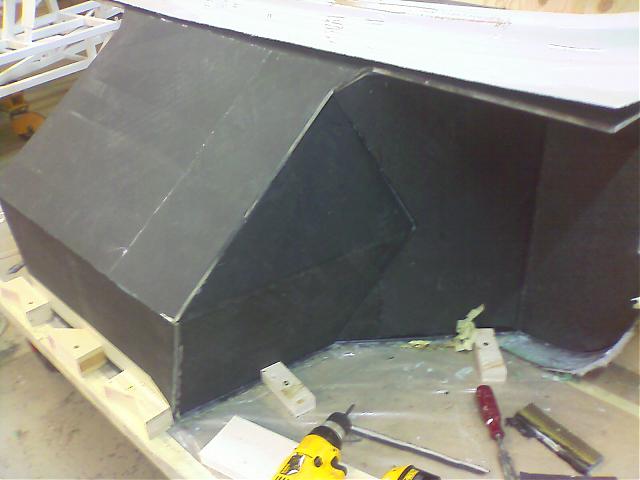

Today i place the bulkhead in the chassis and i laminate the inner side of watercooler pipe tunnel.Now we have to build the hinge points for the engine and the hinge points for the suspension tubes at the bulkhead.
The parts from Fran are also on the way Thank you!!
Attached Thumbnails
Carbon GT mono-motor-jpg
Merlin2222 is offline   Reply With Quote
