Ian Bissett · 13th February 2011, 12:49 PM

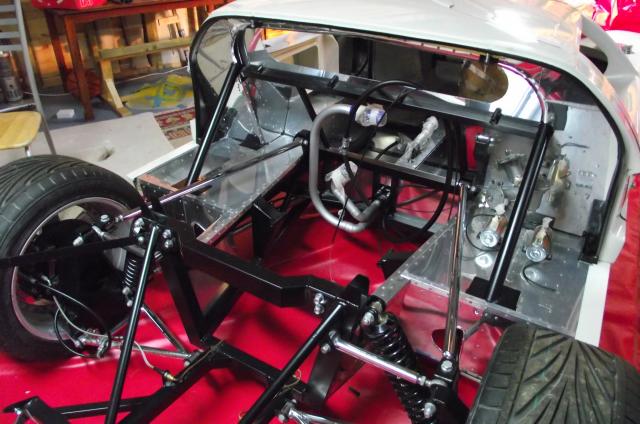

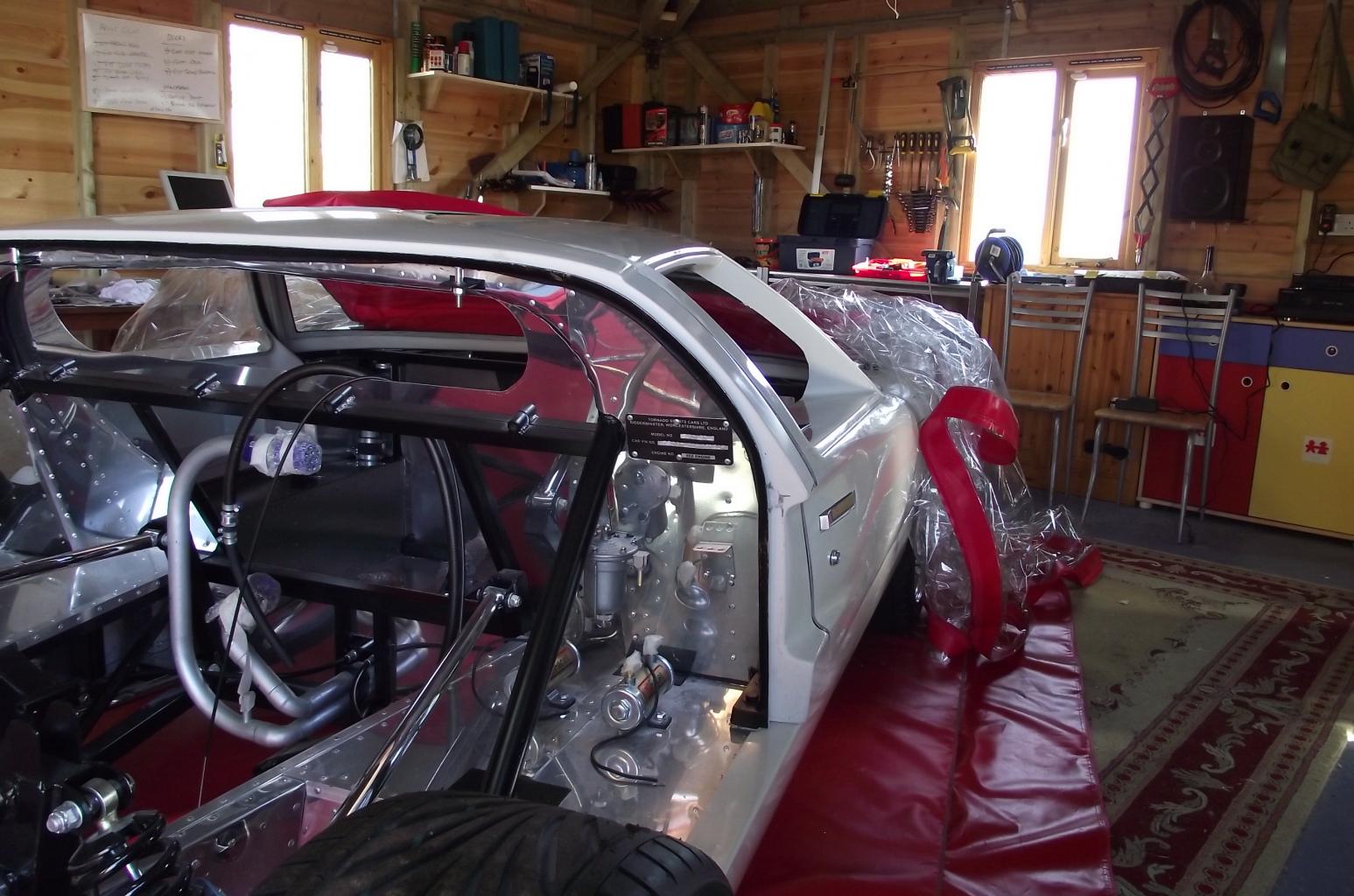

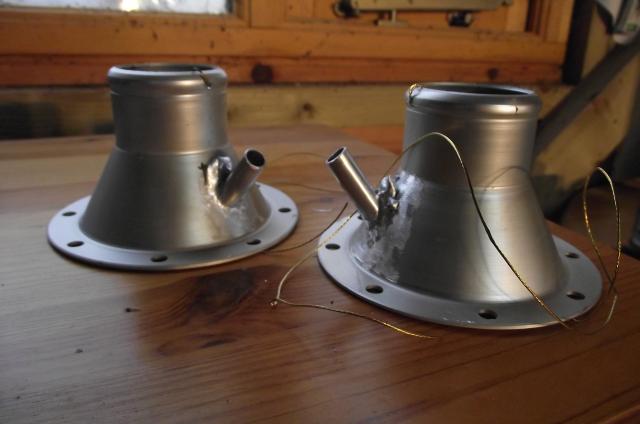

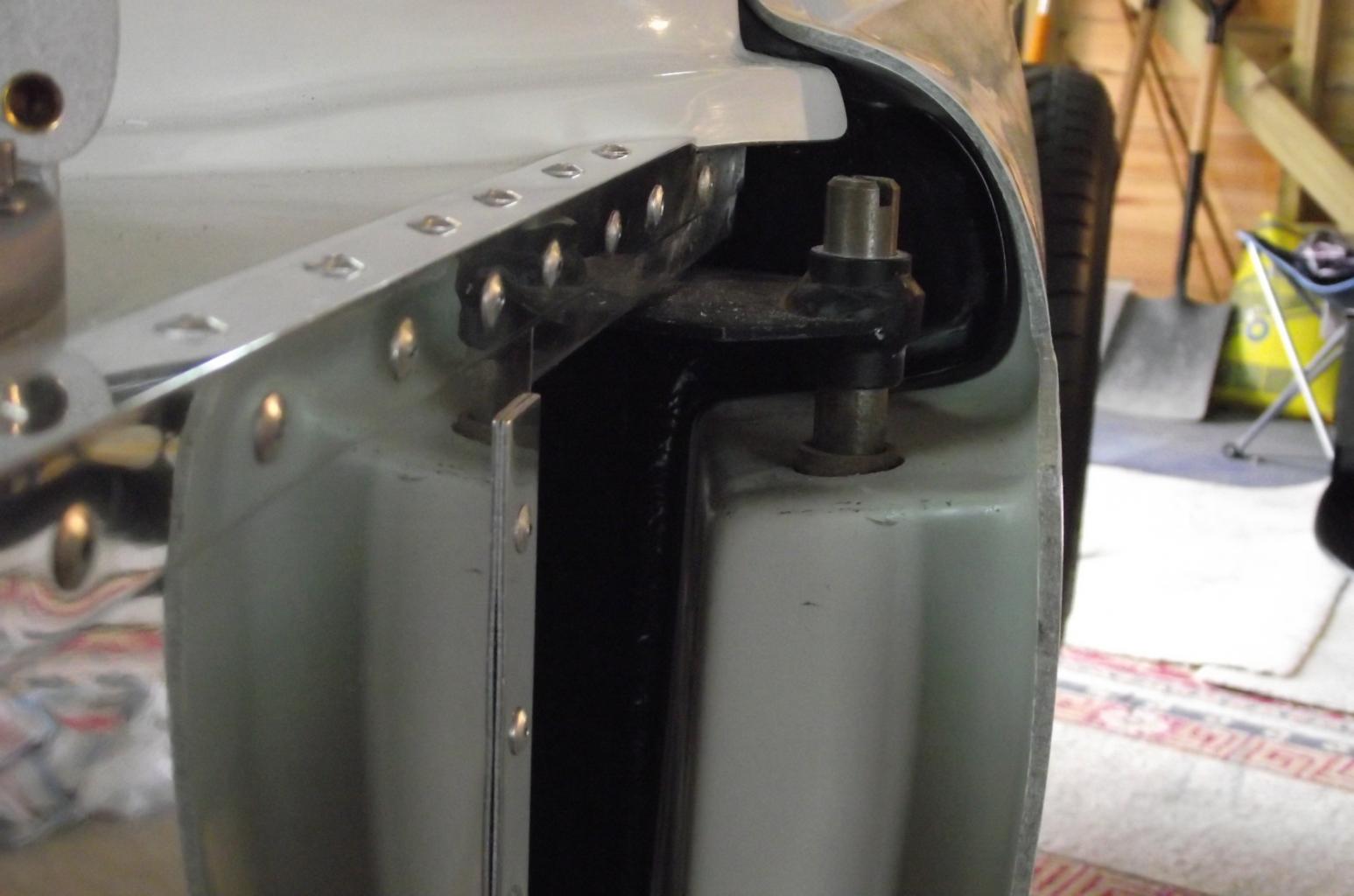

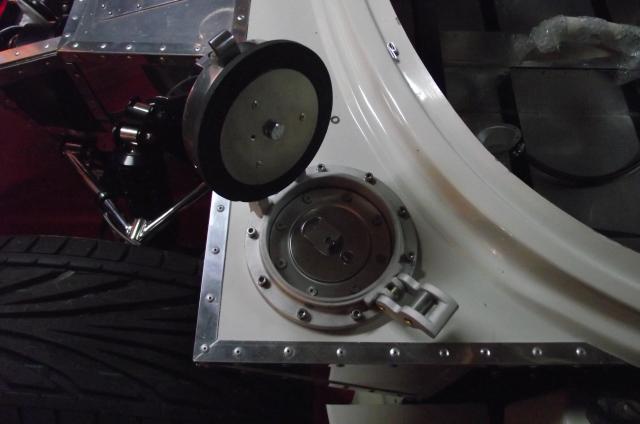

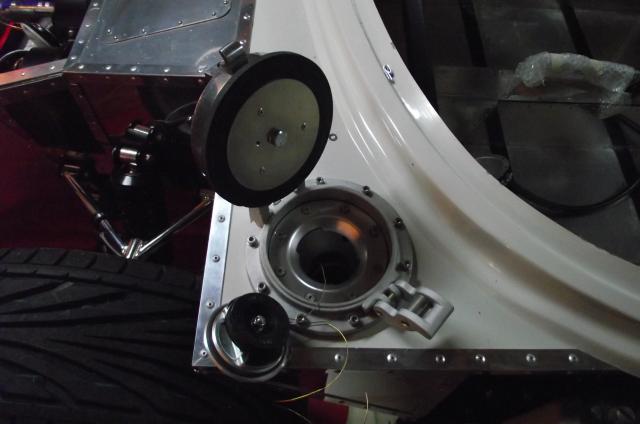

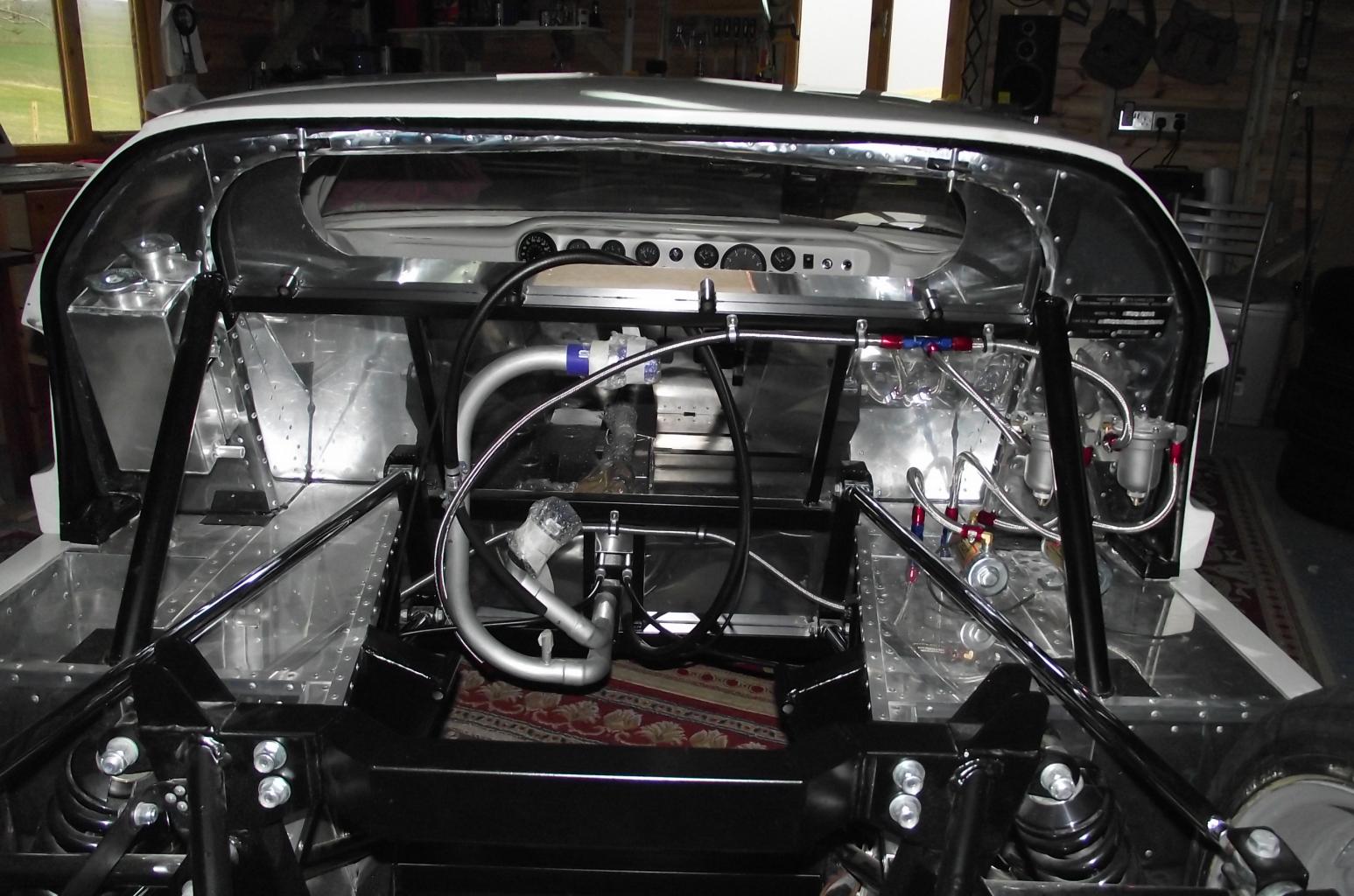

Rear clip prep work completed and underside painted. Also fitted the replica fuel caps along with aero type lockable caps and cap tethers for the IVA. Had to modify the funnel to accomodate a vent connection; my aluminium welding does the job, but fortunately nobody will see it!!
Ian

Ian Bissett · 24th February 2011, 03:28 PM

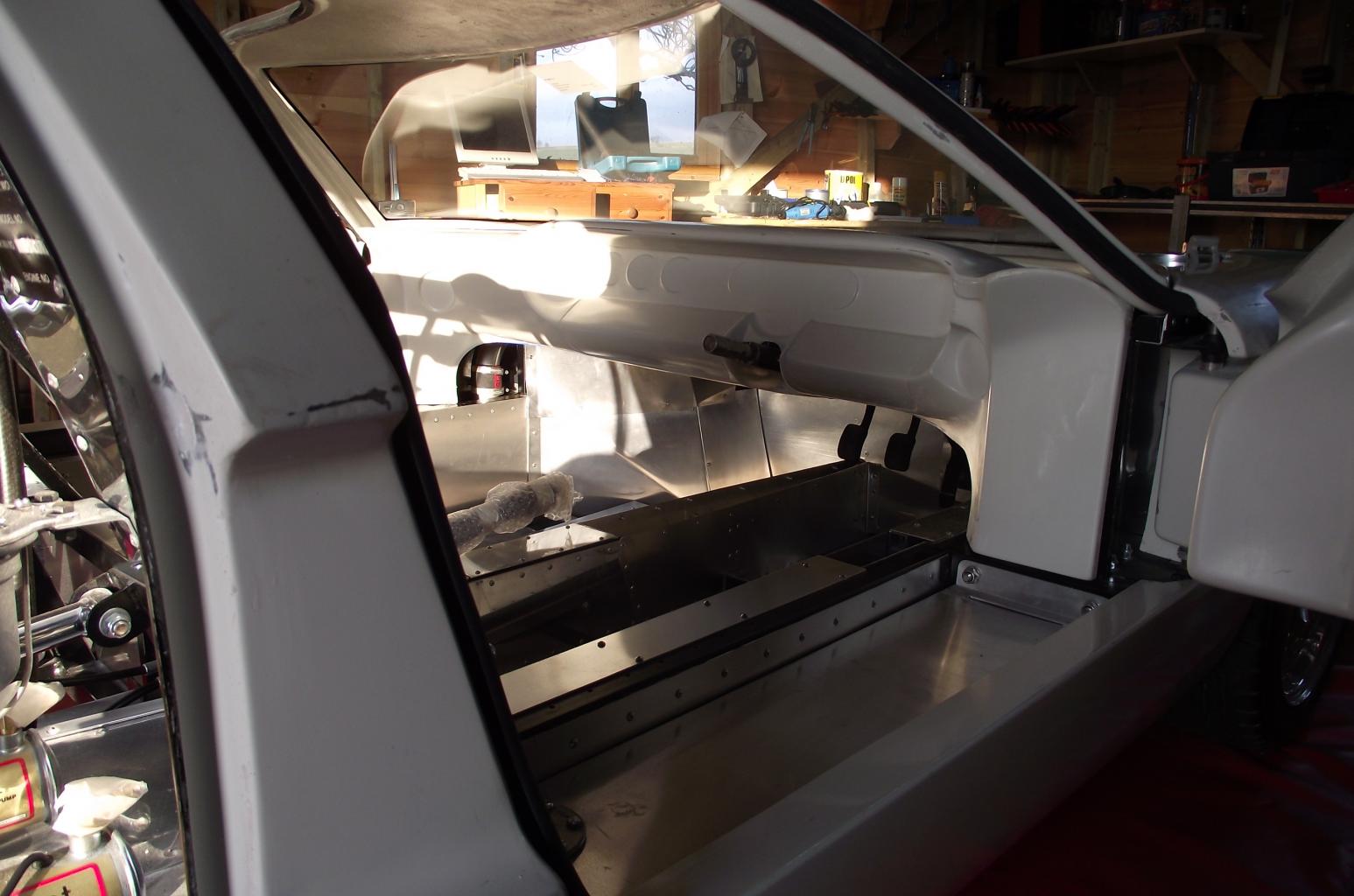

Not much to report..painted the inside of the roof spider and fitted a rubber seal along the inside gap between the roof and the panelling.

Ian Bissett · 6th March 2011, 01:18 PM

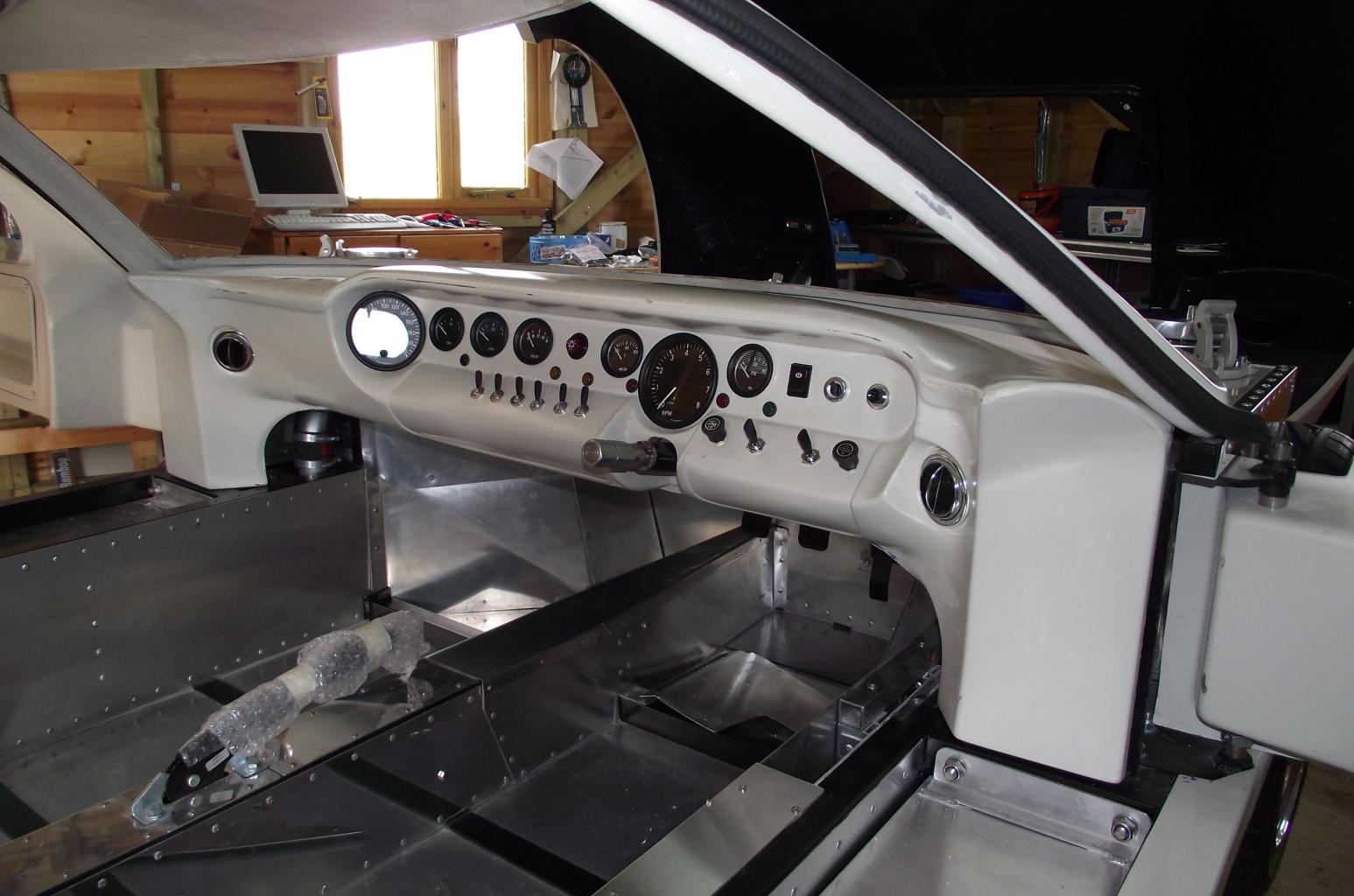

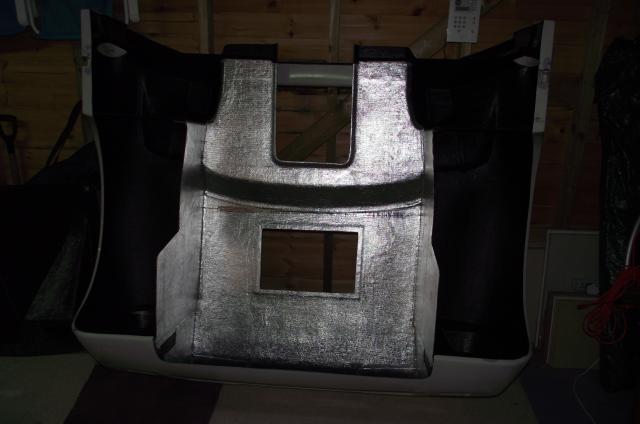

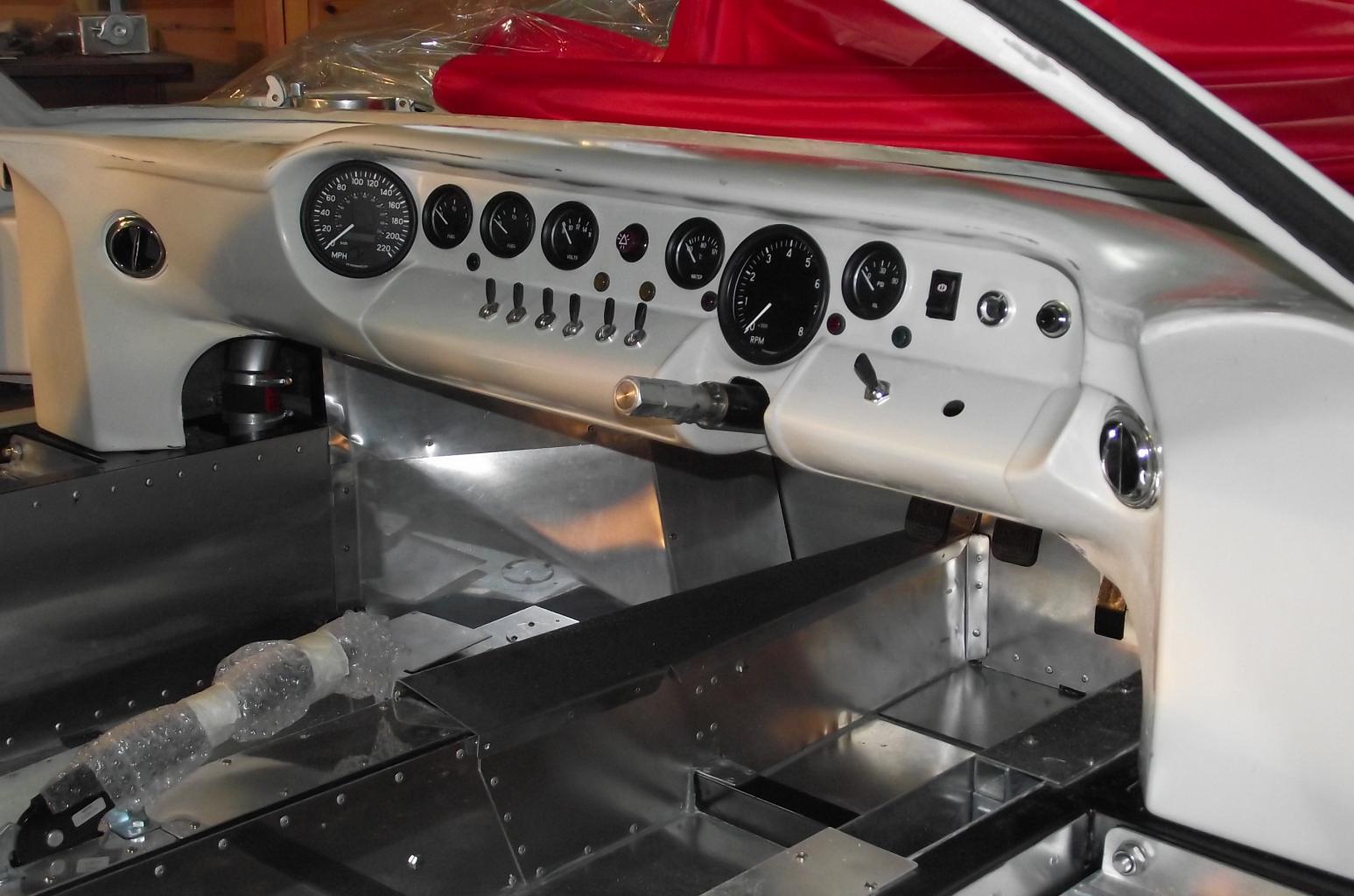

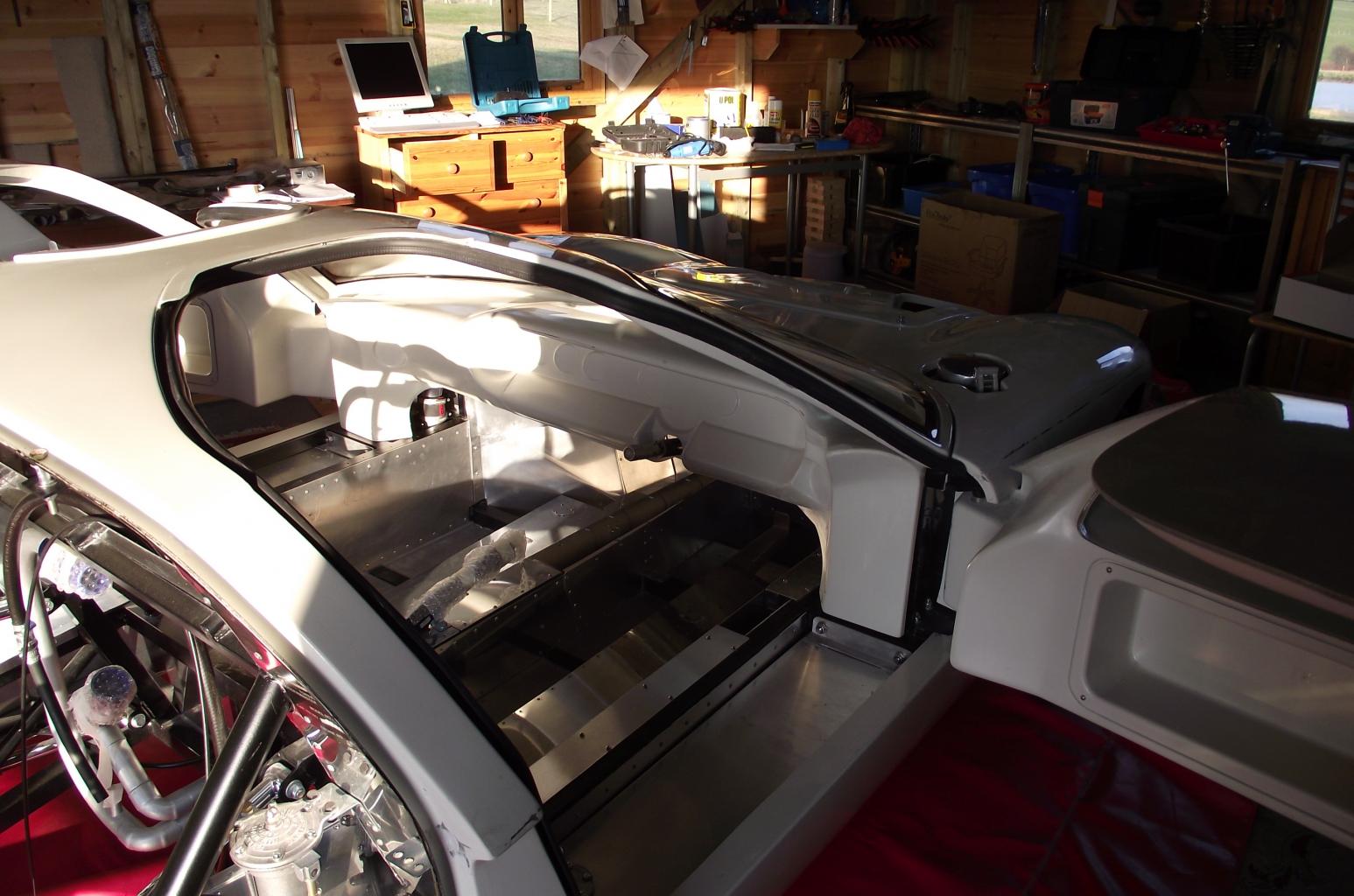

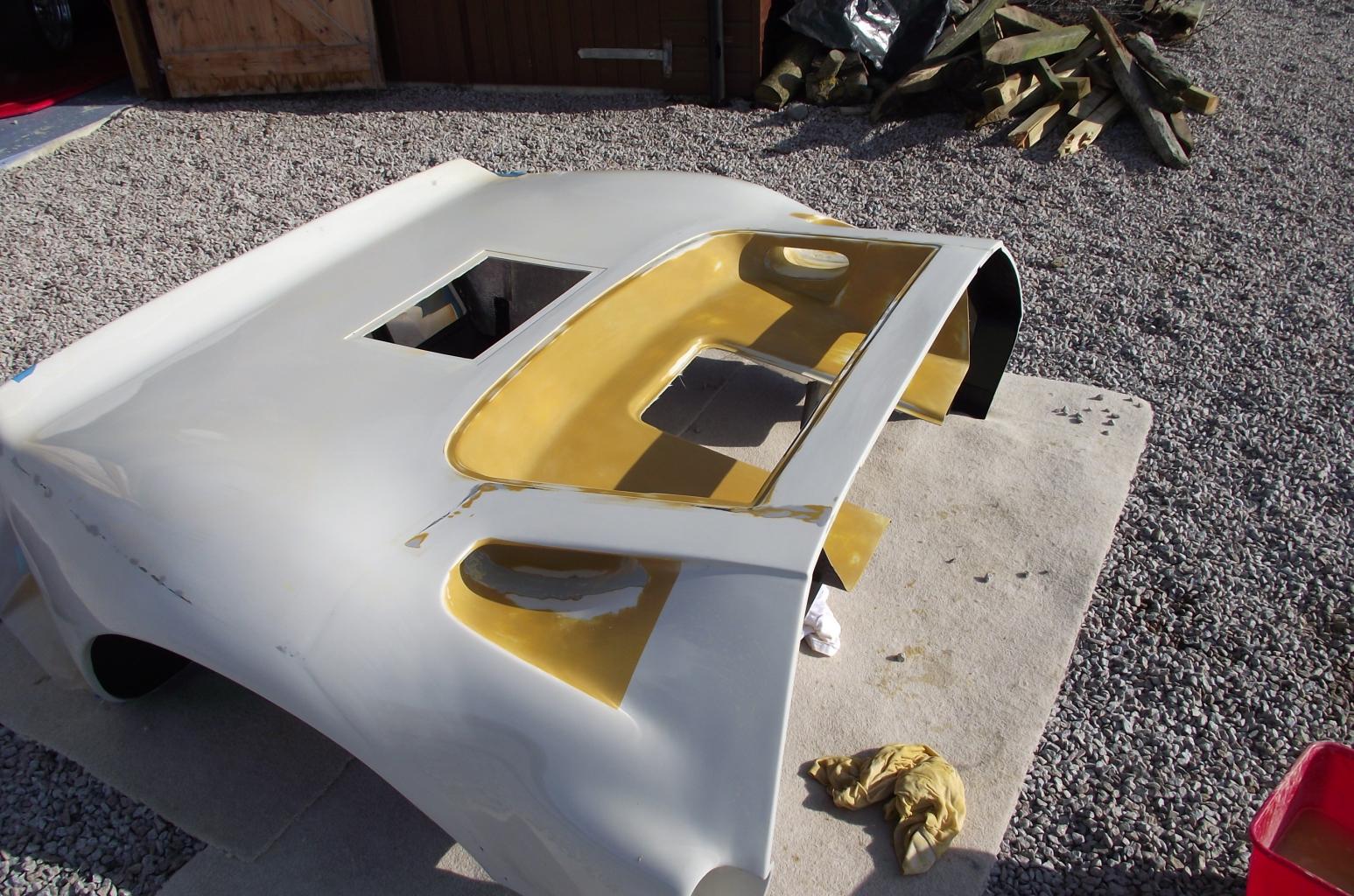

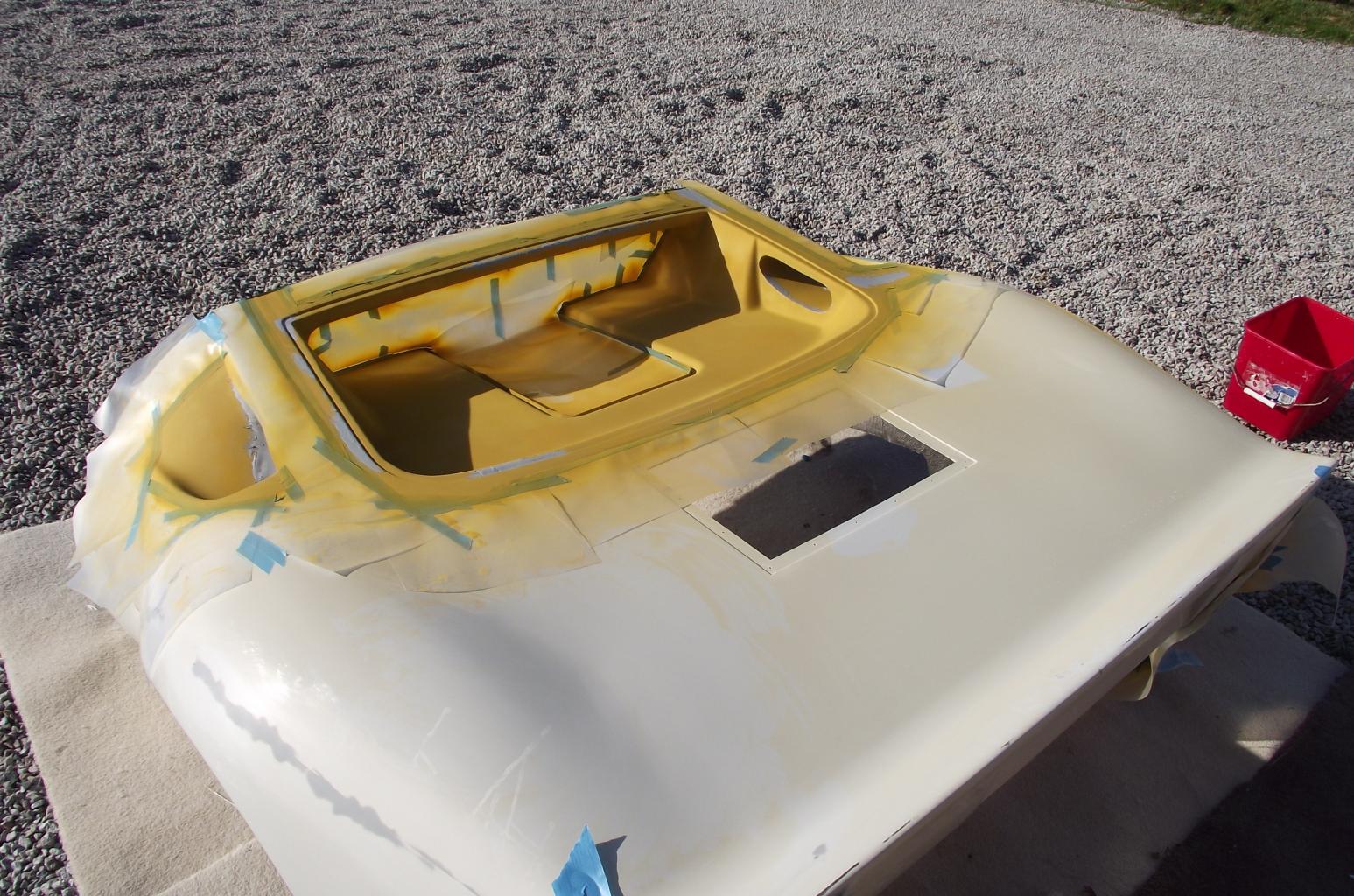

Continued to work on the rear clip, its almost ready for painting the carburettor apron, just a bit more sanding/filling on the air scoops. Seemed to spend hours on body prep, at least the weather this weekend was superb! Finally fitted the VIN plate now after it sitting in my garage for some months. Also prepared and trial fitted the dash. Now that the dash is in, I can start on the a/c next and locate the wiper motor. I can also start fitting the dash instruments.....now that I am looking forward to.
Ian

Jon · 6th March 2011, 03:35 PM

That's looking really good. Although the back of the car seems to be missing something. Any more thoughts on an engine?

Ian Bissett · 13th March 2011, 02:14 PM

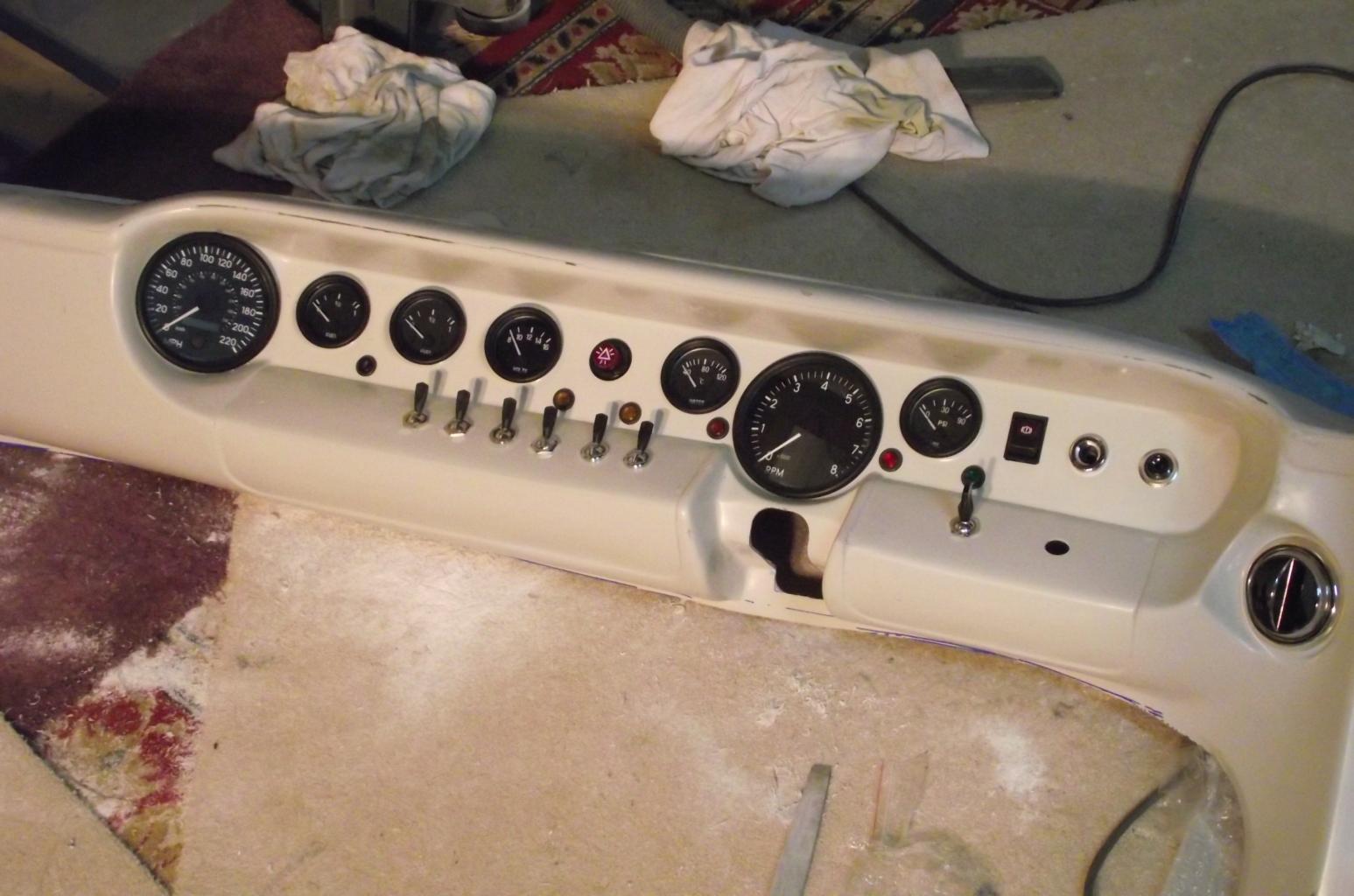

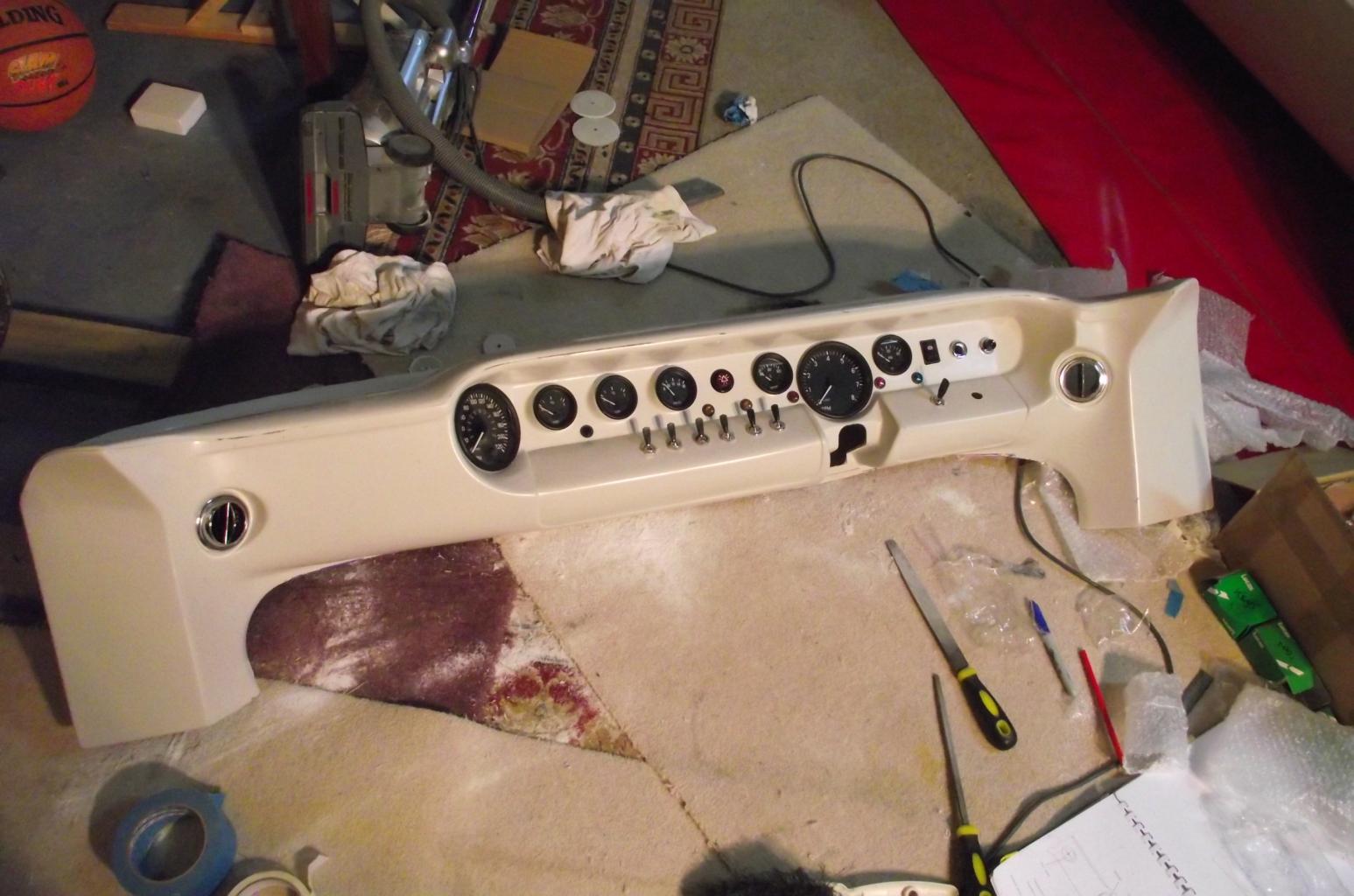

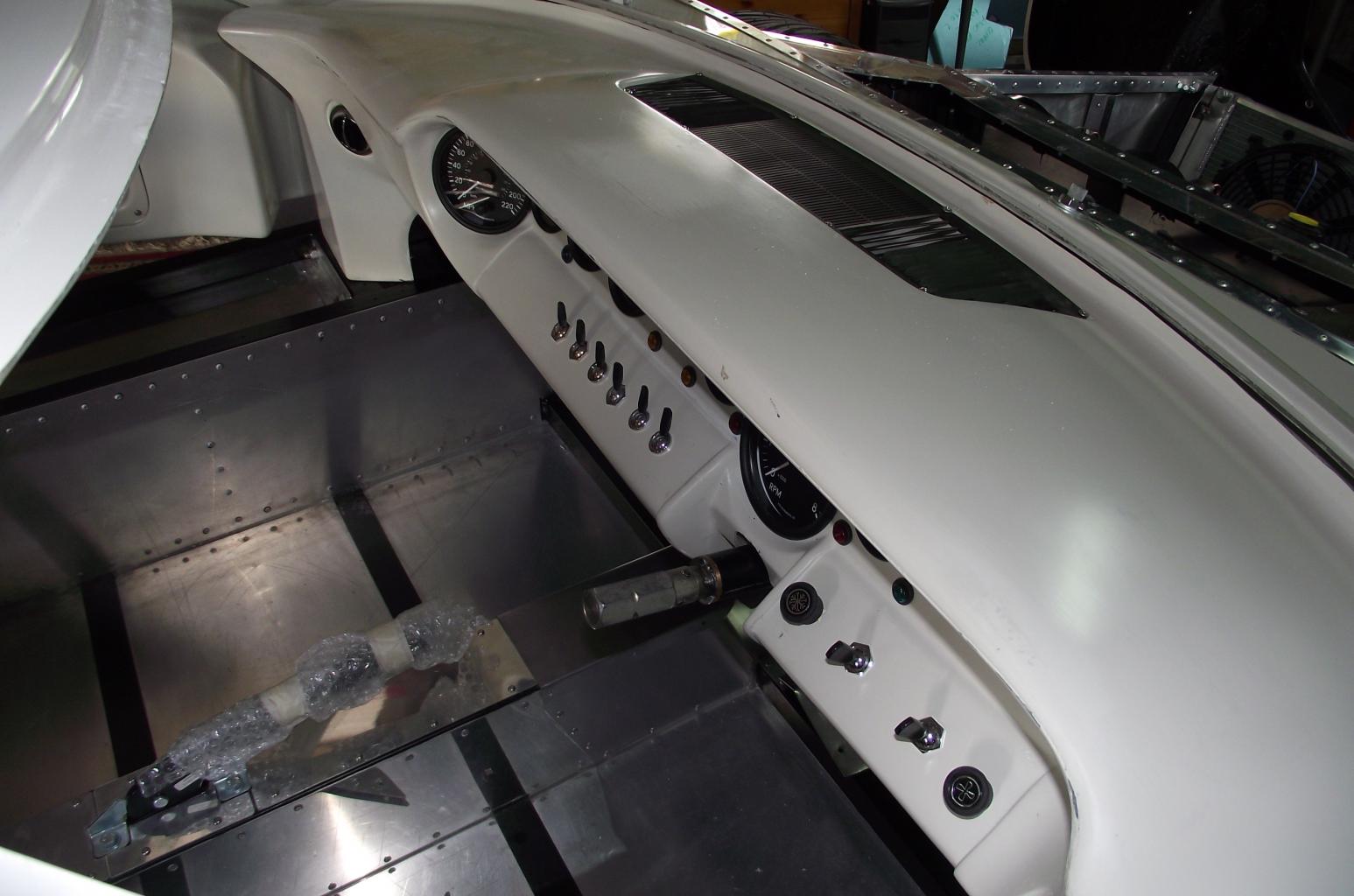

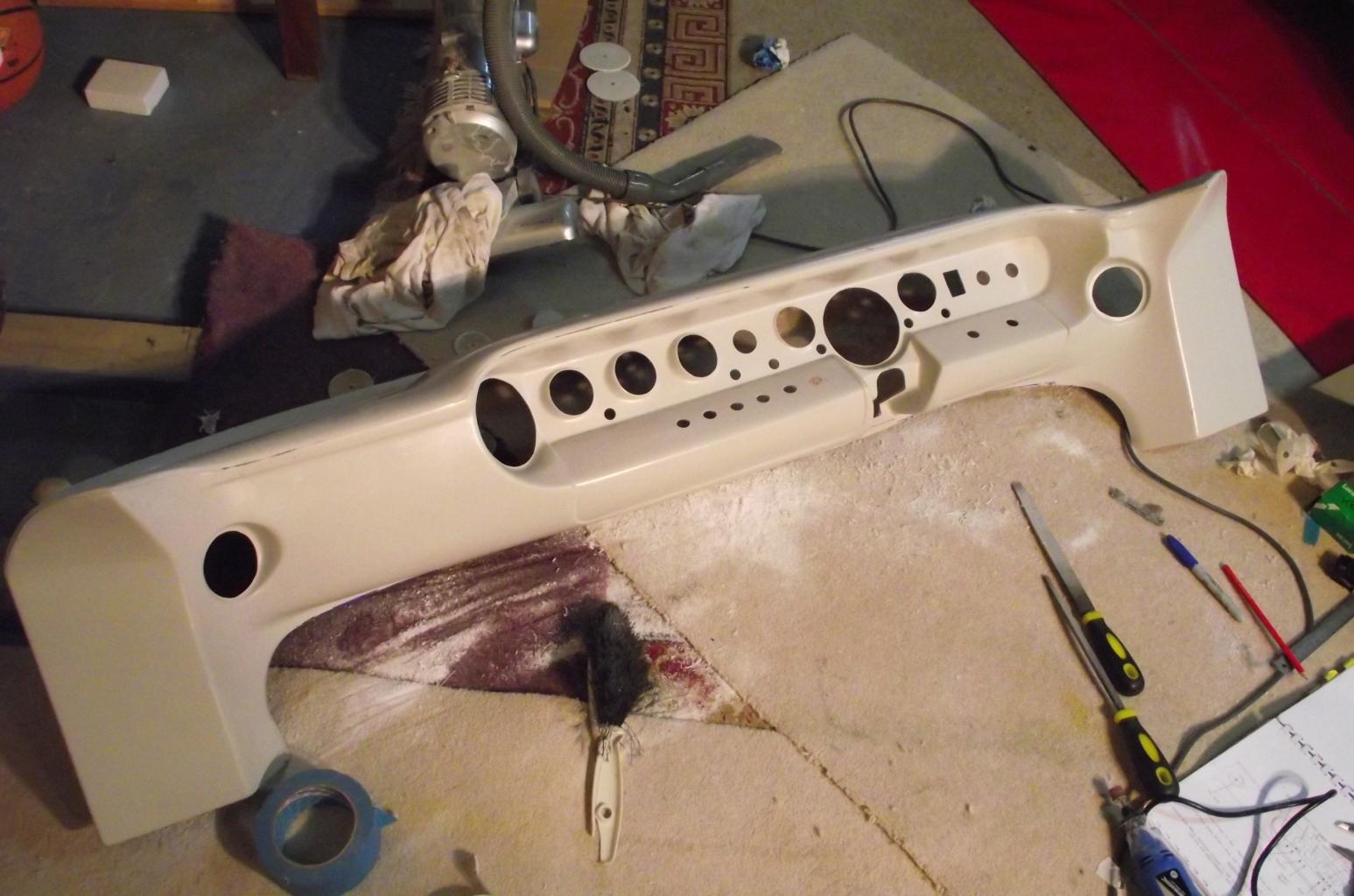

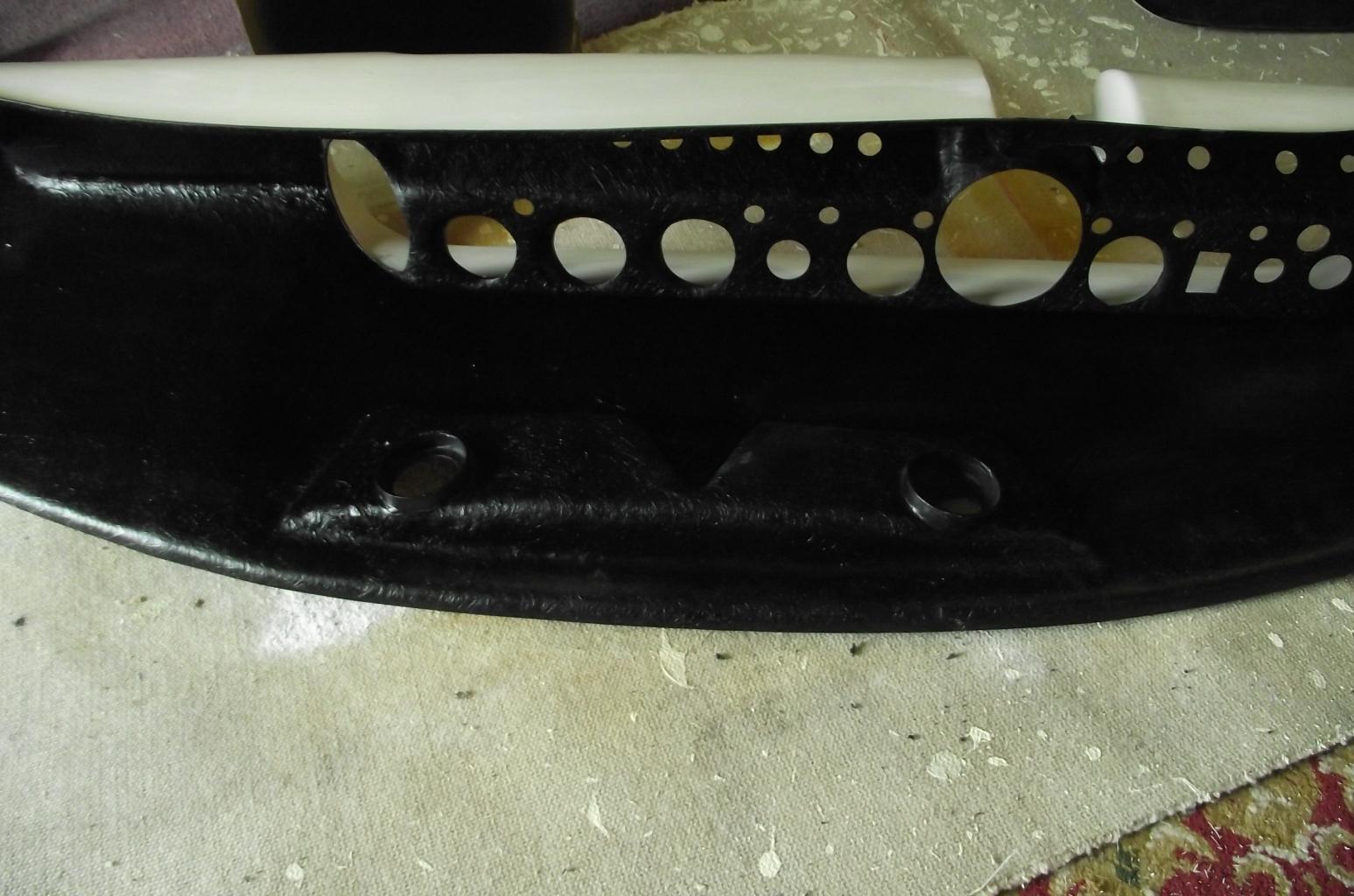

Worked on the dash this weekend, managed to get most of the gauges and switches finished. Will need to take them back out again to sand and finish the dash ready for flocking. I also had to group all the toggle switches together for the IVA test. Next weekend, I'll make a start on the A/C system.

No real conclusion yet as to which way I'll go with the engine options.

Ian

Ian Bissett · 27th March 2011, 12:51 PM

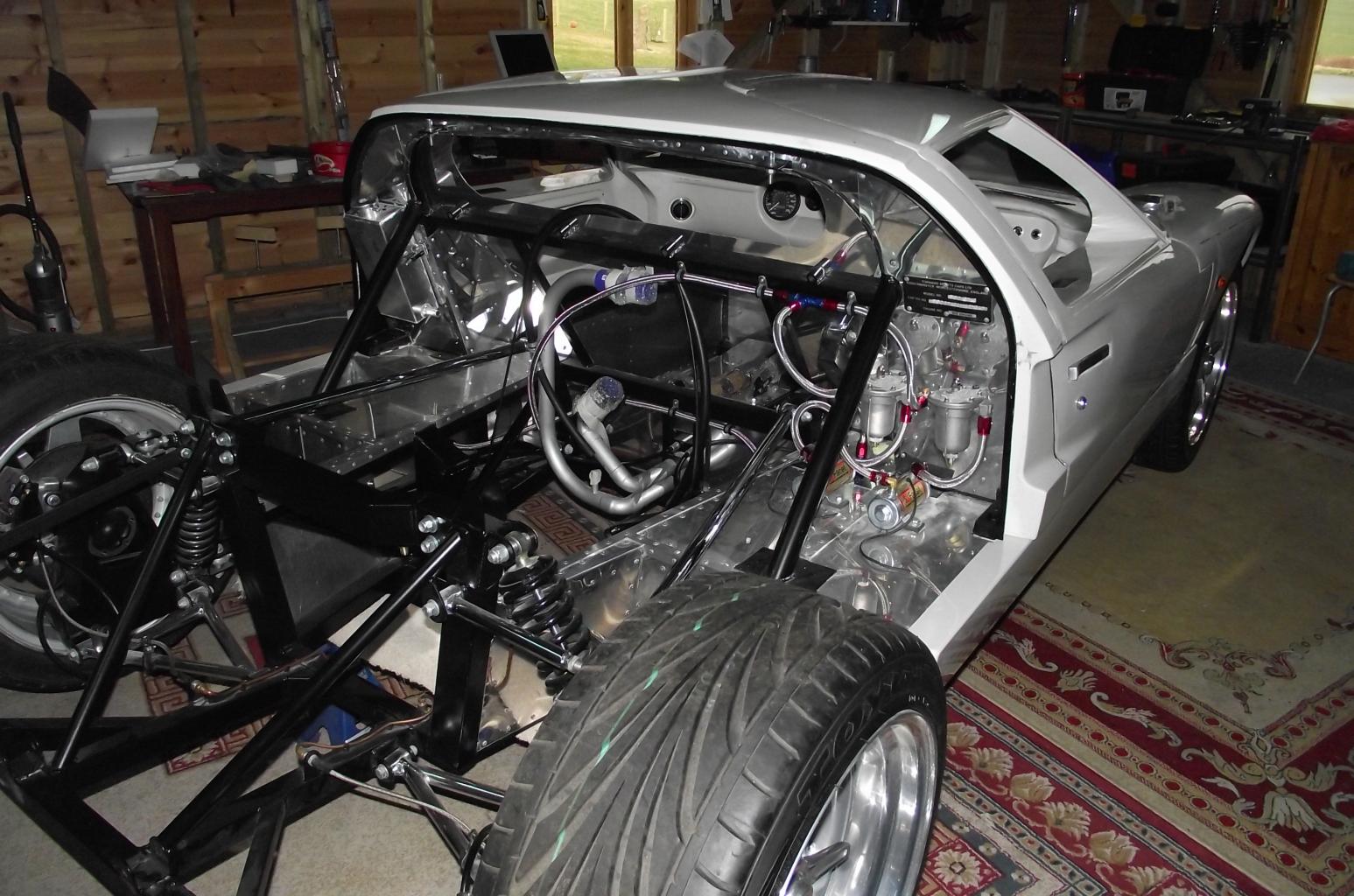

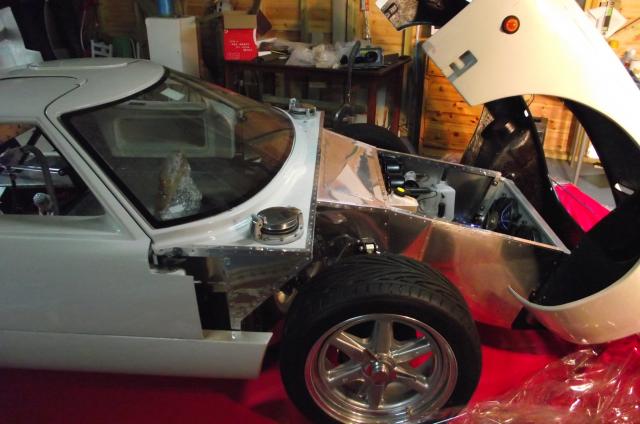

Fuel system now plumbed in.

Ian Bissett · 3rd April 2011, 01:20 PM

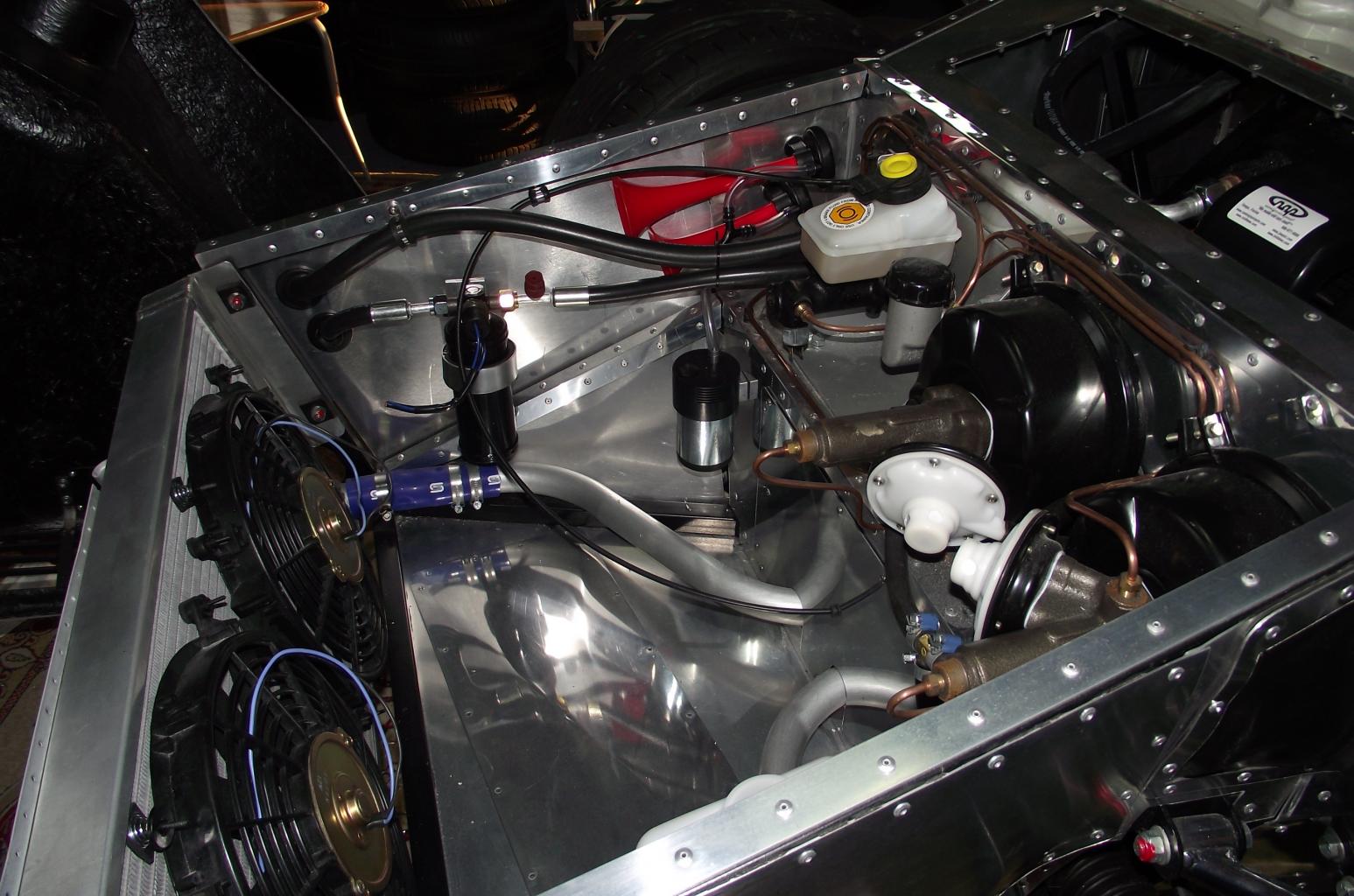

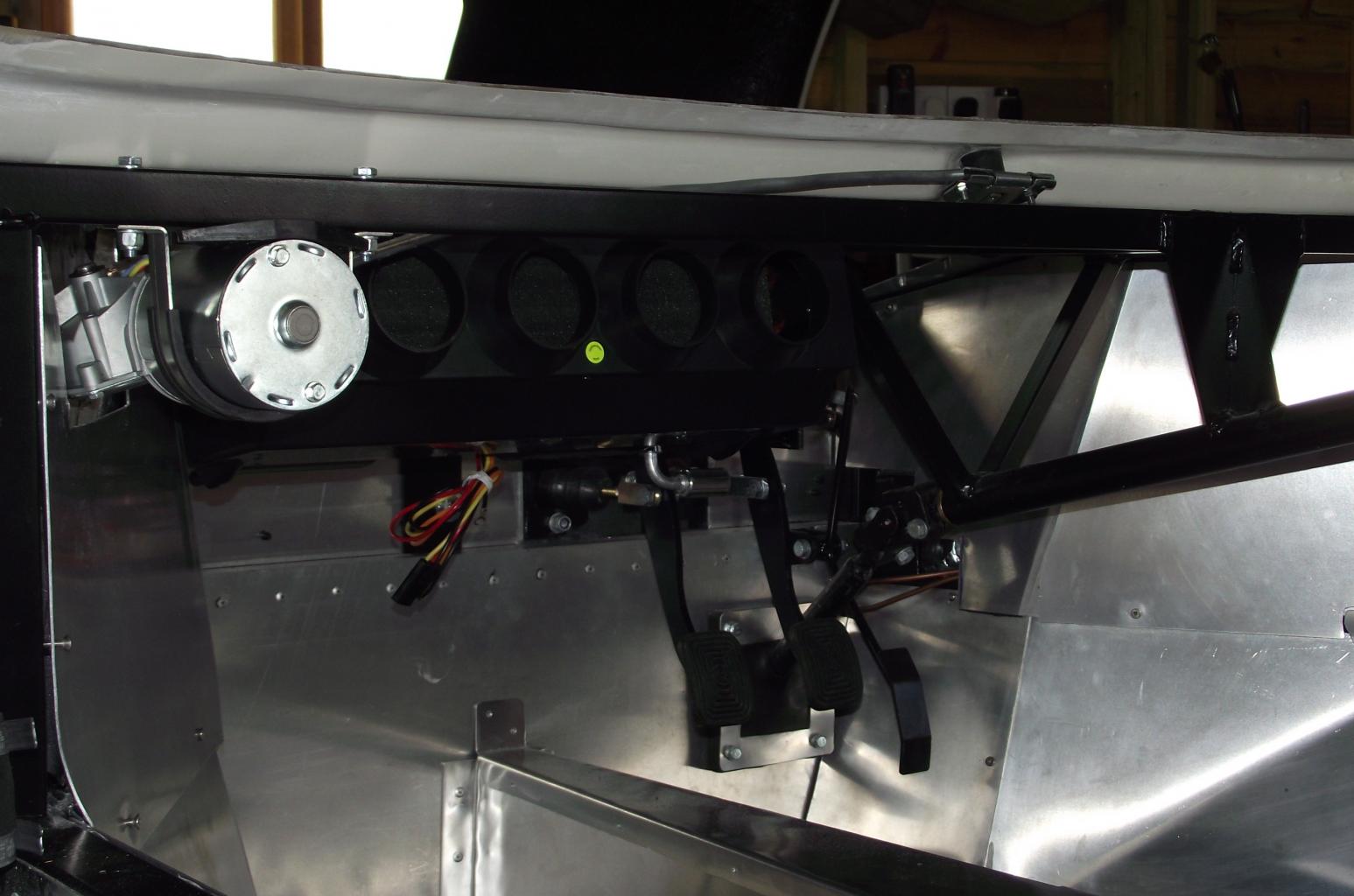

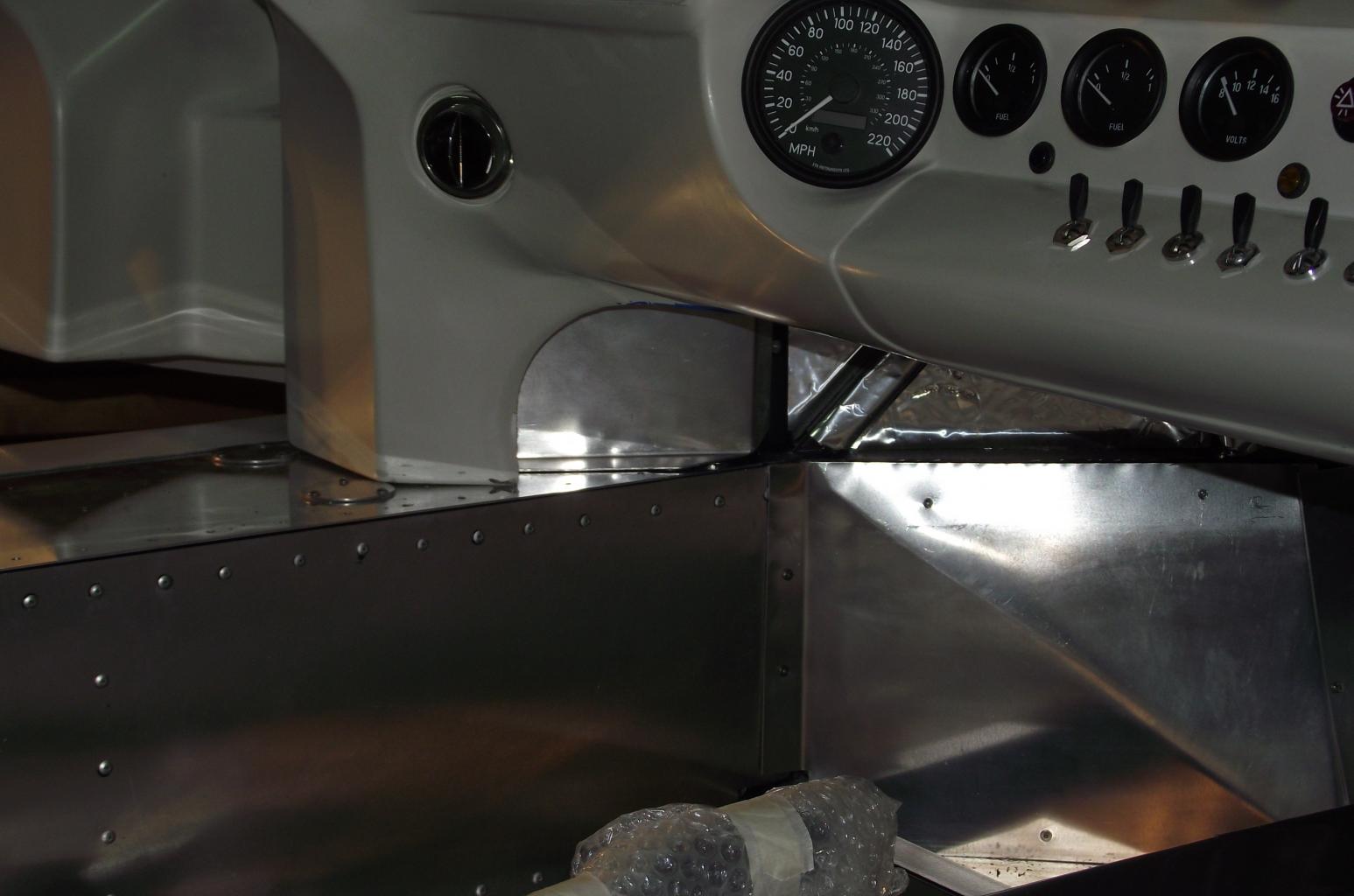

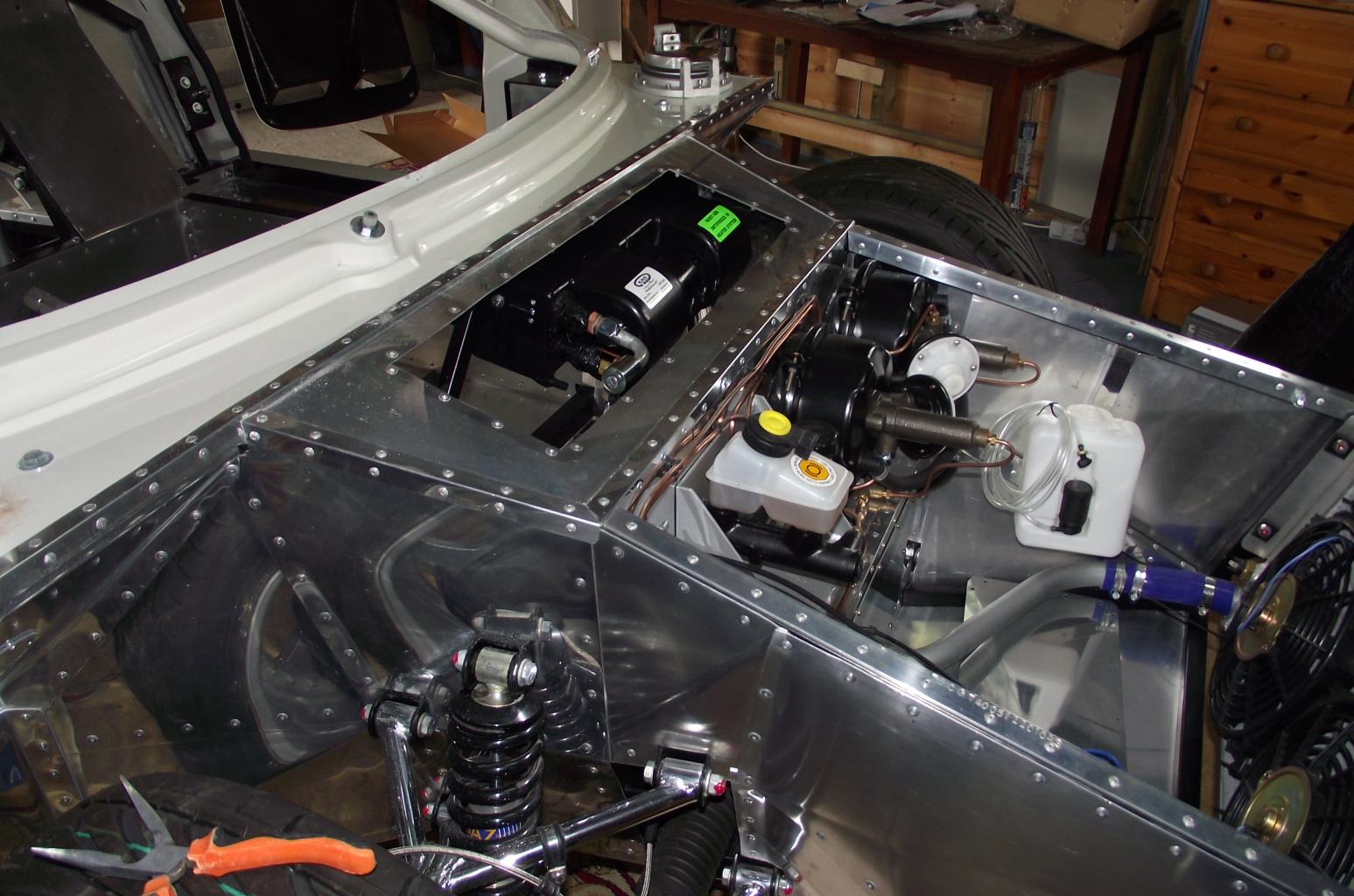

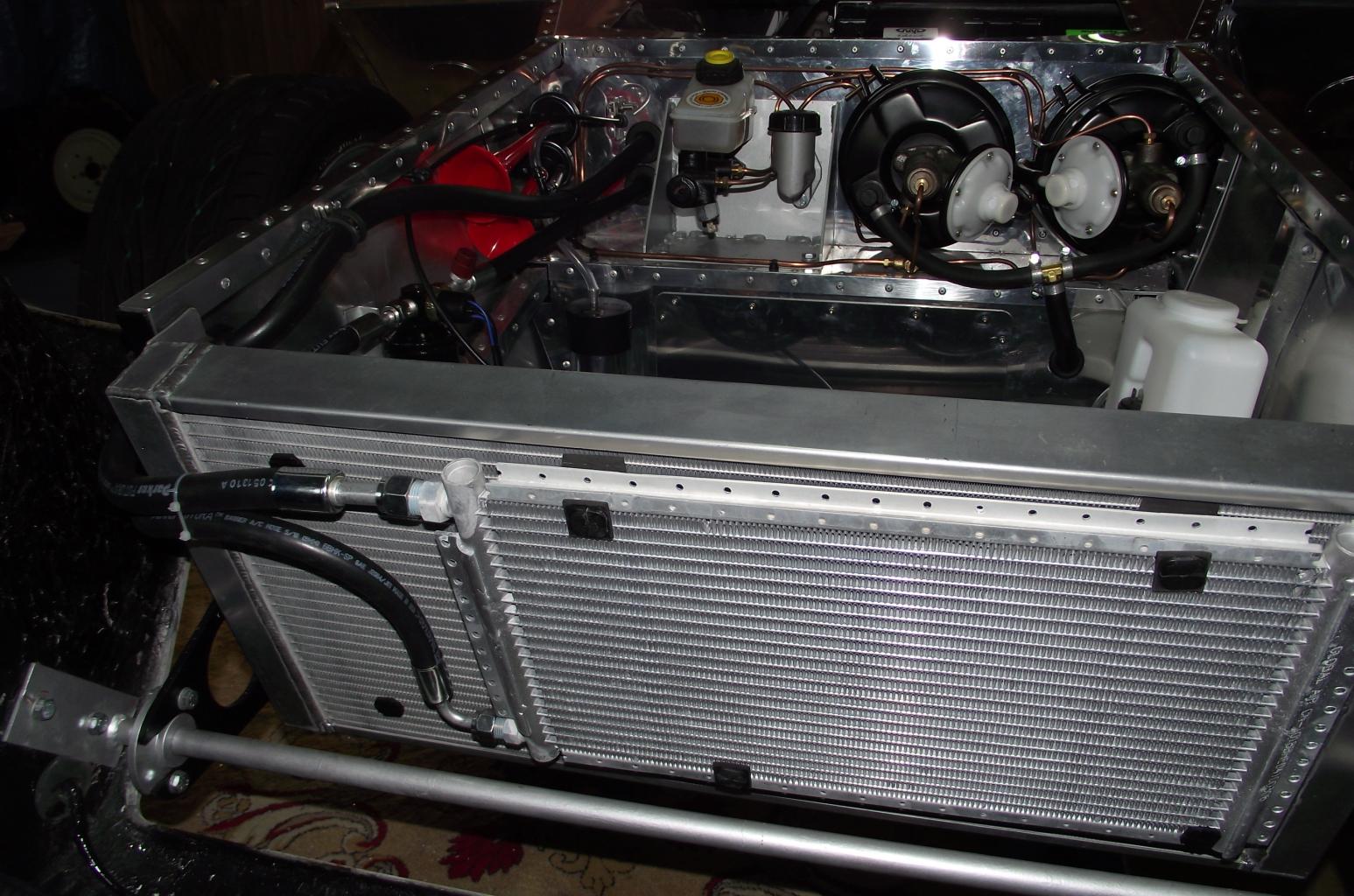

Fitted the main components of the a/c system this weekend and located the switches on the dash, just need to run the piping. Also fited the windscreen wiper motor and cabling.

Dalton Veitch · 3rd April 2011, 11:19 PM

Ian, which are the air conditioning controls?

Ian Bissett · 5th April 2011, 02:19 AM

The two small black knobs on the lower RHS of the dash; one is the fan the other the temperature control.
Ian

Ian Bissett · 6th April 2011, 03:51 PM

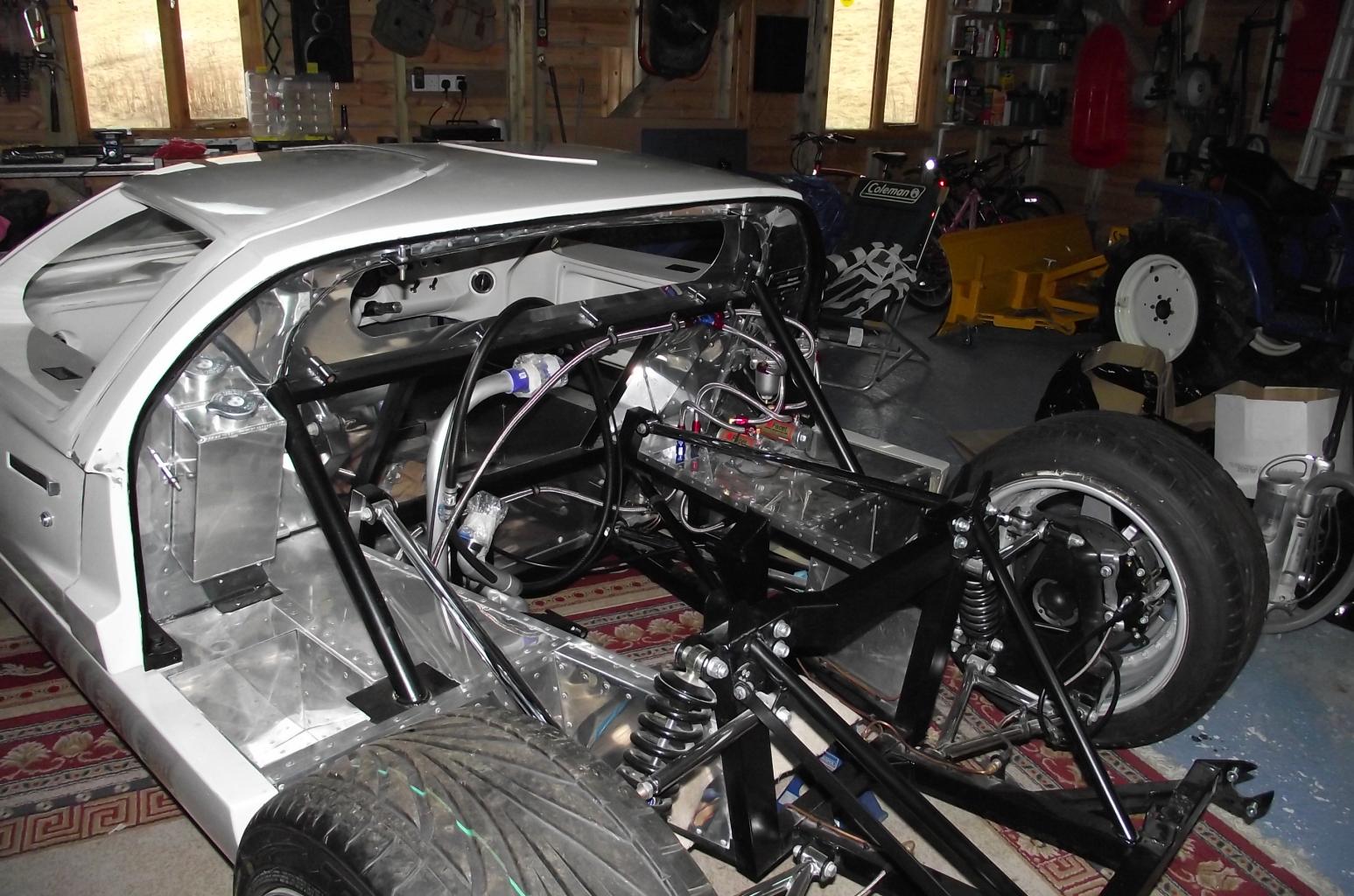

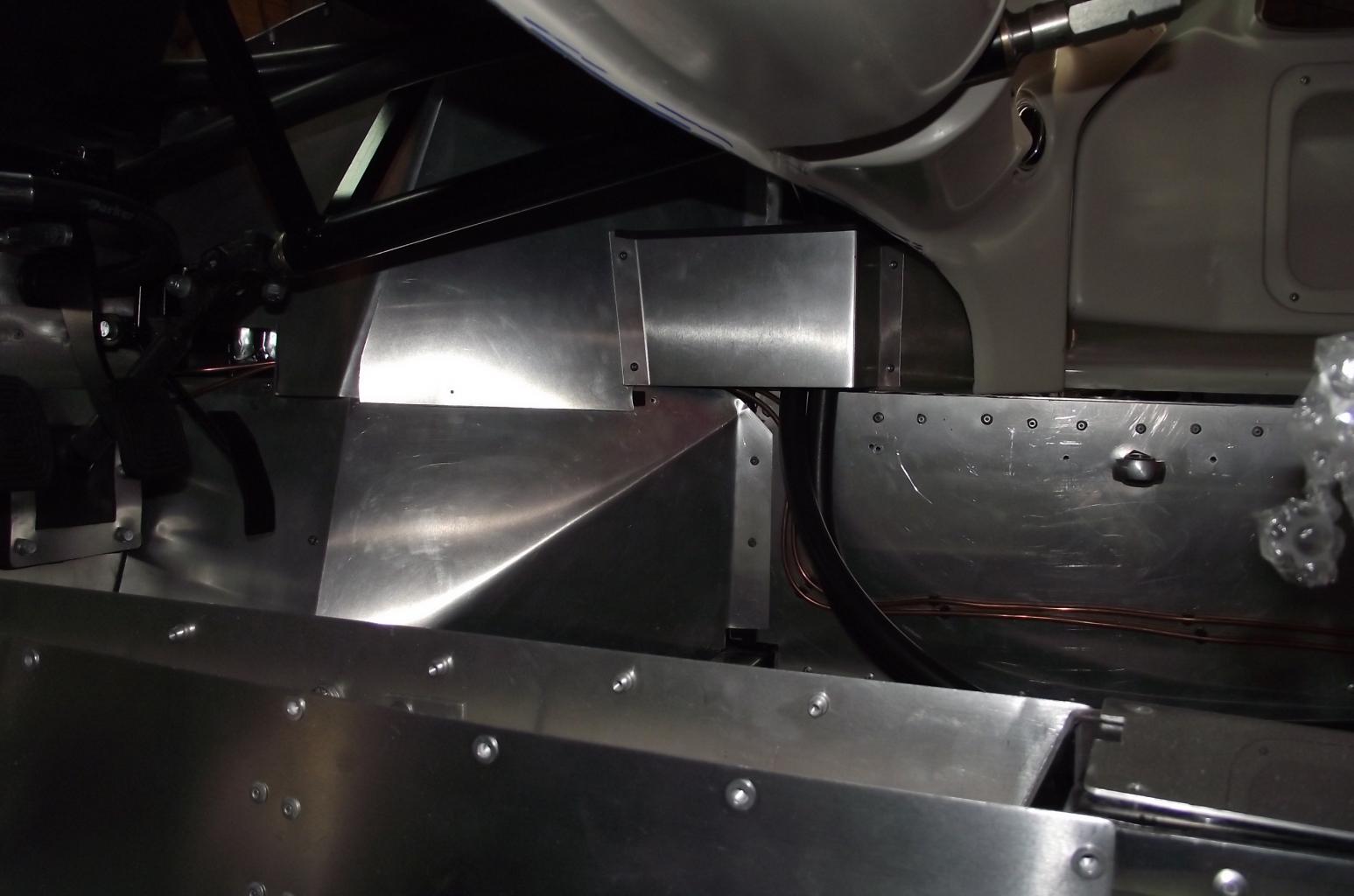

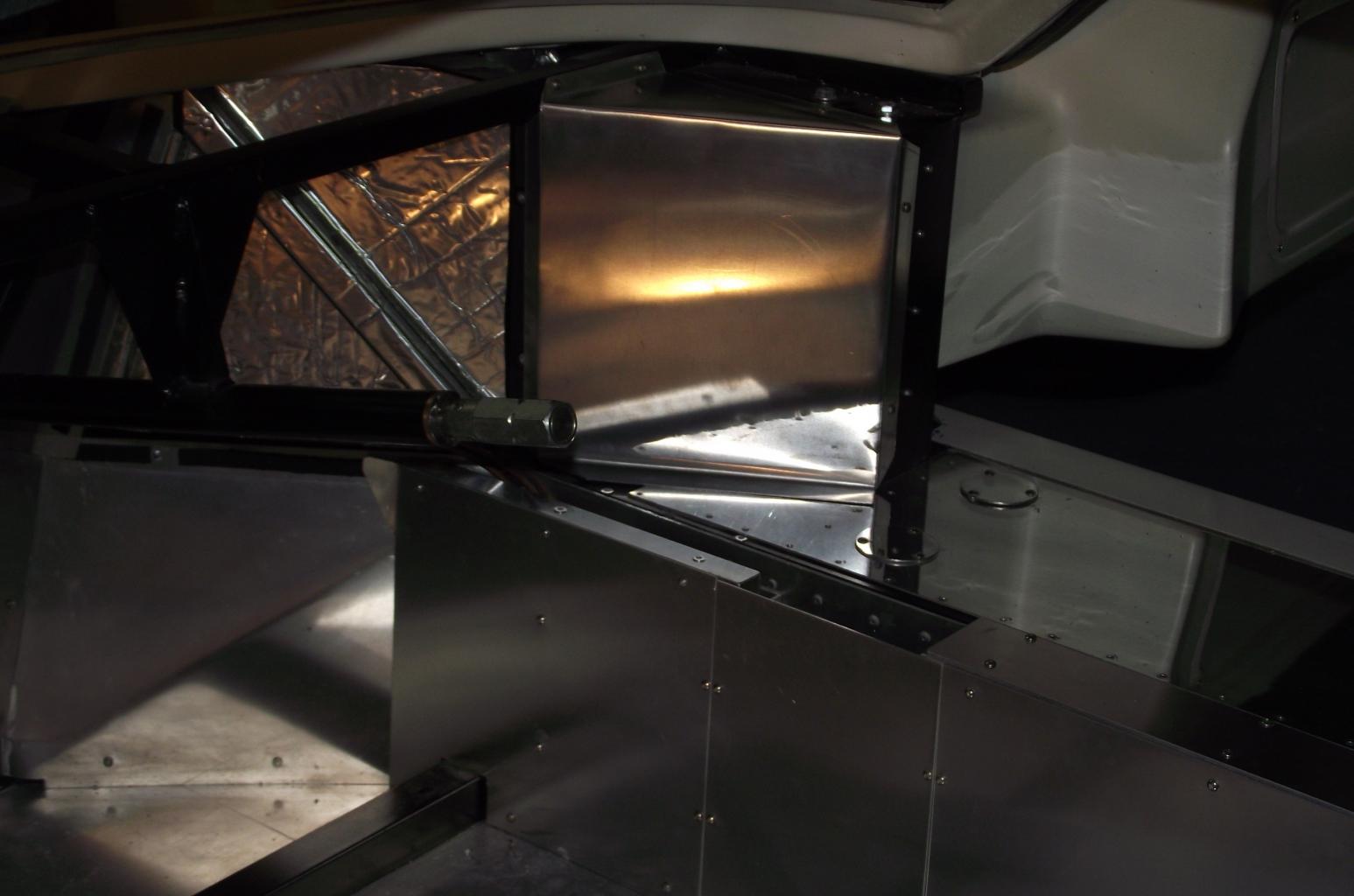

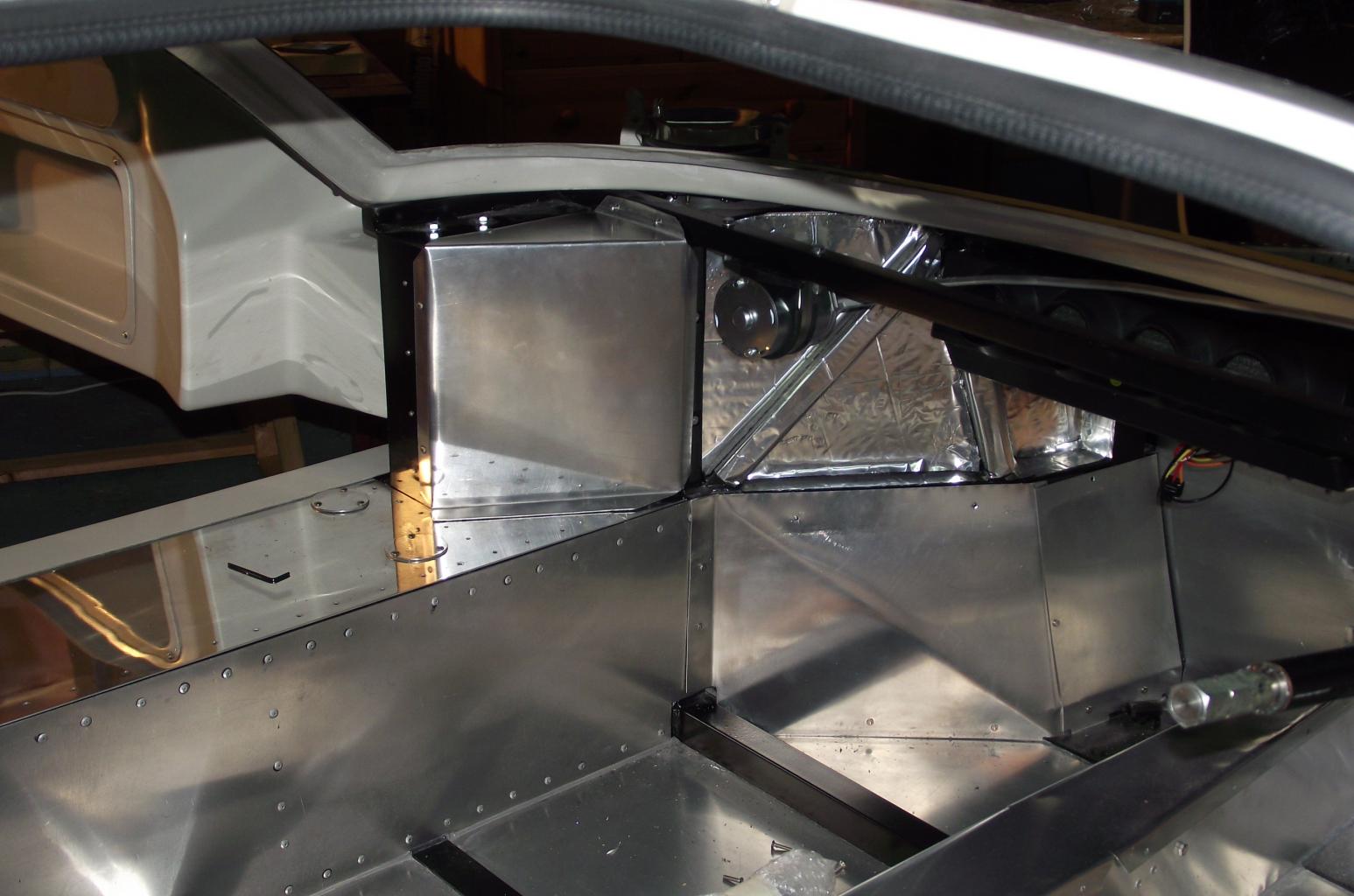

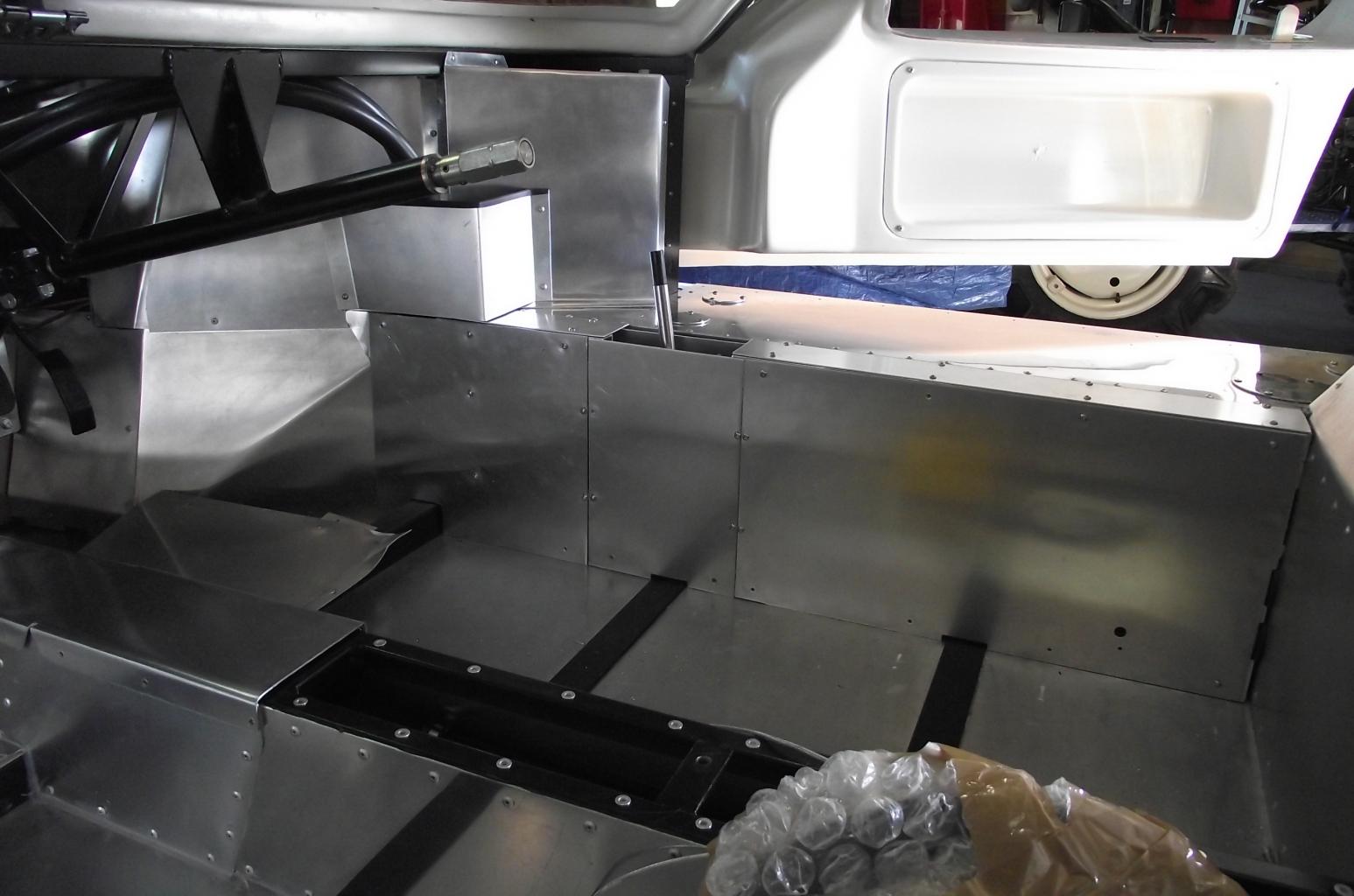

Panelled in the fuel tank downpipes from the cabin. I will also fit another panel on the drivers side to hide all the pipes for the heating and A/C system which I will run down and bekow the gear cover.

Ian Bissett · 25th April 2011, 04:22 PM

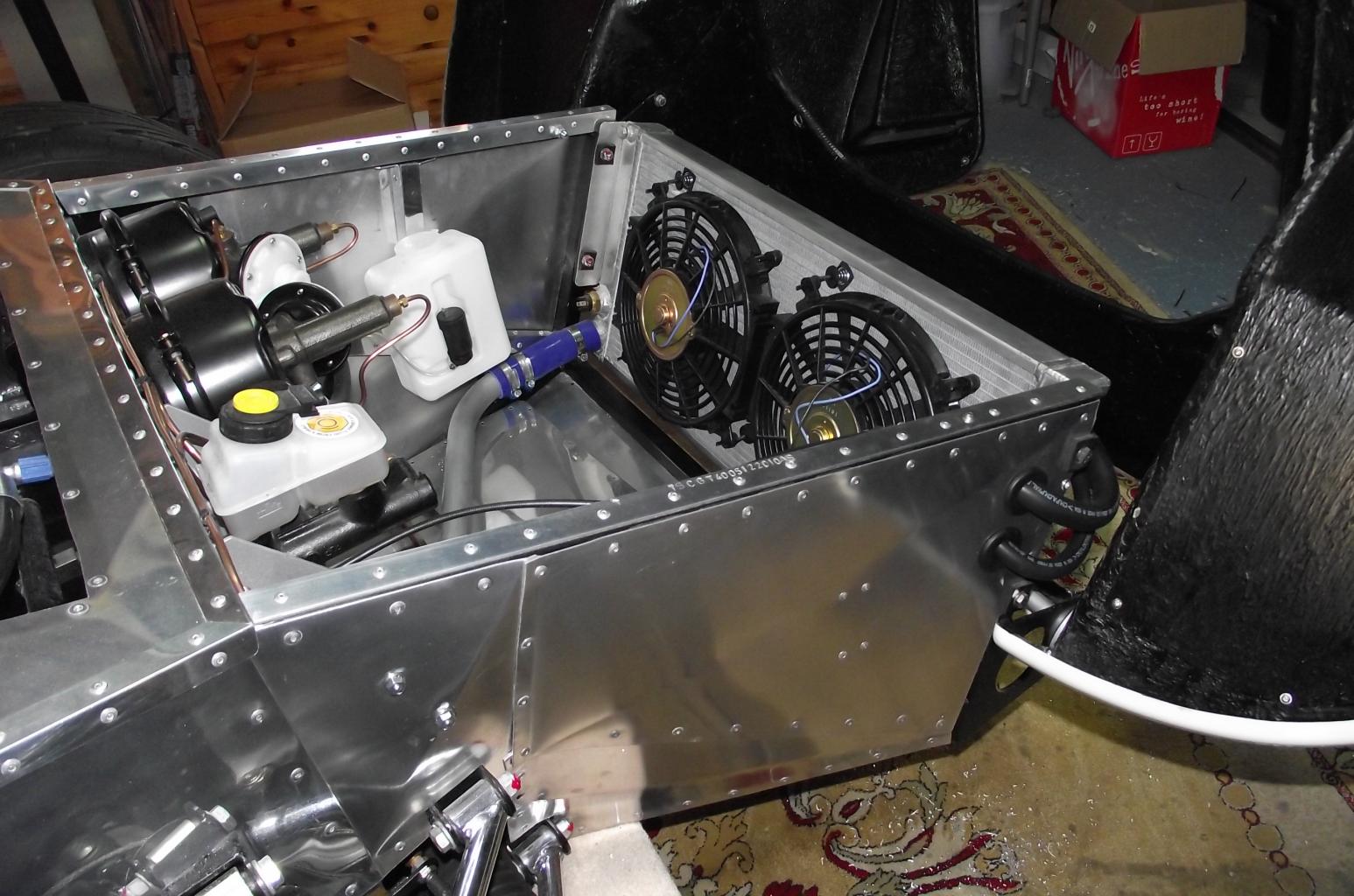

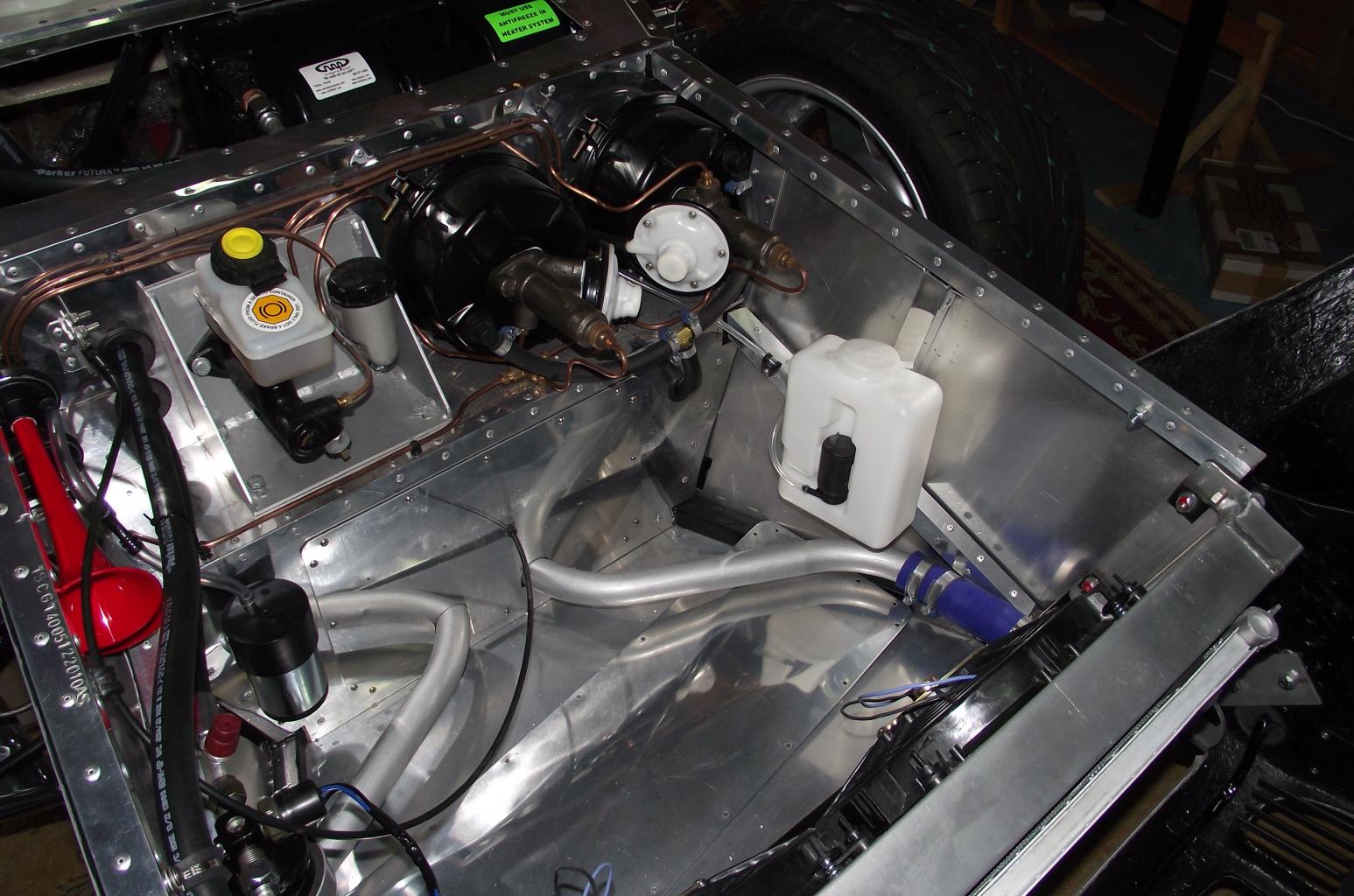

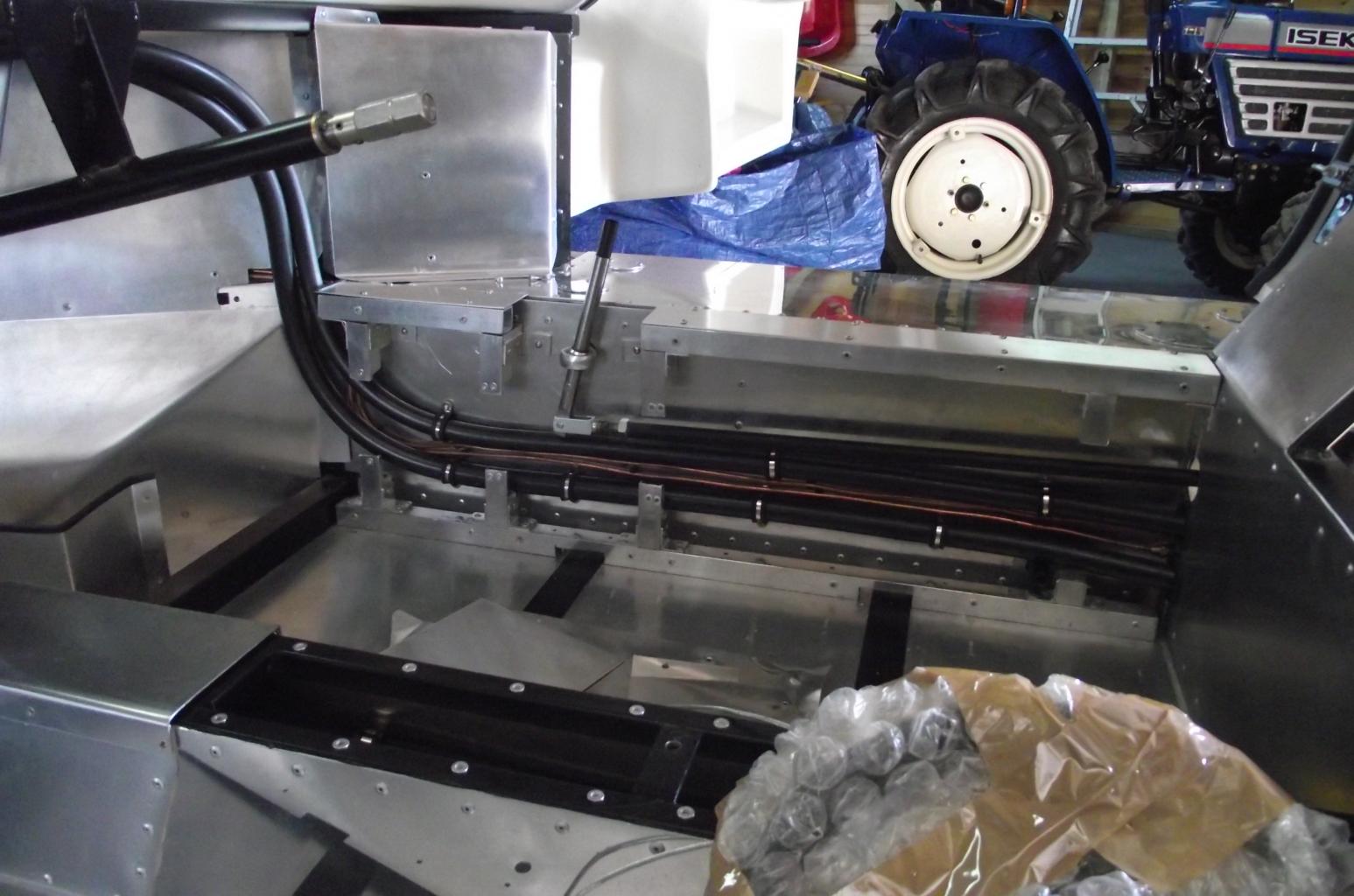

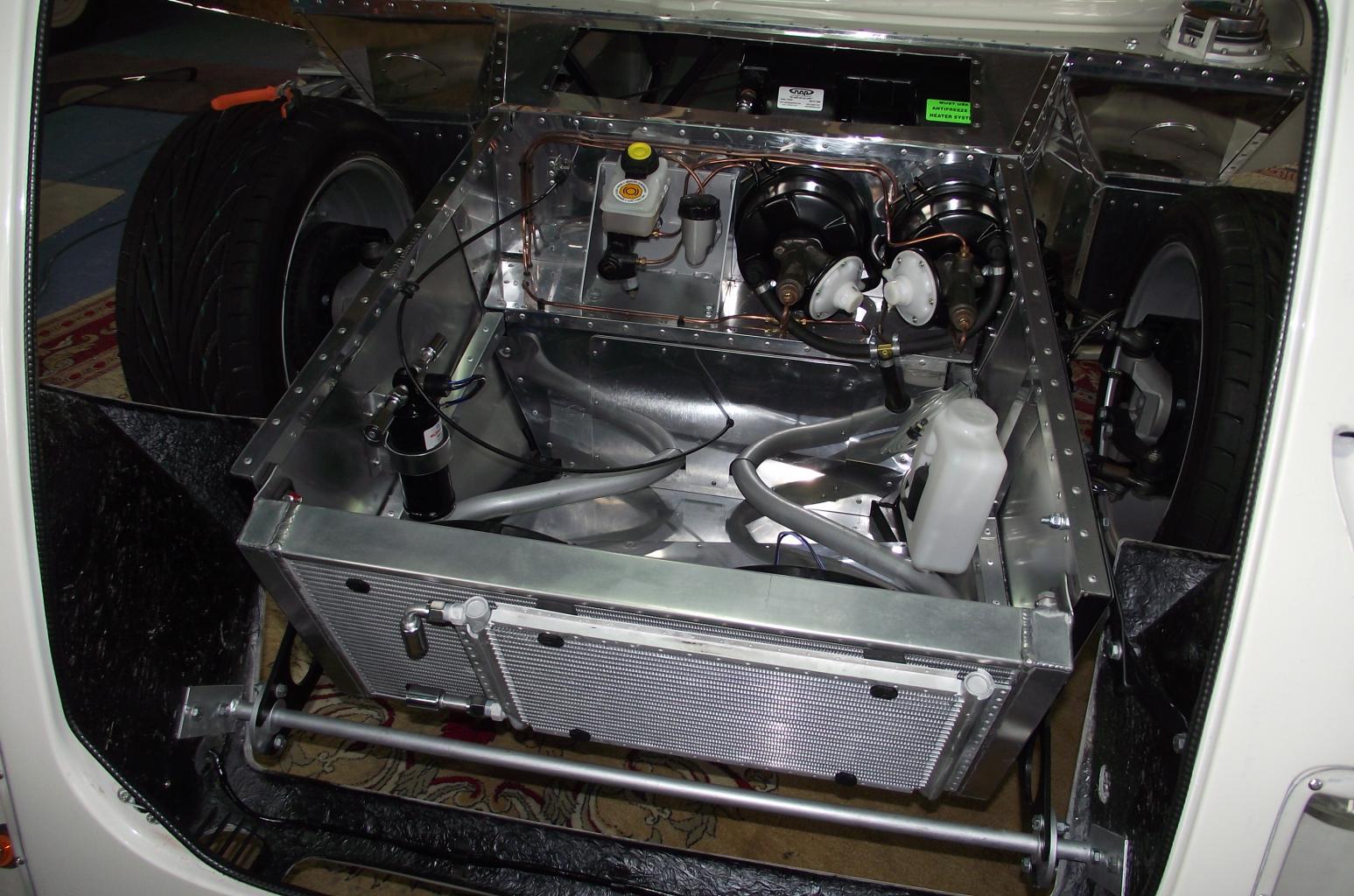

All the A/C hoses now run, just need to have the ends crimped and locate a few ties for it. Fitted a cover for the A/C hoses. Also fitted the car horn, located the windscreen wash injector and ran the hose for it.

Jon · 25th April 2011, 04:30 PM

Looking really good Ian, not far to go and IVA will be on the cards.

Ian Bissett · 2nd May 2011, 01:39 PM

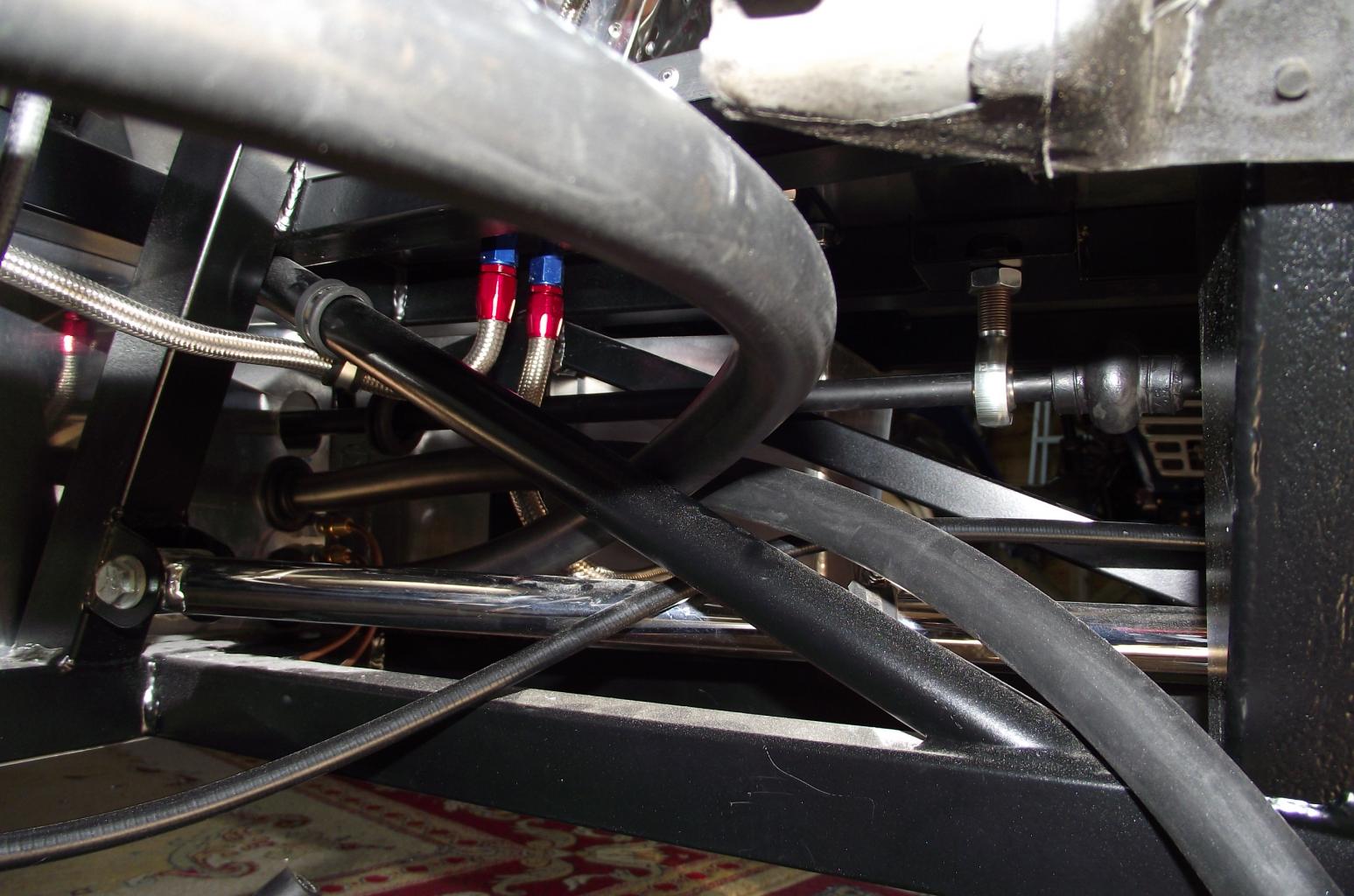

Installed the gear arms and fixed the A/C hoses under the gear arm. Its a bit busy below the gear arm now so I'll have to run the heater hoses down the central tunnelalong with the wiring loom.

Andy Green · 2nd May 2011, 03:49 PM

Hi Ian,
don't forget that you only need to have one heater hose to the engine. The return hose can be tapped into the main coolant return pipe to the engine at the front of the car, giving you more space in the central tunnel for the electrical harness etc.

Regards,
Andy

Ian Bissett · 2nd May 2011, 05:20 PM

Andy, good suggestion; trouble is I have already run the cooling pipes and I'd have to cut and solder a tie-in for the return. I think I can get the two hoses and the loom down the central tunnel but if not, I'll keep your suggestion up my sleeve.
Thanks
Ian

Brett James-McCall · 2nd May 2011, 06:09 PM

Quote:

Originally Posted by saxoncross

Hi Ian,
don't forget that you only need to have one heater hose to the engine. The return hose can be tapped into the main coolant return pipe to the engine at the front of the car, giving you more space in the central tunnel for the electrical harness etc.

Regards,
Andy

Firstly Ian apologies for thread drift slightly

Secondly - Andy, why can't you take the feed and retuen further down the tubes? Why does one have to be at the engine?

Andy Green · 3rd May 2011, 05:27 AM

Hi Brett, Ian,

Sorry I didn’t explain my self very well for this reasoning.

The heater feed pipe needs to before the thermostat for it to function correctly i.e. hot water is fed to the heater matrix before the thermostat opens. I’m assuming that Ian’s engine will use a conventional thermostat & water pump as Ford designed it.

On my engine / set-up I have an electric water pump & bypass thermostat mounted at the front of the car and as a consequence I have my heater feed & return in the pipes between the thermostat & the pump (in the front bulkhead above the steering rack)

Regards,
Andy

Ian Bissett · 15th May 2011, 12:52 PM

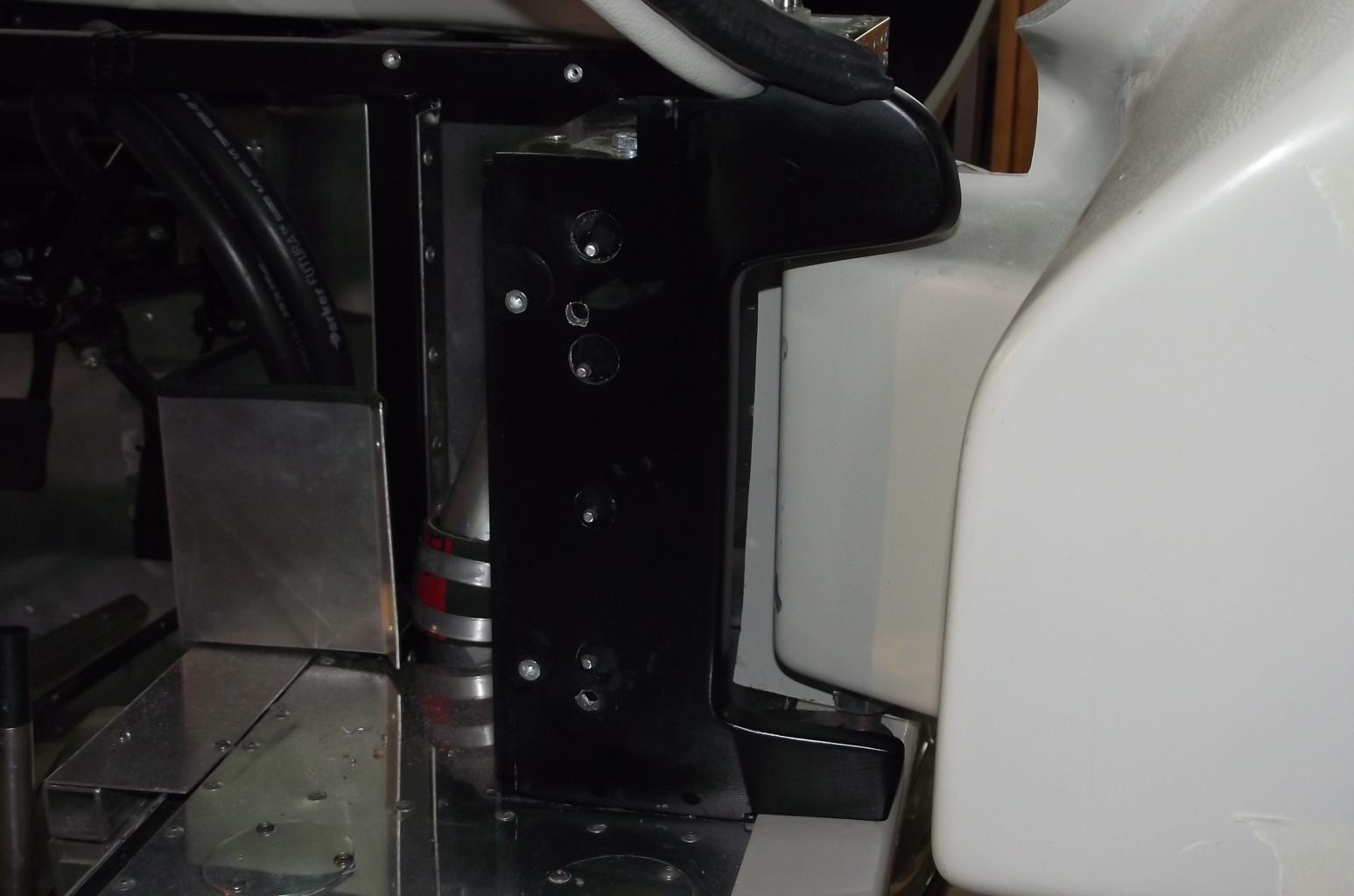

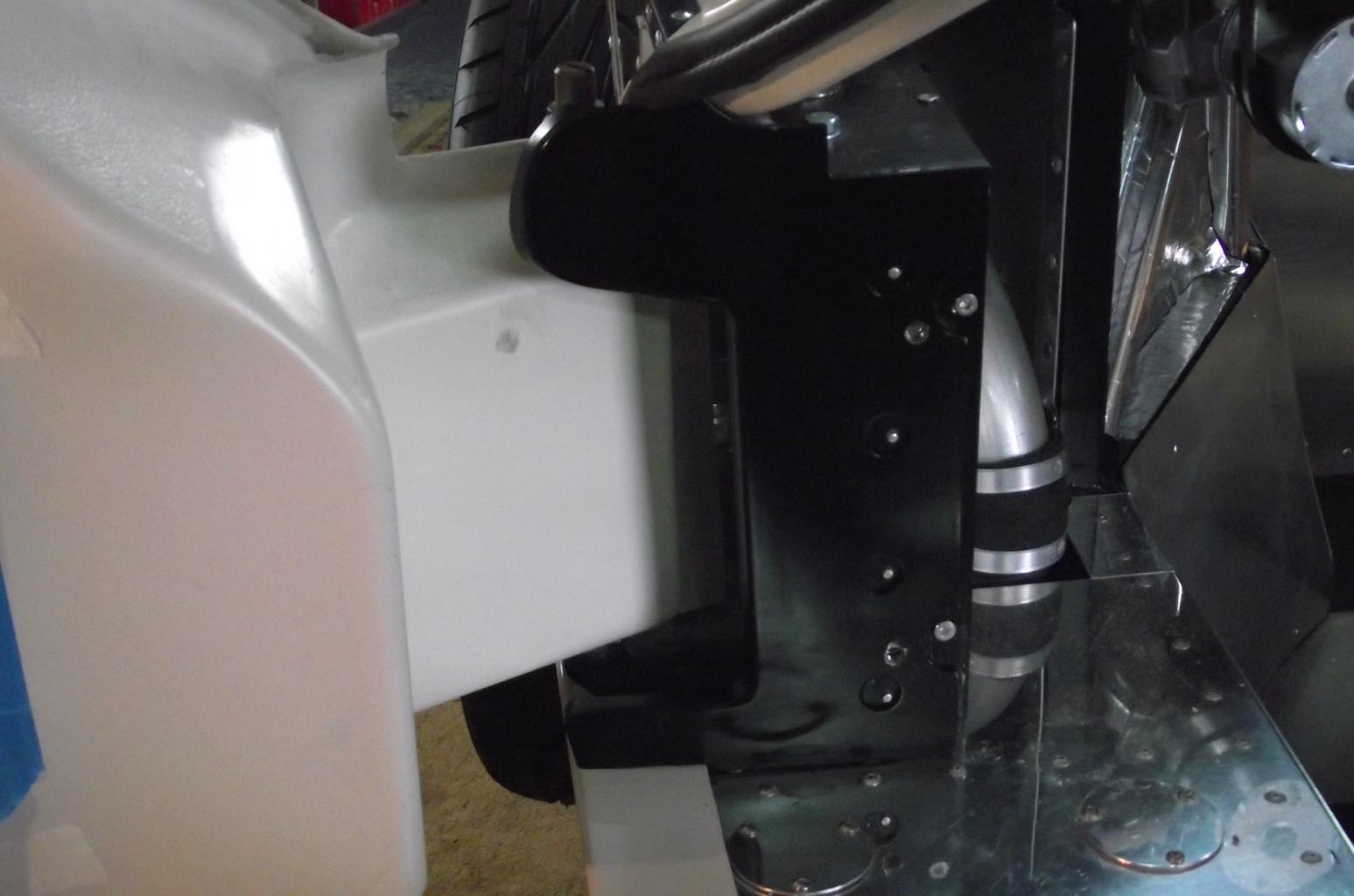

Made up and fitted a couple of 2" tubes to connect the a/c ducts to the dash and painted the inside. Also cut, prepared, painted and fitted the door end closure panels.

Ian Bissett · 15th May 2011, 12:57 PM

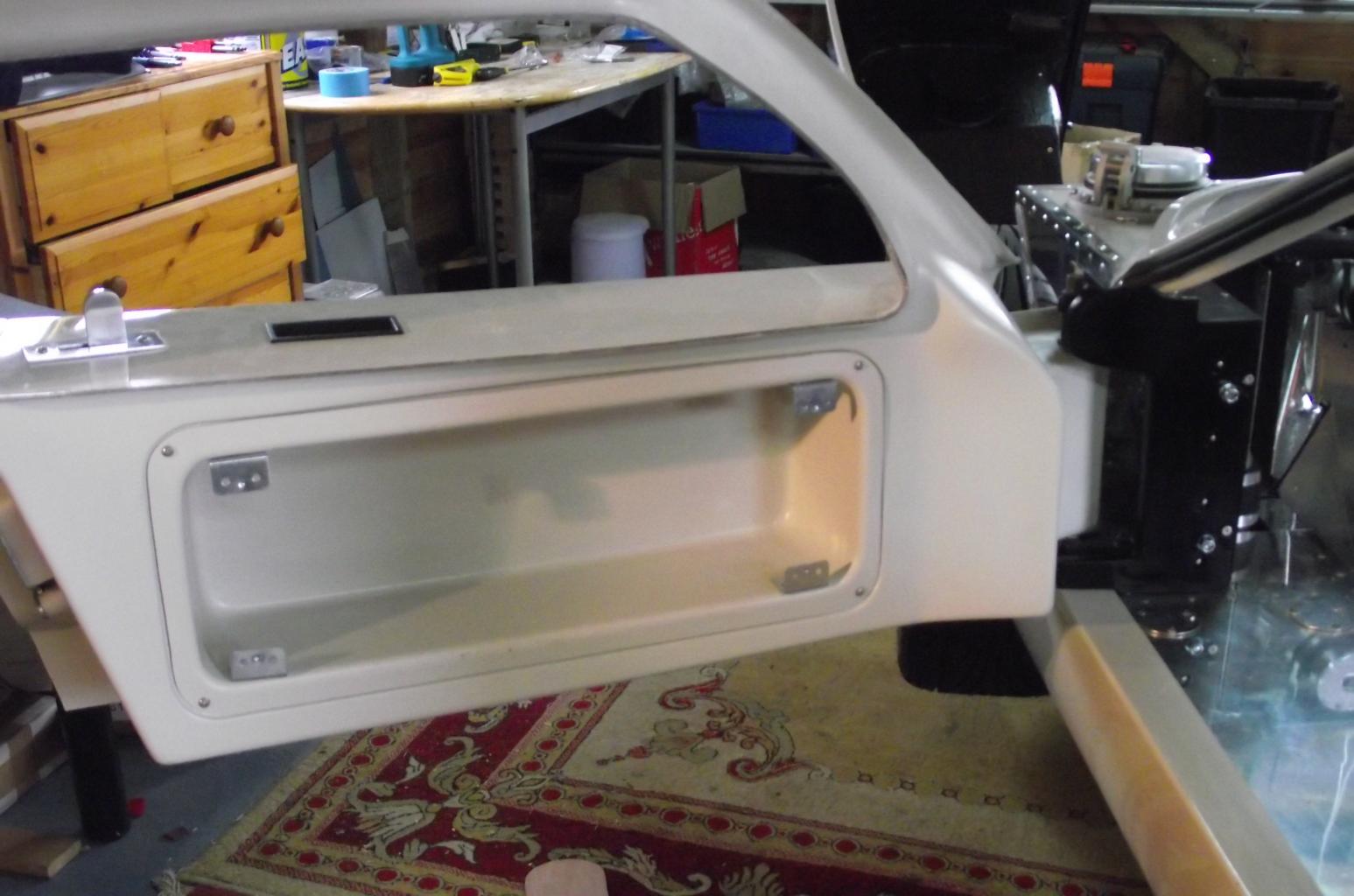

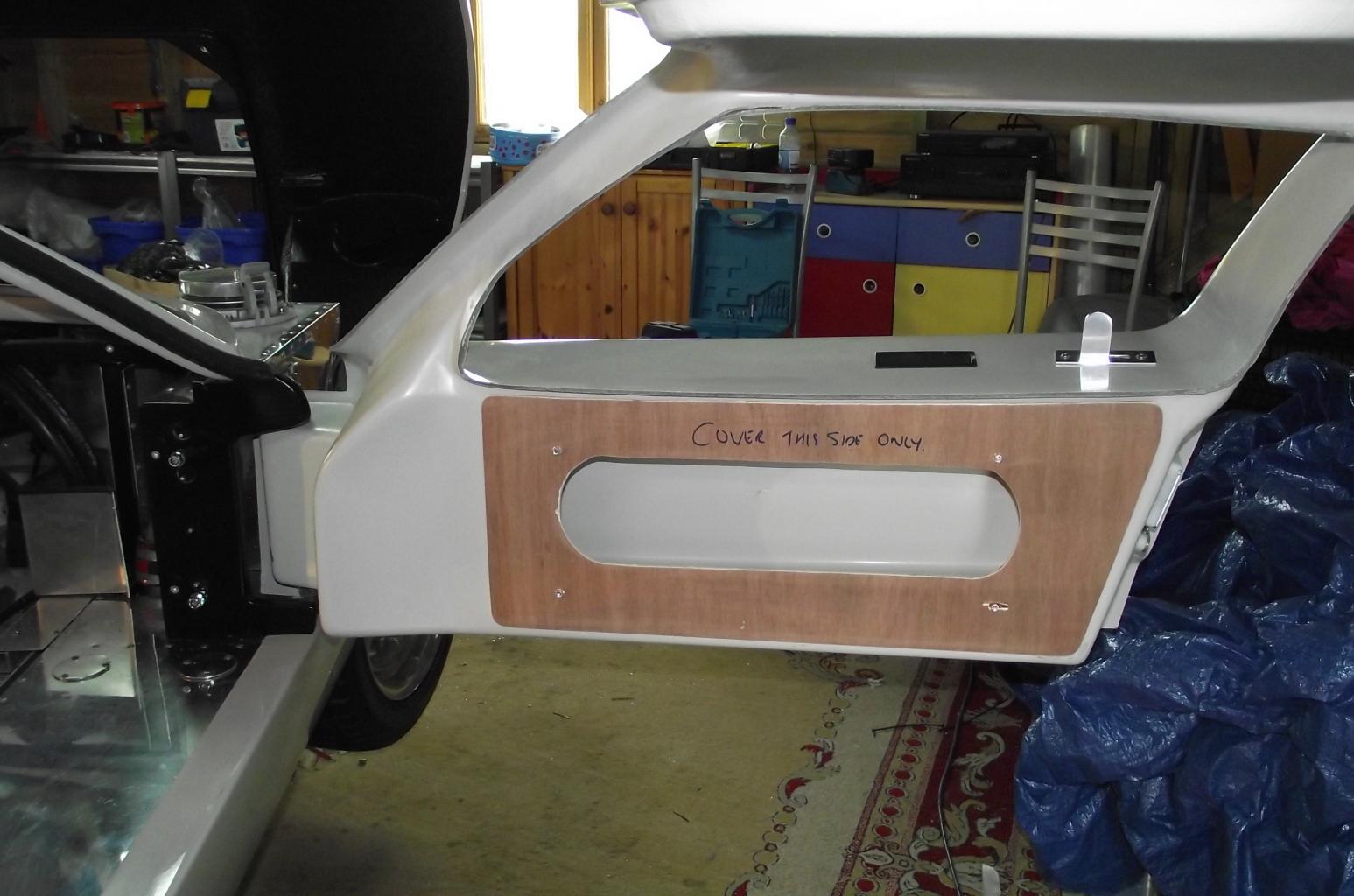

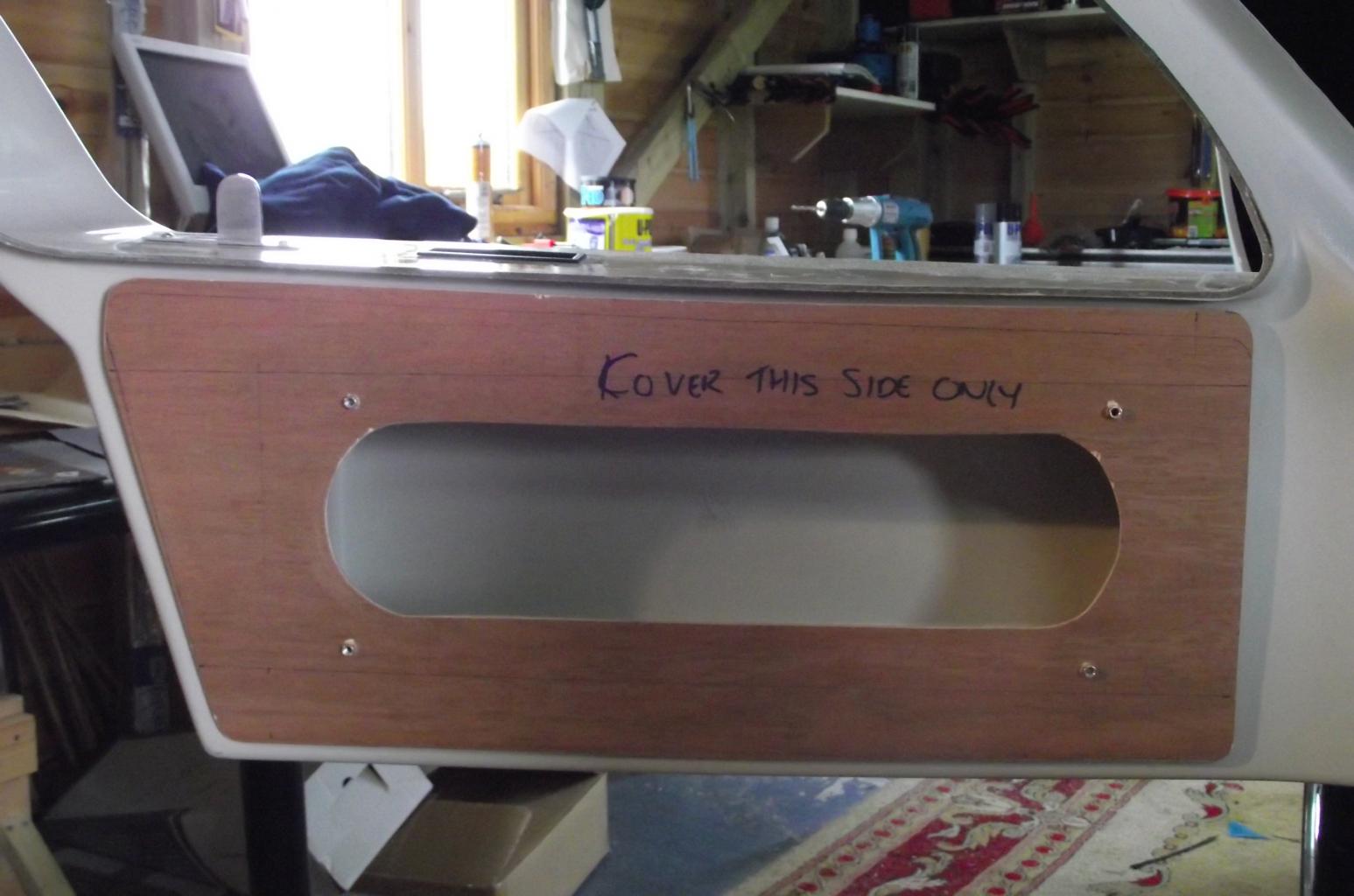

.......forgot to mention that I also made up a couple of door panels out of marine ply. Used a couple of angle brackets with 4 rivnuts to bolt the wood panel to the bracket. These will be covered with a foam layer, then black leather.

Scott Calabro · 15th May 2011, 01:13 PM

Terrific work Ian, nice job!
