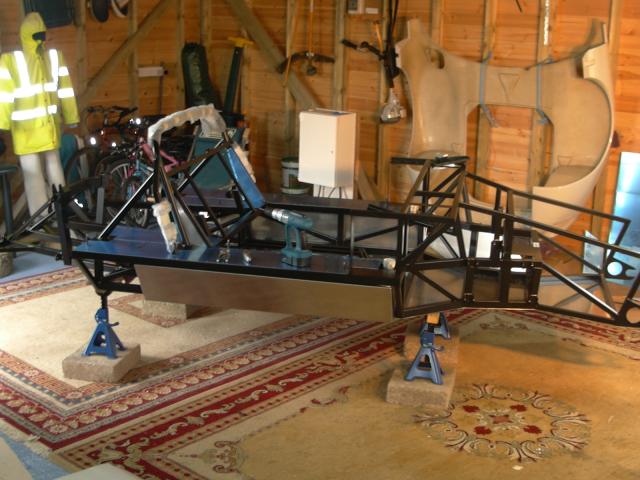

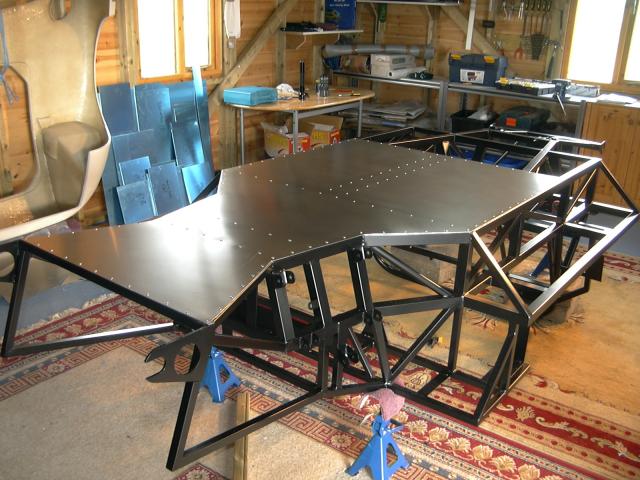

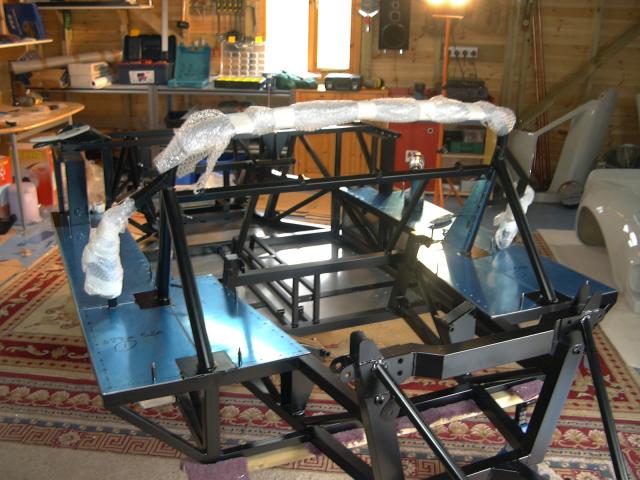

Here is the start of my build log for anyone that might be interested (started around 3 weeks ago but have been slow to start a log). I bought a Basic Kit package from Tornado along with the aluminium panels, LSD gearbox, suspension and shocks, steering system, cooling pipes, fuel tanks and glasswork . I arranged delivery to Scotland, which went slightly pear shaped as the shipper let me down a bit, but thatís another story! Nevertheless, when they did arrive to collect, Andy was very helpful and made sure that it was loaded and secured safely for transport. Everything did arrive safely (eventually) and with only a minor damage on the two corners of the front panels, nothing that cant be easily fixed during body preparation. A few photos attached.
Attached Thumbnails
Scotland Tornado-p1010141-jpg   Scotland Tornado-p1010147-jpg   Scotland Tornado-p1010150-jpg
Ian B is offline   Reply With Quote
Old 16th September 2009, 02:39 AM   #2
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

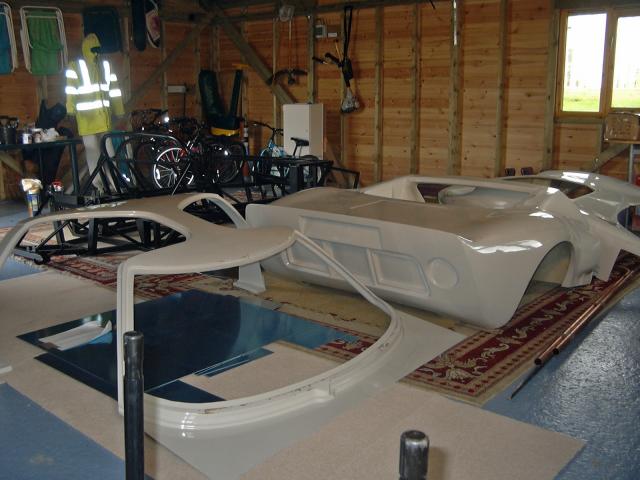

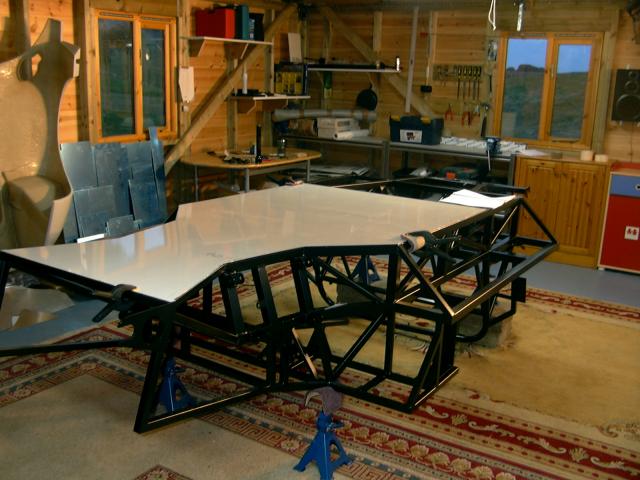

A few more photos....
Attached Thumbnails
Scotland Tornado-p1010156-jpg   Scotland Tornado-p1010159-jpg
Ian B is offline   Reply With Quote
Old 16th September 2009, 03:28 AM   #3
Professor Plumpe
Moderator
Keith1's Avatar
Keith1
School for Scandal
United Kingdom

Join Date: Mar 2004
Location: Wessex
Posts: 9,699
Re: Scotland Tornado

Ian, I vote yours the classiest garage floor on the forum! Luxurious rugs indeed!
Keith1 is offline   Reply With Quote
Old 16th September 2009, 03:49 AM   #4
jonnyb's Avatar
jonnyb
Bronze Supporter
United Kingdom

Join Date: Jul 2007
Location: England
GT40: Tornado
Posts: 597
Re: Scotland Tornado

Progress looks great so far. I love the garage, although being constantly watched by the bloke in the Hi-Viz might put me off!
jonnyb is offline   Reply With Quote
Old 16th September 2009, 06:40 AM   #5
simonjrwinter's Avatar
simonjrwinter
I Have No Life
United Kingdom

Join Date: Jan 2002
Location: Essex, UK
Posts: 2,879
Re: Scotland Tornado

Looking good Ian. Nice size garage. Carpet is a real bonus in the winter, trust me!
Keep us updated.
Simon
__________________
GTD40
simonjrwinter is offline   Reply With Quote
Old 16th September 2009, 07:59 AM   #6
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

The 'fella' with the high viz in the photo is a scarecrow that I built to keep the birds away from the fish. It didnt work, so he's been pensioned off to sit in the garage!? Now that the kids have given him a name, I'm not allowed to dismantle!! When is guy fawkes night again.....
Ian B is offline   Reply With Quote
Old 16th September 2009, 08:15 AM   #7
saxoncross's Avatar
saxoncross
8 Tenths
United Kingdom

Join Date: Mar 2007
Location: Norfolk, UK
GT40: Tornado
Posts: 813
Re: Scotland Tornado

Hi Ian,
congratulations on your purchase and build. Plenty of space is a real bonus when building these cars. I look forward to your updates.

Keep up the good work
Regards
Andy
saxoncross is offline   Reply With Quote
Old 16th September 2009, 08:59 AM   #8
robmlufc
Rookie
United Kingdom

Join Date: May 2009
Location: York/Rutland
GT40: GT40 kit soon
Posts: 29
Re: Scotland Tornado

I want your garage! Good luck with your build, will be keeping an eye on it as im looking at getting the same kind of kit and bits from tornado.
robmlufc is offline   Reply With Quote
Old 16th September 2009, 09:01 AM   #9
slowhand's Avatar
slowhand
6 Tenths
United States

Join Date: Apr 2008
Location: Dallas
GT40: none
Posts: 657
Re: Scotland Tornado

Ian,
Nice work so far. By the way, that's the first time I've seen wool carpets in a garage!
Garry
slowhand is offline   Reply With Quote
Old 17th September 2009, 05:12 PM   #10
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

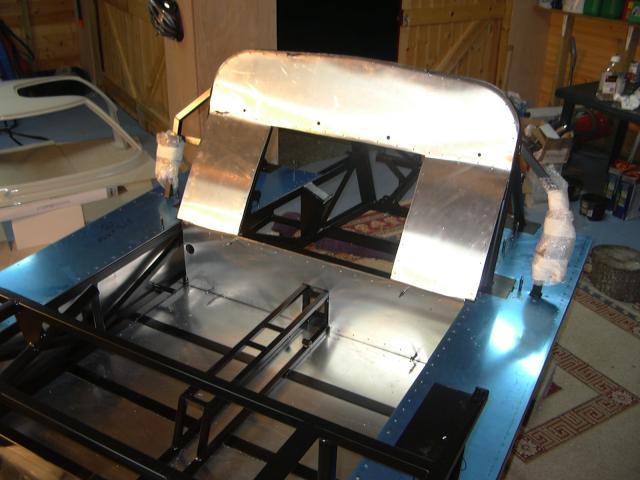

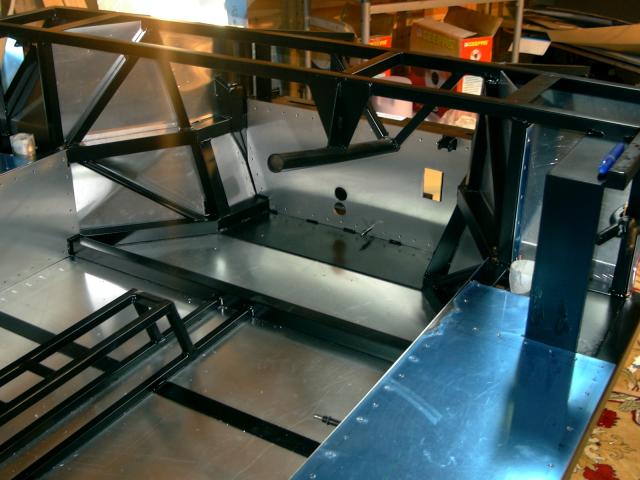

Rear panel complete, just need to cut out the rear window section...
Attached Thumbnails
Scotland Tornado-p1010160-jpg
Ian B is offline   Reply With Quote
Old 20th September 2009, 05:30 PM   #11
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

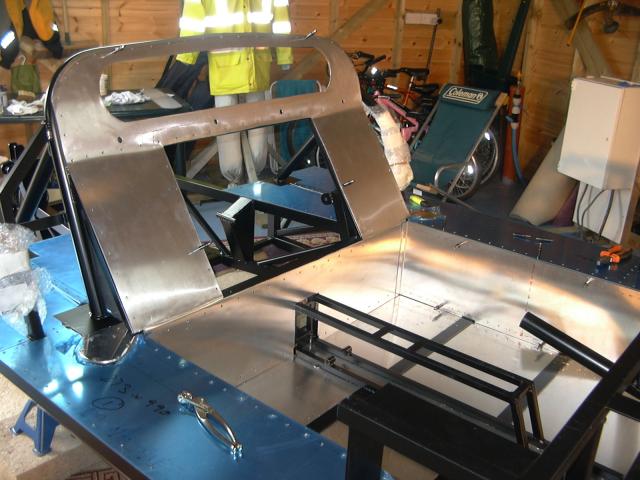

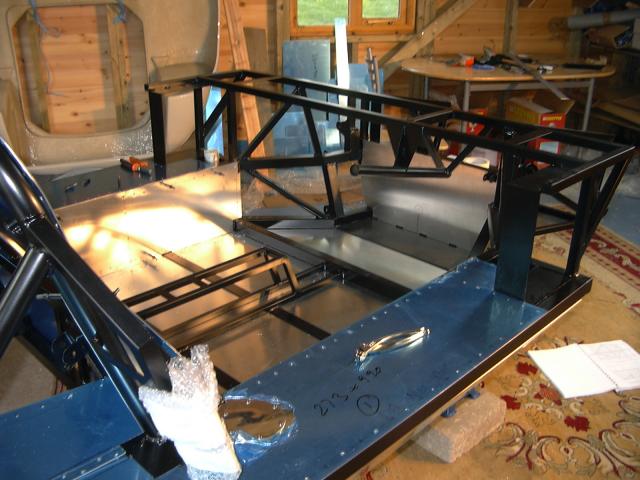

A couple of photos of this weekends work plus a question for anyone that might be able to offer advise...

I need to fit the battery box at the rear nearside but the rollover bar plate partially obstructs where the box will go, albeit not by much (overhang into the battery box is about 2in x 2in). I will fabricate a battery box in panel but can anyone tell me whether the battery will easily slip under this overhang when I come to install it later.

Thanks in advance.
Attached Thumbnails
Scotland Tornado-p1010171-jpg   Scotland Tornado-p1010172-jpg
Ian B is offline   Reply With Quote
Old 21st September 2009, 02:28 AM   #12
saxoncross's Avatar
saxoncross
8 Tenths
United Kingdom

Join Date: Mar 2007
Location: Norfolk, UK
GT40: Tornado
Posts: 813
Re: Scotland Tornado

Hi Ian
the easiest way is to mock-up a battery out of cardboard etc and work out the best compromise. A 470Ah battery dimensions are 240x175x180mm deep. Measurements courtesy of Halfords as I had to do excactly the same!
Regards
Andy
saxoncross is offline   Reply With Quote
Old 21st September 2009, 03:11 AM   #13
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

Andy,
Good suggestion, I'll try that out.
Thanks
Ian
Ian B is offline   Reply With Quote
Old 29th September 2009, 09:55 AM   #14
KarlB's Avatar
KarlB
Rookie
United Kingdom

Join Date: May 2007
Location: England
GT40: tornado
Posts: 72
Re: Scotland Tornado

Welcome to the world of building a GT40.

There are several of us building new or second owner Tornado's on this forum including Bryn, Andy Green and me [KarlB] ........if your stuck or need ideas post to one of us or Andy @ Tornado

Make sure you have visited Andy G & Bryns build sites + gone back through build pages to find Paul Waltons build diary from a few years ago sionce you will be able to see a complete build from start to finish.

Cheers & happy building

KarlB
Building replica of 1036
KarlB is offline   Reply With Quote
Old 30th September 2009, 05:03 PM   #15
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

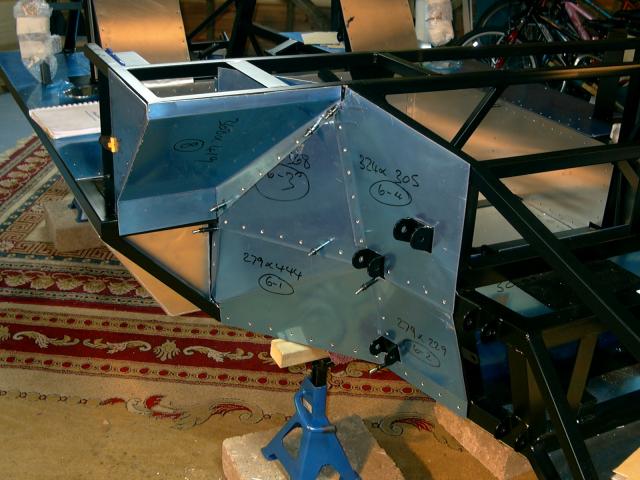

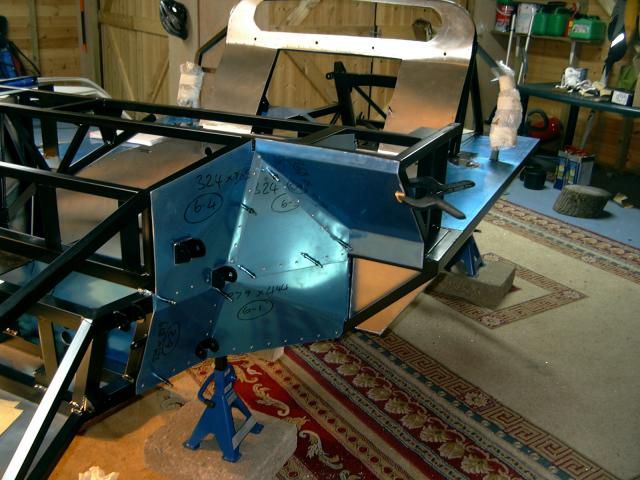

A bit more progress, front wheel arches now completed.
Attached Thumbnails
Scotland Tornado-p1010180-jpg   Scotland Tornado-p1010181-jpg   Scotland Tornado-p1010182-jpg
Ian B is offline   Reply With Quote
Old 1st October 2009, 07:00 AM   #16
saxoncross's Avatar
saxoncross
8 Tenths
United Kingdom

Join Date: Mar 2007
Location: Norfolk, UK
GT40: Tornado
Posts: 813
Re: Scotland Tornado

Hi Ian,
Your build looking good. Don’t be in a rush to finally rivet all the panels in place. I found that there’s been lots of little jobs I’ve had to do that would have been a complete nightmare if all the panels had been finally fixed.

Also have you considered paneling in the rest of the footwell. It looks better aesthetically and as it is effectively a double skin, it then be stuffed with dampening material to reduce the tyre/road noise

Regards
Andy
saxoncross is offline   Reply With Quote
Old 1st October 2009, 07:11 AM   #17
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

Andy,
Thanks. I had planned to rivet in the cockpit side panels, the front footwell panel, and the rear panel only at this time. I had a feeling if I riveted too much it would cause me grief later!

I must admit I was thinking about panelling the front inner cockpit sections as well, but wasnt sure whether this would conflict with anything else that has to be added later. What did you do with the small gaps in the front arche panels that would otherwise let in water (not that it rains much in Scotland..not).

I was also thinking about panelling the engine bay section behind the cockpit rear panel just to hide the rear chassis and neaten it off (below where the engine sits). Does this conflict with anything?

Cheers
Ian
Ian B is offline   Reply With Quote
Old 1st October 2009, 08:08 AM   #18
saxoncross's Avatar
saxoncross
8 Tenths
United Kingdom

Join Date: Mar 2007
Location: Norfolk, UK
GT40: Tornado
Posts: 813
Re: Scotland Tornado

Hi Ian

Inner Panels: these can be fabricated now and fitted later once you worked out where everything goes. What are the small gaps are you concerned about?

Engine bay paneling: you’ll have to work out where the gearshift mechanism comes through and ensure that you have sufficient clearance for the starter motor. I plan on hiding the brake pipes and as much of the electrical harness behind the paneling. You could move the battery to the same side as the starter to minimise the current drop in the cable.

Regards
Andy
saxoncross is offline   Reply With Quote
Old 1st October 2009, 08:21 AM   #19
Ian B's Avatar
Ian B
2 Tenths
United Kingdom

Join Date: Aug 2009
Location: Scotland UK
GT40: Tornado
Posts: 242
Re: Scotland Tornado

Andy,
They're not large, but there are very small gaps between the panels where they fit over upper and lower wishbone points. Although small, with any water runoff the tyres at speed, it is probably enough to come through. Is this a 'fill' with sealant solution?
Ian
Ian B is offline   Reply With Quote
Old 1st October 2009, 08:46 AM   #20
saxoncross's Avatar
saxoncross
8 Tenths
United Kingdom

Join Date: Mar 2007
Location: Norfolk, UK
GT40: Tornado
Posts: 813
Re: Scotland Tornado

Ian
they're generally fill with sealant areas, or you could weld in strip, so the panel can be rivetted to it

Andy
saxoncross is offline   Reply With Quote
