Old 10th January 2010, 09:18 PM   #41 (permalink)
wbmusarra's Avatar
wbmusarra
I Have No Life
United States

Join Date: Oct 2001
Location: Snellville, Ga.
GT40: DRB#5
Posts: 2,671
Re: Well....here goes all or nuthin.

Pete,
I need some info on that comment on the castor for the rear. I have never heard of this. I will have to look over my build manual, which is a bit older than yours. I will probably be looking for someone experienced to do the alignment.

Bill
__________________
DRB#5
351W/400cu.in. TWM F. I. 930 Porsche LSD
wbmusarra is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th January 2010, 09:47 PM   #42 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

Hi Bill,

The manual I have is dated 2002. I can scan the pages related to it for you and email if you'd like.

Pete
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th January 2010, 09:54 PM   #43 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

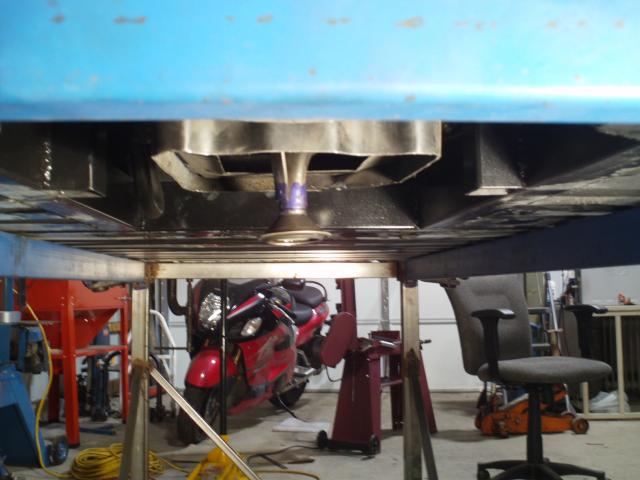

Here is what I'm up against regarding the oil pan. I'll be modifying the pan to be a rectangle shape in order to make up the capacity lost in the original sump. I should end up about 1/2 above the bottom of the chassis and with about a 9 quart capacity. The pick is going to be fun to alter.


Pete
Attached Thumbnails
Click image for larger version

Name:	DSC00180.jpg
Views:	322
Size:	40.4 KB
ID:	44489
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 17th February 2010, 08:33 PM   #44 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Talking Re: Well....here goes all or nuthin.

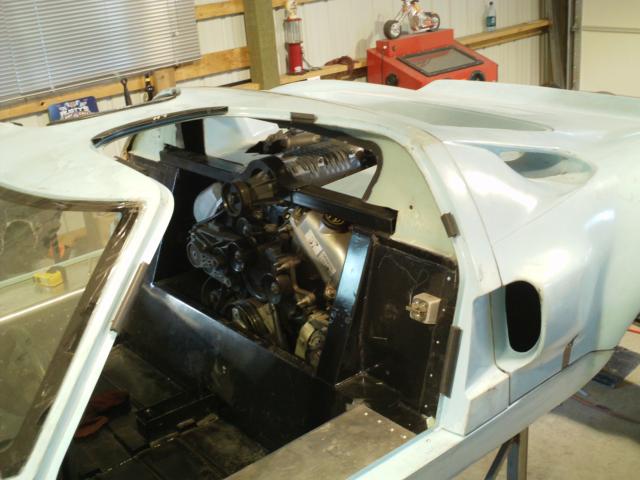

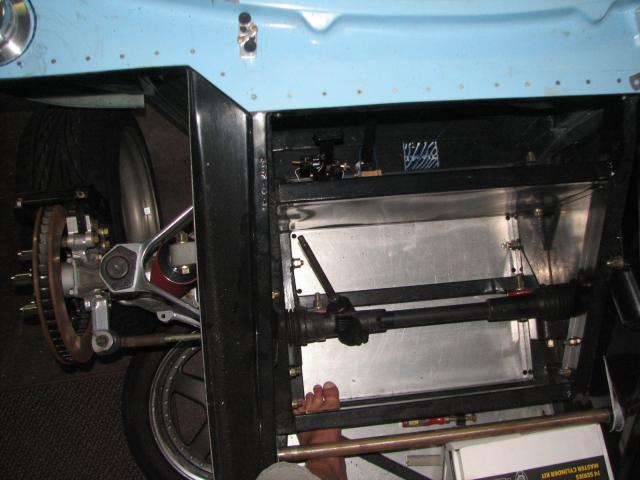

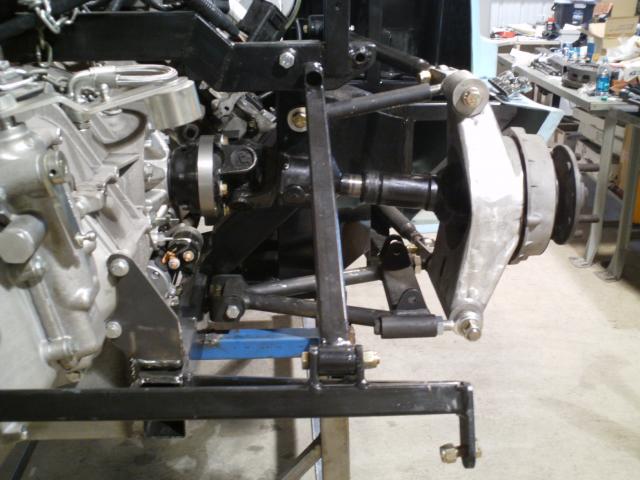

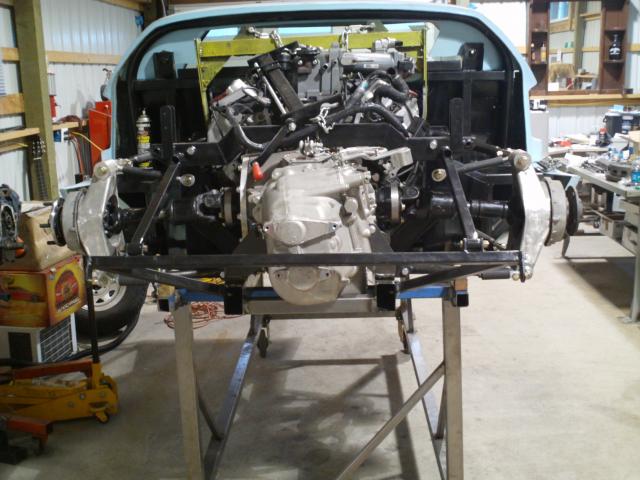

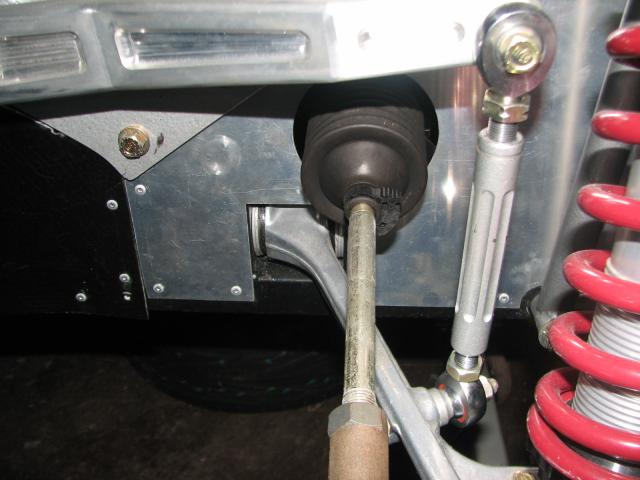

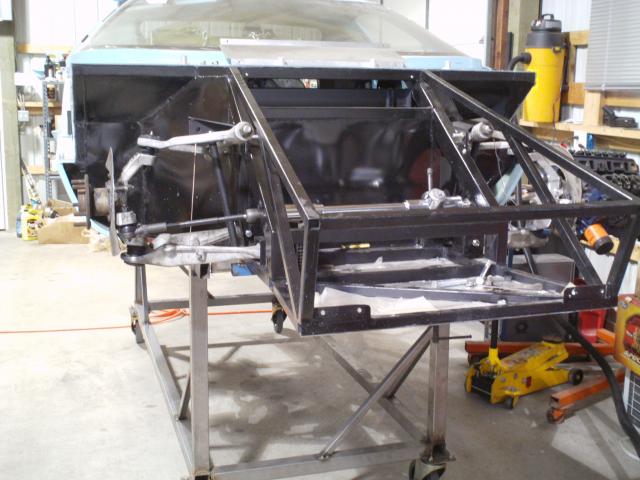

Just pokin along. I installed the halfshafts and the steering rack. Setting the rack was a PIA. But thanks to yooz guys i was able to find what I needed. Sometimes it's easier to just hunker down in the shop and watch a movie with a beer instead of working. Does that happen to anyone else?
Attached Thumbnails
Click image for larger version

Name:	DSC00194.jpg
Views:	269
Size:	50.5 KB
ID:	45281   Click image for larger version

Name:	DSC00191.jpg
Views:	283
Size:	53.6 KB
ID:	45282   Click image for larger version

Name:	DSC00189.jpg
Views:	276
Size:	47.1 KB
ID:	45283
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 17th February 2010, 11:59 PM   #45 (permalink)
Pete Woodward's Avatar
Pete Woodward
A Tenth
New Zealand

Join Date: Jan 2010
Location: New Zealand
GT40: DRB Mk1
Posts: 164
Re: Well....here goes all or nuthin.

HI Pete.
I'm a Pete too but most call me woody, I also have a DRB mine is # 89
Looks like we got a few things in common cause Im just sittin here readin your thread with a beer instead of workin in the garage.
Your car looks good bud, I'm likin that tranny
Pete Woodward is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd February 2010, 03:49 AM   #46 (permalink)
Pete Woodward's Avatar
Pete Woodward
A Tenth
New Zealand

Join Date: Jan 2010
Location: New Zealand
GT40: DRB Mk1
Posts: 164
Re: Well....here goes all or nuthin.

Hi Pete

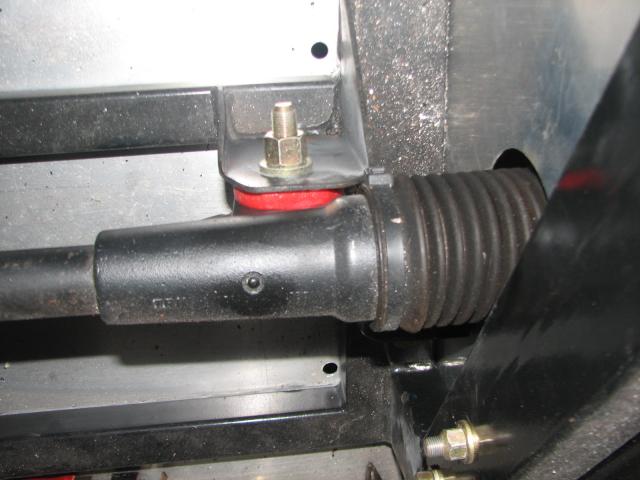

I looked into the dimentions you asked about. Not sure how to put a photo into a PM yet. Need to spend some more time here.
Looking straight down on the steering rack its a straight line through the tie-rod end right through the rack center line to the opposite tie rod end.
From the DRB rack mount forward to the center line of the rack is 1 1/4"
1.256" to be exact.
Attached Thumbnails
Click image for larger version

Name:	IMG_2186.jpg
Views:	194
Size:	41.5 KB
ID:	45401   Click image for larger version

Name:	IMG_2187.jpg
Views:	171
Size:	40.2 KB
ID:	45402
Pete Woodward is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd February 2010, 04:03 AM   #47 (permalink)
Pete Woodward's Avatar
Pete Woodward
A Tenth
New Zealand

Join Date: Jan 2010
Location: New Zealand
GT40: DRB Mk1
Posts: 164
Re: Well....here goes all or nuthin.

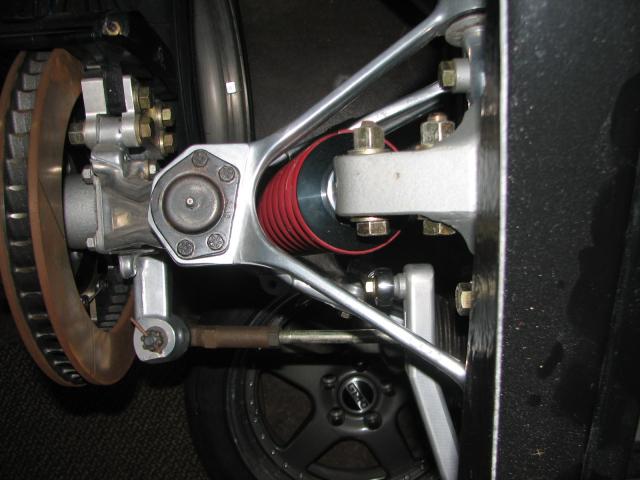

Looking from the side of the car the lower A-arm has two mounting points on the chassis, From the back face of the front mount it is 7/16" back to the center line of the rack as in the last photo. I hope this helps and has answered you question.
Woody.
Attached Thumbnails
Click image for larger version

Name:	IMG_2188.jpg
Views:	139
Size:	38.4 KB
ID:	45403   Click image for larger version

Name:	IMG_2189.jpg
Views:	135
Size:	38.9 KB
ID:	45404
Pete Woodward is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd February 2010, 02:32 AM   #48 (permalink)
Clivec
A Tenth
Australia

Join Date: Feb 2010
Location: Canberra
GT40: scratchbuild
Posts: 184
Re: Well....here goes all or nuthin.

Having previously built a Lotus 7 replica, whilst knowing bugger all about suspension layouts (hey, it looked good), I discovered the wonders of bump steer. The car would change lanes when you changed gear!.

With the 40, I mounted the rack on a couple of 'ramps', allowing me to move the rack to establish the ideal, no bump steer, position.

Astonished to find that the sweet spot had to be accurate to the millimetre. Move up or down the ramp 1 MILLIMETRE and bump steer intruded.

Accurate to the point where the outer end of a 1 metre bar bolted to the hub did not move forward or backward (well, not visible) over the full travel of the front suspension.

Using the same measuring technique, I have the rear introducing toe in in bump - but not too sure I have enough. Probably 1/2 inch at the end of the metre bar. Would appreciate comments.

Last edited by Clivec; 23rd February 2010 at 02:38 AM.
Clivec is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 2nd March 2010, 02:05 PM   #49 (permalink)
Tinman63
United States

Join Date: Mar 2010
Location: Mesa, AZ
Posts: 1
Re: Well....here goes all or nuthin.

keeping my eye on this build..4.6 supercharged..handfuls of fun..
Tinman63 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 9th March 2010, 03:06 AM   #50 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

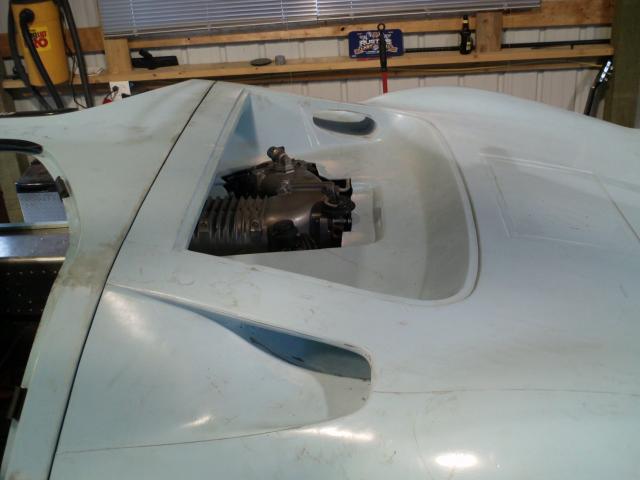

Sometimes it's good to see what all the fuss is about....I needed to make clearance around the blower anyway. I'll clean up the opening later.
Attached Thumbnails
Click image for larger version

Name:	DSC00199.jpg
Views:	210
Size:	51.0 KB
ID:	45636   Click image for larger version

Name:	DSC00200.jpg
Views:	250
Size:	43.8 KB
ID:	45637   Click image for larger version

Name:	DSC00201.jpg
Views:	254
Size:	30.4 KB
ID:	45638
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 9th March 2010, 04:10 AM   #51 (permalink)
Pete Woodward's Avatar
Pete Woodward
A Tenth
New Zealand

Join Date: Jan 2010
Location: New Zealand
GT40: DRB Mk1
Posts: 164
Re: Well....here goes all or nuthin.

Now I see what you mean about tight Good to see you progresing though.
Keep up the good work
Pete Woodward is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 5th August 2010, 05:55 AM   #52 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

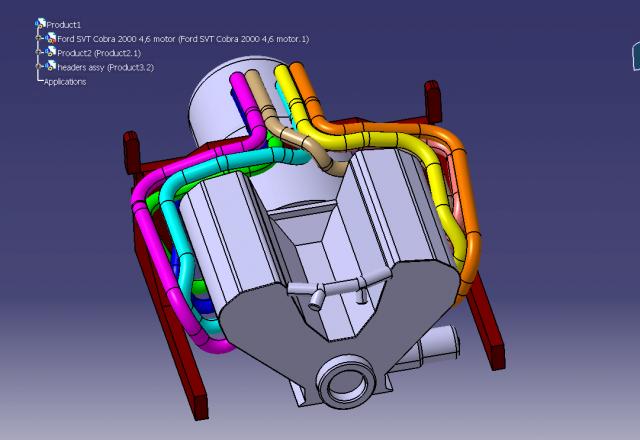

So after goofing around with a bunch of other things on my car Steve26 lit a fire under my ass to get on with building the pipes. Makes sense since there so little room to spare with this 4.6 motor. This is the first stab as I'm sure I'll be making adjustments to the model. I can see where I'll probably need to modify the cross member over the tranny to allow moving the pipes lower away from the body.

Pete
Attached Thumbnails
Click image for larger version

Name:	HEADER CONCEPT.jpg
Views:	183
Size:	28.3 KB
ID:	48259
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 5th August 2010, 07:42 AM   #53 (permalink)
Big-Foot's Avatar
Big-Foot
Super Moderator
United States

Join Date: Jan 2007
Location: Kenyon, MN
GT40: RCR40 - #45
Posts: 5,153
Re: Well....here goes all or nuthin.

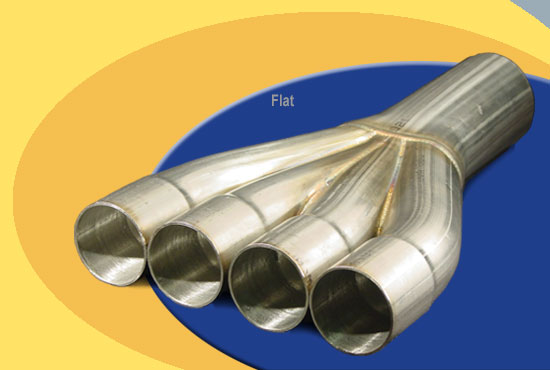

If you're not going to do a crossover design and extremely limited on space - you may want to entertain the possibility of a Flat Header Collector design such as this one from Exhaust Components - SPD Home Page B ;

Attached Thumbnails
Click image for larger version

Name:	Flat.jpeg
Views:	50
Size:	28.6 KB
ID:	48260
__________________
Regards - Randy
GT40 RCR40 #45 G50-331-Weber IDAs
My build site:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Big-Foot is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 5th August 2010, 08:23 AM   #54 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

Thanks Randy,
SPD is supplying the flanges for me. I'll need to put the body back on to see what my envelope is. I think I'll be okay...we'll see. I just don't want to have butter body from the heat.

Pete
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 5th August 2010, 04:21 PM   #55 (permalink)
jimbo's Avatar
jimbo
Silver Supporter
United States

Join Date: Nov 2001
Location: Annapolis, MD
GT40: Mark VI, #1149
Posts: 3,604
Re: Well....here goes all or nuthin.

Compared to what you are doing, our build is easy....nice work, any idea of when she would move and drive and let you check things out?
__________________
Mark I monocoque, completed
Safir Mk I body
ZF-2 transaxle
302 w/Webers
jimbo is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 5th August 2010, 06:40 PM   #56 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

Hi Jim,
Mine is just full of complications. I just sorted out the dry sump setup, now working the exhaust. Next the wiring to turn it over. Maybe I'll have her idling before mid year next........let's face it....I don't know. I think I'll get a beer.....
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 6th August 2010, 03:44 AM   #57 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

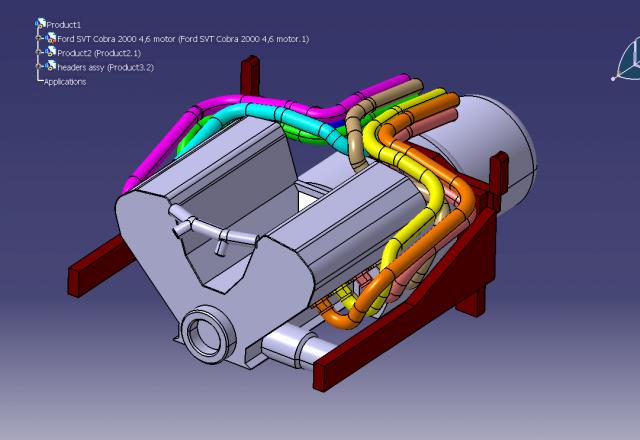

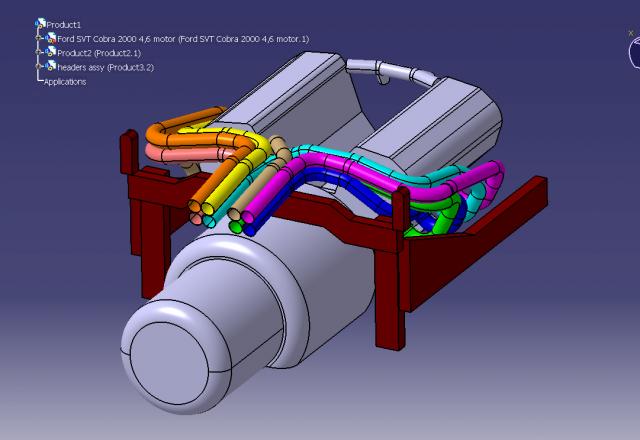

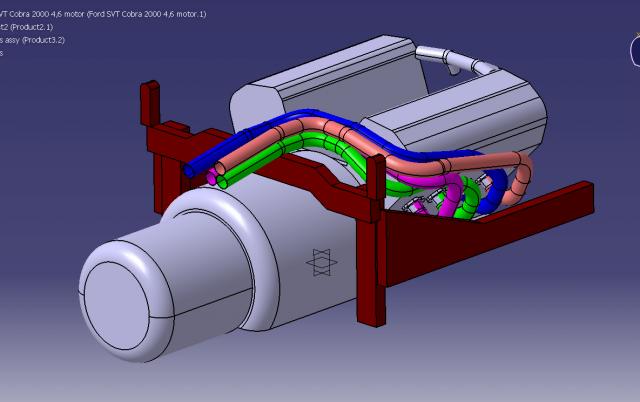

So the headers are modeled up. They are crossover but not equal length. They are 1.75 OD. I'll get the rear clip on and make sure there are no body issues. Does anybody happen to have a digital MKI body?

Pete
Attached Thumbnails
Click image for larger version

Name:	FRONT COMPLETE.jpg
Views:	134
Size:	34.7 KB
ID:	48279   Click image for larger version

Name:	REAR COMPLETE.jpg
Views:	133
Size:	32.0 KB
ID:	48280   Click image for larger version

Name:	SIDE COMPLETE.jpg
Views:	134
Size:	35.0 KB
ID:	48281
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 6th August 2010, 05:49 AM   #58 (permalink)
Dalton's Avatar
Dalton
10 tenths
Australia

Join Date: Jul 2005
Location: Sydney, Aust.
Posts: 1,432
Re: Well....here goes all or nuthin.

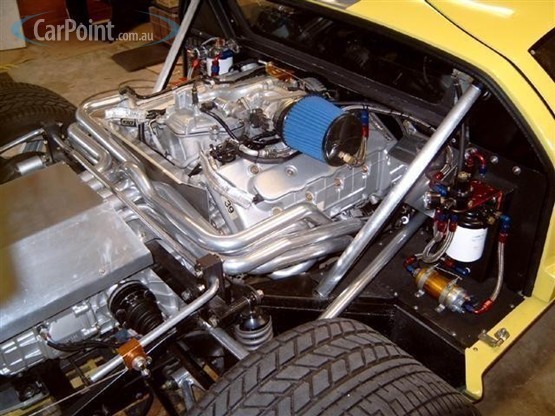

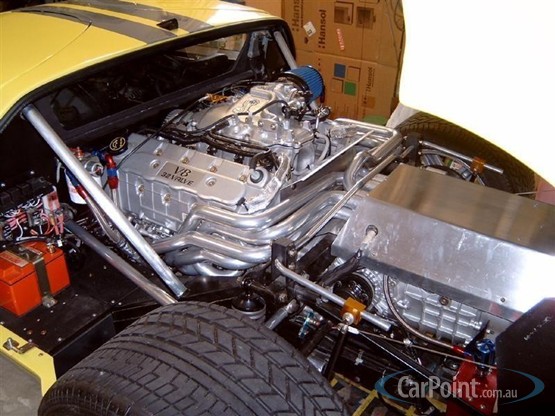

Pete, a couple of pics of a DRB GT40 for sale here with cross-overs on a non-turbo 4.6 quad cam engine. The exhaust fits inside the roll-bar brace also.
Attached Thumbnails
Click image for larger version

Name:	8453385.jpg
Views:	217
Size:	82.9 KB
ID:	48287   Click image for larger version

Name:	8453390.jpg
Views:	195
Size:	79.1 KB
ID:	48288
Dalton is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 6th August 2010, 09:05 AM   #59 (permalink)
ECONOMAN's Avatar
ECONOMAN
Lifetime Premier Supporter
United States

Join Date: Mar 2002
Location: USA
GT40: GT40Australia
Posts: 183
Re: Well....here goes all or nuthin.

Thanks Dalton,

Pretty compact those pipes. The major difference with my setup and the stock DRB setup is I'm running the Ricardo tranny. That causes the cross member over the tranny to be a little higher thus pushing the pipes closer to the body. I fully expect to do some adjusting. These pictures sure help though.

Pete
ECONOMAN is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 6th August 2010, 09:23 AM   #60 (permalink)
wbmusarra's Avatar
wbmusarra
I Have No Life
United States

Join Date: Oct 2001
Location: Snellville, Ga.
GT40: DRB#5
Posts: 2,671
Re: Well....here goes all or nuthin.

Pete,
You can see from Dalton's post that the roll cage brace is way out there on the frame member to get all inside. Compare the placement with mine where the exhaust sticks a little farther away from the motor.



You might want to consider the changing of the valleys around the engine bay to shelves like mine for a little more room. You might even find some room to put some things on it!!





Bill
__________________
DRB#5
351W/400cu.in. TWM F. I. 930 Porsche LSD
wbmusarra is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 09:07 AM.
