gtd pedal box

Hi everyone, Dose anyone have any info on fitting a more efective pedal box to a GTD. replacing the old vacum system with balance bar set up. regards vincent.
vincent franz is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd January 2008, 04:10 PM   #2 (permalink)
MikeP's Avatar
MikeP
10 tenths
United Kingdom

Join Date: Dec 2005
Location: Oldham
GT40: GTD
Posts: 1,062
Re: gtd pedal box

Put in one of the floor mounted Tilton setups. You will have to weld in a plate - not easy. You can get a suitable plate ready drilled from Mick Sollis at Southern GT. The basic problem with any top hung setup is that you can not get a good ratio between the foot and master cylinder. With a floor mount setup the pedal ratio is much better - you will need this extra mechanical advantage if you want to do away with the servos. A very cheap floor mount can be found on ebay by typing in pedal box - about 180 for the basic bias box.
Cheers
Mike
MikeP is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd January 2008, 04:53 PM   #3 (permalink)
vincent franz's Avatar
vincent franz
United Kingdom

Join Date: May 2007
Location: uk
GT40: gtd
Posts: 9
Re: gtd pedal box

Thanks for the info mike,would you know what model number this particular pedal box is ,eg tilton pedal box number. vince
vincent franz is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd January 2008, 06:53 PM   #4 (permalink)
Julian West's Avatar
Julian West
7 Tenths
United Kingdom

Join Date: Dec 2001
Location: Devon, UK
GT40: GTD
Posts: 788
Re: gtd pedal box

Without wishing to create an argument with Mike, It *is* possible to fit a top hung pedal box, I've fitted one of these;

Tilton Engineering - Brake, Pedal Assemblies, 2 Pedal 3 cyl

I have superb braking, the pedal ratio is 6.2:1. I have no servo & use AP four pot calipers with 304mm discs front & rear. However there is quite alot of fabrication involved.

Regds,
Julian West is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd January 2008, 03:55 AM   #5 (permalink)
Malcolm's Avatar
Malcolm
Gold Supporter
United Kingdom

Join Date: Jun 2003
Location: Surrey, UK
GT40: GTD
Posts: 2,337
Re: gtd pedal box

On a GTD a number of guys have done what Julian has done with success. I am still on the standard item. The thing to watch when doing a floor mounted version is to make sure the master cylinders clear the chassis rail in front of the pedal box. If you can acheive that, and it is easier for short drivers than tall ones I guess, you are onto a winner. My expereince would say to lose the servos and keep the standard pedal box is not a good move.
__________________
Malcolm
GTD40, Porsche 996 C4S, MX5 race car, TVR, 4.0 pre cat Griffith
Malcolm is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd January 2008, 06:09 AM   #6 (permalink)
Brian McCarthy's Avatar
Brian McCarthy
4 Tenths
United States

Join Date: Nov 2001
Location: Up in the stick
GT40: GTD
Posts: 497
Re: gtd pedal box

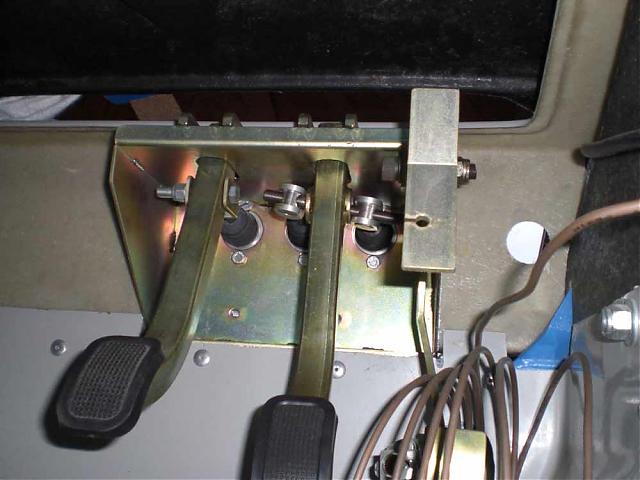

I have a Tilton hanging box with no servos and the installation required no fabrication. Malcolm found my pedal box mount in the UK and unfortunately I do not know the source.

Brian.
Attached Thumbnails
Click image for larger version

Name:	P1010078.jpg
Views:	372
Size:	73.8 KB
ID:	26694
__________________
...GTD-40
...LHD-LHS
...302 Roller Block
...R-21
...BRM Pin Drive wheels
...Gulf livery
Brian McCarthy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd January 2008, 06:53 AM   #7 (permalink)
JohnMcL
Rookie
United Kingdom

Join Date: Dec 2007
Location: Wilts UK
GT40: None yet
Posts: 49
Re: gtd pedal box

Hi Vincent,
Look in Vendor & Mftr Announcements / New Chassis from Southern GTs / page 2 for photo of well engineered top-hung pedals.
John McL.
JohnMcL is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd January 2008, 10:43 AM   #8 (permalink)
simonjrwinter's Avatar
simonjrwinter
I Have No Life
United Kingdom

Join Date: Jan 2002
Location: Essex, UK
Posts: 2,837
Re: gtd pedal box

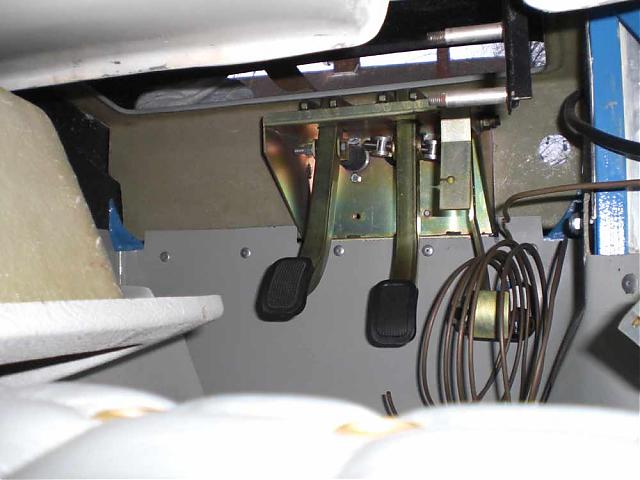

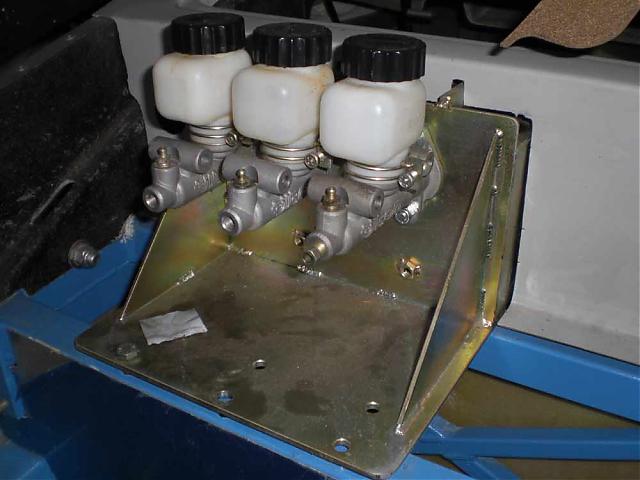

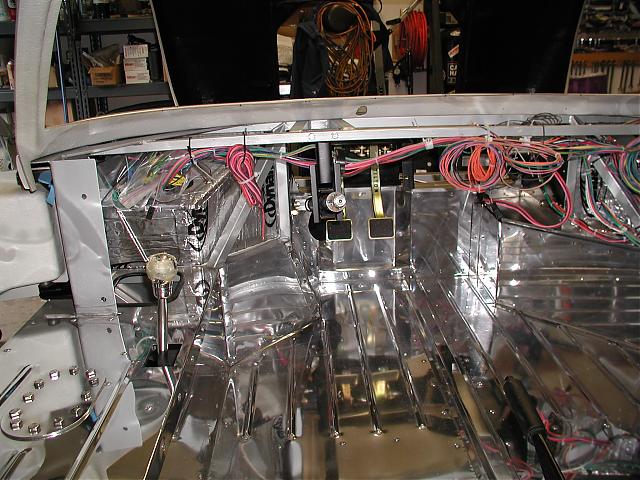

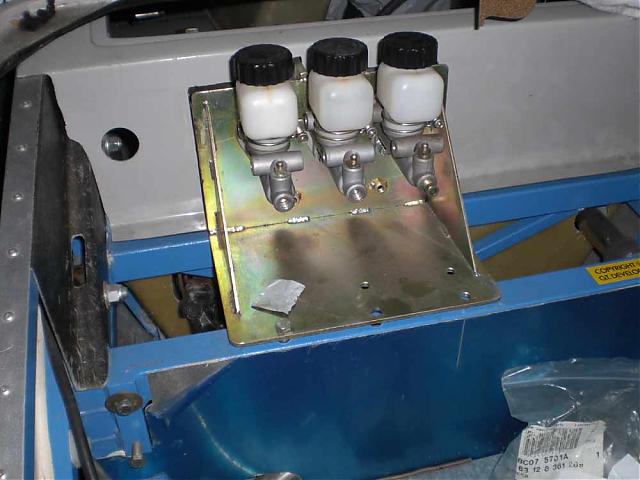

some pics of my pedal box. seems to be a perfect fit.
Attached Thumbnails
Click image for larger version

Name:	pedal-box-1.jpg
Views:	280
Size:	37.9 KB
ID:	26696   Click image for larger version

Name:	pedal-box-2.jpg
Views:	248
Size:	41.5 KB
ID:	26697   Click image for larger version

Name:	pedal-box-3.jpg
Views:	286
Size:	40.8 KB
ID:	26698   Click image for larger version

Name:	pedal-box-4.jpg
Views:	302
Size:	39.7 KB
ID:	26699
__________________
Currently GT40-less
simonjrwinter is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 23rd January 2008, 11:12 AM   #9 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,617
Re: gtd pedal box

Vincent, please try and get the posts into the correct subforums on GT40s.com. You have posted this question into a help area dealing with FORUM help issues, not car building.
