Behind The Radiator on Originals

On some of the original cars I have seen they have twin nostrils and they do not go deep (to the floor).

Now I have a similar situation on my car.

So on the originals was there some sort of deflector plate arrangement on the chassis that deflected the air up and through the nostrils.

If so does anyone have a picture to share?

Thanks
Ian
__________________
DAX GT40. Morgan 3.9 EFi, Worked by John Eales.
Renault Box, Always makes me smile!
IanAnderson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 13th July 2009, 02:25 PM   #2 (permalink)
wolodymyr's Avatar
wolodymyr
9 Tenths
United Kingdom

Join Date: Jan 2004
Location: Scotland
GT40: DAX40
Posts: 944
Re: Behind The Radiator on Originals

Ian,
my car has the shallow nostrils, they don't go down to the floor or line up with the fans. However, the chassis has no side panels there so the air coming through the rad exits easily through the wheel wells, I reckon in this case the nostrils don't matter much.
I'm not sure what other benefits might be (aerodynamic?) if the chassis had side panels. If I decided to put side panels on for whatever reason, I would definitely change the nostrils, but as long as I have no side panels, I'll wait. Maybe someone has a view on this?

Can't answer your question, but sure someone will know.

Dave
__________________
1991 DAX 302 full Performer rpm package installed
wolodymyr is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 13th July 2009, 04:29 PM   #3 (permalink)
JIMMYMAC's Avatar
JIMMYMAC
Lifetime Premier Supporter
United Kingdom

Join Date: Jul 2003
Location: Hampshire, GB
GT40: Monocoque
Posts: 1,937
Re: Behind The Radiator on Originals

Ian,

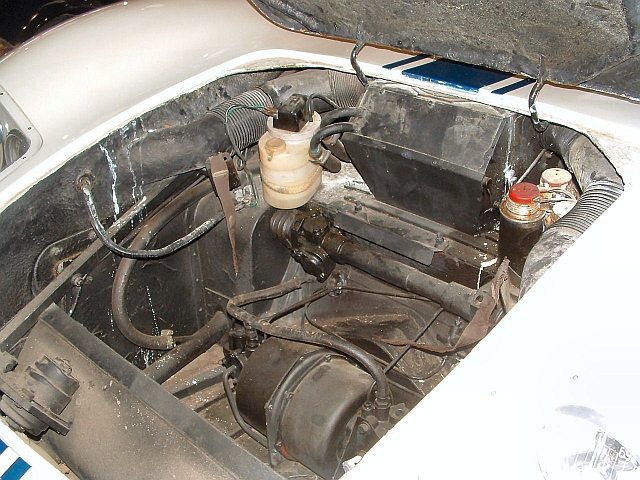

The MK III had a spoiler fitted in the lower front.
