alternator/waterpump

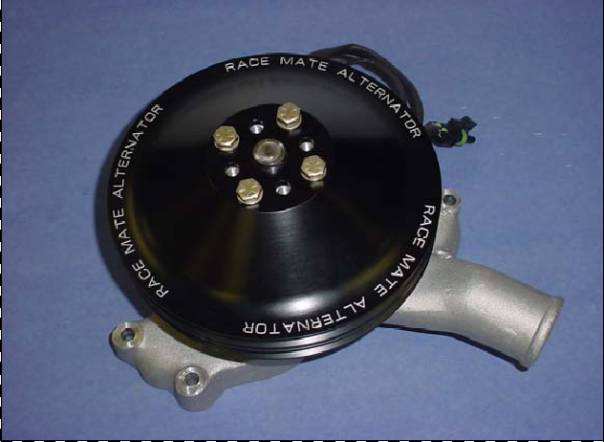

does anyone know this combi and what are the thoughts about it?
it's from racemate

Frank
Attached Thumbnails
Click image for larger version

Name:	waterpomp dynamo.jpg
Views:	435
Size:	24.6 KB
ID:	14016
Frank Beuker is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 02:05 PM   #2 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,308
I really like it and it was discussed in the RCR section, someone has one on their car. But, then I was thinking about alternator failure, which I've seen happen, and I'd hate to ruin a $XXX track day for want of a $50 alternator I can get anywhere.
__________________
Ron Earp

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ron Earp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 02:21 PM   #3 (permalink)
Keith1's Avatar
Keith1
Spandex is Pants!
United Kingdom

Join Date: Mar 2004
Location: Albion
Posts: 6,482
Does everyone mostly run alternators on race days? I gave up using them and inevitably took them off before an event as they proved quite unreliable when highly stressed (like 8,000 rpm). I used high power lightweight gel batteries which were plenty for a 25 mile race, even running with diff cooling pumps, and I always fired up using a trolley battery to save the on-board. I do like the look of that combi though...
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 02:30 PM   #4 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,308
Our races are too long for that. One course we run is 4.2 miles around and for over 30 minutes. Plus, we run a lot of mini enduros at 1.5 hours and plan to run the Lola in the 13 hour enduro. Have to have a lot of batteries for that!!!!!!
__________________
Ron Earp

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ron Earp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 02:53 PM   #5 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
I have several of these on my cars. They are bullet proof. No Brushes, really simple regulator configuration (might just be a rectifier) and an excellent waterpump, with pulley ratios of your choice. They are essentially custom made for your application. John Barrett is the fellow that does them and he will make them with your choice of racing waterpump and in a variety of pulley configurations. I have on on my SBF in the mustang with 2 Vbelts, and on the RCR-40 with a serpentine and 60amp, and on a Big Block Chevy. They are generally 30 amp units, but you can get the double wide that is 60amp. Have run the mustang for several years on one without a problem.

Downside, cost. It ends up being a more then a race alternator, waterpump and pulley but you get rid of all the bracketing and makes for a nice package.

I can't say enough good things about it, but give John a call he is an old time racer and will chat your ear off!

Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 03:04 PM   #6 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,308
I really was tempted to get one, but then Brian's alternator came up for cheap and I got that. I would love to have one on the car though because I like the packaging so much. I have no doubt they work well, but I'm trying to hold down the costs on the build thus it makes sense for me to go tried and true.

How do you tension it? Do you need a tensioner? The crank pulley is obviously fixed, as is the pulley/water pump.

Ron
__________________
Ron Earp

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ron Earp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 03:16 PM   #7 (permalink)
Russ Noble's Avatar
Russ Noble
Lifetime Premier Supporter
New Zealand

Join Date: Jul 2004
Location: Christchurch,NZ
GT40: Scratch Kiwi 40
Posts: 2,033
They were originally developed for a racer wanting a smaller more reliable alternator, reliability is 100% according to their sales blurb.

"0 Failure rate, 1000's in use"

http://www.racemate.com/

Regards
__________________
Kiwi 40. Scratchbuilt Gulf Mk1, forged, dry sumped 351W. 930 LSD & spraybar, 10s & 14s.It goes, now to make it faster!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Russ Noble is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 03:48 PM   #8 (permalink)
Frank Beuker's Avatar
Frank Beuker
Bronze Supporter
Netherlands

Join Date: Nov 2005
Location: the netherlands
GT40: kva
Posts: 630
I was planning to use it mainly on road and trackdays so it should be ok
does anyone know if you can get them in europe?

i think there's a tensioner on the side

then i've got more room for the ac unit

Frank
Frank Beuker is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 04:00 PM   #9 (permalink)
Keith1's Avatar
Keith1
Spandex is Pants!
United Kingdom

Join Date: Mar 2004
Location: Albion
Posts: 6,482
I should imagine there is an idler pulley of sorts that goes with it.
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 04:42 PM   #10 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
They have no tensioners. The belts and pulleys are the correct length and size so you have to unbolt bolt one of the pulleys to put the belts on. Nothing else needed. Belts don't come off, I run my mustang at 7500+ RPM and never had an issue. Call John up, I'm sure he can get you one to most anywhere as long as you have a credit card

HTH

Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 04:48 PM   #11 (permalink)
Keith1's Avatar
Keith1
Spandex is Pants!
United Kingdom

Join Date: Mar 2004
Location: Albion
Posts: 6,482
Gotta be worth the extra - cash. Cool piece of kit...
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 06:25 PM   #12 (permalink)
Frank Beuker's Avatar
Frank Beuker
Bronze Supporter
Netherlands

Join Date: Nov 2005
Location: the netherlands
GT40: kva
Posts: 630
ok i'll give him a ring tomorrow

sandy my engine's top will be about 8200 rpm but i will ask tomorrow

mayby he's got a setup for a ac aswell

Frank
Frank Beuker is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 08:17 PM   #13 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
Frank -

8200RPM is not a problem, he will set up your pulley ratios so your systems works fine. The motor in my RCR is of that range and not a problem. For pulleys he will make anything you need (he does all his own pulley from billet as needed) as long as you can describe it to him :-). Don't expect overnite turnaround, but he will get it done. He races a 65 Fastback mustang and has good stories as well, a good guy for sure.

Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 08:28 PM   #14 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,308
Maybe I could do one of these....pulleys included, so, that would save some money and time getting everything done.....
__________________
Ron Earp

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ron Earp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 12th June 2006, 08:47 PM   #15 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
Ron -

That is why I got it. I hate the crappy brackets and pulley problems that you have to sort out. Maybe you can work out an advertising deal with John to help out with pricing

I posted a pic of the RCR-40 engine in the Gallery with the serpentine belt and dry sump.

Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 13th June 2006, 02:12 AM   #16 (permalink)
IanAnderson's Avatar
IanAnderson
Gold Supporter
United Kingdom

Join Date: Nov 2003
Location: Ashford
GT40: Dax 40 Mk1 (Rov
Posts: 3,073
Ron

No the Lola took a drive off the left rear driveshaft to drive the alternator.

2 reasons
1) More space
2) You do not need to wind up the alternaor eash time the engine revs - the drag factor accelerating the altermator with each gear change can be eliminated.

I'll look up some photos from LM Classic 2004 and post up

Ian
__________________
DAX GT40. Morgan 3.9 EFi, Worked by John Eales.
Renault Box, Always makes me smile!
IanAnderson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 13th June 2006, 07:39 AM   #17 (permalink)
Ron Earp's Avatar
Ron Earp
Administrator
United States

Join Date: Sep 2001
Location: NC, USA
GT40: None.
Posts: 6,308
Quote:
Originally Posted by IanAnderson
Ron

No the Lola took a drive off the left rear driveshaft to drive the alternator.

2 reasons
On all motor configurations? There were so many motors used in T70s (even a 3.5L Buick in one for a stint) I would imagine that somewhere someone used a standard configuration. No jackshafts and rear drive for me,, but I'd like to see the pictures. I put in a request to my wife for the Lola book that Amazon has for Father's day, we'll see how that turns out.
__________________
Ron Earp

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ron Earp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th June 2006, 06:12 PM   #18 (permalink)
Frank Beuker's Avatar
Frank Beuker
Bronze Supporter
Netherlands

Join Date: Nov 2005
Location: the netherlands
GT40: kva
Posts: 630
I called John and he wil give me an estimate for the alternator and also a bracket for an ac pump on the same serpentine
Frank
Frank Beuker is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 11th July 2006, 04:59 PM   #19 (permalink)
IanAnderson's Avatar
IanAnderson
Gold Supporter
United Kingdom

Join Date: Nov 2003
Location: Ashford
GT40: Dax 40 Mk1 (Rov
Posts: 3,073
Ron

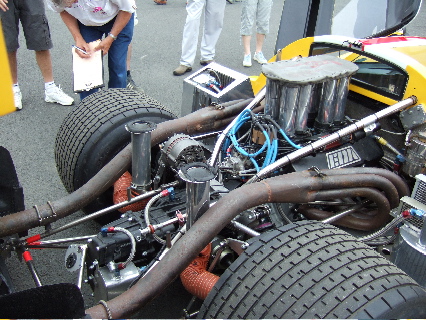

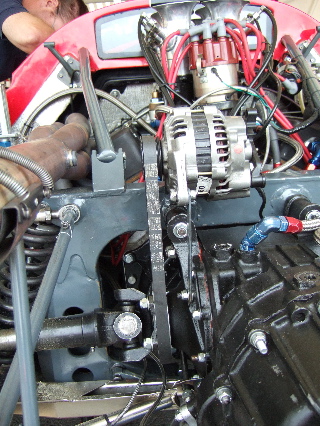

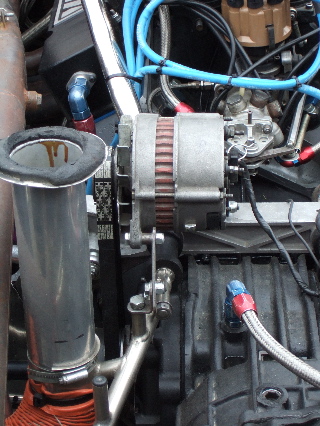

From this year's event - trying to get the Dax on he road took too much time

Ian
Attached Thumbnails
Click image for larger version

Name:	alt 1b.jpeg
Views:	235
Size:	115.1 KB
ID:	14318   Click image for larger version

Name:	alt 2.jpeg
Views:	227
Size:	93.3 KB
ID:	14319   Click image for larger version

Name:	alt 3 .jpeg
Views:	235
Size:	111.0 KB
ID:	14320
