Old 14th March 2011, 02:13 AM   #1 (permalink)
EFNFAST
I Have No Life
Canada

Join Date: Jan 2009
Location: Here
GT40: 917, SLC, Cobra
Posts: 2,531
Cross ram intakes

Does anybody have any working experience with crossram intakes? More specifically, how well (or poorly) they tend to work (as compared against runners that just go straight up) assuming the runner lengths and shape/etc... have been properly constructed?

EFNFAST is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 04:10 AM   #2 (permalink)
superflyte's Avatar
superflyte
4 Tenths
Australia

Join Date: Jun 2007
Location: Gold Coast, QLD
GT40: V10
Posts: 492
Re: Cross ram intakes

Finally, a real engine on this forum

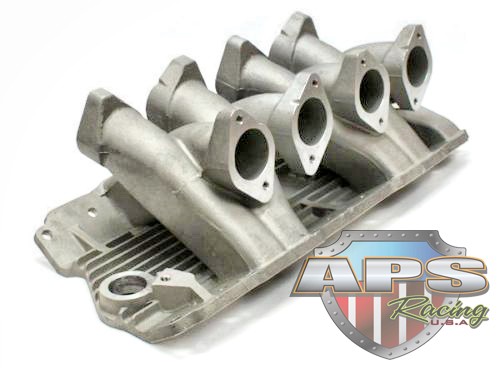

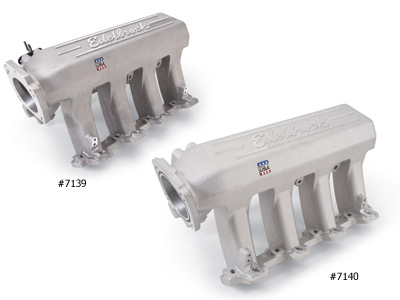

Actually, I looked at both cross-ram and straight stack for my LS2, and have gone for a modified straight stack system. I like the cross-ram and plenum idea - and especially good if you want to super or turbocharge at a later date - but mine is a GT40 and I wanna see some trumpets!

Those intake runners look longer than those offered by, say, Edelbrock (see pic), but will have a lower finished height. Nice packaging for the back of an SLC too. Nice job!
Attached Thumbnails
Click image for larger version

Name:	7139-7140.jpg
Views:	484
Size:	20.4 KB
ID:	52020
__________________
Troy Beros...
GT40-V10
superflyte is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 08:47 AM   #3 (permalink)
CANTDRIVE55's Avatar
CANTDRIVE55
Gold Supporter
United States

Join Date: Jun 2008
Location: San Angelo,TX
GT40: SLC/LS7/Ricardo
Posts: 1,369
Re: Cross ram intakes

Alex,

Generally, Long intake runner lengths (ie., cross ram) will work better on your large displacement engine and give better torque at low end. Larger tube diameter works better with large displacement engines at higher rpms. But a diameter too large may cause reversion and loss of power. Short intake runner lengths work better for increasing torque at lower rpms in smaller displacement engines. The smallest diameter without losing HP is the best size.
__________________
Doc Kaler
SL-C, MachineWorks LS7, Ricardo
CANTDRIVE55 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 09:04 AM   #4 (permalink)
EGLITOM's Avatar
EGLITOM
10 tenths
Germany

Join Date: Sep 2007
Location: Germany
GT40: RCR40;LR331;G50
Posts: 1,867
Re: Cross ram intakes

Quote:
Originally Posted by EFNFAST View Post
Does anybody have any working experience with crossram intakes? More specifically, how well (or poorly) they tend to work (as compared against runners that just go straight up) assuming the runner lengths and shape/etc... have been properly constructed?
Hi ALex

How do you want to fit a carb on such an intake ?

TOM
__________________
RCR EUROPE by S-PERFORMANCE

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
EGLITOM is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 09:21 AM   #5 (permalink)
MN12
5 Tenths
United States

Join Date: Sep 2001
Location: Alpharetta, GA
GT40: FFR 65 Coupe
Posts: 501
Re: Cross ram intakes

Quote:
Originally Posted by EGLITOM View Post
Hi ALex

How do you want to fit a carb on such an intake ?

TOM

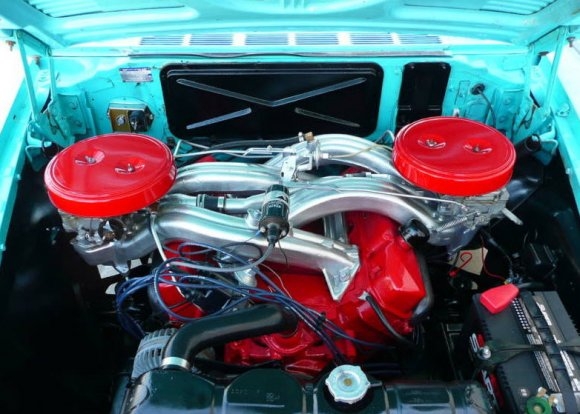

Easy
Attached Thumbnails
Click image for larger version

Name:	1961_Dodge_Seneca_413_Max_Wedge_Sedan_Engine_1.jpg
Views:	579
Size:	156.0 KB
ID:	52021
MN12 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 01:51 PM   #6 (permalink)
EGLITOM's Avatar
EGLITOM
10 tenths
Germany

Join Date: Sep 2007
Location: Germany
GT40: RCR40;LR331;G50
Posts: 1,867
Re: Cross ram intakes

Tim

That´s why this car has such a big battery ( probably a permanent driven starter to help volumetric efficience in low rpm´s)

TOM
__________________
RCR EUROPE by S-PERFORMANCE

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
EGLITOM is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 02:36 PM   #7 (permalink)
EFNFAST
I Have No Life
Canada

Join Date: Jan 2009
Location: Here
GT40: 917, SLC, Cobra
Posts: 2,531
Re: Cross ram intakes

Quote:
Originally Posted by EGLITOM View Post
Hi ALex

How do you want to fit a carb on such an intake ?

TOM
I'm currently examining all alternatives and may be dragged kicking&screaming out of the dinosaur era =(

With a carb, the most realistic intake manifold height is around 6'', which is farrrrr from ideal. So it's kind of like, do I accept something that I'm familiar with and that the engine will never function to the best of its abilities, or do I surrender, learn something new, and have an engine where 1 part is not restricting the whole of it.
EFNFAST is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 07:08 PM   #8 (permalink)
jimbo's Avatar
jimbo
Silver Supporter
United States

Join Date: Nov 2001
Location: Annapolis, MD
GT40: Mark VI, #1149
Posts: 3,631
Re: Cross ram intakes

I can't imagine ever getting the linkage working right on an engine where the carbs are THREE FEET apart. Those looked crazy when they were made, and they still look crazy to me.

I think the fabricated intake is for EFI, isn't it? Or did I miss something? Looks like it has a big hole at the front for the air metering device.
__________________
Mark I monocoque, completed
Safir Mk I body
ZF-2 transaxle
302 w/Webers
jimbo is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 14th March 2011, 07:17 PM   #9 (permalink)
YerDugliness's Avatar
YerDugliness
Lifetime Premier Supporter
United States

Join Date: Mar 2006
Location: near Houston TX
GT40: 1/24 scale MKII
Posts: 2,082
Re: Cross ram intakes

Quote:
Originally Posted by jimbo View Post
I think the fabricated intake is for EFI, isn't it? Or did I miss something? Looks like it has a big hole at the front for the air metering device.
Yep, with the runners running crosswise from the plenum to the intake port on the heads. Pretty cool if you ask me!!!

Cheers from Doug!
__________________
YD,E./PNB

Retired once, back at work, still attempting to age disgracefully
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
YerDugliness is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 12:08 AM   #10 (permalink)
Joules5's Avatar
Joules5
Lifetime Premier Supporter
United States

Join Date: Nov 2007
Location: Reno, NV
GT40: ERA MK1 Gulf
Posts: 421
Re: Cross ram intakes

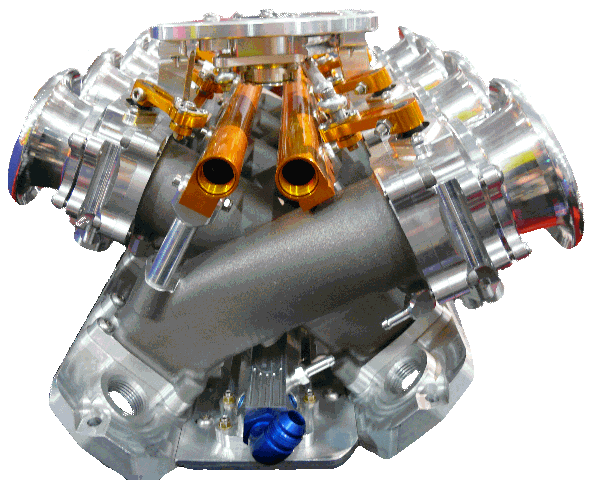

TWM (now Borla) make a cross ram EFI (no Ford version yet), but IMO it's not half as sexy as the Morrison product from Australia, now the Aussies really do make a beautiful cross ram EFI setup.

See more here; MorrisonOz/Ford Manifolds

One big benefit is the almost straight runners feeding direct into the head.
Attached Thumbnails
Click image for larger version

Name:	302_gold_fuel_railsex_gif.gif
Views:	636
Size:	117.4 KB
ID:	52036
__________________
ERA Gulf GT40 #2041
Pantera's #9178 GT5 & #7024 L
Swift 008 & Reynard 90H Formula Atlantic's
Ultima CanAm
Joules5 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 01:02 AM   #11 (permalink)
mike huddart
2 Tenths
United Kingdom

Join Date: Sep 2009
Location: England
GT40: none
Posts: 206
Re: Cross ram intakes

Quote:
Originally Posted by Joules5 View Post
TWM (now Borla) make a cross ram EFI (no Ford version yet), but IMO it's not half as sexy as the Morrison product from Australia, now the Aussies really do make a beautiful cross ram EFI setup.


One big benefit is the almost straight runners feeding direct into the head.
The TWM crossover manifold IS for a Ford, 351. They also do a billet version for the LS series with cast versions, same as the 351, on the way for 302, Chevy etc.
Mike
mike huddart is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 01:38 AM   #12 (permalink)
Joules5's Avatar
Joules5
Lifetime Premier Supporter
United States

Join Date: Nov 2007
Location: Reno, NV
GT40: ERA MK1 Gulf
Posts: 421
Re: Cross ram intakes

Quote:
Originally Posted by mike huddart View Post
The TWM crossover manifold IS for a Ford, 351. They also do a billet version for the LS series with cast versions, same as the 351, on the way for 302, Chevy etc.
Mike
Oops another senior moment, thanks for the correction.
__________________
ERA Gulf GT40 #2041
Pantera's #9178 GT5 & #7024 L
Swift 008 & Reynard 90H Formula Atlantic's
Ultima CanAm
Joules5 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 03:58 AM   #13 (permalink)
awatkins
Lifetime Premier Supporter
United States

Join Date: Nov 2009
Location: Gone
GT40: N/A
Posts: 2,530
Re: Cross ram intakes

Quote:
Originally Posted by EFNFAST View Post
..... do I accept something that I'm familiar with and that the engine will never function to the best of its abilities, or do I surrender, learn something new, and have an engine where 1 part is not restricting the whole of it?

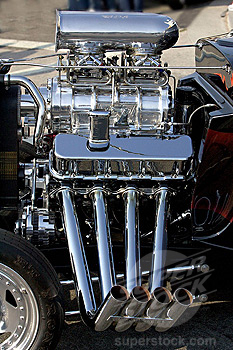

The answer is,

Click image for larger version

Name:	blower.jpg
Views:	376
Size:	111.5 KB
ID:	52038

YES!
awatkins is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 04:24 AM   #14 (permalink)
EFNFAST
I Have No Life
Canada

Join Date: Jan 2009
Location: Here
GT40: 917, SLC, Cobra
Posts: 2,531
Re: Cross ram intakes

Quote:
Originally Posted by awatkins View Post
The answer is,

Attachment 52038

YES!
Okay, yea, that definateley won't fit :p
EFNFAST is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 07:19 PM   #15 (permalink)
BundleOfSnakes's Avatar
BundleOfSnakes
Rookie
United States

Join Date: Apr 2008
Location: N. Calif. USA
Posts: 30
Re: Cross ram intakes

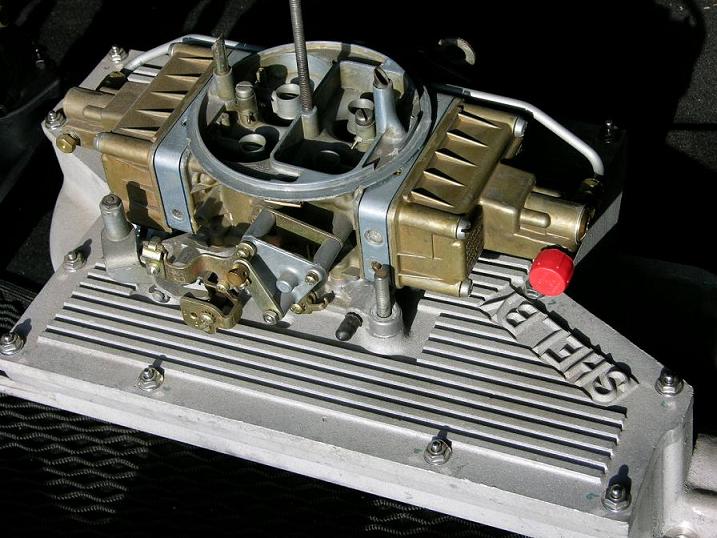

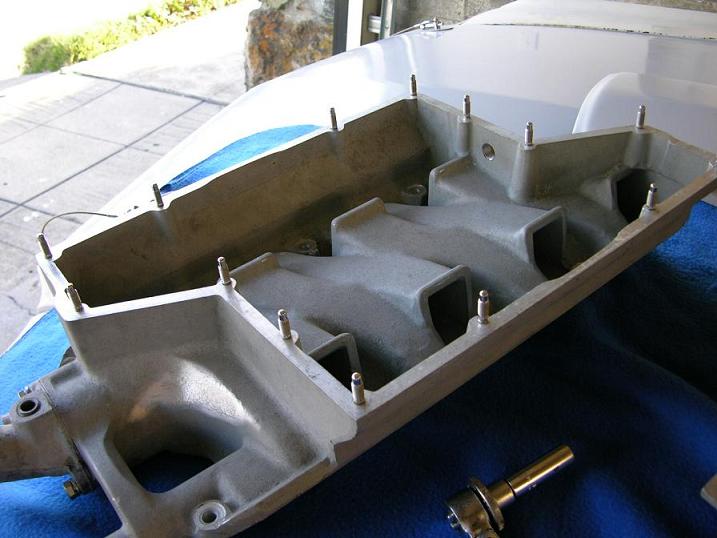

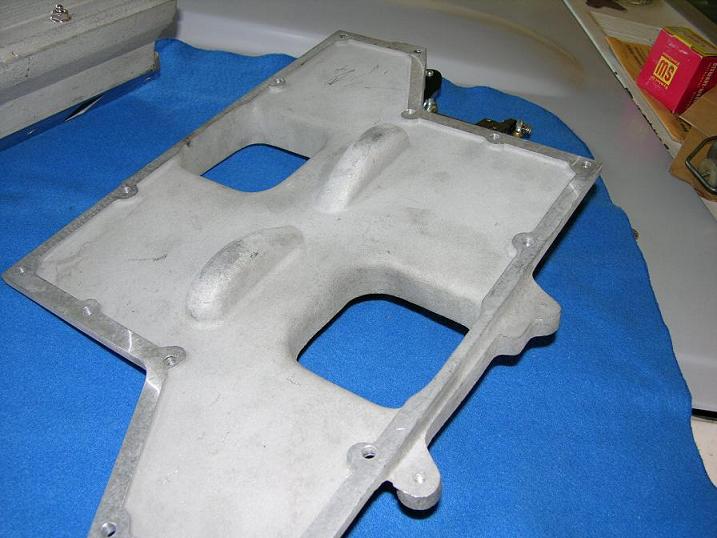

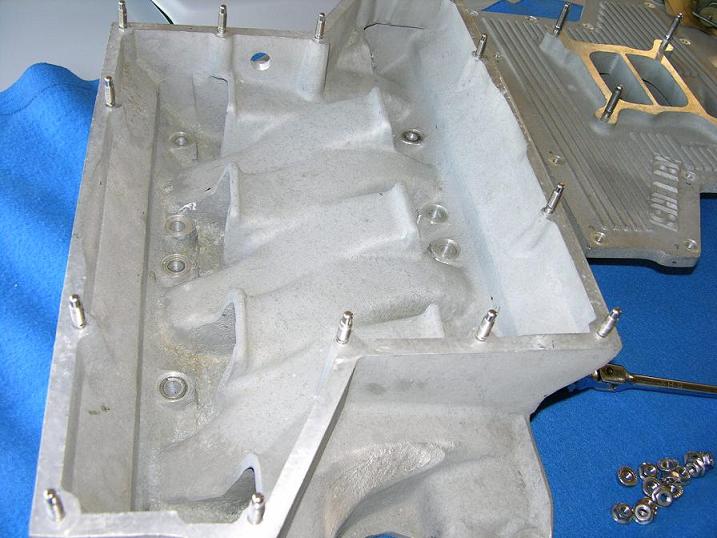

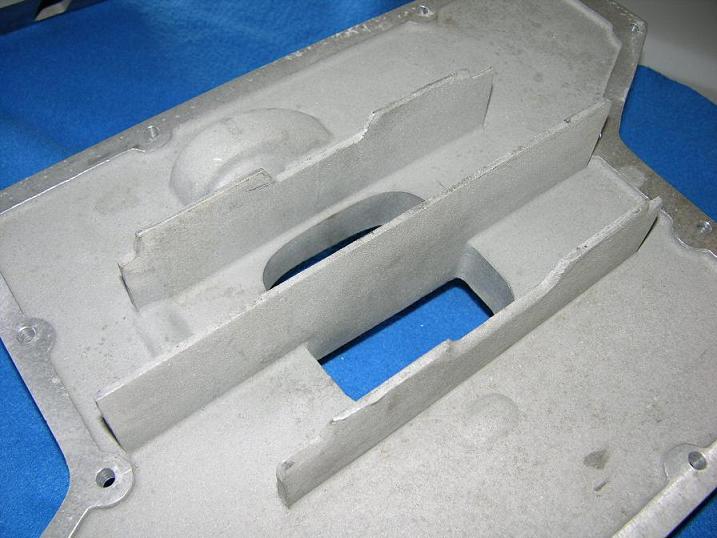

Here is the Cross Ram (“Ram Box”) Intake for the Small Block 289-302 Ford circa 1968-1970 made/casted by BuddyBar marketed by AutoSport with “Shelby” cast markings.
<?xml:namespace prefix = o ns = "urn:schemas-microsoft-comfficeffice" /><o:p></o:p>
I have both 4V and 8V top lids meaning it will take either a single or dual 4 barrel (Holley) Carburetors. The 2-4’s called for twin 600 cfm and the single called for an 850 cfm. Of special interest the underside of the dual 4 was open to the plenum. The single 4V carb has directional walls under the lid.
<o:p></o:p>
I was going to use the single 4V set-up with a Modified 700cfm double-pumper (see pic) but decided to run 48 IDA Webers instead.
<o:p></o:p>
Cheers,
~Earl J
Attached Thumbnails
Click image for larger version

Name:	DSCN2392.JPG
Views:	268
Size:	60.5 KB
ID:	52039   Click image for larger version

Name:	DSCN2397.JPG
Views:	277
Size:	65.2 KB
ID:	52040   Click image for larger version

Name:	DSCN2398.JPG
Views:	292
Size:	60.5 KB
ID:	52041   Click image for larger version

Name:	DSCN2406.JPG
Views:	349
Size:	56.4 KB
ID:	52042   Click image for larger version

Name:	DSCN3621.JPG
Views:	325
Size:	82.9 KB
ID:	52043

BundleOfSnakes is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 07:35 PM   #16 (permalink)
BundleOfSnakes's Avatar
BundleOfSnakes
Rookie
United States

Join Date: Apr 2008
Location: N. Calif. USA
Posts: 30
Re: Cross ram intakes

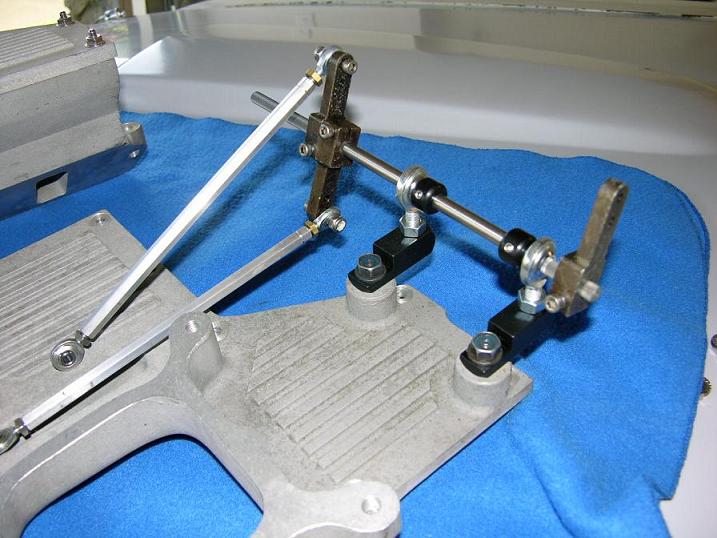

Here is the Linkage to the Dual 4 (8V) set-up:
<?xml:namespace prefix = o ns = "urn:schemas-microsoft-comfficeffice" /><o:p></o:p>
The driver side carburetor is by design to be mounted backwards. Being a “double pumper” The primary butterflies are oriented to the rear (over 7 & 8) feedingthe back half of the plenum. The passenger side carburetor is mounted in the standard orientation where its primaries are feeding the front half of the plenum.
<o:p></o:p>
Note the linkage in the photograph and the reliefs in the lid correspond to the Holley throttle arms.
The top rod pulls back (passenger carb) the lower rod pushes (driver side carb).
<o:p></o:p>
Cheers,
~Earl J
Attached Thumbnails
Click image for larger version

Name:	DSCN2387.JPG
Views:	206
Size:	70.7 KB
ID:	52044
BundleOfSnakes is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 15th March 2011, 10:37 PM   #17 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,390
Re: Cross ram intakes

Very interesting website. Lots of Chevy LS and other stuff but some 351W parts also. Very good prices however.


CHEVY CROSS RAM MANIFOLD WEBER INTAKE Moon Rat SBC 350 - Listing # 144343 Ahwooga - Buy Sell Parts for New and Used Cars Trucks Motorcycles
Attached Thumbnails
Click image for larger version

Name:	5132d18b2D37ce2D42f32Dac7a2D5d1f658394f2SBCMo9.jpeg
Views:	729
Size:	35.8 KB
ID:	52047
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd March 2011, 05:02 PM   #18 (permalink)
dallas_'s Avatar
dallas_
Rookie
United States

Join Date: Feb 2010
Location: dallas
Posts: 92
Re: Cross ram intakes

Alex,
Wayne Presley at Very Cool Parts has a cross ram manifold for Chevy's.
Looks awesome. I think it's set up for FI though, so you might just have to surrender.

Scroll down to see the cross rams...

http://www.verycoolparts.com/Stack.htm

Last edited by dallas_; 22nd March 2011 at 05:08 PM. Reason: added link
dallas_ is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 22nd March 2011, 08:05 PM   #19 (permalink)
mike huddart
2 Tenths
United Kingdom

Join Date: Sep 2009
Location: England
GT40: none
Posts: 206
Re: Cross ram intakes

We have built a lot of "Cross Ram " induction engines over the years, all for what would now be considered Historic racers. That in itself should tell the story, they don't flow enough air to make "modern" horse power.
Leaving the "look" aside, if you consider the length of the runner as a restriction and the point at which the runners cross as a huge restriction then you are always going to be up against it. We have found because of the length of the runners and small cross section that cam choice becomes super critical.
Small blocks particularly don't have enough room to package everything without compromising the runners. We have built several Bizzarinnis with crossover 327s with both Campagnolo and Moon intakes with 45 and 50 DCOEs, they make great torque for a small engine and original style heads but they only had about 300 HP in their day so air flow didn't really come into it. Surtees built some stroked 327s with something like 55mm Webers and a most peculiar cross over manifold for his T70 but they wouldn't breath. Similarly Allan Smith built some trick looking cross over F5000 engines with DFV style slide throttles, they were " sort of " OK and did produce plenty of torque but as soon as head technology took off they became obsolete very quickly. We have tried them on mildish Brodix heads and they're hopless.
I think you would need a VERY good reason to consider a crossover because from a power point of view you will have to work hard.
Mike

PS. I actually had one of those 413 Cross Ram Chrysler engines in a stock car back in the 60's and apart from being a sales gimmick for the 300E were "tuned" to produce maximum torque at 2500 rpm !
mike huddart is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 26th March 2011, 05:55 PM   #20 (permalink)
andrewrobertson's Avatar
andrewrobertson
A Tenth
New Zealand

Join Date: Apr 2009
Location: New Zealand
GT40: McLaren M1B Rep
Posts: 121
Re: Cross ram intakes

Quote:
Originally Posted by mike huddart View Post
We have built a lot of "Cross Ram " induction engines over the years, all for what would now be considered Historic racers. That in itself should tell the story, they don't flow enough air to make "modern" horse power.
I can add a mild street example to Mike's excellent summary above. I used the moon clone manifold pictured above with 4 x 47mm OER (DCOE clones) on a 383 with 9.5 c.r., and a 218/224 hyd roller with 110 lobe centre, and some 170cc edelbrock heads.

Once I had completed the massive effort of getting the intake to fit nicely, making nice air boxes, and tuning the thing to have acceptable driveability and performance without ruinous economy, it was a combination that was substantially inferior to the single 750DP Holley and dual plane Edelbrock perfprmer intake that was on the engine previously.

The 4v set-up was useful to about 5600, had pin-sharp throttle response, good bottom and midrange. The ram was dead by 5k, felt like it had less peak torque, but had more torque below 1500, could not deliver enough pump shot to ever be truly clean on snappy transients (I think a diaphram pump like a dellorto would have cured that), was fussy to maintain, and used about 50% more fuel around town. It didnt stay on the motor for long.

Cheers, Andrew
andrewrobertson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
GT40 427FE Cross Ram Injection awatkins GT40 Tech - Engines/Induction/Exhaust 4 25th February 2010 09:22 AM
Ford 302: Induction Ram Pipe lengths saxoncross GT40 Tech - Engines/Induction/Exhaust 10 12th December 2009 10:30 AM
Brass or similar mesh covers for 48 IDF ram tubes rgrundy GT40 Tech - Engines/Induction/Exhaust 7 14th October 2005 12:36 PM
GT40 Mk I Cross Member Doug Radix The Garage Sale 1 26th February 2005 01:08 PM
Cross-thread from hell Mark Worthington All GT40 9 24th May 2003 02:01 PM


All times are GMT -4. The time now is 07:55 AM.
