Old 16th December 2007, 12:27 AM   #1
ChrisMartino
9 Tenths
Canada

Join Date: Nov 2003
Location: Canada
GT40: Did at one time
Posts: 976
Early Rear Light Setup

If there are any owners who want a template & instructions for the early rear light setup for the Mk I that I have converted my car to based on the original, please let me know and I'll take a tracing for you and send all my build info including light type needed, materials etc.

Specific details once I know how many want this info-

Cheers


Chris
Attached Thumbnails
Early Rear Light Setup-right-rear_03-jpg   Early Rear Light Setup-rear_01-jpg
ChrisMartino is offline   Reply With Quote
Old 19th December 2007, 11:07 PM   #2
CESLAW's Avatar
CESLAW
Silver Supporter
United States

Join Date: Oct 2006
Location: Illinois
GT40: RCR
Posts: 1,528
Re: Early Rear Light Setup

Chris:

Every time I see pics of you car I marvel at how good it looks - such a faithful reporduction of the original.
CESLAW is offline   Reply With Quote
Old 22nd December 2007, 11:27 PM   #3
Jim C's Avatar
Jim C
10 tenths
Australia

Join Date: Dec 2004
Location: SYDNEY, AUSTRAL
GT40: RF 105
Posts: 1,721
Re: Early Rear Light Setup

Chris

I dont mind your rear lamps what is the history on them.
Did they run in a certain year.
I thought the MK1 only had the combined turn/brake lamp.

Jim
__________________
If you say its to hard you have
already failed.
Jim C is offline   Reply With Quote
Old 23rd December 2007, 01:24 PM   #4
Charlie Farley's Avatar
Charlie Farley
10 tenths
United Kingdom

Join Date: Sep 2005
Location: UK
GT40: In Build
Posts: 1,348
Re: Early Rear Light Setup

Chris,

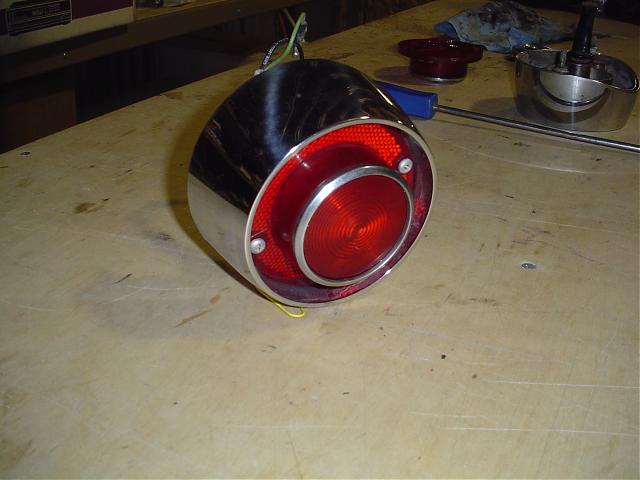

Your twin light setup superceded the earliest ones i intend to trial fit.
Attached Thumbnails
Early Rear Light Setup-rear-light-jpg

Last edited by Charlie Farley; 23rd December 2007 at 01:58 PM.
Charlie Farley is offline   Reply With Quote
Old 23rd December 2007, 02:24 PM   #5
ChrisMartino
9 Tenths
Canada

Join Date: Nov 2003
Location: Canada
GT40: Did at one time
Posts: 976
Re: Early Rear Light Setup

Thanks Chuck, it's nice to get positive feedback after all of the work, glad you like it!

I think my lights are the second generation type, I'm not sure what year they went to the single combined light used on most, if not all of the replicas offered today. Also, I don't know how many or when the license plate recess was introduced, for the road cars I assume so that was also done to complete the rear changes.

Those lights look great Charlie, do you know what were they used in?


Chris

Last edited by ChrisMartino; 23rd December 2007 at 03:33 PM.
ChrisMartino is offline   Reply With Quote
Old 23rd December 2007, 03:04 PM   #6
Big-Foot's Avatar
Big-Foot
Administrator
United States

Join Date: Jan 2007
Location: Kenyon, MN
GT40: Gulf Cart
Posts: 6,733
Re: Early Rear Light Setup

Man - that looks awfully close to a (((GULP))) 64 Chevrolet Impala tail light lens...

__________________
Regards - Randy
-- Youth and talent are no match for old age and treachery!
GT40 RCR40 #45 G50-331-Weber IDAs ((Sold))
My build site:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Big-Foot is offline   Reply With Quote
Old 23rd December 2007, 03:53 PM   #7
ijvpet's Avatar
ijvpet
A Tenth
Canada

Join Date: Jan 2004
Location: Calgary, Alberta
GT40: CAV
Posts: 146
Re: Early Rear Light Setup

Beautiful job Chris. Once that motor goes in, she will be one amazing car.
__________________
Regards,
John

CAV Gulf body and colors as per S/N 1076
RH drive / RH Shift
347 c.i. w/ 8 stack EFI
ZF 5 speed
ijvpet is offline   Reply With Quote
Old 23rd December 2007, 04:21 PM   #8
40bud's Avatar
40bud
10 tenths
United States

Join Date: Nov 2001
Location: San Francosco a
GT40: GTD Finished in
Posts: 1,032
Re: Early Rear Light Setup

I don't know which specific cars had the twin tailight setup. However back in the late eighties when I first saw 1009 in an unrestored state it definitely had this double light setup. At that time the car was painted in what looked to be guardsman blue with white stripes and a tan interior and was awaiting some tender loving care.
40bud is offline   Reply With Quote
Old 23rd December 2007, 07:55 PM   #9
allanfeldman
8 Tenths
United Kingdom

Join Date: Mar 2004
Location: UK
GT40: A model
Posts: 880
Re: Early Rear Light Setup

As you may or not know I am a keen Anorak on forties in the sense that I like to find out about details. I obviously do not know everything about the Ford GT's. As I do not have access to every picture book etc and I was not there at the time. But I have found out that the Gulf flared tail and single Simca rear lights on a forty first seemed to turn up on the Ford France car P1020 at the 1967 Le Mans. So therefore it would seem logical that in the season of 1966 and prior to this the twin taillights would be on all of the Forties. As for Bigfoot being surprised that the taillights might be from a 1964 Chevrolet Impala it would not suprise me as they grabbed the most needed item at the time. I thought that the MKII tail lights were from a Chevrolet Corsair??
Regards Allan
allanfeldman is offline   Reply With Quote
Old 23rd December 2007, 09:55 PM   #10
ChrisMartino
9 Tenths
Canada

Join Date: Nov 2003
Location: Canada
GT40: Did at one time
Posts: 976
Re: Early Rear Light Setup

I guess it depends on how time period correct you want the car to replicate. Like I said, you'll need to address the license plate recess also - my car is based on P1010. Maybe a time lineage of rear changes to the lights/rear clamshell with respect to photos'/info would clarify for those thinking of making the modifications?

Experts?


Chris
ChrisMartino is offline   Reply With Quote
Old 24th December 2007, 01:31 PM   #11
Charlie Farley's Avatar
Charlie Farley
10 tenths
United Kingdom

Join Date: Sep 2005
Location: UK
GT40: In Build
Posts: 1,348
Re: Early Rear Light Setup

Allan,

The picture of the lights i posted, were as fitted originally to the MK1 prototypes, circa '65.
I believe they then fitted the seperate dual Lucas lights as Chris posted.
I've no idea what car my lights were originally fitted to. These came off an old rear clip.
Charlie Farley is offline   Reply With Quote
Old 24th December 2007, 04:53 PM   #12
Mike Drew's Avatar
Mike Drew
10 tenths
United States

Join Date: Feb 2005
Location: Vacaville, CA
GT40: None, yet!
Posts: 1,387
Re: Early Rear Light Setup

Somewhere on this forum there's a specific reference for the original quad taillights which were used on all the GT40s for the first couple of years. I think they are fairly generic Lucas items, and are probably easily available if you know where to look. Starting in 1967 the later dual taillights were used; some early cars were modified with later bodywork (and thus the later lights) while others retained their original setups

Note that the Mk II cars used quad taillights which were completely different from the Mk 1 versions.

Personally I love the early look!
__________________
Mike Drew, Vacaville, CA (
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
)
'72 De Tomaso Pantera, '66 Contemporary 427 Cobra, '66 Shelby GT-350 clone, and gearing up for a Superformance Mk 1....
Mike Drew is offline   Reply With Quote
Old 24th December 2007, 07:51 PM   #13
Big-Foot's Avatar
Big-Foot
Administrator
United States

Join Date: Jan 2007
Location: Kenyon, MN
GT40: Gulf Cart
Posts: 6,733
Re: Early Rear Light Setup

Quote:
Originally Posted by allanfeldman View Post
As for Bigfoot being surprised that the taillights might be from a 1964 Chevrolet Impala it would not suprise me as they grabbed the most needed item at the time. I thought that the MKII tail lights were from a Chevrolet Corsair??
Regards Allan
BINGO - Well sort of... I don't know why my image link isn't working above but I found numerous pictures of the rear of the Chevrolet Corvair that show these tail lights....
__________________
Regards - Randy
-- Youth and talent are no match for old age and treachery!
GT40 RCR40 #45 G50-331-Weber IDAs ((Sold))
My build site:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Big-Foot is offline   Reply With Quote
Old 25th December 2007, 12:42 PM   #14
ChrisMartino
9 Tenths
Canada

Join Date: Nov 2003
Location: Canada
GT40: Did at one time
Posts: 976
Re: Early Rear Light Setup

Hi Guys,

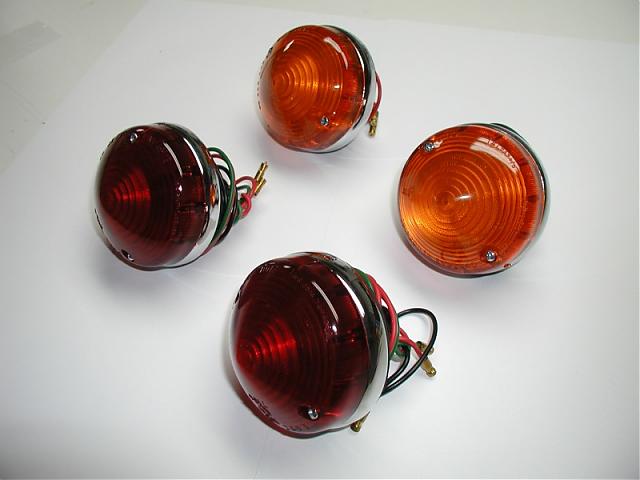

Lucas L691 Indicator Lamp & Lucas L691 Stop/Tail Lamp are what I used and are correct. Purchased them from AES but I presume you could find them elsewhere.


Chris
Attached Thumbnails
Early Rear Light Setup-rear-lights_01-jpg
ChrisMartino is offline   Reply With Quote
