CAV Fuel Cell Failure

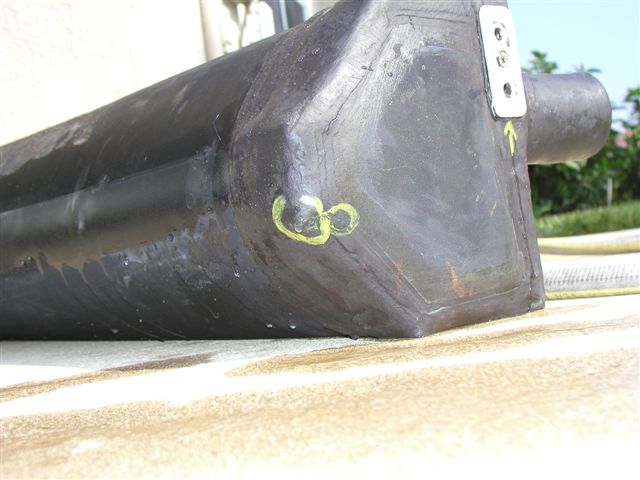

I have been working on the fuel smell on my CAV Mono and it led me to pull the right fuel cell to follow up on suspicious staining under the right side of the car.
It appears that the front bladder wall on the cell is not adequately bonded. There is no sign of abrasion or abuse so it looks like an OEM issue. The cell was made June 2002. Attached are photos and perhaps they may be useful for others to check.
Attached Thumbnails
Click image for larger version

Name:	46125-P1010033.JPG
Views:	172
Size:	48.9 KB
ID:	9296
Veek is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st October 2004, 06:35 AM   #2 (permalink)
Pat
Veek's Avatar
Veek
Silver Supporter
United States

Join Date: Apr 2003
Location: Windermere, FL
GT40: CAV
Posts: 1,097
Re: CAV Fuel Cell Failure

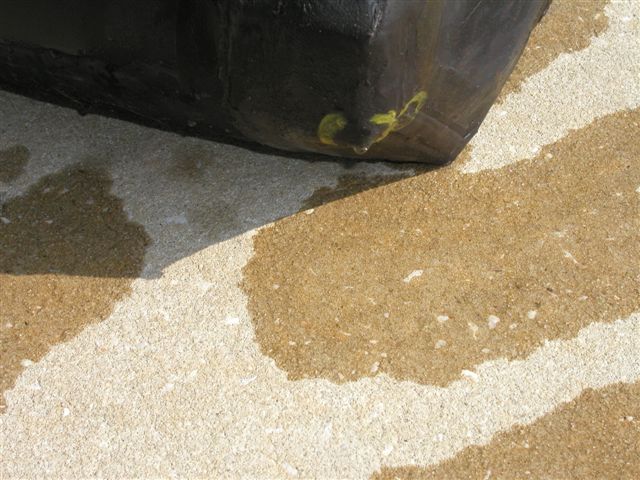

The yellow circles and arrow point to the leaks.
Attached Thumbnails
Click image for larger version

Name:	46126-P1010032.JPG
Views:	179
Size:	72.4 KB
ID:	9297
Veek is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st October 2004, 07:38 AM   #3 (permalink)
wealdenengineer
10 tenths
United Kingdom

Join Date: Oct 2001
Location: East Sussex, UK
Posts: 1,687
Re: CAV Fuel Cell Failure

Veek, to PAT CHAFFIN ( PCHAFFIN@cfl.rr.com ) who also has a fuel cell problem, he found a self tap screw, put in by the factory, through his cell. He was having to investigate getting a new cell, so he could advise you on his progress, Frank
wealdenengineer is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 16th November 2004, 02:35 PM   #4 (permalink)
Rookie
United Kingdom

Join Date: Jan 2004
GT40: Surrey, UK
Posts: 24
Re: CAV Fuel Cell Failure

Just spotted this post! Autofutura have had some alloy fuel tanks made which I now have on my CAV. They are very good quality, a snug fit in the sill, and pretty easy to fit. You may want to get in touch with John Spence to see if they can supply you alloy replacements.

Brian Yeomans
