17th September 2006, 03:21 AM
|
#1 (permalink)
| | jac mac I Have No Life
Join Date: Dec 2005 Location: Gore, NZ
Posts: 3,221
| ZF Dimensions Does anyone have a ZF out of a car at the moment that could measure accurately the diameter of the register on the front face of the T/Axle or the rear face of the Bell Housing. This is the stepped register that pass's thru the four bolt holes that attach Trans to Bellhousing.
Thankyou.
Jac Mac. |
| |
17th September 2006, 05:33 AM
|
#2 (permalink)
| | JIMMYMAC Lifetime Premier Supporter
Join Date: Jul 2003 Location: Scotland, GB GT40: Monocoque
Posts: 1,842
| Re: ZF Dimensions [/quote]This is the stepped register that pass's thru the four bolt holes that attach Trans to Bellhousing.[/quote]
Jac Mac
I will try to help but I'm confused with your "four bolt" statement.

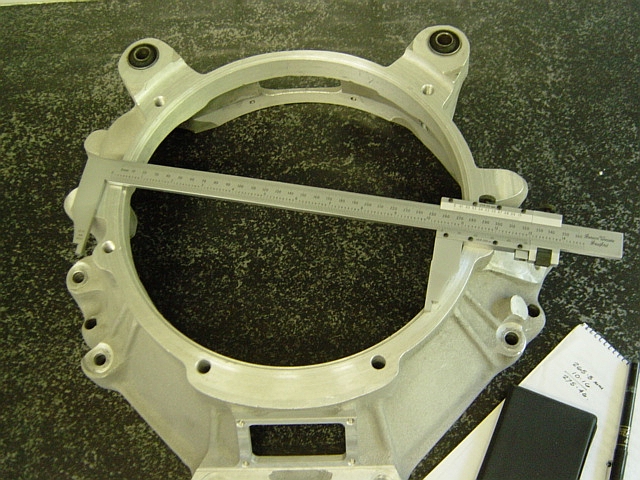

Below is a bell where I have just measured the inner counterbored register diameter as 275.46mm with good verniers.
If you need any other dimensions from it just send me a pm.
I will also try to get the data verified by the ZF professional I know for you.
__________________ James Festina Lente Monocoque, Original MKI Engine & Drivetrain Graviner Fire Suppression |
| |
17th September 2006, 05:48 AM
|
#3 (permalink)
| | roy snook 3 Tenths
Join Date: Nov 2001 Location: Surrey England GT40: Monocoque
Posts: 396
| Re: ZF Dimensions Hi Jac Mac,
I have a four bolt ZF-0, out of my car at the moment, I will mail a picture and measuremnts to you.
__________________ Pressed Panel Monocoque 65 Hipo 289 IDA's 0 ZF. |
| |
17th September 2006, 05:52 AM
|
#4 (permalink)
| | JIMMYMAC Lifetime Premier Supporter
Join Date: Jul 2003 Location: Scotland, GB GT40: Monocoque
Posts: 1,842
| Re: ZF Dimensions Roy,
Thanks for that clarification - This bell was for a ZF2
__________________ James Festina Lente Monocoque, Original MKI Engine & Drivetrain Graviner Fire Suppression |
| |
17th September 2006, 05:54 AM
|
#5 (permalink)
| | roy snook 3 Tenths
Join Date: Nov 2001 Location: Surrey England GT40: Monocoque
Posts: 396
| Re: ZF Dimensions Hi JimmyMac,
the bellhousing in your picture is for the later -2 box, the early boxes were 4 bolt to bellhousing.
__________________ Pressed Panel Monocoque 65 Hipo 289 IDA's 0 ZF. |
| |
18th September 2006, 04:35 AM
|
#6 (permalink)
| | ross nicol 10 tenths
Join Date: Dec 2002 Location: melbourne austr
Posts: 1,183
| Re: ZF Dimensions Hi Jac Mac
I'm fiddling with ZF/2 bellhousings at the moment. The face of the box is roughly 175mm. I can get you any specs for this box as it's on my work bench at the moment. I'm actually making a plastic template for the bell housings to be machined.
Ross
__________________ GT40 (RF #025 RBT/ZF, Motec injection)
De Tomaso Pantera
Subaru Sherpa (electric) |
| |
18th September 2006, 05:42 AM
|
#7 (permalink)
| | jac mac I Have No Life
Join Date: Dec 2005 Location: Gore, NZ
Posts: 3,221
| Re: ZF Dimensions Hi Ross,
JimmyMac has given me the dimension for -2 recess dia as above in post# 2 and Roy is going to fwd the same dimension off a -0. Only other dimension I will require is length of bellhousing-[rear face of motor to front face of T/Axle ]. These two dimensions will be enough to get me on the way. Just want to make sure I put enough material in the casting to cover either trans option.
Cheers
Jac Mac |
| |
18th September 2006, 02:36 PM
|
#8 (permalink)
| | JIMMYMAC Lifetime Premier Supporter
Join Date: Jul 2003 Location: Scotland, GB GT40: Monocoque
Posts: 1,842
| Re: ZF Dimensions Jac Mac,

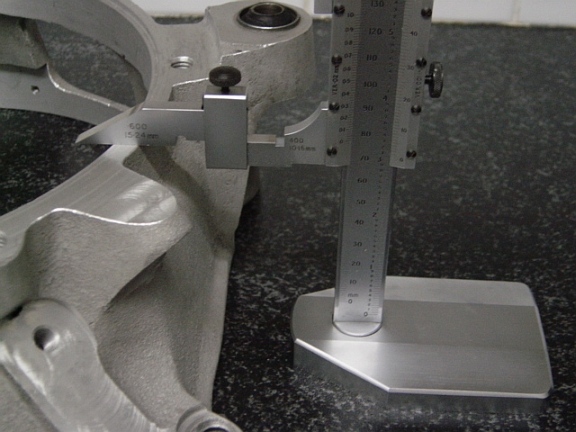

This one is 100mm long face to face.
The worktop is pretty level and I don't have my machinist's table so I took six datums.
I double checked the vernier height on a glass table afterward with a Rabone Chesterman rule.
__________________ James Festina Lente Monocoque, Original MKI Engine & Drivetrain Graviner Fire Suppression
Last edited by JIMMYMAC; 18th September 2006 at 02:38 PM.
|
| |
18th September 2006, 03:22 PM
|
#9 (permalink)
| | jac mac I Have No Life
Join Date: Dec 2005 Location: Gore, NZ
Posts: 3,221
| Re: ZF Dimensions Thanks very much James,
You will do well in the race car scene with measurements like these.
Just one offtopic comment, you will need measuring equipment capable of larger dimensions when you catch some trout out here!!
Cheers
Jac Mac |
| |
18th September 2006, 08:19 PM
|
#10 (permalink)
| | ross nicol 10 tenths
Join Date: Dec 2002 Location: melbourne austr
Posts: 1,183
| Re: ZF Dimensions I haven't got James' fancy measuring equipment but I can confirm the 100mm face to face measurement. I'll be in sunny Southland next week Jac Mac but won't have time to go fishing.
Ross
__________________ GT40 (RF #025 RBT/ZF, Motec injection)
De Tomaso Pantera
Subaru Sherpa (electric) |
| |
18th September 2006, 11:10 PM
|
#11 (permalink)
| | jac mac I Have No Life
Join Date: Dec 2005 Location: Gore, NZ
Posts: 3,221
| Re: ZF Dimensions I hear the WhiteBait are running Ross, maybe someone will give you a taste!!
Dont ask me, all I have had so far is promise's.
Thanks for checking the dimension, now all I need is some get up & go to make the thing!
Jac Mac |
| |
19th September 2006, 02:51 PM
|
#12 (permalink)
| | JIMMYMAC Lifetime Premier Supporter
Join Date: Jul 2003 Location: Scotland, GB GT40: Monocoque
Posts: 1,842
| Re: ZF Dimensions Jac Mac / Russ,
I had this nice little trout for your barbie. Unfortunately for you, it went back into the river, as they all do in New Zealand for conservation reasons.
Maybe that is why you have to eat whitebait instead ?
__________________ James Festina Lente Monocoque, Original MKI Engine & Drivetrain Graviner Fire Suppression
Last edited by JIMMYMAC; 19th September 2006 at 03:54 PM.
|
| |
19th September 2006, 03:03 PM
|
#13 (permalink)
| | Russ Noble Lifetime Premier Supporter
Join Date: Jul 2004 Location: Christchurch,NZ GT40: Scratch Kiwi 40
Posts: 2,033
| Re: ZF Dimensions Nothing wrong with whitebait once you've topped and tailed them JimmyMac!!!
__________________ Kiwi 40. Scratchbuilt Gulf Mk1, forged, dry sumped 351W. 930 LSD & spraybar, 10s & 14s.It goes, now to make it faster! To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts. |
| |
19th September 2006, 03:40 PM
|
#14 (permalink)
| | JIMMYMAC Lifetime Premier Supporter
Join Date: Jul 2003 Location: Scotland, GB GT40: Monocoque
Posts: 1,842
| Re: ZF Dimensions Hmm....... I understand now.
That's why you can get into a 40 and I have difficulty.
Stay alert, steady on the throttle and sharp into those bends. And even win.
Your on a micro diet !!!
But I hope you don't mind me saying so Russ, "it's a bit of a skinflint barbie mate"
__________________ James Festina Lente Monocoque, Original MKI Engine & Drivetrain Graviner Fire Suppression |
| | |
