R21 Cooler system pictures ?

I have my R21 plumed, one return over the diff and the other over 5th gear. I have my oil cooler and my pump is in the mail. So I intend to filter the oil drawn from the drain hole through the pump and on to the cooler then back to the gearbox. This is the shortest route from the drain hole to the pump. Or I have been thinking if I place the pump after the cooler the oil temp will be lower and this must be better for the pump but the length of the system that the pump would need to draw through would be longer. Can I even draw though a cooler? I intend to mount just about the entire system below the oil level in the gearbox. I am using a Mocal type pump.

What do you guys think. Also where would I add a temp sensor? Can I put it in the fill hole and rely on oil splash to get a reading? If not where would/have you put your temp sensor? I do not want to add another bung on the cases.

What temps should I be looking for? I have a Quaife LSD.

Any pictures of your mounting system and location of pumps coolers etc. would be of help.

Thanks, Howard Jones
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 01:10 AM   #2 (permalink)
ali grey
A Tenth
New Zealand

Join Date: May 2005
Location: pauanui beach,n
GT40: roaring forties
Posts: 106
Re: R21 Cooler system pictures ?

Howard ,
could add a tee fitting in the suction line somewhere and put temp sensor in that or oulet line.i would be interested in seeing some versions of gearbox oil pump set ups also.

cheers
ali
ali grey is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 04:33 AM   #3 (permalink)
IanAnderson's Avatar
IanAnderson
Lifetime Premier Supporter
United Kingdom

Join Date: Nov 2003
Location: Ashford
GT40: Dax 40 Mk1 (Rov
Posts: 3,458
Re: R21 Cooler system pictures ?

Howard

I had given this some thaught and was worried about not having the correct oil level in the gearbox.

What I thought was to take the hot oil out of the box from the normal oil filler hole to a sump / tank mounted along side the rear of the box (lower than the fill hole if possible)

Pump from there through filter cooler and onto gears etc. and the box should then always stay at the correct oil level even if hoses etc leak or the pump fails.

As I say I thaught but have bone nothing on it yet - still getting the EFi sorted.

Ian
__________________
DAX GT40. Morgan 3.9 EFi, Worked by John Eales.
Renault Box, Always makes me smile!
IanAnderson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 06:15 AM   #4 (permalink)
wbmusarra's Avatar
wbmusarra
I Have No Life
United States

Join Date: Oct 2001
Location: Snellville, Ga.
GT40: DRB#5
Posts: 2,742
Re: R21 Cooler system pictures ?

I have mine thought out in my mind. Not plumbed yet to the trans. Need to have it dissasembled so no burrs in the case. The temp or themostat should be on the exit from the case. You need the highest temp reading. I plan on a warning lite plus a thermostat. The lite is for over temp incase levels drop or a bearing spins or worse a dropped line. To set the level you will have to prime the system to make sure the cooler is filled and there is no air in it. The type of cooler will determine how that is done. The originals used a cooler with the inflow at the bottom and exit at the top. My cooler is longer than it is tall with the ports either at the top of at the bottom. So I will have to either run longer lines to the top or have the cooler primed prior to mounting to eliminate air.
Howard, a sump pump is O K but is not a guarantee that you will keep the oil level set if you develop a leak. The level will stay there longer but eventually the level will drop if there is a big leak or a hose comes off, especially if the pump pulls from the bottom of the sump, which it shoud. You might consider a fuel level guage and sender to alert you to a low level. The fuel level guages that are offered from Pegasus and others do not use any moving parts and have a wire connection that will go to a low level light. Moroso also have several devices to warn of low oil pressure which can be plumed into the line. Here are some of the things mentioned. Several of these are wired into the ignition and will shut the ignition off if the oil pressure falls.

Bill
Attached Thumbnails
Click image for larger version

Name:	Web Pegasus.jpg
Views:	722
Size:	47.7 KB
ID:	16455   Click image for larger version

Name:	Oil pressure safety switch1 (Small).jpg
Views:	705
Size:	37.7 KB
ID:	16457   Click image for larger version

Name:	Oil pressure safety switch2 (Small).jpg
Views:	752
Size:	27.2 KB
ID:	16458
Attached Files
File Type: pdf Low pressurewarning.pdf (193.2 KB, 136 views)
File Type: pdf Low oil pressure warning light wiring.pdf (180.9 KB, 97 views)
__________________
DRB#5
351W/408 TWM FI. AFR 205s 930 Porsche LSD
wbmusarra is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 01:27 PM   #5 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

One of my goals is to place the temp sensor so that it will read gearbox oil temp without the pump running. I think I want to be able to turn on the pump when it is needed and after the oil has gone up to operating temp.

I intend to add the amount of oil it takes to fill the entire system, lines, pump, cooler, so that the oil volume inside of the box remains the same regardless of whether the pump is on or off. By keeping the majority of the external system below the normal gearbox oil level it should not effect the internal level much.
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 02:49 PM   #6 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
Re: R21 Cooler system pictures ?

I was thinking something similar, but was going to use a fan thermostat switch on the trans so it would go on as needed. Then add a manual on/off overide to that. That way the common case of operation is automatic when the temp hits the trip point. In my case the 930 box does not need to have an oil pump running under normal driving, but for racing, hard driving it was told to me that it is a good idea. I would not make it more complicated then it needs to, IMHO simpler is usually better. I do like the idea of a central warning light that indicated a problem (Check Gauges Light like some cars have now). On my 930 the oil inlet to the pump comes out of the bottom of the case, so if a line break, not much can be done. And I think the ensuing fire and loss of control will be a good indication of a problem .

What size/type coolers are you folks looking at running? I was looking at one of the small fluidyne coolers (P/N DB30217) or one of the larger oil coolers in 2 pass form and mount it so fittings are up and hopefully the oil stays in the cooler when the pump is off (P/N DB30517).


Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 08:35 PM   #7 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

I am also going to mount mine horizontally and fitting up. This is mainly for packaging but also so as not to drain the oil back into the gearbox and overfill it.

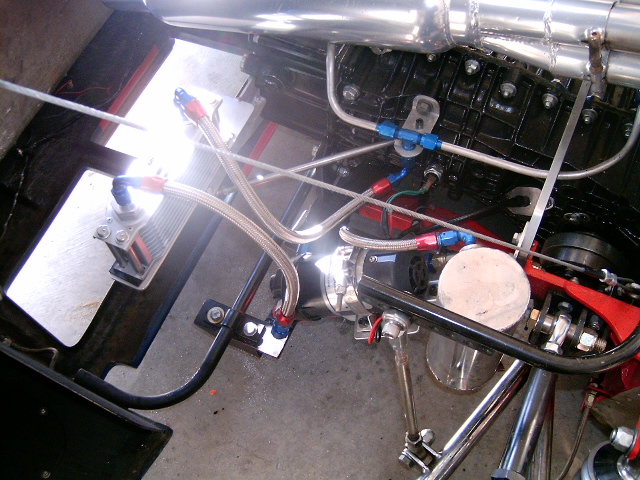

Here's a picture of mine. It is made by Earls and the Earl guy said it was just about right. "These are VERY effective coolers and most people put coolers on their car that are too big" He also said that "airflow is the main consideration anyway, put it out in cool air and you will be fine"

I intend to duct air from under the car into the cooler so I am hoping all will be well.

I am fairly sure that oil temps will be fine for road use. It's track time that I'm concerned about. I think this would be true of any gearbox.

I want to be able to watch the oil warm up as I do the first few laps and then turn on the pump to keep it cool. So I really don't need any automatic switches.

I still need a answer whether or not the side fill hole would work for a temp sensor. I'm thinking there must be a lot of oil flying around in there and the hole is right at the top of the oil level. Should be enough oil contact with the sensor to get a good reading. Right?

The Earl guy said that these coolers are many times more effective than the tube type. He said that's why they cost more.
Attached Thumbnails
Click image for larger version

Name:	HPIM0394.jpg
Views:	631
Size:	176.7 KB
ID:	16470

Last edited by Howard Jones; 20th November 2006 at 08:58 PM.
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 08:52 PM   #8 (permalink)
jnielsen
A Tenth
United States

Join Date: Dec 2004
Location: Thailand
GT40: RF GT40 #80
Posts: 122
Re: R21 Cooler system pictures ?

I set up an oil cooler on my off-road buggy. I had a Medeola garbox and the fluid smelled burnt after a race. Tapped the bottom of the case drew thru a filter and used a small pump. I drew thru a filter to protect the pump. Went thru a small cooler and then into the bearing in the nose cone. We had problems with that bearing failing on early Mendeolas. The temp drop was huge. I cant remember how much but the fluid after a race did not smell and looked clean. We had no more problems with the bearing. At a later date Mendeola upgraded to a larger bearing for the fix.

Jim
jnielsen is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th November 2006, 09:15 PM   #9 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

Lets see if I can show you my pump. This one is from Pegasus for $199.49.

I got mine at Lefthander Chassis - The Best Drive The Best for $152.49

They don't call me the cheap Italian for nothing!
Attached Images
File Type: bmp pump 1.bmp (87.4 KB, 594 views)

Last edited by Howard Jones; 20th November 2006 at 09:22 PM.
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 21st November 2006, 01:04 AM   #10 (permalink)
Sandy's Avatar
Sandy
Gulf GT40
United States

Join Date: Jan 2003
Location: Los Angeles, CA
GT40: RCR GT40 Gulf
Posts: 1,230
Re: R21 Cooler system pictures ?

Howard -

Much smaller of a cooler then I expected. That is good, the smaller of the Fluidyne is the better way to go for me now that I see how big your is

The pump that came with the 930 from PowerhausII is likely that or the same one from tilton. I like the one from Weldon Engineering, but it is crazy priced.

Jim also brings up a good point, put an inline screen filter in the pickup line to the pump. I was looking at the Petersen -8 inline (for dry sump), hopefully the mesh is not too small for gearbox oil.


Sandy
__________________
RCR GT40 #11 348" Alloy SBF, 930 Box, Gulf 1075 Trim Now in the Garage, still under construction...


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Links to the cars
Sandy is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 21st November 2006, 06:25 AM   #11 (permalink)
wbmusarra's Avatar
wbmusarra
I Have No Life
United States

Join Date: Oct 2001
Location: Snellville, Ga.
GT40: DRB#5
Posts: 2,742
Re: R21 Cooler system pictures ?

Howard,
That is the same cooler I am using. It has some big outlets and inlets. You will have to step it down somewhere along the line. I ordered mine large enough to fit the rear vents on either side of the exhaust. Am doing the oil that way as well. I am using the Mocal pump with mine. The spray bar setup can be had from Aircraft Spruce at:

Fittings from Aircraft Spruce

These may be a little small. They look like the same ones in the pic. You will find that the number of holes selected in the manifold is odd to the number you want. Either plug the extra one(s), or do like I plan, and that is to cool 2nd, 3rd, 4th, and R&P. First would not be used in any racing situation, hence not needed to cool. Of course you could always make your own.
There should be enough space for air to get to the coolers unless you have the rear bottom panelled. If you duct air up into the rear clip you may have a problem with too much air pressure under the clip. Easier to add a puller fan. That way you keep air pressure to a minimum. I am including a pic of how I set mine up, and one I had a pic of. Don't remember whos ride it belongs to. I am changing the orientation of the cooler to the lines at top. Solves all air problems. once the cooler is filled it will not affect the level of the oil in the box. If the two(box and cooler) were vented to air then you would have a situation that they would seek their own common level. Since the cooler isn't it is not a problem. Your storage tank if used could be mounted anywhere. Just make entry at the bottom and exit at the top. Circulate and top off the trans to whatever level you want. Just remember with the trans flipped it does affect the fill hole or full hole (whatever??)

Bill
Attached Thumbnails
Click image for larger version

Name:	an fittings.jpg
Views:	577
Size:	4.5 KB
ID:	16486   Click image for larger version

Name:	manifoldfitting.jpg
Views:	575
Size:	4.4 KB
ID:	16487   Click image for larger version

Name:	1192755Porschecooler.jpg
Views:	613
Size:	80.1 KB
ID:	16488   Click image for larger version

Name:	OilCoolers.jpg
Views:	619
Size:	87.3 KB
ID:	16489   Click image for larger version

Name:	P1010161 (Small).JPG
Views:	596
Size:	57.3 KB
ID:	16490

Click image for larger version

Name:	P1010165 (Small).JPG
Views:	573
Size:	46.9 KB
ID:	16493   Click image for larger version

Name:	P1010289 (Small).JPG
Views:	600
Size:	62.9 KB
ID:	16494
__________________
DRB#5
351W/408 TWM FI. AFR 205s 930 Porsche LSD
wbmusarra is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 21st November 2006, 09:27 PM   #12 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

I am pretty sure that all these pumps are the same one with different labels. Tilton, Mocal, the one from Pegusus, and the one I found at lefthanders.

I am going to use a filter I found in Summit that has a 40 micron reusable screen and it flows at 5 gals per minute. Thats about twice the rate of the pump. The good thing is it comes with AN6 fittings.

Bill, my cooler came with AN6 fittings on it so the only thing I am going to have to use adapters on is the pump in/out. Those are really big oil coolers! They are both bigger than the one I have on my engine oil and it really works good. Oil temp is just a little higher than the water. On track I get to about 200F on the water and maybe 210F on the engine oil. 80F ish day. My engine oil cooler is mounted in front of the left side scoop. Good cool air flow there down the side of the car. If I have to I'll mount the gearbox cooler on the other side. This would really be the best location on the rear of the car but it makes the plumbing long. I don't like long oil line runs. Maybe just bring the air to the cooler and exaust it out the back.

The historic F1 cars I saw a couple of months ago had gearbox coolers on them that were 3" X 10". Mine is 6" X 4". Just about the same sq/in's

Still no answer from you guys in England about the temp sensor in the fill hole. Common..... I know you know.

Last edited by Howard Jones; 21st November 2006 at 10:02 PM.
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 6th March 2007, 09:07 PM   #13 (permalink)
PDub's Avatar
PDub
8 Tenths
United Kingdom

Join Date: Jul 2003
Location: London, UK
GT40: Tornado
Posts: 863
Re: R21 Cooler system pictures ?

Just wondering how the inline filter has performed - I have got most of the parts together now for my setup but struggling with the filter. The guy in Think Automotive in London thought that the inline mesh type filter they stock would restrict the oil flow too much as its designed for fuel. It would be ideal as you can separate the two halfs and inspect inside easily - maybe a larger mesh is available. Anybody got experience of using these ?
__________________
Best regards,

P.

Black Tornado TS40 a.k.a. "Black Beauty"
SBF 306 / Edelbrock pack / R21-Turbo box / Quaife LSD
17" BRM Pindrives / Roll cage / Hi-Spec brakes
PDub is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 7th March 2007, 08:12 PM   #14 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

At this point I haven't been able to really ring the system out. The weather has been too cold to really heat anything up. So no performance data yet.
I intend to check it a couple of times a day between sessions at the first track day I attend so as not to run the pump dry with a plugged up filter.

I would however use a large capacity filter such as used on a scavenge line for a dry sump oil system. I think the small type I have used will be in danger of plugging up if it isn't inspected often.

I am holding off with a report for now because of the temp issue. The oil does flow well through the filter however when clean. I pulled off the return line to the gearbox to check flow through the system and it seamed fine.

The filter I used from Summit is below. I think the Moroso would be better. Both can be sourced form Summit

The summit one has AN6 fittings which worked perfect with my pluming scheme. The Moroso one comes in three fitting sizes, 8,10,12. It is also longer. My problem was trying to fit it all down low so as not to create drain back issues so I used the small Summit filter. It has a 3/4" diameter 80 Micron screen disk for a filter.

If it will remain flowing long enough to get through a track day (about 2 hours run time) then it will be fine. If not I'll re plumb for the moroso. It has a lot more filter area because it uses a sock type of screen filter that fills the whole filter cartridge.
Attached Images
File Type: bmp filter.bmp (125.8 KB, 286 views)
File Type: bmp filter 2a.bmp (131.9 KB, 278 views)

Last edited by Howard Jones; 7th March 2007 at 08:37 PM.
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 8th March 2007, 01:01 PM   #15 (permalink)
PDub's Avatar
PDub
8 Tenths
United Kingdom

Join Date: Jul 2003
Location: London, UK
GT40: Tornado
Posts: 863
Re: R21 Cooler system pictures ?

Thanks for the info Howard, a friend of mine suggested using a diesel fuel filter which doesn't seem like a bad idea to me, any thoughts as Summit isn't closeby !
__________________
Best regards,

P.

Black Tornado TS40 a.k.a. "Black Beauty"
SBF 306 / Edelbrock pack / R21-Turbo box / Quaife LSD
17" BRM Pindrives / Roll cage / Hi-Spec brakes
PDub is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th March 2007, 07:17 AM   #16 (permalink)
FOX1's Avatar
FOX1
4 Tenths
Italy

Join Date: Feb 2007
Location: italy
GT40: none
Posts: 433
Re: R21 Cooler system pictures ?

By the time you are installing such a system, why do not you use it to spray oil between the pinion and the crown wheel and/or somewhere else in order to maximase the profit of the system. To me it looks a bit too much for just cooling down the lubricant.
Ciao Wanni
__________________
THE GEARFOX
FOX1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th March 2007, 08:22 AM   #17 (permalink)
David Morton's Avatar
David Morton
Lifetime Premier Supporter
United Kingdom

Join Date: Nov 2002
Location: Marlow, England
GT40: The Jewel on th
Posts: 5,945
Re: R21 Cooler system pictures ?

More like spray on to 5th gear - the rest takes care or itself.
And don't over cool it !!!

Last edited by David Morton; 10th March 2007 at 08:50 AM.
David Morton is online now
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th March 2007, 04:44 PM   #18 (permalink)
Howard Jones's Avatar
I Have No Life
United States

Join Date: Jun 2002
GT40: San Francisco Bay Area California USA
Posts: 3,378
Re: R21 Cooler system pictures ?

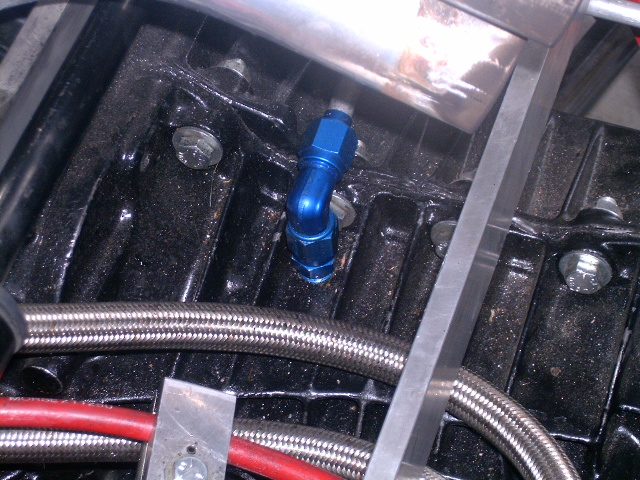

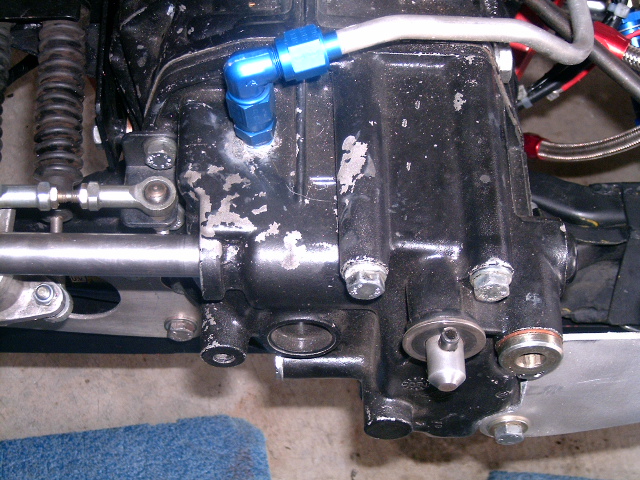

Like this?
Attached Thumbnails
Click image for larger version

Name:	HPIM0422.jpg
Views:	234
Size:	201.4 KB
ID:	18274   Click image for larger version

Name:	HPIM0419.jpg
Views:	260
Size:	199.3 KB
ID:	18275   Click image for larger version

Name:	HPIM0407.jpg
Views:	243
Size:	206.4 KB
ID:	18276
Howard Jones is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 10th March 2007, 07:59 PM   #19 (permalink)
David Morton's Avatar
David Morton
Lifetime Premier Supporter
United Kingdom

Join Date: Nov 2002
Location: Marlow, England
GT40: The Jewel on th
Posts: 5,945
Re: R21 Cooler system pictures ?

Howard,
I didn't read back through all the posts on this thread until now - You'd already said about fifth gear in your first post so I'll shut up.
Dave
David Morton is online now
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Reply


LinkBacks (?)
LinkBack to this Thread: http://www.gt40s.com/forum/gt40-tech-powertrain-transaxles/19891-r21-cooler-system-pictures.html
Posted By For Type Date
GT40s.com This thread Refback 20th November 2006 06:39 AM

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
How to post pictures, step by step instructions bchildress Site Questions, Suggestions, & Comments 14 3rd May 2006 01:18 PM
HP limitations of stock RF fuel system Mark Worthington GT40 Tech - Fueling, Electrics, & Engine Cooling 9 9th April 2006 05:10 PM
Posting Pictures p thompson Site Questions, Suggestions, & Comments 13 12th July 2005 05:12 PM
Electronic ignition system for road going motor DavidTickle GT40 Tech - Engines/Induction/Exhaust 23 23rd February 2004 04:24 AM
Electromotive TEC-II Engine Management System jetenginedoctor GT40 Cars For Sale 1 22nd July 2003 09:02 PM


All times are GMT -4. The time now is 08:12 AM.
