Fred W B · 02-09-07, 08:23 AM

thanks for kind words Phil

To get the engine in, the rear upper space frame/ rear stays section is removable, bolted in at 10 points.

This frame shown is still a protoype, with several of the tube joints not properly made, some tube sizes still to be decided, and the joints only partially welded.

Once I have a body, I am going to buld the car up to running the engine condition in the proto frame, then finally build the real frame and swap all the bits over.

I do intend to simplify the front and rear of the frame once I have finalized the suspension. I will do this once I have the WOW (width over wheels) dimension correct, and for that I need the body. Can't stand some kit / replica cars (not on here though) where the front wheels are on a hopelessly narrow track for the body style.

Cheers
Fred W B

Richard O'Clery · 02-10-07, 04:09 AM

Great to see the photos Fred. Nice progress, and it always feels good to get back to a project you're passionate about after a long break.

I'm looking forward to seeing your next batch of photos.

You're definitely correct about WOW, stance etc. This is the most important part of the art, and so many do so much work and get this bit so wrong.

Keep up the good work - the more Lolas out there the better!

Hi-Tech Auto · 02-10-07, 02:23 PM

Fred, if you think we can be of assistance please give us a call at 041-3981300. Our agent in the UK, Nigel Hulme, has a T70 and I am sure we could get photo's, details and any measurements you may require, from him. He is, in fact over here now, with his car, racing with the David Piper crowd in Cape Town.
Regards, Jim.

Richard O'Clery · 02-11-07, 04:43 AM

Quote:

Originally Posted by Hi-Tech Auto

Fred, if you think we can be of assistance please give us a call at 041-3981300. Our agent in the UK, Nigel Hulme, has a T70 and I am sure we could get photo's, details and any measurements you may require, from him. He is, in fact over here now, with his car, racing with the David Piper crowd in Cape Town.
Regards, Jim.

Jim, Nigel wouldn't be related to or son of the late Denny by any chance? An awesome Australian motorsport legend, and a real loss.

Fred W B · 02-11-07, 07:46 AM

Hi Jim, your offer of assistance is very much appreciated. I will call you.

Some progress photos.

Longitudinal "skewers" planned straight and to size to fit holes cut into stations

Every fifth opening gets a transverse stiffener.

Rear section of buck framework almost complete.

Cheers

Fred W B

Richard O'Clery · 02-11-07, 08:18 AM

I'm hugely impressed with the amount of work (and wood) going into your buck! It'll be rigid, all right.

Russ Noble · 02-12-07, 06:00 AM

Quote:

Originally Posted by roclery

Jim, Nigel wouldn't be related to or son of the late Denny by any chance? An awesome Australian motorsport legend, and a real loss.

Richard,

That's a wind up, right? Just because you guys haven't got your own CanAm legend, there's no need to steal ours!
Shades of Phar Lap all over again! ;-)

Fred,

That's an awesome project and a helluva lot of work. Great stuff.

Cheers

Hi-Tech Auto · 02-12-07, 02:01 PM

Roger, No Nigel is not related to Denny at all. Nigel also owned 39PH, the well known Jack Sears/Willment cobra, for a long time as well as a Mclaren M6. Some guys just have to much luck!

Darren · 02-12-07, 05:12 PM

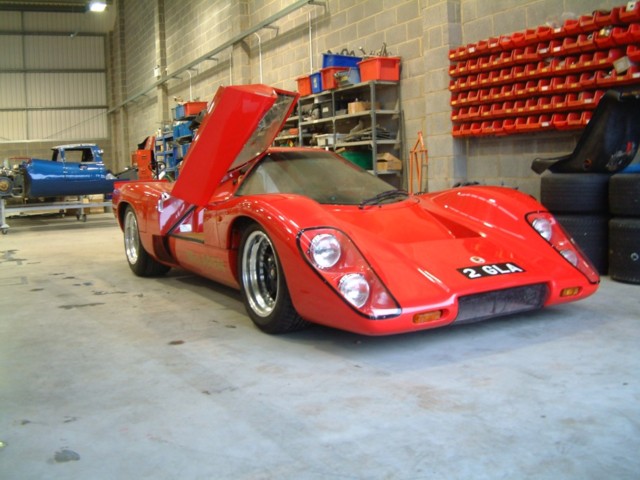

This is Nigels M6 in our w/shop early last year.http://www.gt40s.com/forum/attachmen...1&d=1171318265
