Rear suspension advice

**markpreece** · 03-08-08, 07:26 AM

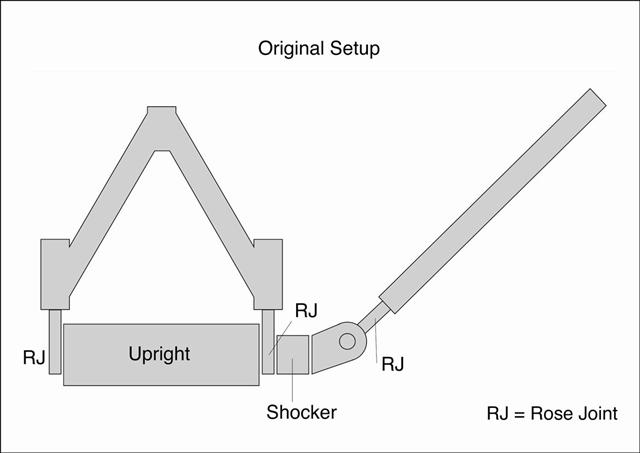

Hi I am rebuilding my T70 replica replacing the gearbox/rear suspension. This means re-designing the lower rear suspension it is currently reverse a arm with a trailing arm. I have changed the rear uprights to alloy Ultima uprights which means i can no longer mount the trailing arm to the upright (see original setup picture) as it will obstruct the rear wheels.

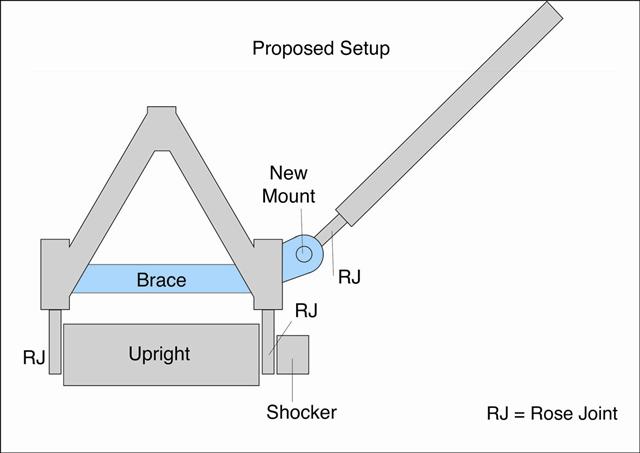

I was thinking of adding a brace to the a-arm and mounting the trailing arm to the side of the a-arm the mounting points to the chassis would remain the same(see proposed setup picture) but a friend of mine who rebuilds race cars did not like the idea.
The pictures are not accurate they are just to outline the origial/proposed setup.
I know there is a wealth of knowledge and experience on the forum and would value your feedback. Thanks in advance Mark

Russ Noble · 03-08-08, 03:37 PM

Hi Mark,

Apart from introducing side loads into the RJ's on the upright, I can't see any downsides to this. You may have to replace the RJ's more frequently due to increased loads and wear. The RJ's here are probably 1/2 " so should be able to take the extra loads OK IMHO.

The other option would be to space the wheels out. Just a matter of what's easiest.

Cheers,

Darren · 03-08-08, 04:32 PM

Hi Mark

I don't see any probs with that at all. Just makes it exactly the same as a real T70 Spider

, and there's no problems with them....

Good Luck

Darren

CRC Racecar Engineering

Phil · 03-08-08, 09:01 PM

Hey Mark
I would second what Russ and Darren said...just make sure that your thru-bolt in the bottom of the upright is grade 8, or the metric equivalent.
Cheers
Phil

**markpreece** · 03-09-08, 07:36 AM

Russ thanks for the feedback would struggle to space the wheels. Darren i have a cut away of the first T70 spider the arm seems to go to the upright but it is difficult to tell, had to pull out my tamiya 3B kit at 1 in the morning and you are spot on thanks. Phil thanks for the comments. I have attached an image of some rear "measuring up" I will get a full build site underway soon to show the rebuild.
(sorry can't upload images at the moment will try and add picture later!!!)

john · 03-16-08, 02:36 PM

I will be picking up my Lola Spyder replica in 2 weeks. Can you please post more pictures of your Lola so I can get more ideas on how to finish my car.

Berst regards

John
