Picture of throttle cable at pedal?

Ron Earp · 03-01-04, 09:04 AM

Anyone have a picture of how the throttle cable connects to the pedal at the pedal assembly? The manual mentions a bracket and picture but I don't see that in the manual. 2.3.3 is where it is supposed to be. Seems a simple pull affair but I'd like to see how RF does it before I decide to make a bracket. Thanks,

Ron

**patbarry** · 03-01-04, 06:50 PM

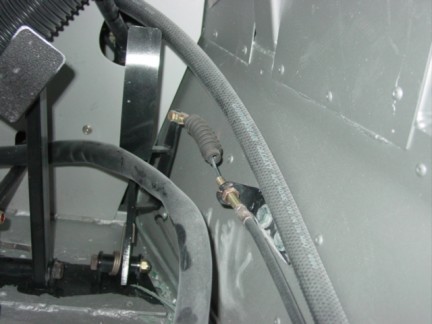

here's one

**patbarry** · 03-01-04, 06:50 PM

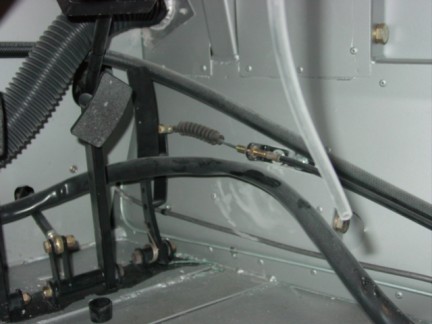

and another. I hope I did this right or I may be pretty embarassed!

rbrunckhorst · 10-11-04, 06:55 AM

These all look like right hand drive. Does anybody have any photos of a left hand drive configuration?

John Schneider · 10-11-04, 09:58 PM

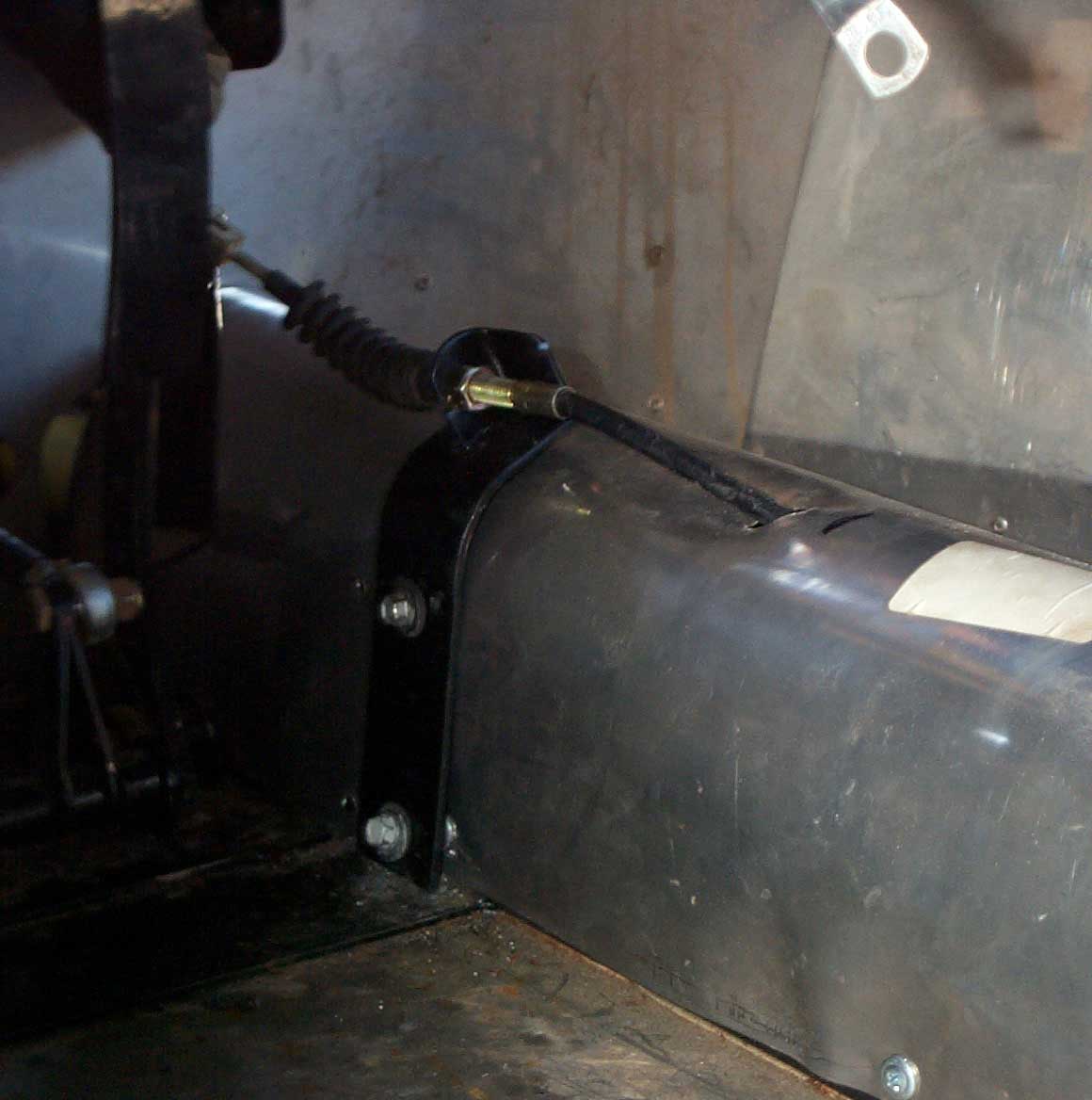

Try this, hope it helps.
John

rbrunckhorst · 10-12-04, 06:20 AM

Thanks John. That's exactly what I needed to see. [img]/ubbthreads/images/graemlins/cool.gif[/img]

Dan Weilacher · 10-12-04, 09:34 PM

Just a guess, but could that bracket strap be cut down allot shorter and just riveted to the tunnel . The huge bolts seem like overkill and protrude a bit , making the covering or carpet come up just a bit in a sensitive area that may be rubbing the side of your foot. Just thinking ??? Dan [img]/ubbthreads/images/graemlins/crazy.gif[/img]
