Parking Brake

Peter Olliviere · 03-06-05, 04:59 PM

Could someone be so kind as to post a couple of pictures of the parking brake assambly. I have started installing the calipers and am not quite sure of how the assambly goes togeather.

Thanks in advance for the help.

Peter

**patbarry** · 03-06-05, 05:39 PM

Maybe this will help, if not, let me know which part you would like to see more of.

Ron Earp · 03-06-05, 05:40 PM

It isn't hard, but I don't think I have pictures handy. I will say mount them on the uprights when the upright is on the car - I did the opposite and with the rotor, brake caliper, parking brake caliper the assembly is very heavy and hard to hold in place while attaching the arms.

R

Peter Olliviere · 03-06-05, 08:29 PM

Pat and Ron,
Thanks for the quick response, but I'm still in the dark. What I need is a pictures of the parking brake caliper assambly itself. I am trying to figure out how the parts go togeather. A picture showing the mounted parking brake from a couple of close up angles would do the trick.

DMatt · 03-06-05, 09:30 PM

Peter,

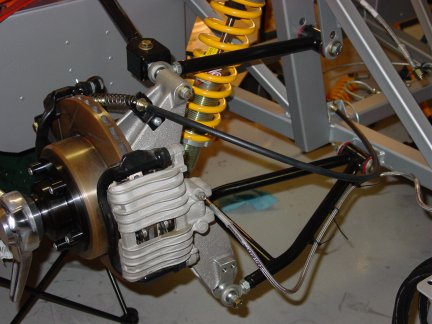

Hope these help. If there is something more specific you need just let us know!

DMatt · 03-06-05, 09:32 PM

DMatt · 03-06-05, 09:33 PM

DMatt · 03-06-05, 09:34 PM

DMatt · 03-06-05, 09:36 PM

DMatt · 03-06-05, 09:36 PM

Ron Earp · 03-06-05, 10:25 PM

You need to drill and tap holes in the upright for that cable stay that Dan shows in the second picture, although later kits might have had that done for you. Think I used 1/4-20 and it did well.

Peter Olliviere · 03-07-05, 06:24 AM

Dan and Ron,

Thanks, thats just what I needed.

Peter
