Howard Jones · 12th July 2012, 11:42 AM

Bob, do you have a build log with pictures here? I would love to see pictures of your exaust system.

Heat in the engine room is an issue if you don't find a way to get good airflow through it and out the back of the car. I've been thinking about this as it relates to a track car. In that case the car doesn't spend much time with the engine running and stoped such as in traffic so I will have good airflow over the car 98% of the time.

So I think I want to try a full flat bottom and replace the air comming from the bottom with air inlet from the sides and wheel wells into the engine room. But for now I can only go with information from #1 that Fran has experianced. In the end I believe they ran the car with the bottom of the engine room open. It may have been that it was the first season and they may have ran out of development time, but I want to give a full flat bottom a try.

If I can get that to work then a proper difuser will follow. I really bought the car so that I could learn/play/develop a car for the track with a good areo package.

Fran Hall RCR · 12th July 2012, 11:53 AM

Hi Howard,

Front downforce is what you will need to optimise...fender louvres and openings on the hood to relieve front wheelwell pressure....a problem every race car has to deal with..

You can generate plenty of rear downforce wiothout the flat floor...the flat floor increases the engine bay heat considerably...we ran both with and without...we now run without ....but as with every serious race programme things are always being tried and tested and we do have a new floor and diffuser in the works but it may not see race use this season.

We spent 4 months (and lots of money) during the off season running masses of CFD profiles on cooling, downforce, aero balance etc ...so have a pretty good idea of what is valuable and whats is less so....my CFD guy worked with Mclaren so he's pretty dialed in...

FYI...we use stock LS7 exhaust manifolds , same as used on the LS9 without issue...they are doubled shielded and keep engine bay heat down..

Dave · 12th July 2012, 01:00 PM

Quote:

Originally Posted by Mesa

The Superlite SLC = Toyota Camry in the Bay Area now....I GOTTA find something less pedestrian.....

At least four in the Bay Area now with two of those in SF.

Howard Jones · 22nd July 2012, 01:06 AM

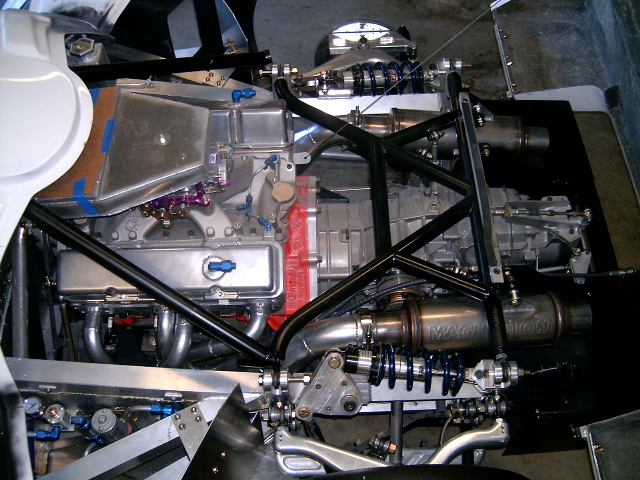

Exhaust system complete. All in all it came out better than I believed it would, so for at least the time being I think I will use it at least until then car is basically setup and running.

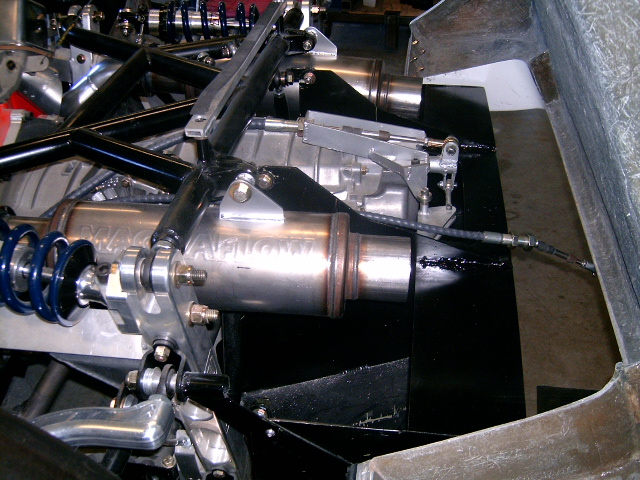

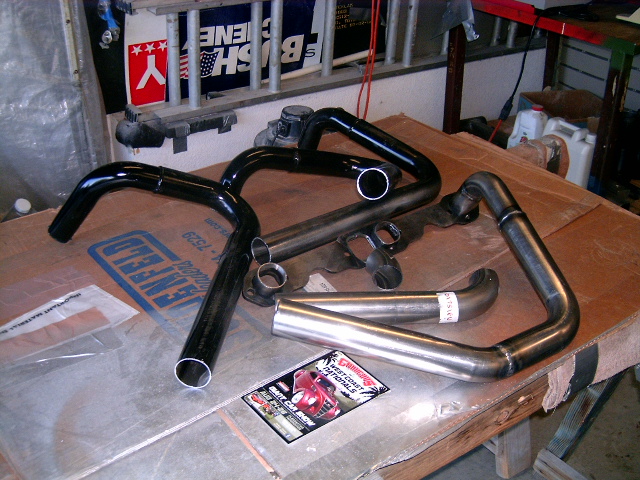

I am pretty sure that if I was to do another header set it would come out much better but for now there's just too much other work to complete. The first picture is the passenger side head flange with the tubing cut off and assorted parts laying around. I did it pretty much like the drivers side and all in all the two sides are mirror images of each other with the one exception of the big 90 degree collector extension. It needed to be a 1" or so shorter because the passenger bank of cylinders is an inch displaced to the rear of the left side.

I also cut the top tear off the diffuser to allow of the exhaust pipe to be unobstructed. For now it's really just a rear body mount anyway. I will do something with a new one later that is more aerodynamically based and tied into the bottom of the car.

Doug · 23rd July 2012, 11:29 PM

Howard~
Thank you for the hospitality and tour of your home and project! Really enjoyed meeting you, our discussion and of course seeing your cars.
I look forward to future updates!
As I said, we usually spend either XMAS or Thanksgiving just a few miles away. If you don't mind, I'll look you up again.

All-
Howard is doing an amazing job on his project. The color scheme he has in mind should be freaking awesome, too!

Cheers,

Doug

Howard Jones · 24th July 2012, 12:23 PM

Doug, thanks for the beers. You are welcome to drop by anytime you are in town. When I get Francine going and add a seat you can expect a ride. Keep in touch.

Mesa · 24th July 2012, 01:05 PM

Quote:

Originally Posted by Howard Jones

When I get Francine going

Ohhhh....That's not right......

Doug · 24th July 2012, 03:20 PM

Quote:

Originally Posted by Howard Jones

Doug, thanks for the beers. You are welcome to drop by anytime you are in town. When I get Francine going and add a seat you can expect a ride. Keep in touch.

Great! I'll bring my helmet

thanks again!

Doug

Ted - LS MAN · 5th August 2012, 11:41 AM

Got to meet/hang out with Howard yesterday at Sears Point. It was the Shelby Mini-Nats event, & Howard had his GT40 out for some track time. We got to talk SLCs & look over his 40, nicely done car with lots of upgrades by Howard to make a great track day car. Don & I were there to support our friend Darrell Anderson, & his friend Filip, of Cortex racing suspension. Darrell is one of our lead drivers/supporters on the SLC race car. Good meeting a fellow SLCer & nice guy too, (we got to meet Rob a few weeks ago also). Now we just need Fran to get our cars out so we can get ready for the 25.

Howard Jones · 5th August 2012, 01:38 PM

Betty came home yesterday hot, sweaty, and a bit sad, she knows she is going to be retired to the street at the end of this year. One more track day this year and then that's it. The new younger babe is takin over next year!

I better watch Betty, she just might poke some holes in that young babes tires in the dark of night out in the garage. Keep yer eyes open Francine!

I had a pretty good slide in 10 yesterday and I could just hear Betty saying under her breathy, What then hell do you want from me boss? I ain't got no friggin wings like that other bitch! Take it easy................ you scratch my makeup, I'll kill your fat ass, and you'll never get into that other home wrecker's pants you got in MY spot, out in MY garage!

Awwww....it's so hard to keep two women happy.....................

Howard Jones · 13th August 2012, 01:43 AM

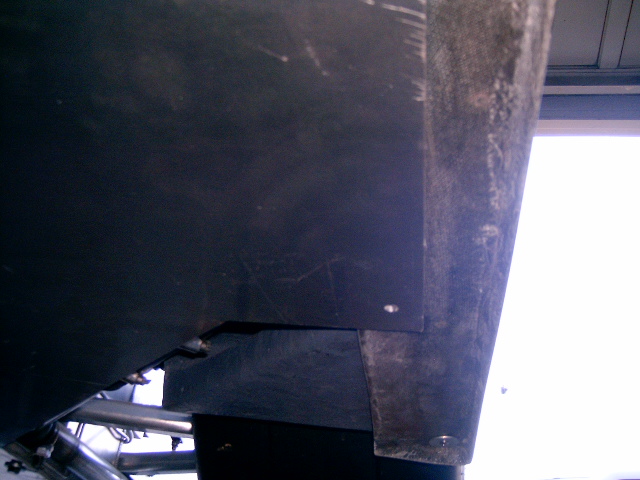

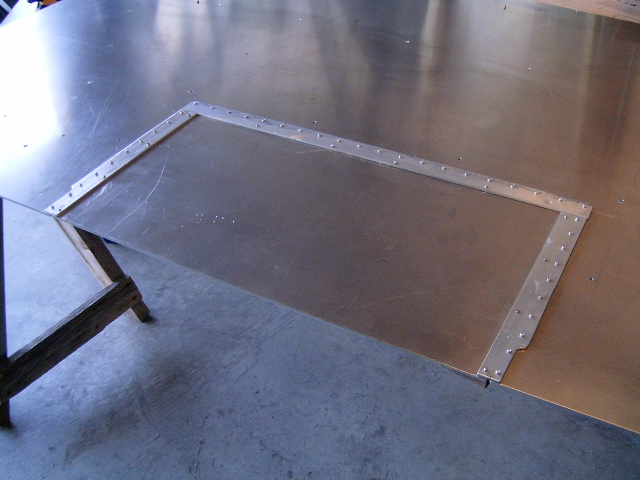

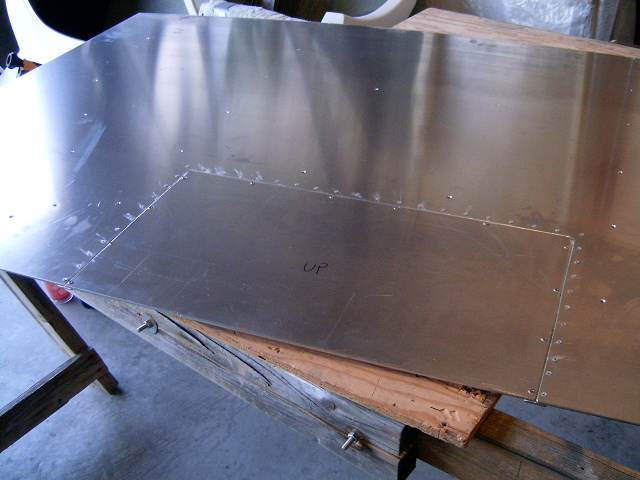

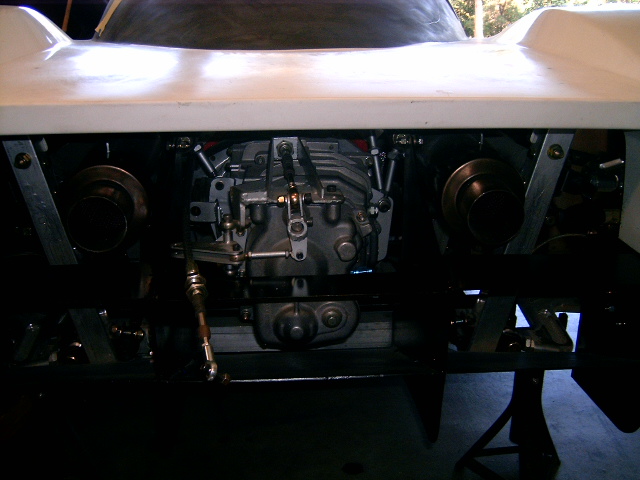

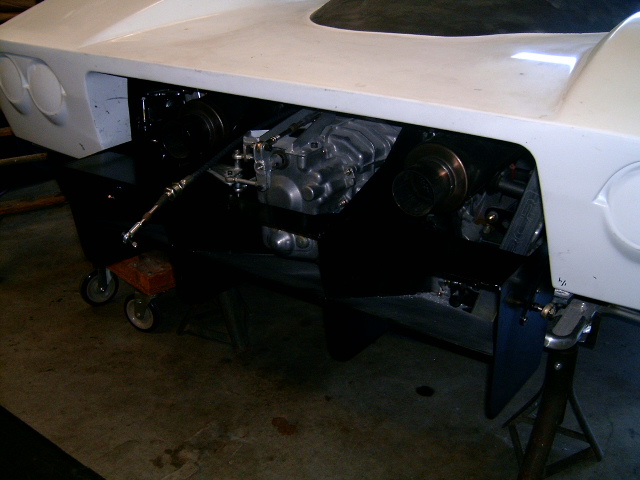

Here the bottom is off the car again. I have decided to make the bottom so that it is easy to change to open configuration if I have temp issues later. I opened up the bottom under the oil pan and made a cover out of the cut out section. It will serve as a template when I finish off the rest of the bottom under the trans axle. The final removable panel will be one piece and will extend from the chassis member that supports the engine mounts back to the last transverse chassis tube. This should allow for a complete flat bottom all the way back to the entrance to the diffuser when closed up and will expose the oil pan and transaxle if left open.

Erich · 13th August 2012, 02:47 AM

I just got caught up on your build thread - WOW! You've done a lot of (awesome) work! It's looking like a race car

Jack · 13th August 2012, 09:04 AM

Looking good Howard!

Howard Jones · 9th October 2012, 01:09 AM

I've been busy with work and was out of town for awhile on business and a short vacation to Canada. But now I'm back at it.

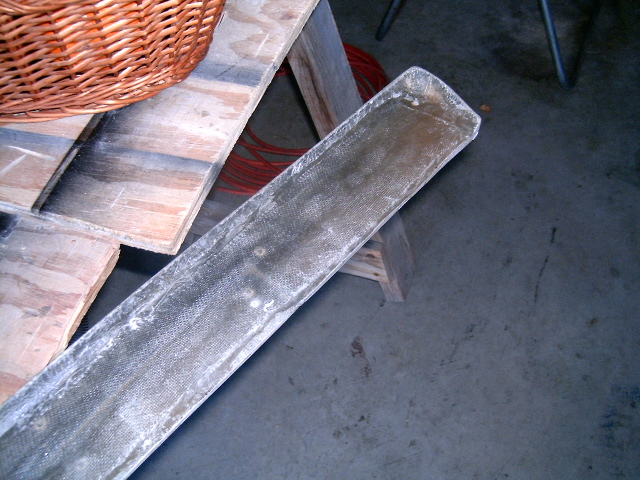

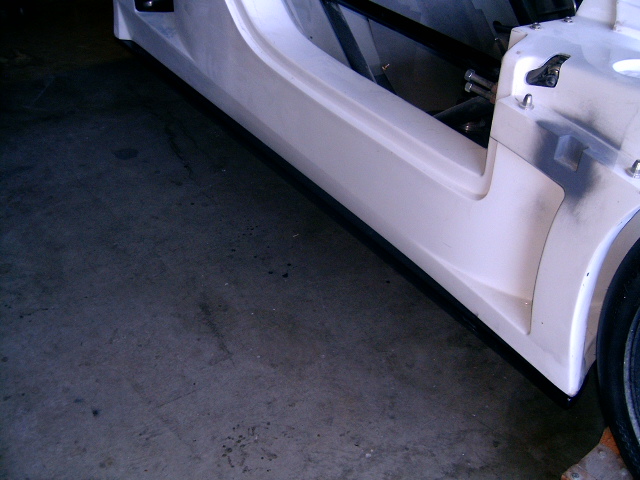

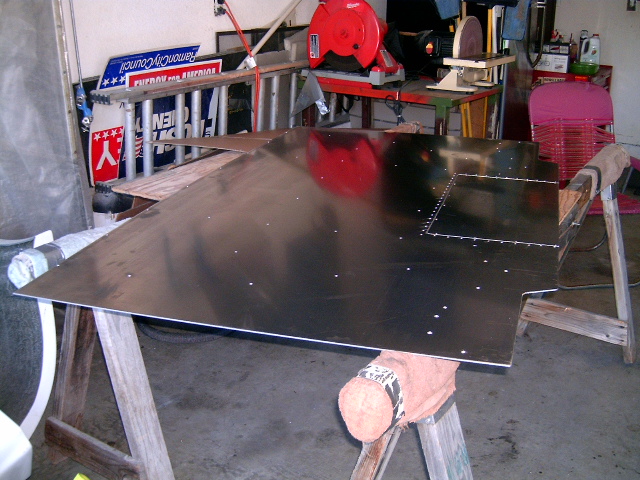

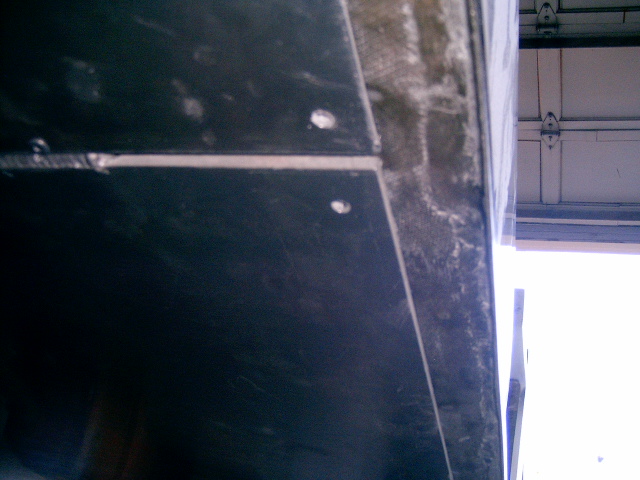

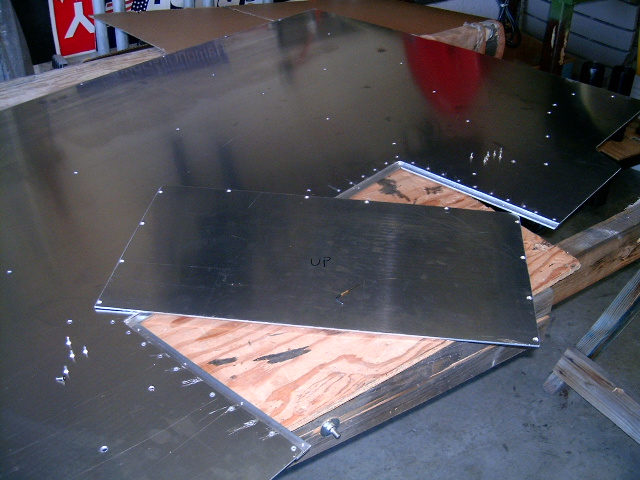

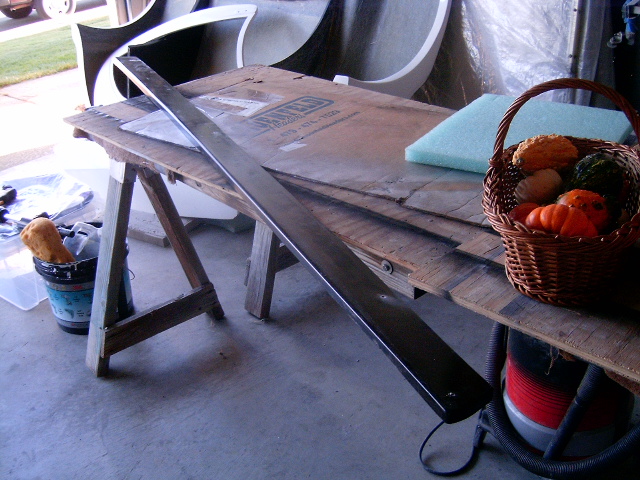

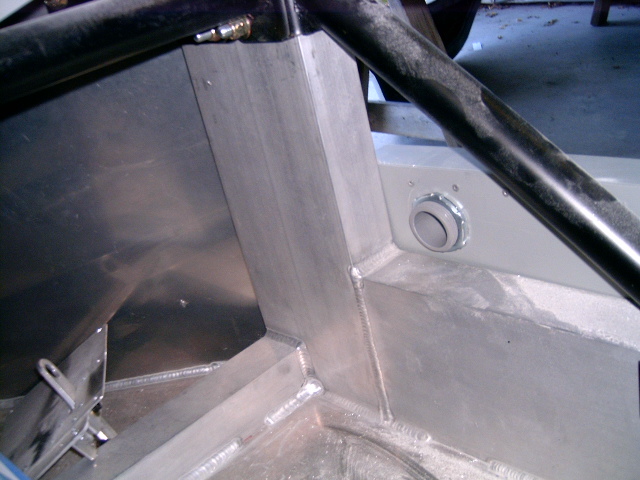

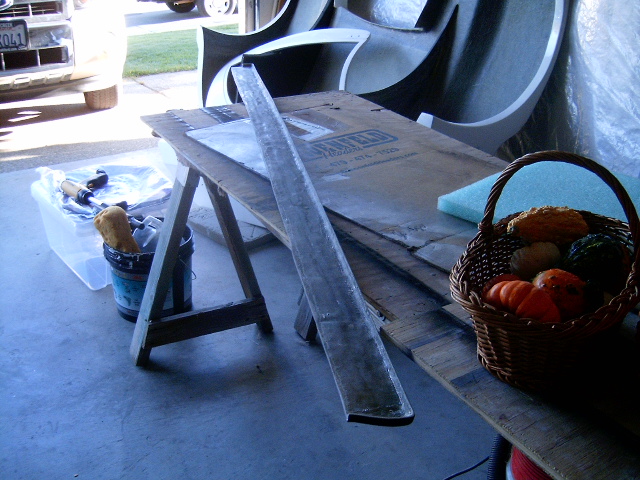

Since I am going for a complete flat bottom the alum belly pan extends to the end of the center section. This interferes with the molded areas of the side skirts and so I cut them out and fiberglassed them back in so that the skirt was completely flat. Then I sandwiched them in between the body and the chassis alum floor. Fits good now.

Mesa · 9th October 2012, 10:48 AM

I enjoyed the seasonal accessorizing of the photo shoot. It's the little details that make the difference

Jim Craik · 9th October 2012, 11:14 AM

Rob,

You are a very funny guy

Howard, Looking good!

Betty and Francine?

Howard Jones · 4th November 2012, 12:41 AM

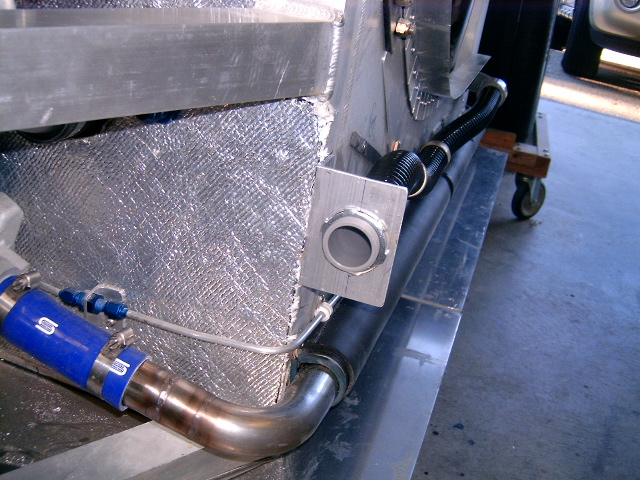

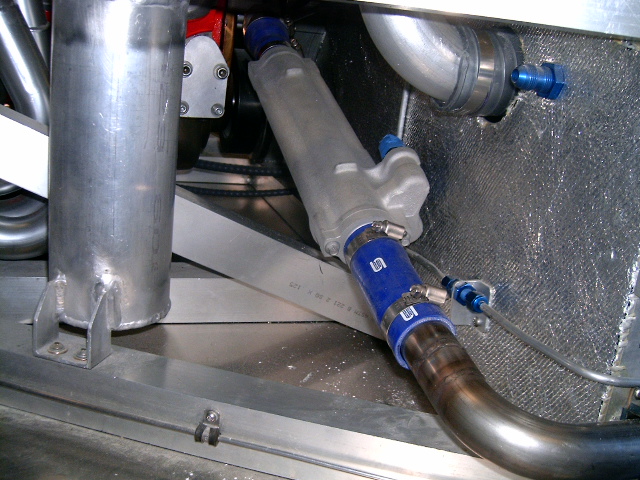

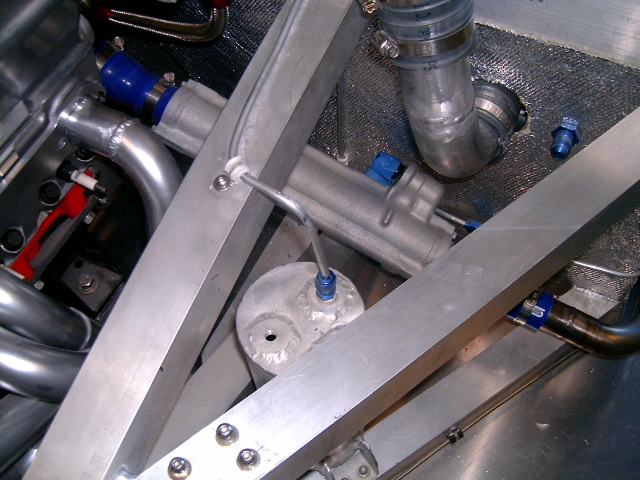

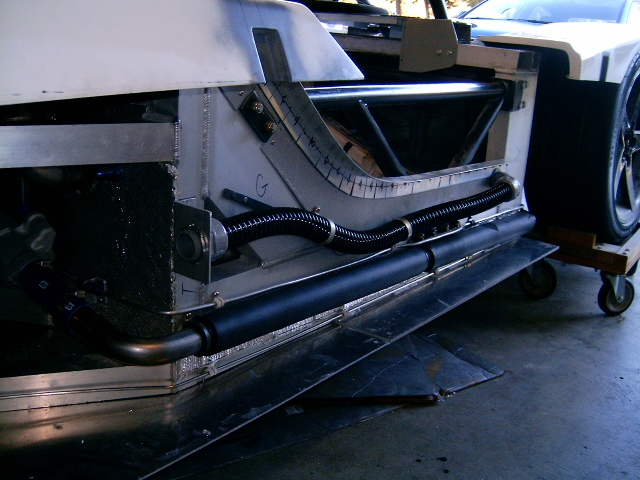

You might remember the discussion about using a air to oil heat exchanger instead of a traditional oil cooler. Here's what I have done. All that was necessary was to shorten the water pipe and plum the exchanger in. Now all that left is make a couple of oil lines and run them over to the oil filter adapter plate on the other side of the car.

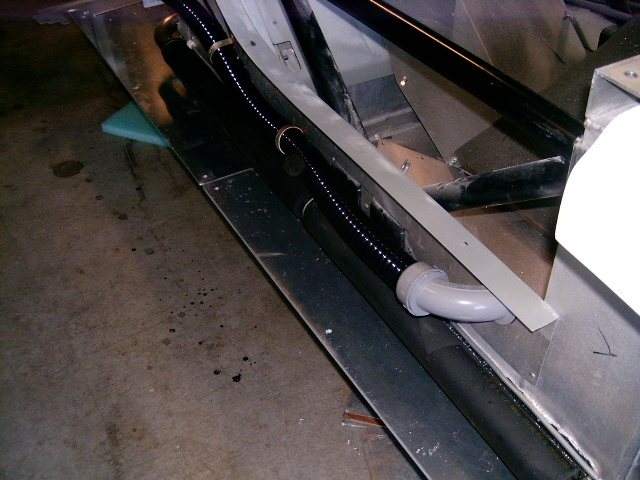

The other pictures are of the big fat conduit I will run all the electrical cables from the front of the car through to the rear. This type of conduit is very light weight and easy to use. It came from Mcmaster Car. Now I can run wires with the body back on the car. In fact the body can be removed without disturbing the electrical system at all.

I have a long list of body off tasks left including the doors to do and then we will nearing a turning point that should be all down hill from here.

Howard Jones · 7th November 2012, 09:37 PM

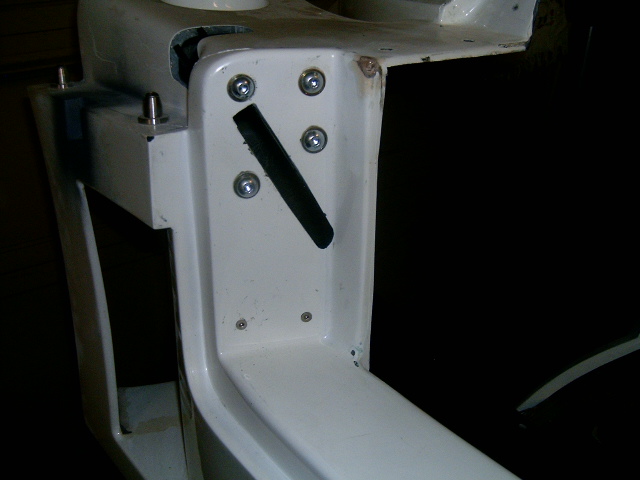

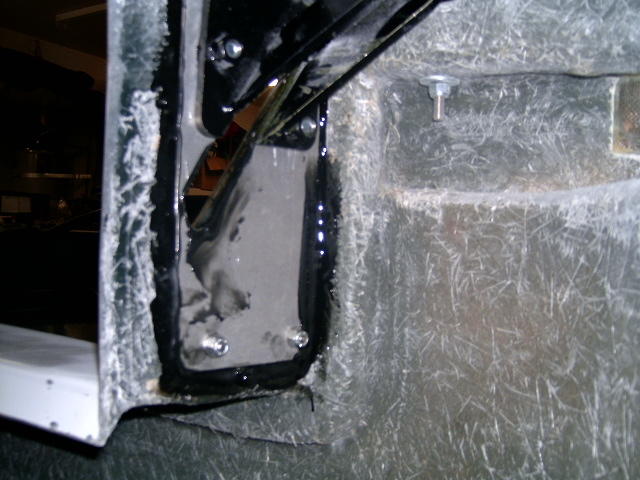

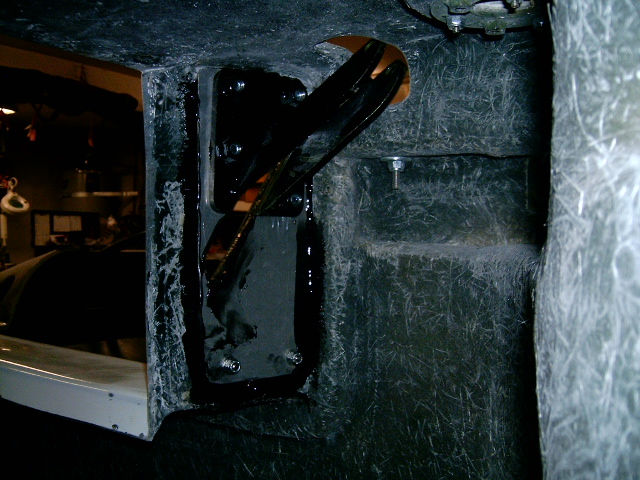

With the body off it's back to the doors. Here I bonded on a piece of .10 alum with a two part epoxy to add strenght to the door henge mount point. A little messy, but it can't be seen once the body is on for good.

This would be a hard area to fix once the car is complete if it cracked. (Like if somebody hit the door when open?) So I beefed it up after getting the idea from Mesa.

Jack · 7th November 2012, 09:51 PM

I'd suggest another plate inside the door, under the hinge nuts.
Also behind the striker

Alex · 7th November 2012, 10:21 PM

Quote:

Originally Posted by molleur

I'd suggest another plate inside the door, under the hinge nuts.
Also behind the striker

I agree - I've got a 3/16'' plate on the spyder (like above), plus a 3/16'' plate on the front of the door (where the studs go through) and a 3/16'' plate on the back of the door (where the studs nut down.

I don't think I would have bonded it in though, at least with that much epoxy - you're now comitted to that location and I know i moved mine around a few times until I got it just right.
