GT40s.com
MK-I  MK-II  MK-III  MK-IV  GULF  MIRAGE  J-CAR  LOLA
GT40s.com
Home Forum Gallery Support GT40s.com
Register FAQ Advertisers Search Today's Posts Mark Forums Read

Go Back   GT40s.com > GT40 Replica Manufacturers' Corner > Superformance GT40s


Superformance GT40s Sponsored by Superformance.

Reply

LinkBack Thread Tools Display Modes
Old 18th June 2011, 03:05 PM   #1 (permalink)
Hoota Caroota's Avatar
Hoota Caroota
A Tenth
United States

Join Date: Apr 2009
Location: New Mexico
GT40: MKII GT40P2223
Posts: 142
HVAC Blower Motors

In studying the (useless) wiring diagram from SPF, I see there are two alleged HVAC blower motors.

But where is the switch to activate them?
Hoota Caroota is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 18th June 2011, 04:48 PM   #2 (permalink)
P2164's Avatar
P2164
Bronze Supporter
United States

Join Date: Jun 2007
Location: Arkansas
GT40: SPF 2164 07-07
Posts: 1,751
Re: HVAC Blower Motors

It's the switch on the dash. It's a very poor design and hopefully the later cars like your have been retrofitted.
__________________
SPF GT40 MK1
and a bunch of other stuff
Typing is not my bag
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
P2164 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 18th June 2011, 04:55 PM   #3 (permalink)
Hoota Caroota's Avatar
Hoota Caroota
A Tenth
United States

Join Date: Apr 2009
Location: New Mexico
GT40: MKII GT40P2223
Posts: 142
Re: HVAC Blower Motors

Thanks, Jack.

It took a bit of looking but actually, not too much. My mother used to get pissed at me for the same thing: not seeing what's in front of my eyes. She'd send me to the cellar for something and we'd spend the afternoon yelling at each other. "It's on the middle shelf right in front of you," she'd say.

"No it's not," I'd yell back.

But sure enough. . .
Hoota Caroota is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 18th June 2011, 05:01 PM   #4 (permalink)
awatkins
Lifetime Premier Supporter
United States

Join Date: Nov 2009
Location: Gone
GT40: N/A
Posts: 2,530
Re: HVAC Blower Motors

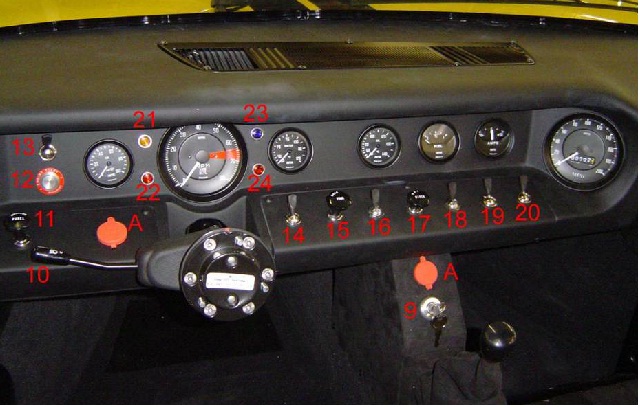

The author of the manual neglected to mention item 15....
Click image for larger version

Name:	dash..jpg
Views:	85
Size:	94.8 KB
ID:	53535
awatkins is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 18th June 2011, 09:45 PM   #5 (permalink)
daryl adams's Avatar
daryl adams
Bronze Supporter
United States

Join Date: Apr 2005
Location: Illinois, USA
GT40: SPF MKI P2123
Posts: 295
Re: HVAC Blower Motors

Quote:
Originally Posted by P2164 View Post
It's the switch on the dash. It's a very poor design and hopefully the later cars like your have been retrofitted.
Speaking of which, Jack, didn't you do something with the switch that boosted the fan output? I'd love to get a few more CFM out of mine.
__________________
Daryl Adams
Superformance GT40 MKI P2123
daryl adams is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 19th June 2011, 10:29 AM   #6 (permalink)
P2164's Avatar
P2164
Bronze Supporter
United States

Join Date: Jun 2007
Location: Arkansas
GT40: SPF 2164 07-07
Posts: 1,751
Re: HVAC Blower Motors

Yes my old friend i did, the wiring going to bower motors is to small and the terminals on the dash switch heat up and create resistance further decreasing the performance of the blowers. Another problem on early cars is all the current for the blowers also goes through the key switch. I used a relay controlled by the key switch taking power directly from battery bus to a PWM (pulse width modulator) which is a electronic DC motor speed control. Removed the 3 position switch and replaced it with a variable control. This is my fix but I think SPF also has a fix for the problem. The key switch is only good for 15 amps, if you ever turn your car off and notice the KEY is warm, you need to correct the above problem on early SPF cars. If there any typos I'm on my iPad and it not as easy to use as my computer.
__________________
SPF GT40 MK1
and a bunch of other stuff
Typing is not my bag
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
P2164 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 19th June 2011, 02:14 PM   #7 (permalink)
awatkins
Lifetime Premier Supporter
United States

Join Date: Nov 2009
Location: Gone
GT40: N/A
Posts: 2,530
Re: HVAC Blower Motors

Quote:
Originally Posted by P2164 View Post
.... Another problem on early cars is all the current for the blowers also goes through the key switch.
There are a couple factory-fixe documents related to the blowers; it's a confusing comedy of errors with one fix undoing the previous one, etc.,. Attached are the related docs. The primary fix does part of what Jack did (i.e. without the cool PWM motor controller) to protect the switch terminals. It involves wiring in a factory-supplied pair of relays so the poor switch isn't trying to power the motors.

So to get them in historical order, first read this:

0601GT Engine Run On.pdf

Then this (which is where the switch overload fix occurs):

0702aGTB HVACBlower Fan Relay Retrofit Supplement.pdf

Then this:

GT40 Fuse 12 Service Bulletin.pdf

Hopefully you come out of that with reliable blower motors that don'e keep you from turning off your engine.

I just remembered: here is my story implementing the primary fix: Notes re SPF Service Bulletin 0702GTB HVAC Blower Fan Relay Retrofit
awatkins is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 20th June 2011, 12:09 AM   #8 (permalink)
P2164's Avatar
P2164
Bronze Supporter
United States

Join Date: Jun 2007
Location: Arkansas
GT40: SPF 2164 07-07
Posts: 1,751
Re: HVAC Blower Motors

My personal thoughts on SPF electrical is one thing but then again if you run a distributor and carb as in the old days your car will be ok, add to it state of the art mechanical and electronics then you have another issue.
__________________
SPF GT40 MK1
and a bunch of other stuff
Typing is not my bag
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
P2164 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
HVAC Servo's Not Working fsts2k Superformance GT40s 1 25th November 2010 09:39 PM
Notes re SPF Service Bulletin 0702GTB HVAC Blower Fan Relay Retrofit awatkins Superformance GT40s 1 4th April 2010 02:35 PM
Blower Question kd4tsc GT40 Tech - Engines/Induction/Exhaust 1 8th October 2009 08:18 PM
SPF GT HVAC Operations minerl GT40 Tech - Fueling, Electrics, & Engine Cooling 0 20th January 2008 08:41 PM
SHO 427 blower car BillE All GT40 0 22nd August 2005 01:57 AM


All times are GMT -4. The time now is 12:28 AM.
