Old 26th September 2007, 12:09 PM   #181 (permalink)
leonardj1
Rookie
United States

Join Date: Aug 2007
Location: Northern, CA
Posts: 41
Re: ZFQ new proposed GT40 transaxle

Could someone please explain to me what the gold protrusions are on the rear of the transaxle. The one on the left side pointing left and the one on the right side pointing back.

Thanks,

Leonard
leonardj1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 12:38 PM   #182 (permalink)
iank2112's Avatar
iank2112
10 tenths
United States

Join Date: Sep 2001
Location: San Diego, CA
GT40: none yet
Posts: 1,508
Re: ZFQ new proposed GT40 transaxle

Quote:
Originally Posted by leonardj1 View Post
Could someone please explain to me what the gold protrusions are on the rear of the transaxle. The one on the left side pointing left and the one on the right side pointing back.

Thanks,

Leonard
I believe that is where the shift linkage connects. The ZFQ has, apparently, options for
left, right and tail shift.

Ian
__________________
A few fries short of a Happy Meal
iank2112 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 01:08 PM   #183 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Hi guys

news today is that the ZFQ went for its first powered drive in a GT40 and all is well and living up to expectations. All gears are present and correct and no noise can be herd from the trans, the ATB is also working well with even power distribution to the rear wheels.

The only feeling I can relate this to is like being an expectant father

Regards

Chris
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 01:34 PM   #184 (permalink)
John Lowe's Avatar
John Lowe
3 Tenths
United Kingdom

Join Date: Apr 2006
Location: Lindfield, UK
GT40: RCR MK1
Posts: 324
Re: ZFQ new proposed GT40 transaxle

Chris

Excellent news, hope the new arrival continues to perform to expectations!

John
John Lowe is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 01:46 PM   #185 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Thanks John.

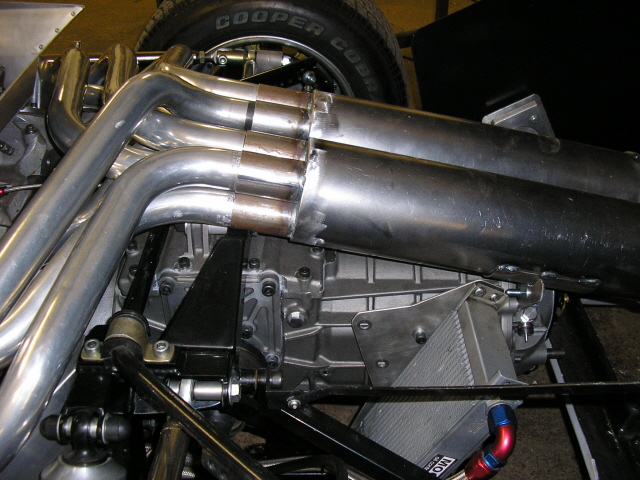

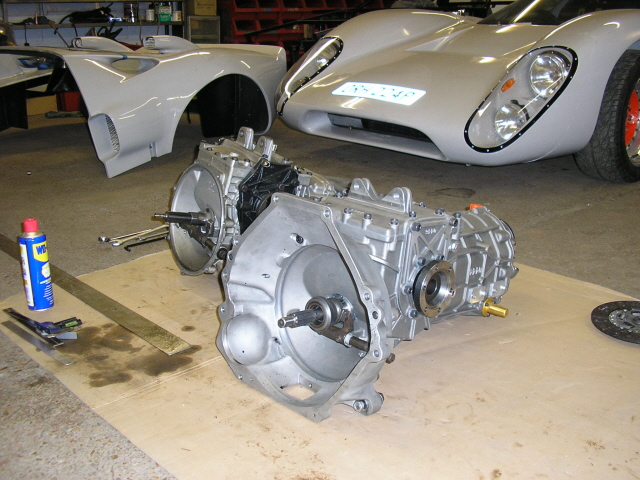

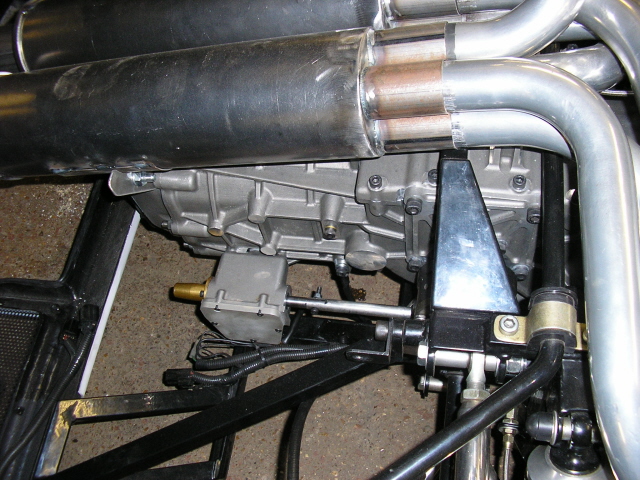

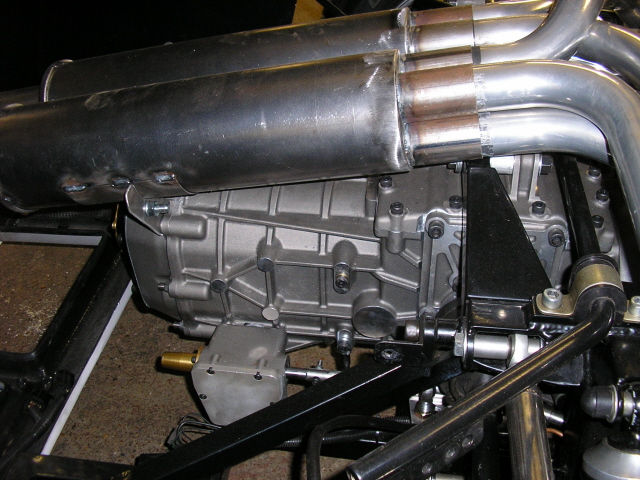

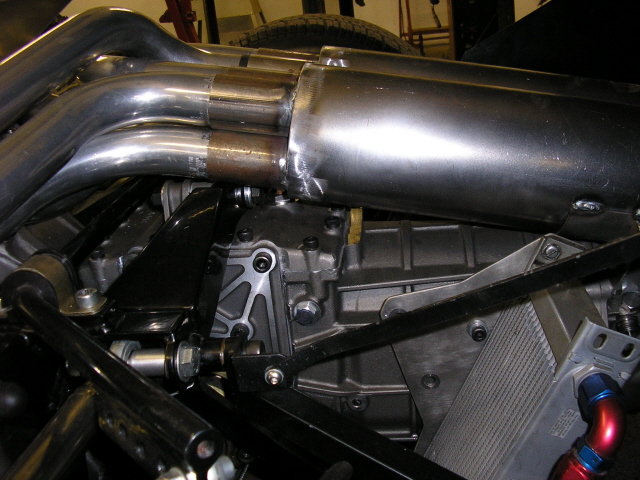

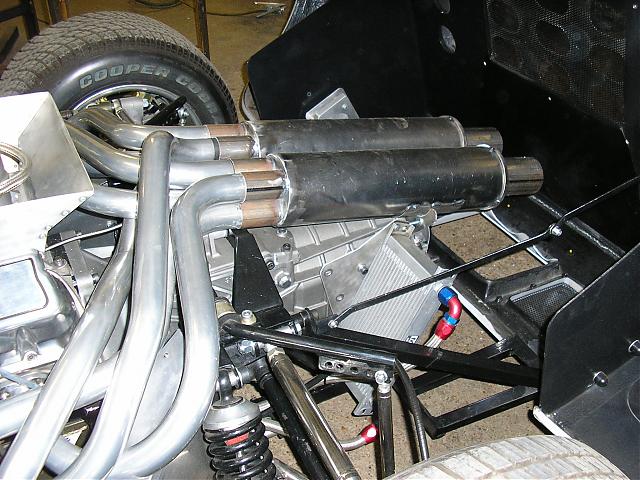

Here are a few more pics from Mick
Attached Thumbnails
Click image for larger version

Name:	P9261513.jpg
Views:	1218
Size:	71.9 KB
ID:	24012   Click image for larger version

Name:	ZFQ16.jpg
Views:	1169
Size:	195.3 KB
ID:	24013   Click image for larger version

Name:	ZFQ17.jpg
Views:	1189
Size:	201.3 KB
ID:	24014   Click image for larger version

Name:	ZFQ18.jpg
Views:	1200
Size:	217.6 KB
ID:	24015   Click image for larger version

Name:	ZFQ19.jpg
Views:	1140
Size:	180.4 KB
ID:	24016

Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 01:53 PM   #186 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

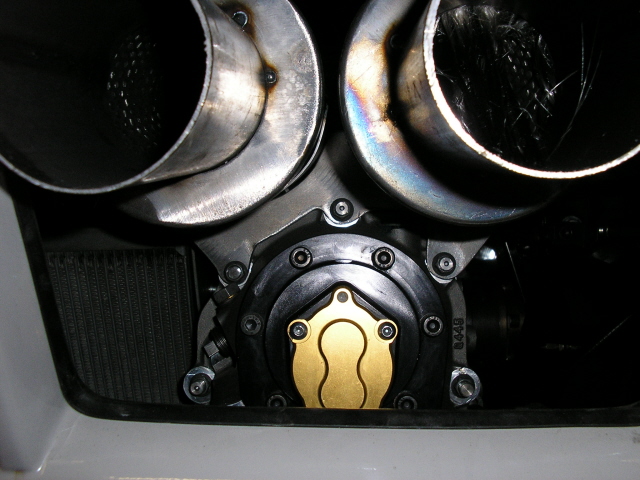

One from the rear
Attached Thumbnails
Click image for larger version

Name:	ZFQ20.jpg
Views:	1144
Size:	149.4 KB
ID:	24018
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 02:42 PM   #187 (permalink)
leonardj1
Rookie
United States

Join Date: Aug 2007
Location: Northern, CA
Posts: 41
Re: ZFQ new proposed GT40 transaxle

Quote:
Originally Posted by iank2112 View Post
I believe that is where the shift linkage connects. The ZFQ has, apparently, options for
left, right and tail shift.

Ian
Thanks Ian
leonardj1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 02:46 PM   #188 (permalink)
leonardj1
Rookie
United States

Join Date: Aug 2007
Location: Northern, CA
Posts: 41
Re: ZFQ new proposed GT40 transaxle

Chris,

That is excellent news. I am excited and excited for you! The radiator to the left of the transaxle, is that an engine oil cooler or a transmission fluid cooler?

Leonard
leonardj1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 03:30 PM   #189 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Hi Leonard

the cooler in the pictures is an engine oil cooler but the ZFQ has the option for a trans cooler pump. The trans pump bolts to the rear case and is driven off the pinion shaft, the gold rear blanking plate is used to sandwich the pump. The flow and return ports are situated on the crown wheel casing.

regards

Chris.
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 05:02 PM   #190 (permalink)
guss077
A Tenth
France

Join Date: Jul 2007
Location: France
Posts: 122
Re: ZFQ new proposed GT40 transaxle

Hi Chris,
the gearbox look's great...

I know, I'm a complicated man, and I do not want do to like others.....

I'm planning to build a 962 replica. (actually i'm making 3D plans on solidworks CAD)

Do you know if the ZFQ can be used upside down ?
is it possible to change the side of the gear selector ?

and last, do you have a 3D model (only external) that i can use to make the integration with the crossmember and the rear suspension??
(in fact, i've made a design from the pdf you post, but it's not accurate)

regards
guss077 is online now
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 26th September 2007, 05:11 PM   #191 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Hi Thierry BJ

I sent you an email

regards
Chris
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 3rd October 2007, 06:24 AM   #192 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Hi guys

road tests are going well and the ATB diff transmits the power nice and evenly keeping the car straight and true without the step out apparent with other LTD transmissions. I thought I would post pictures of the clutch folk cross shaft option.

Regards

Chris
Attached Thumbnails
Click image for larger version

Name:	ZFQ26ab.jpg
Views:	1186
Size:	205.0 KB
ID:	24151
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 3rd October 2007, 06:45 AM   #193 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

Road test

Mick, Martin, and John give the carbs a tweak post test
Attached Thumbnails
Click image for larger version

Name:	DSC00029.JPG
Views:	968
Size:	149.8 KB
ID:	24152   Click image for larger version

Name:	DSC00021.JPG
Views:	924
Size:	147.8 KB
ID:	24153   Click image for larger version

Name:	DSC00026.JPG
Views:	961
Size:	145.6 KB
ID:	24154   Click image for larger version

Name:	DSC00025.JPG
Views:	933
Size:	143.6 KB
ID:	24155
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 3rd October 2007, 06:54 AM   #194 (permalink)
Chris Melia's Avatar
10 tenths
United States

Join Date: Sep 2001
Location: UK
GT40: England Suffolk
Posts: 1,895
Re: ZFQ new proposed GT40 transaxle

The first GT40 with ZFQ transaxle installed, seeing it going through road tests, put a wide smile on all the teams faces.
No Transmission noise could be herd, and the chosen gearing seems perfect.

regards

Chris.
Attached Thumbnails
Click image for larger version

Name:	DSC00024.JPG
Views:	948
Size:	159.3 KB
ID:	24156   Click image for larger version

Name:	DSC00020.JPG
Views:	983
Size:	58.6 KB
ID:	24157
Chris Melia is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 02:04 AM   #195 (permalink)
6 Tenths
United Kingdom

Join Date: Mar 2002
GT40: London
Posts: 623
Re: ZFQ new proposed GT40 transaxle

In these days of clinical exhausts isn't it wonderful to see a brand new car with a stained number plate !

Good luck with the testing etc
josvdp is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 03:46 AM   #196 (permalink)
leonardj1
Rookie
United States

Join Date: Aug 2007
Location: Northern, CA
Posts: 41
Re: ZFQ new proposed GT40 transaxle

Chris,

Fantastic!! Glad to see that things are going well with the tests. It is good to hear that all is quiet...lol. That wide body with the "snorkies" on it looks really nice...I think that will be my final choice. Who is the manufacture of that body if you happen to know?

Leonard
leonardj1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 07:05 AM   #197 (permalink)
Malcolm's Avatar
Malcolm
Gold Supporter
United Kingdom

Join Date: Jun 2003
Location: Surrey, UK
GT40: GTD
Posts: 2,337
Re: ZFQ new proposed GT40 transaxle

The car in those pictures is Mick Sollis's Southern GT taken I guess about 5 seconds after SVA approval! The man is so keen he can't even wait for paint! It does not have a widened bodyshell, that is the standard item.
__________________
Malcolm
GTD40, Porsche 996 C4S, MX5 race car, TVR, 4.0 pre cat Griffith
Malcolm is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 07:17 AM   #198 (permalink)
Colonel Mustard
Moderator
Keith1's Avatar
Keith1
1st Paddock Light Horse
United Kingdom

Join Date: Mar 2004
Location: Wessex
GT40: MKVII
Posts: 8,934
Re: ZFQ new proposed GT40 transaxle

Amazing he passed the SVA noise test with those silencers. If so, they must be very well designed...
__________________
Moderation in all things - resistance is futile
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 10:24 AM   #199 (permalink)
Malcolm's Avatar
Malcolm
Gold Supporter
United Kingdom

Join Date: Jun 2003
Location: Surrey, UK
GT40: GTD
Posts: 2,337
Re: ZFQ new proposed GT40 transaxle

I agree, but from what I hear they are well designed. The real test is a track day with strict noise limits.
__________________
Malcolm
GTD40, Porsche 996 C4S, MX5 race car, TVR, 4.0 pre cat Griffith
Malcolm is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Old 5th October 2007, 10:39 AM   #200 (permalink)
leonardj1
Rookie
United States

Join Date: Aug 2007
Location: Northern, CA
Posts: 41
Re: ZFQ new proposed GT40 transaxle

Malcolm, Thanks for the correction. For some reason his car looks really wide. The wide one must really be out there...very cool.

Leonard
leonardj1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Closed Thread


LinkBacks (?)
LinkBack to this Thread: http://www.gt40s.com/forum/vendor-manufacturer-announcements/20751-zfq-new-proposed-gt40-transaxle.html
Posted By For Type Date
daytona or GT40 This thread Refback 27th February 2007 08:24 PM
daytona or GT40 This thread Refback 27th February 2007 08:04 PM
Mid-Engine Transaxle Tech - Page 2 - Corner-Carvers Forums This thread Refback 14th February 2007 02:58 PM
Mid-Engine Transaxle Tech - Page 2 - Corner-Carvers Forums This thread Refback 14th February 2007 02:20 PM
Mid-Engine Transaxle Tech - Page 2 - Corner-Carvers Forums This thread Refback 14th February 2007 01:50 PM
LocostBuilders This thread Refback 9th February 2007 06:28 AM
LocostBuilders This thread Refback 9th February 2007 06:25 AM
GT40s.com This thread Refback 8th February 2007 07:36 AM

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 08:19 AM.
