Carbon Mono

[Tornado Sports Cars]

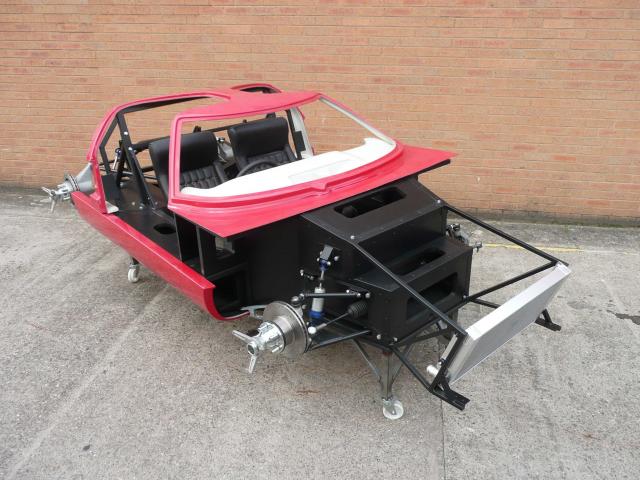

Heres one in Red

[Tornado Sports Cars]

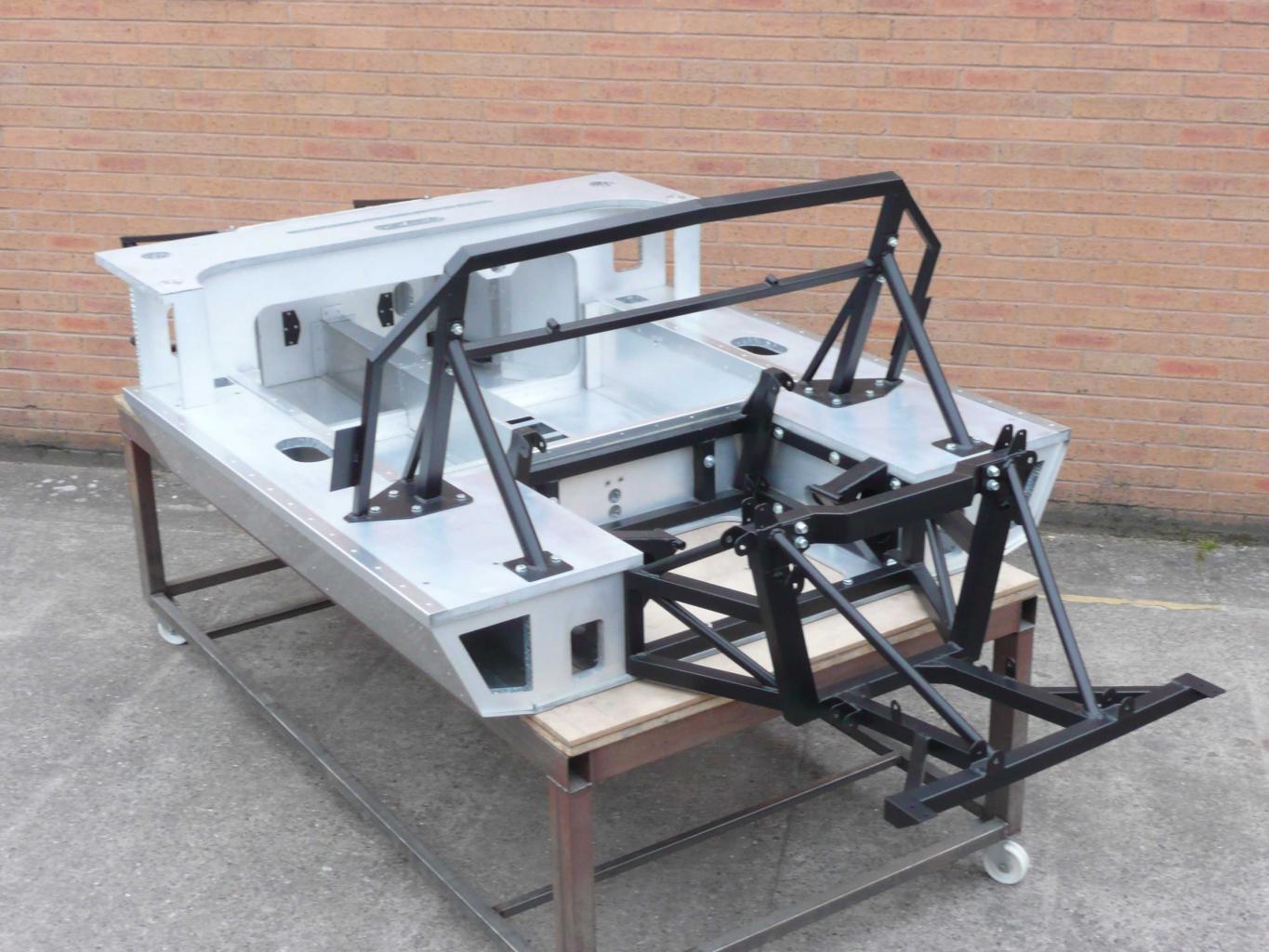

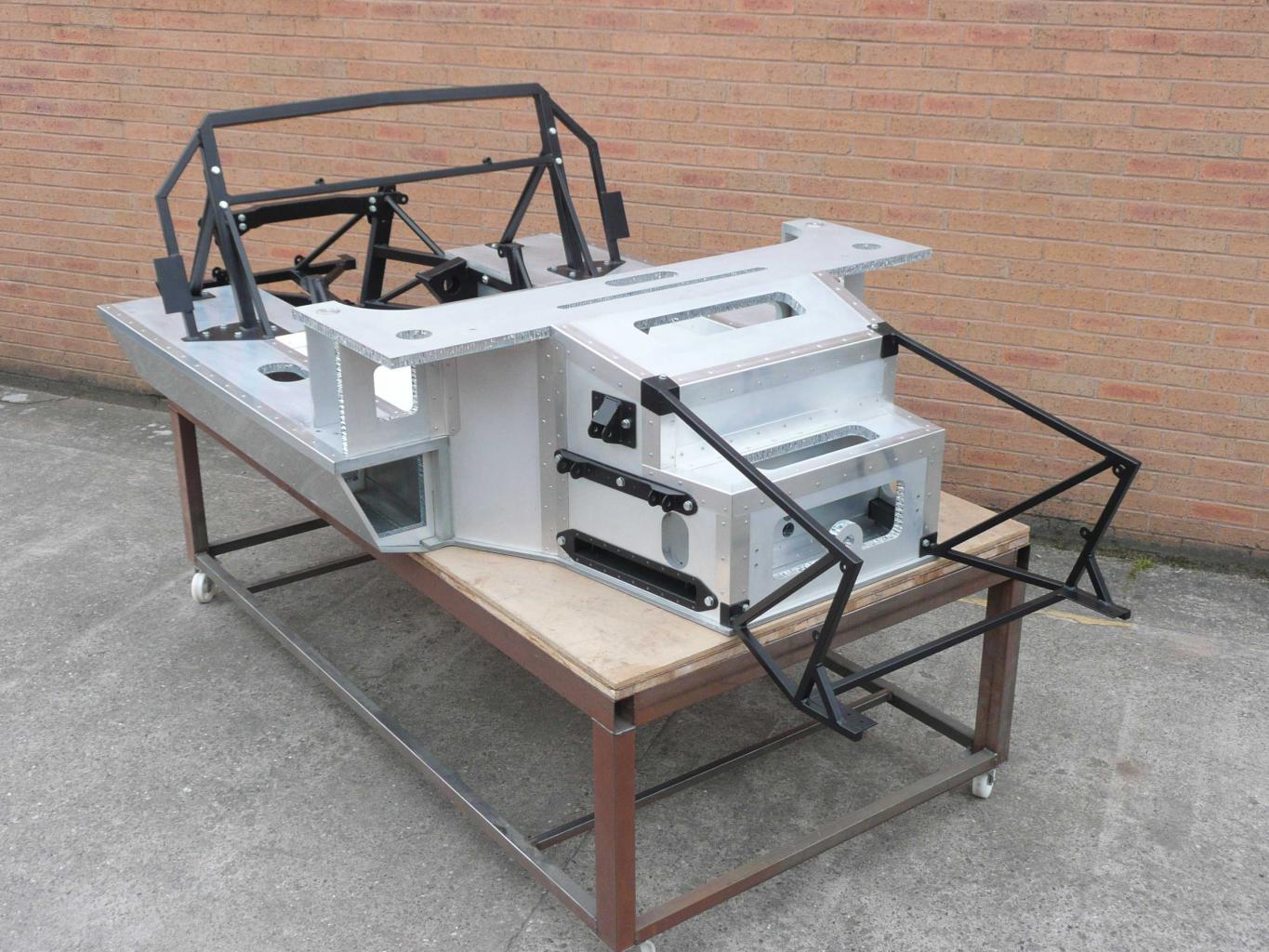

A couple of pictures of the aluminium version.
Weight of this version is just 308 lbs or 140 Kgs.

Andy

[greg (Bailey Cars)]

Hello Andy

well done on your carbon chassis project!
i know the challenges first hand.
is it a Pre preg carbon fibre that you used?
And what weight saving did you achieve versus a standard steel chassis?
did you use any anti splittering kevar in the structure?
Regards
greg

[Tornado Sports Cars]

Greg

Thanks.

It is Pre Preg Carbon.

Weight saving over a standard chassis is approx 149 kgs or 327 lbs.

Thanks

Andy

[Tornado Sports Cars]

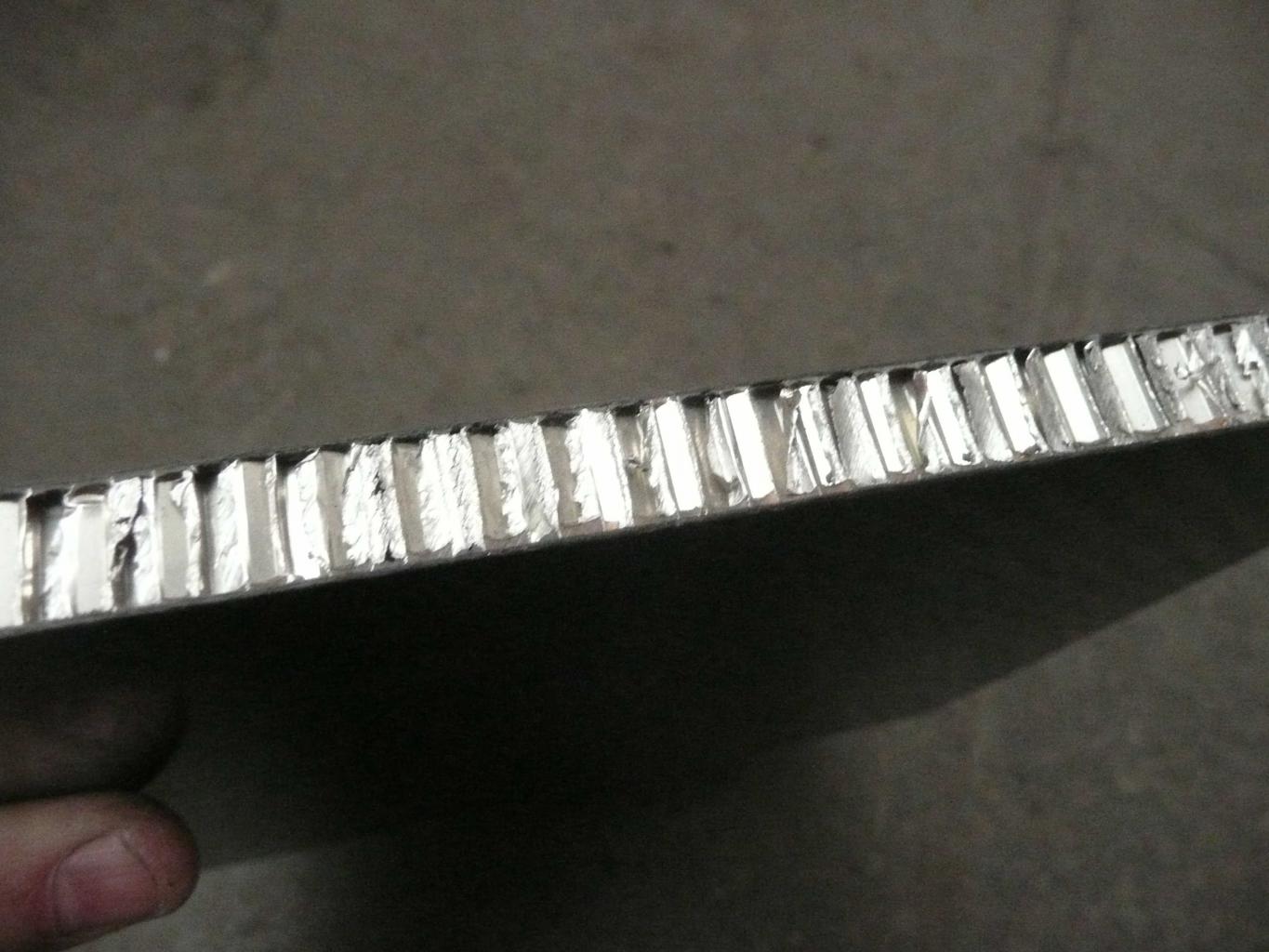

We are now using a higher spec core on all of the Carbon Fibre monocoque chassis.

The foil used is a higher spec with a smaller cell size resulting in reduced weight with increased strength.

The additional weight saving on the tub is 8.2 Kgs or 18.02 Lbs.

Thanks

Andy

[Tornado Sports Cars]

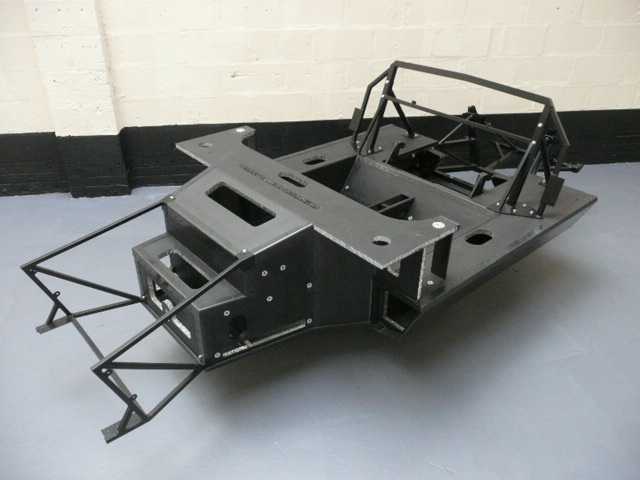

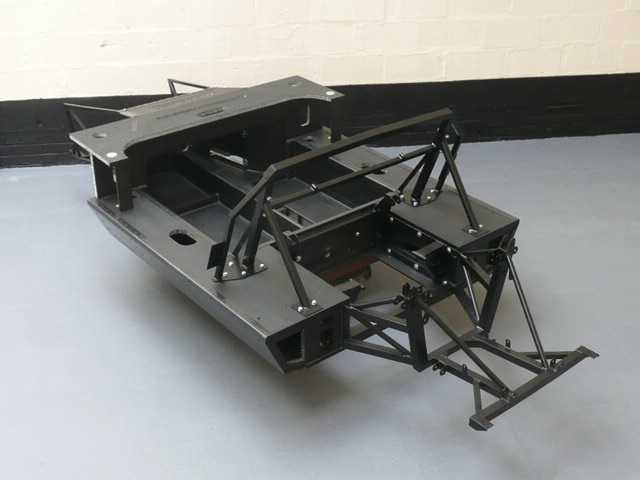

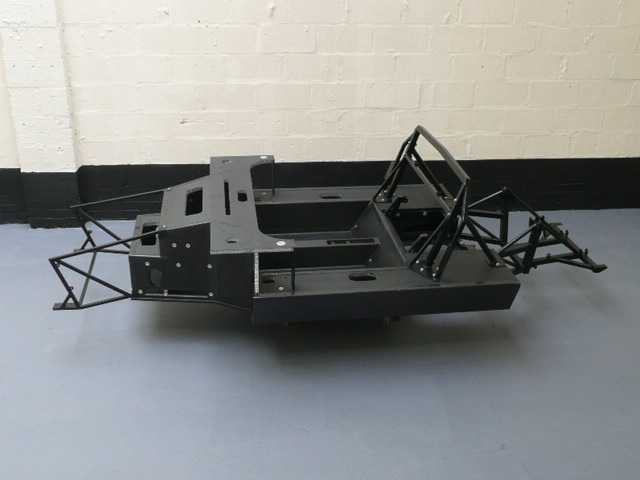

Pictures of latest version Carbon chassis

[Tornado Sports Cars]

We have now introduced a full carbon panel kit to go with the Carbon chassis.

This kit includes the rear bulkhead, gearlinkage cover and all inspection hatches.

Thanks

Andy
