01E arrival/ first part

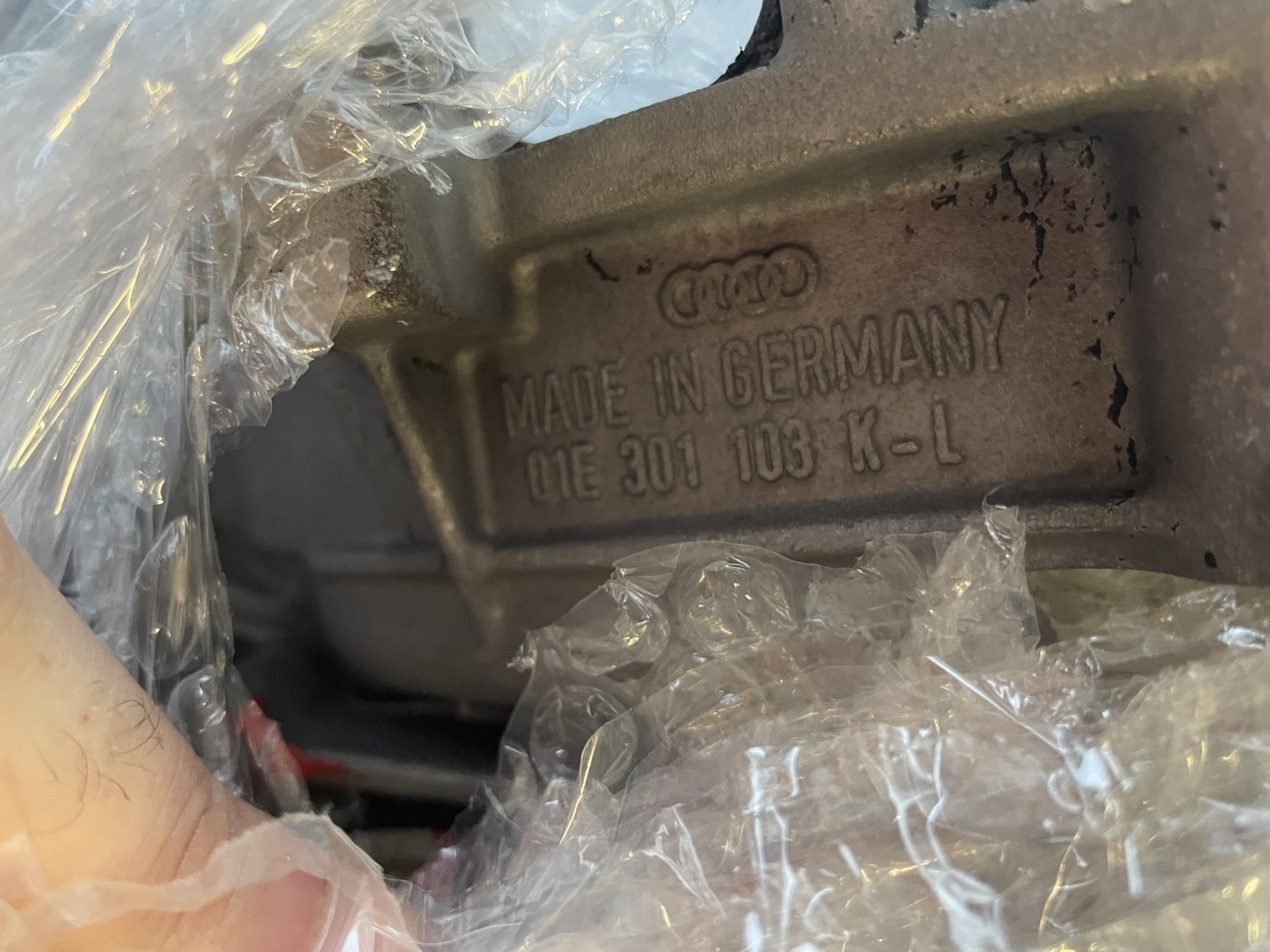

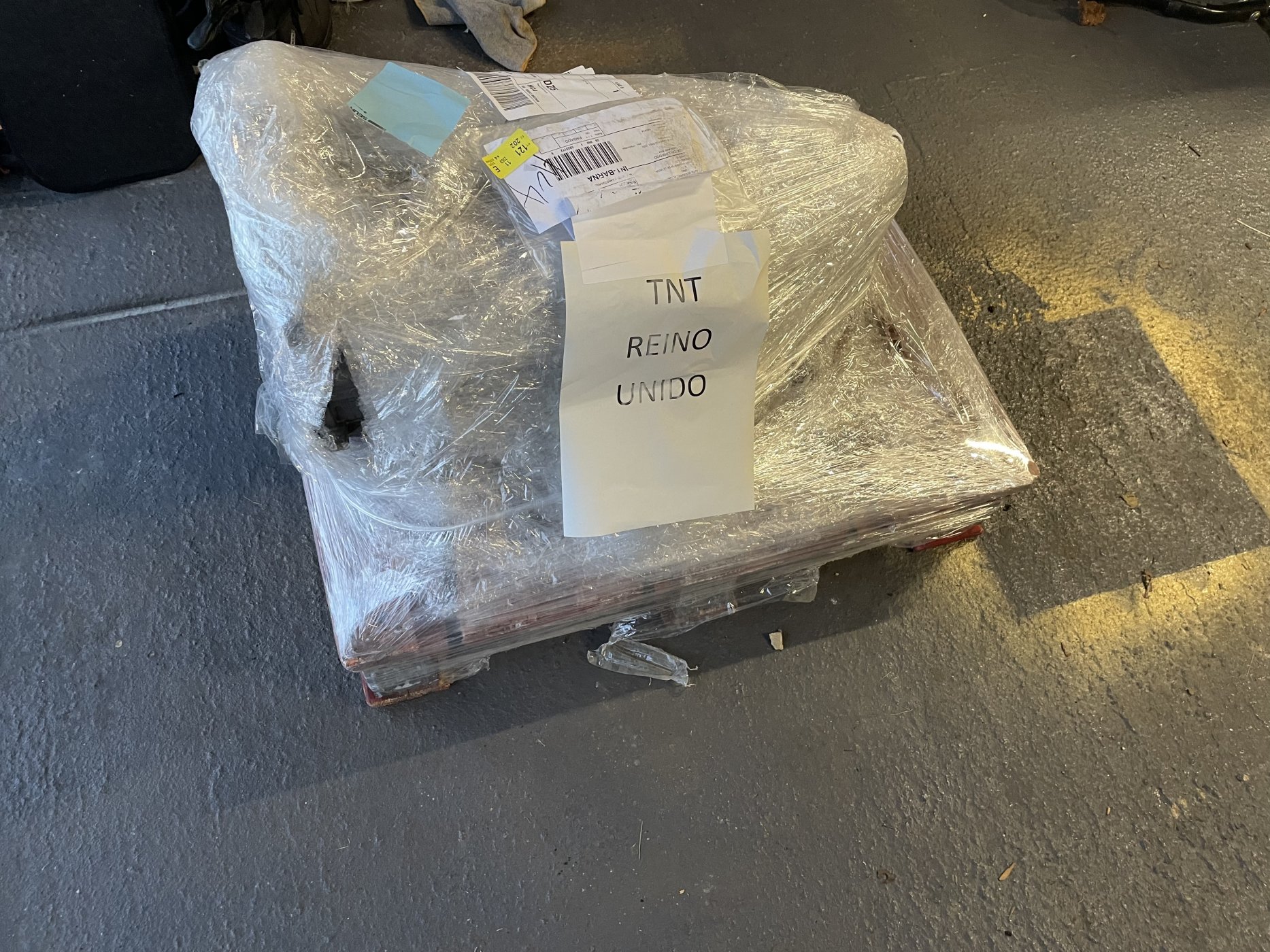

Well the first step has been taken and this little beauty arrived yesterday. Clearly this is the first of many parts but probably one of the most important. I considered lots of options and I know a lot of GTs still run an uprated UN1 but for cost over worry I wanted something that was a little stronger. So here we are my 2wd 01E box DQS six speed gearbox. This will eventually be mated to a 351 block with 400-420bhp.
Happy to receive all points on fitting/ conversion of this gearbox for use behind the old v8 lump.

DQS EffectiveRPM AFTERPercentage
RatioMax SpeedOverall6500RPM DROP
Final3.88 RatioSHIFT
First3.5036.7913.58
Second1.8968.137.33351046
Third1.23104.684.77423035
Fourth0.87148.003.38460029
Fifth0.73176.382.83546016
Sixth0.56229.922.17499023
Target RPM 2122.27




Mike Pass

Supporter
Good that you have a NEW gearbox as your 351 will be the one used component of your build for IVA purposes.
Cheers
Mike

Good that you have a NEW gearbox as your 351 will be the one used component of your build for IVA purposes.
Cheers
Mike
Exactly Mike! Glad to see there is still a selection of new old stock items available for purchase at reasonable prices.
