CAV wiper motor wiring

#1
can anyone help me regarding wiring up the wiper motor. I am not using the wiring loom from the factory but I am using the factory wiper motor. I am using Painless wiring. we need to figure out how to wire the motor so it self parks and operates correctly. I am using Lucas switches on the dash.

Carman

#3

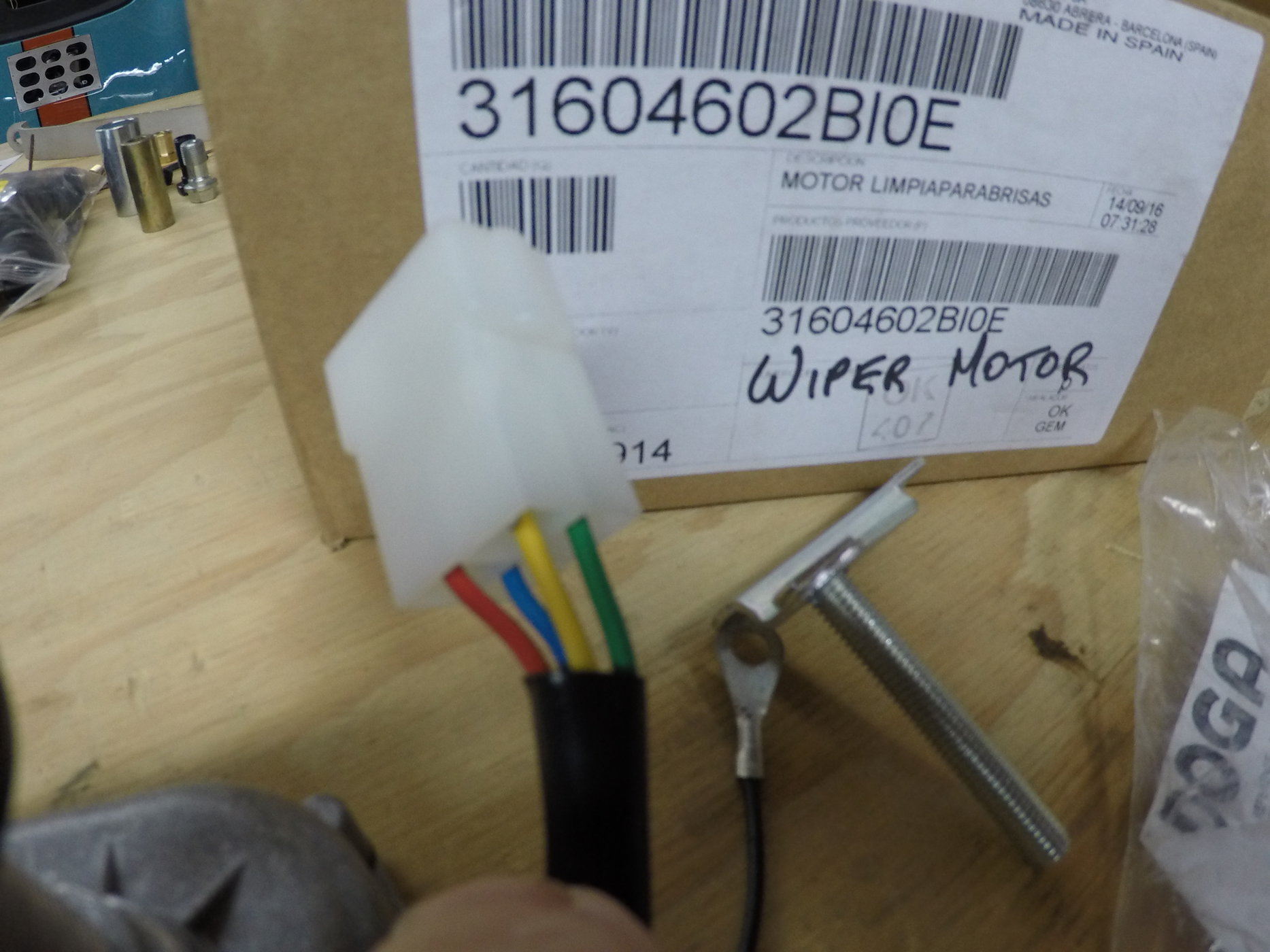

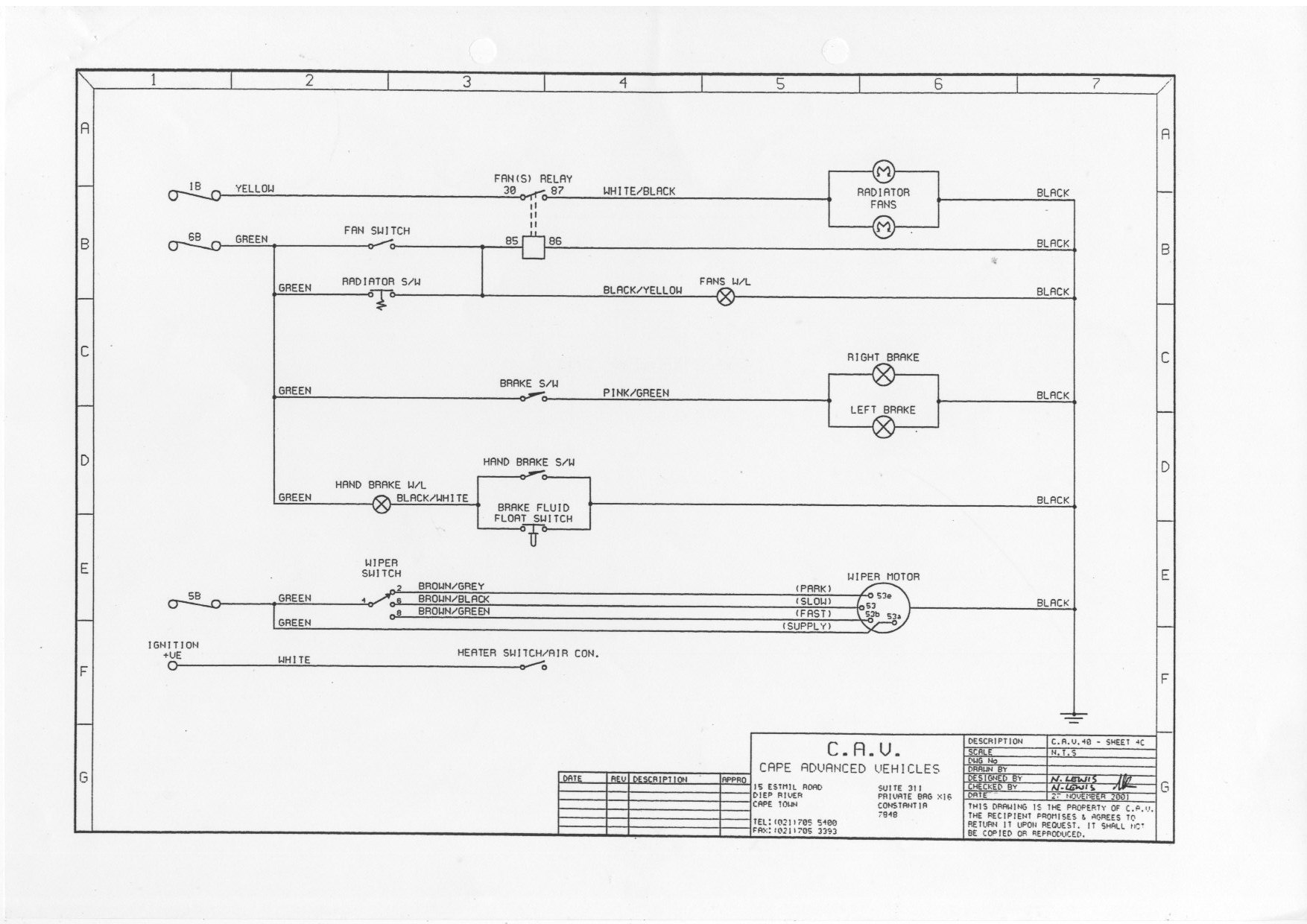

hi steve, thanks for that. it does help and make sense but my wiper motor wire harness has different colours from the chart. not a big deal but im getting different info from a few guys. one said, red is 12v+, black is ground, green is ground when parked, and yellow does nothing. these colours they describe do match my harness. hmmmm


Bill Kearley

Member
GT40s Supporter
#4

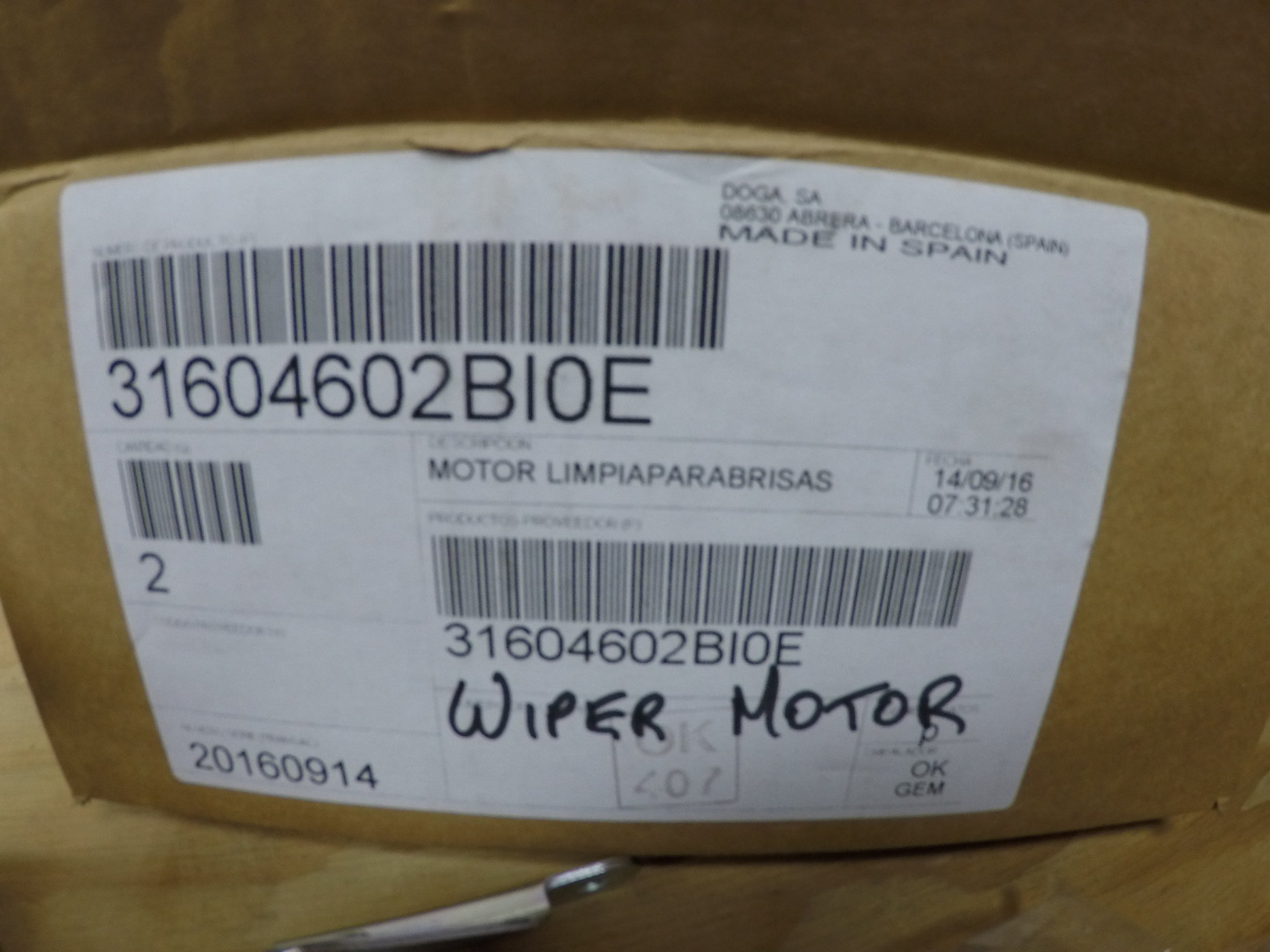

I haven't got mine done yet but I do have the make and box and part number my motor came in. I plan to look on line for the schematic in order to hook mine up. Would you like the info, it's out in the shop.


Bill Kearley

Member
GT40s Supporter
#6

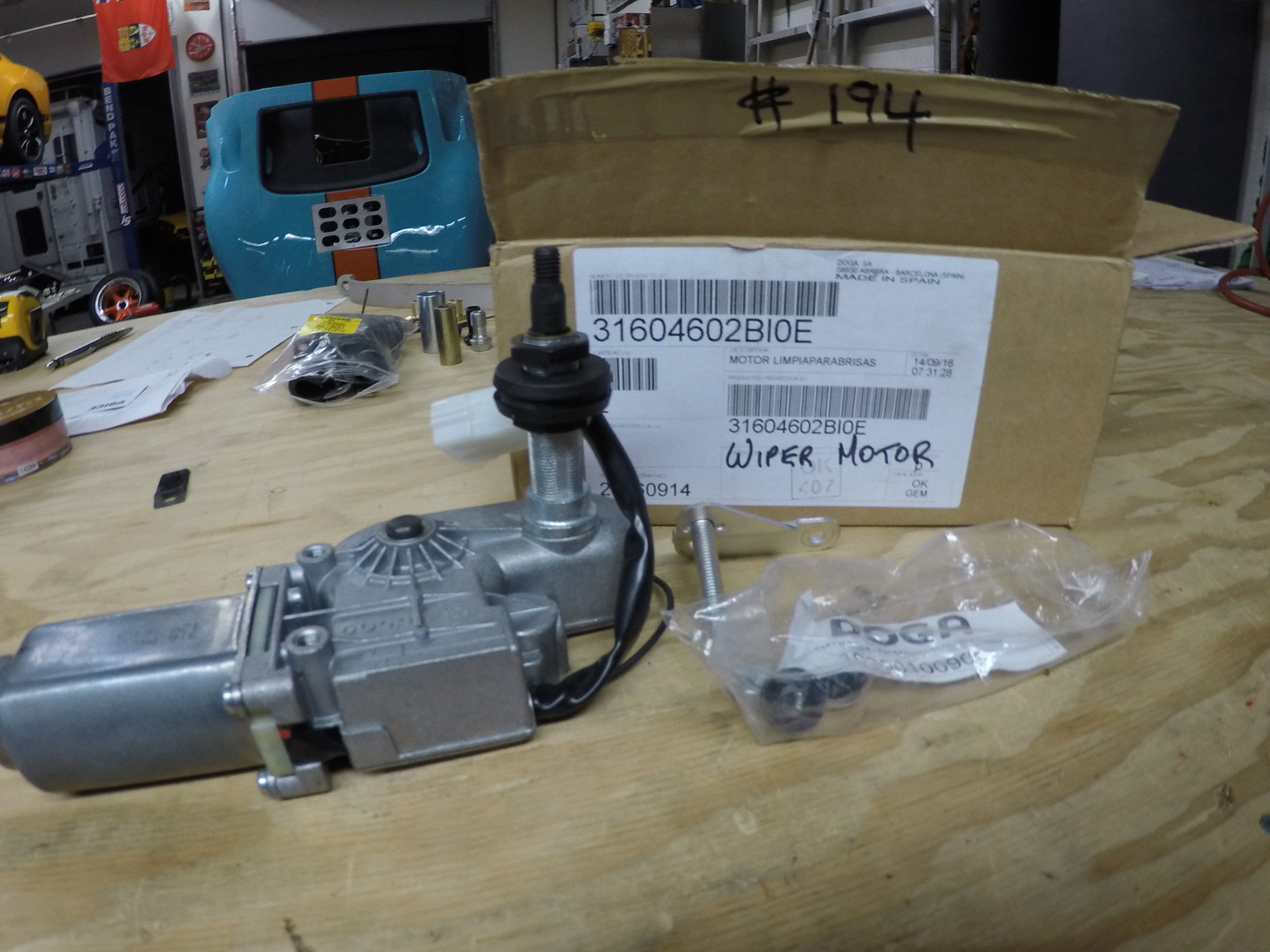

Carman I Thought I sent this the other day, not sure what happened. Look at DOGA it's on line. I saw my motor on images. I haven't installed it yet. I have to make mounts and at this time I don't even know the degree of sweep


Attachments
