Drawing or CAD file Ford Engine Block M-6010-BS351BB

RexDanni

H.J.Bayer

Supporter
Hello,
I am looking for a drawing or even better CAD data for a Ford Block M-6010-BS351BB.
I want to design an adapter plate to my Audi R8 transmission. (Graziano)
Can someone of you maybe help me?
Or maybe there is such an adapter plate ready to buy?

M

Morten

Mortified GT
Supporter
Hi, try Fran at RCR. He’s done alot of work on Graziano.
race-car-replicas.com

Engine/Transaxle Adaptor Plate — Race Car Replicas

Got an engine and transmission that were never intended to meet? RCR has the answer. We have a comprehensive library of adapter plates that are carefully designed and tested to mate many popular engines to a wide variety of transmissions and transaxles. Off-the-shelf adaptors start at $659. More inf
race-car-replicas.com race-car-replicas.com

Good luck

Morten

R

Ryan L

As a side note, most of the dimensions are a whole fraction. I was able to cad up a drilling guide that bolted onto the front cam journal mounts for a mate. This was to allow him to re drill and tap the mounting holes deeper or something. I drafted the part based on a photo, known dimension for scaling and then the rest of them I just eyeballed in cad and went to the nearest whole fraction. eg 5/16" or 7/8th" ect. what ever worked out closes.

emailed it to him, on the other side of the country ~ 3680km away (2286 mile) and he then got it water jet cut. Said I was spot on, or close enough that it would have worked. I think he may have made up some transfer punches to screw in and align a drill guide.

Anyway, certainly good enough for a starting point.

B

Bob Putnam

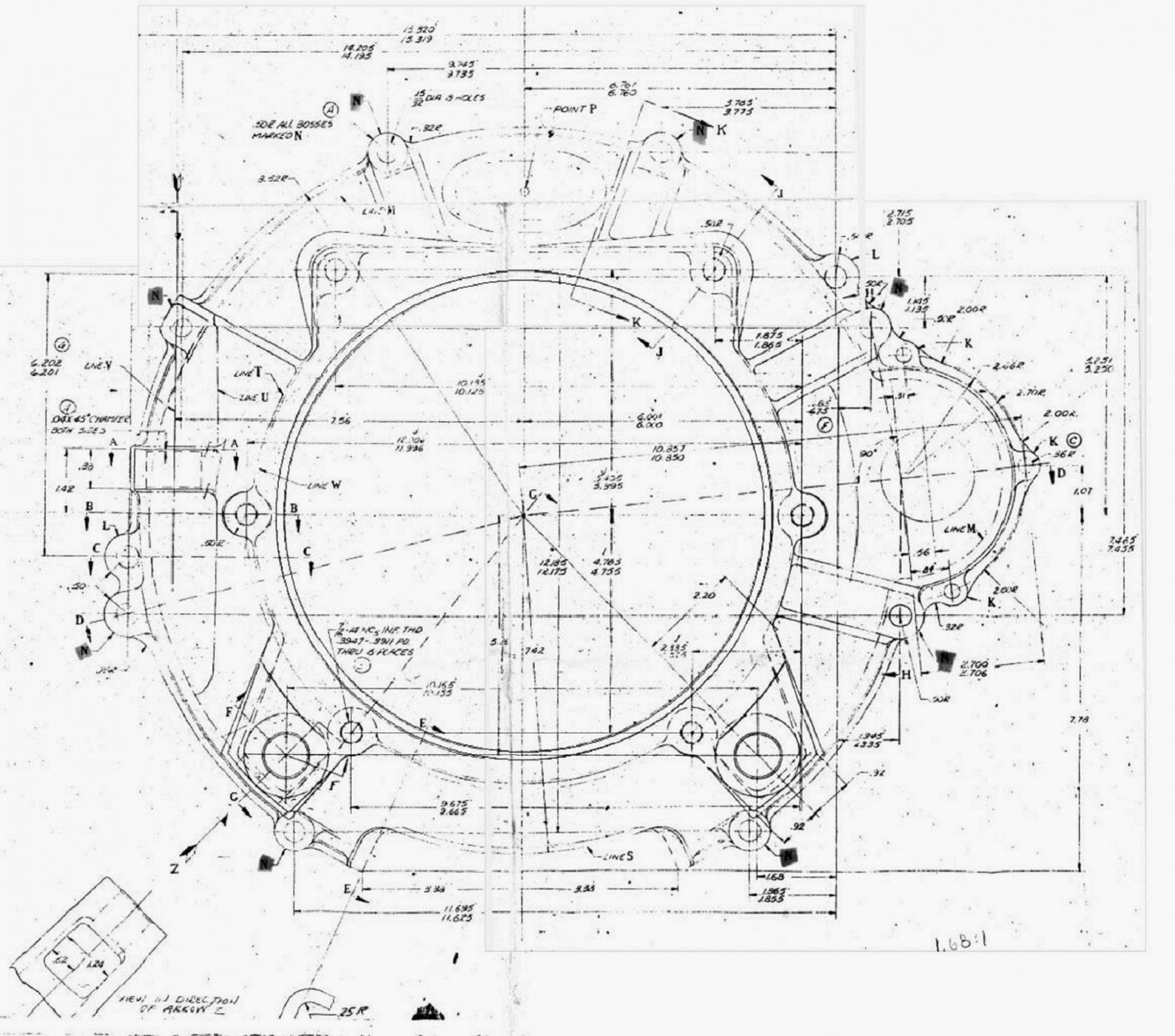

I don't where this "original" MK2 transaxle drawing came from but it includes the FE bolt pattern. I'd check dimensions before I started machining.


Attachments

RexDanni

H.J.Bayer

Supporter
@Andy - Thanks for the link- is unfortunately the wrong gearbox

@Ryan L - Thanks for the link- the book is unfortunately not available here, certainly interesting.

@Morten - Thanks, I did not know that RCR has a finished plate,
I'll ask right away, unfortunately it is currently very expensive to send parts from USA to Germany :(

RexDanni

H.J.Bayer

Supporter
Bob Putnam said:
I don't where this "original" MK2 transaxle drawing came from but it includes the FE bolt pattern. I'd check dimensions before I started machining.
Click to expand...
That could move me forward.
The drawing is based on inches as the unit of measurement, isn't it?
I'm a bit afraid that the conversion and scaling will make everything a bit inaccurate.
But if I still find a drawing with dimensions I can use it in any case as a reference.

Thank you!

J

Jac Mac

Pretty sure that drawing came from one of the older/earlier members who was involved in the rebuild of one of the first MK2's, [ ADAM ]. I used the drawing along with others to make my FE/T44 Pattern, but be a while before I commit that to alloy.


Attachments

IanAnderson

Ian Anderson

Lifetime Supporter
Supporter
Perhaps check with Chris - but he is Australian so perhaps freight would be similar (I believe he also did other Gearbox adaptors to these)

Drawings for sbf to audi 01e transmission

Hi there, I'm looking for drawings on engine adapterplate, flywheel and centerbearing holder to mate a smallblock ford engine with audi 01e gearbox. I know there are several suppliers out there as well. But i want to be able to make it myself with the help of tested drawings that work...
www.gt40s.com


Ian

R

Ryan L

Dont know why I didn't think of this earlier.
Purchase Scan Files — Bremar Automotion 3D Scan Store (bremar3dscanstore.com)

I can point you in a location that will go one better than a drawing......
How about 3d scans of the Graziano transaxle!
Graziano Transaxle Transmission — Bremar Automotion 3D Scan Store (bremar3dscanstore.com)

There is also a ford Windsor block there, but the scan quality on that one is a lower resolution as the owner did not want to get it dusted (made non reflective) or disassembled.
It is still useful for checking clearances.
Ford 302 Windsor With Audi Transaxle — Bremar Automotion 3D Scan Store (bremar3dscanstore.com)


R

Ryan L

Doc Watson said:
try this?????

www.gtforte.co.uk

Adaptor plate - 289/302/351 Ford V8 to Audi 01E/01X/016/012 Transaxles

Engine adaptor plate Bolts to Ford V8 small block engines for use with Audi transaxles See our flywheel clutch and spigot adaptor
www.gtforte.co.uk
Click to expand...
I wonder if that would work as well.
Audi make the R8, which may share the same bolt pattern as the rest of the Audi V8 blocks. I believe the engine in the R8 is the same as the RS4, but with a dry sump.
the V10 in the Gallardo comes from the S6/RS6 audi, again with some modification, but still same base block.
Yes there is the cut out in the housing for the forward motion shaft. I would be surprised if a number of the holes did not line up.

RexDanni

H.J.Bayer

Supporter
Hi Ryan I have all the scans from Bremar, including the gearbox, unfortunately it is not accurate enough for an adapter plate.

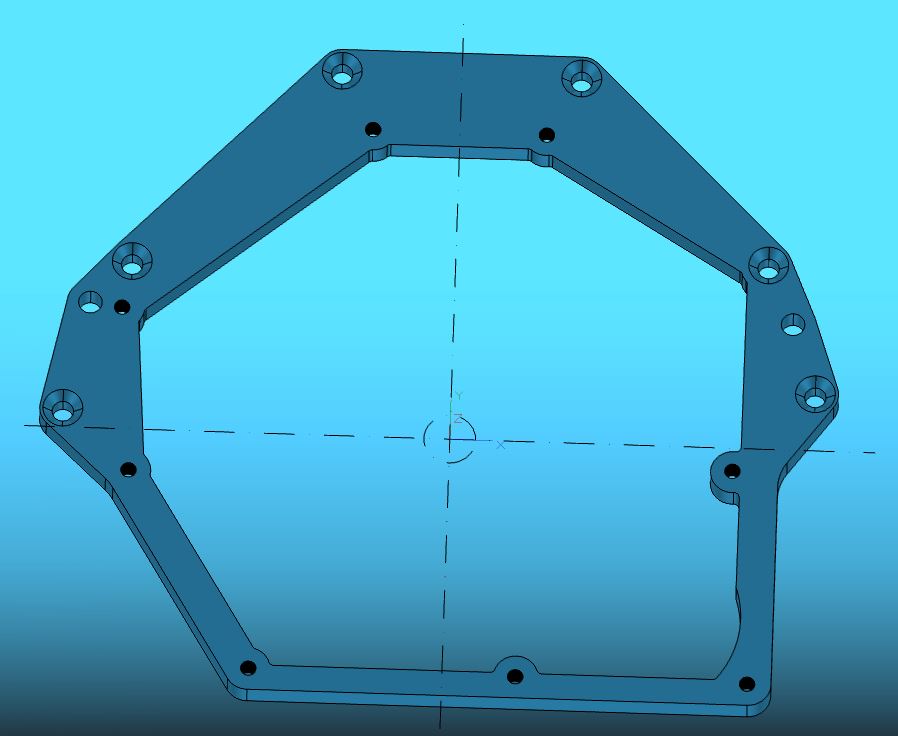

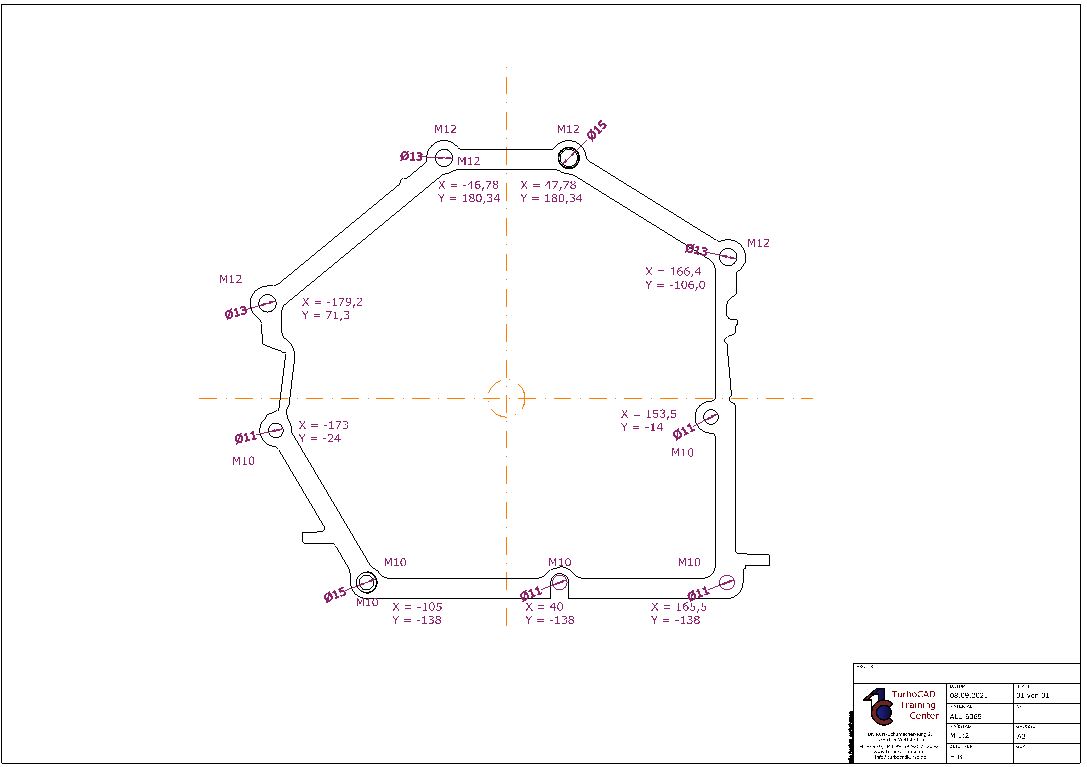

I got a coordinate table of motor and gearbox today and designed with that, hope that is correct, but will check.
I could only use the outer contour, for the holes the scan of the gearbox is too inaccurate.

RexDanni

H.J.Bayer

Supporter
jac mac said:
Pretty sure that drawing came from one of the older/earlier members who was involved in the rebuild of one of the first MK2's, [ ADAM ]. I used the drawing along with others to make my FE/T44 Pattern, but be a while before I commit that to alloy.
Click to expand...
Thanks for the drawing, I will take a closer look and compare with what I already have

RexDanni

H.J.Bayer

Supporter

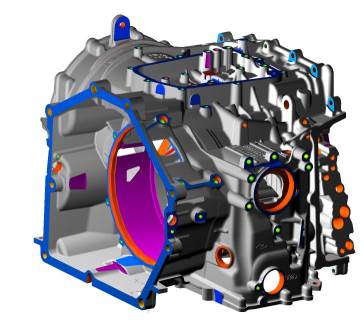

Thanks for the tip. I will get the original CAD Catia data from the automatic transmission tomorrow. It has the same flange. I will then post the flange image as a pic here. Now I just need to be sure about the flange image from the engine side.

Last edited:
RexDanni

H.J.Bayer

Supporter
Hello folksi,
I am looking for the connection of my Graziano to the 351 block still, the matching complete clutch, release bearing and flywheel.
Is there already something ready or do I have to do it all myself.
Does anyone have any tips or sources?

E

Eric A.

Did you check with Fran Hall at RCR? He makes adapters for the Graziano to some engines. I have the Ford bellhousing dimensions if you need them. PM me.

RexDanni

H.J.Bayer

Supporter
Hello Eric, Thanks for the tip. I found the clutch kit and adapter yesterday on Fran's SLC page. Have already written to him
