DXF of 302 belhousing drawing

[John Shand]

Hi, looking for a DXF of the bellhousing of a sbf to make a new sandewge plate for the ZF
any drawings would be great even if its for a different trans, its only the ford side I need.

thanks

John Shand



[Ron Earp]

You'll find a engineering drawing for the Renault transaxle if you look around. In the last two months or so. It'll have what you need to go into DXF.



[flatchat(Chris)]

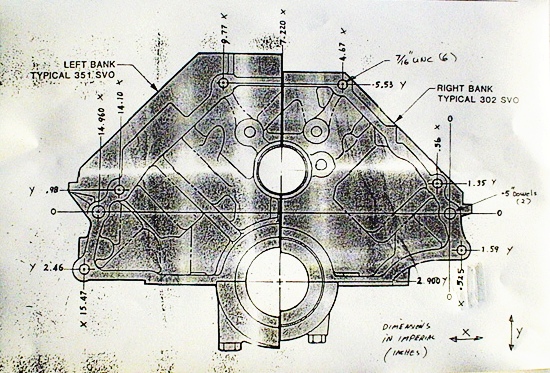

not a real good pic ---but ....they are usually easy enough to find



[Darnel A.]

Here is a Audi to Ford coordinates.



Darnel



[clive]

John,

Got the file at work.

Will email it in about 13 hours.

Set up for a Renault, and with r/h starter.

Discovered that the Renault bellhousing is too small for the standard Ford flywheel/swashplate, so seeking a smaller flywheel, and I will modify the starter position to suit.

Clive



[John Shand]

Thanks very much, for all the help

John



[Jack Houpe]

I have the file John, I will look for it tomorrow when I get to the shop.
