GT40P/1074

Neil

Supporter

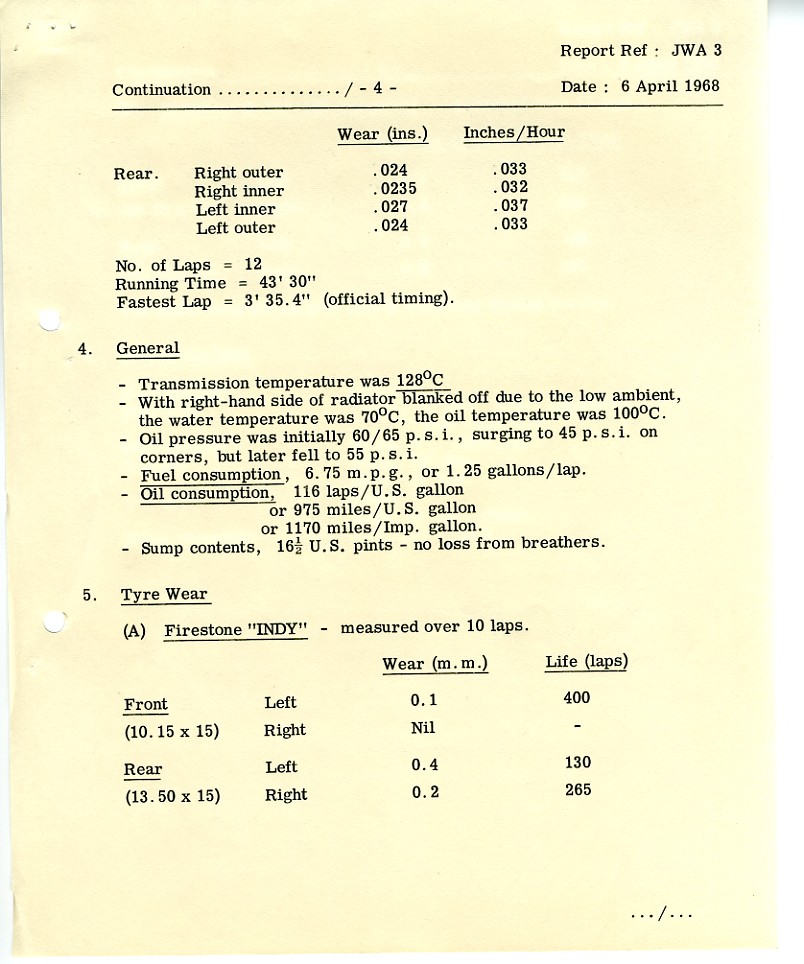

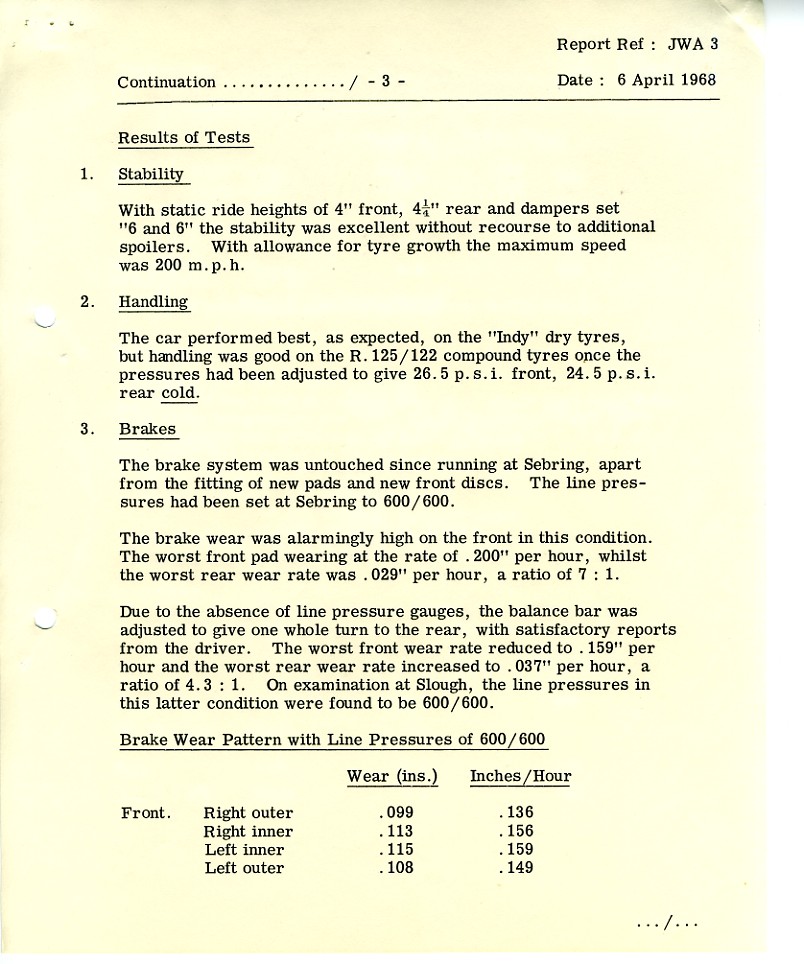

This is a JWAE Engineering Development Report on testing at Le Mans On 6 April 1968. Jacky Ickx was the driver for this test session.


Attachments

  • GT40 Le Mans  1.jpg

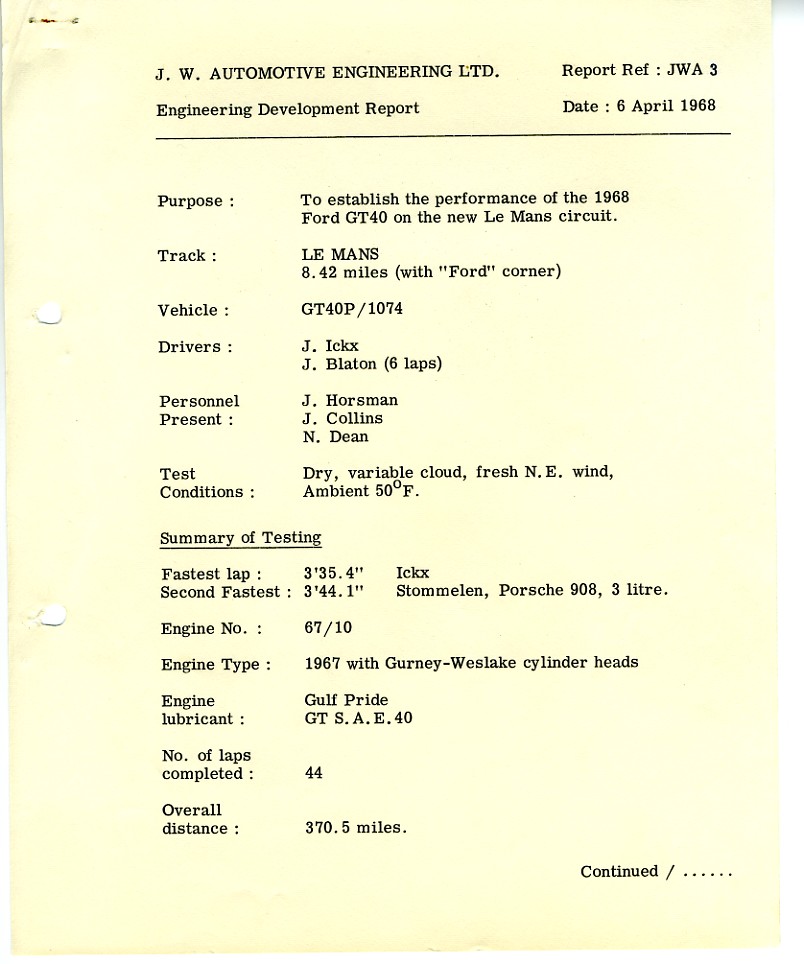

    GT40 Le Mans 1.jpg
    114.5 KB · Views: 204
  • GT40 Le Mans 2.jpg

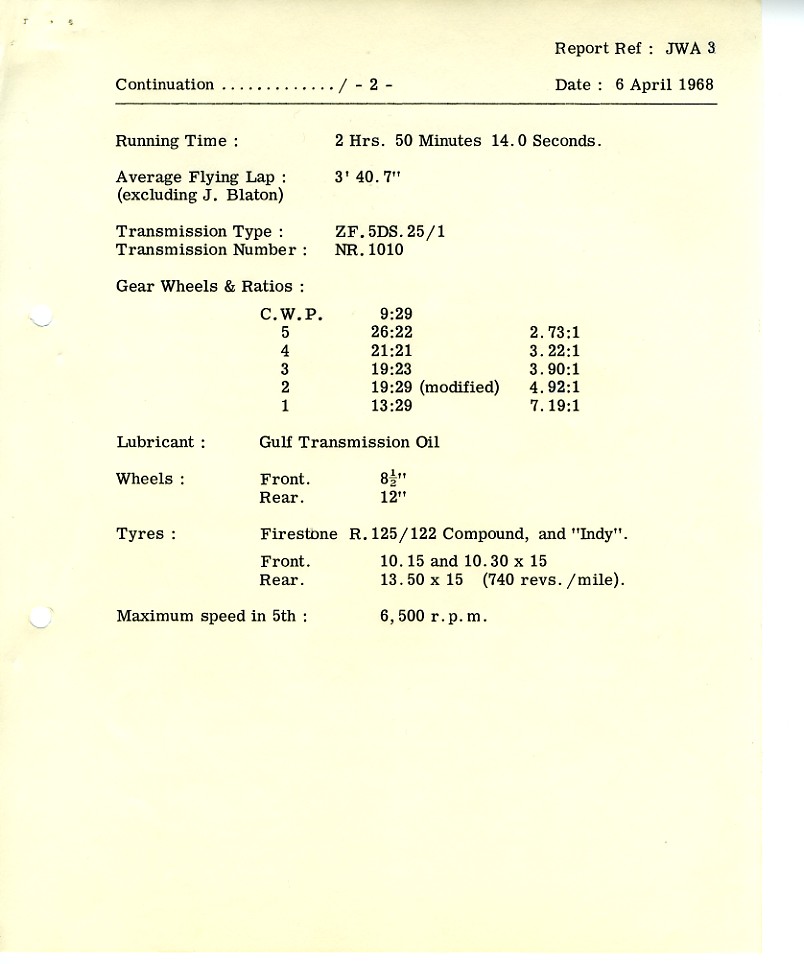

    GT40 Le Mans 2.jpg
    90.7 KB · Views: 199
  • GT40 Le Mans 3.jpg

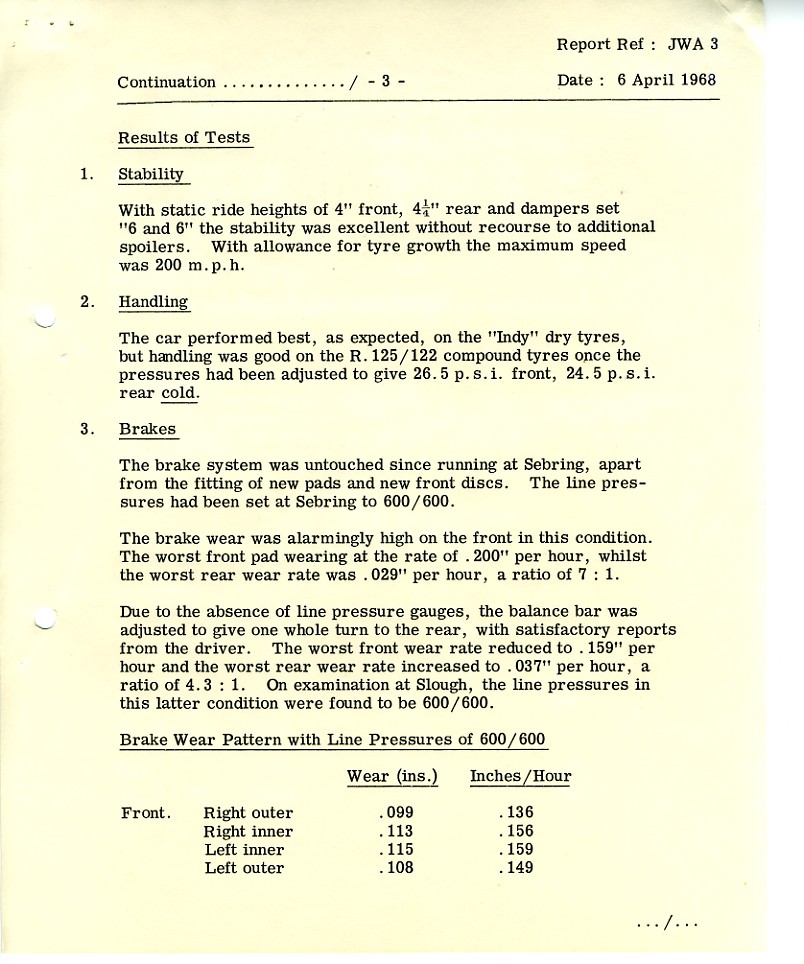

    GT40 Le Mans 3.jpg
    176.1 KB · Views: 182
  • GT40 Le Mans 4.jpg
    GT40 Le Mans 4.jpg
    163.2 KB · Views: 186
  • GT40 Le Mans 5.jpg

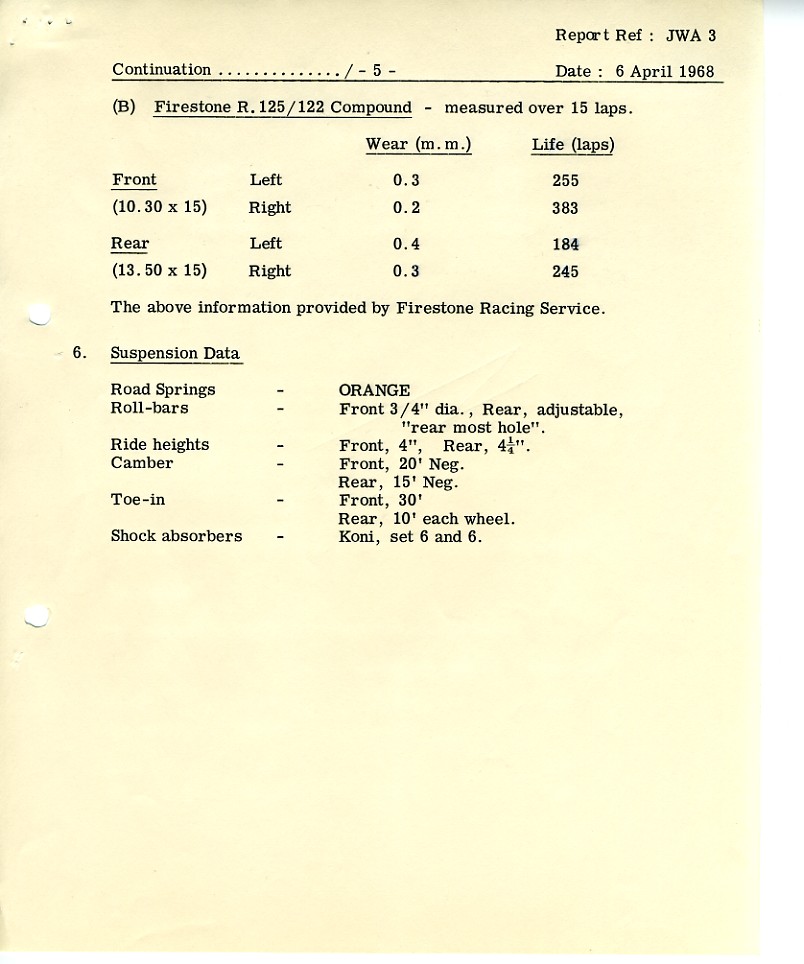

    GT40 Le Mans 5.jpg
    116.9 KB · Views: 186

Neil

Supporter

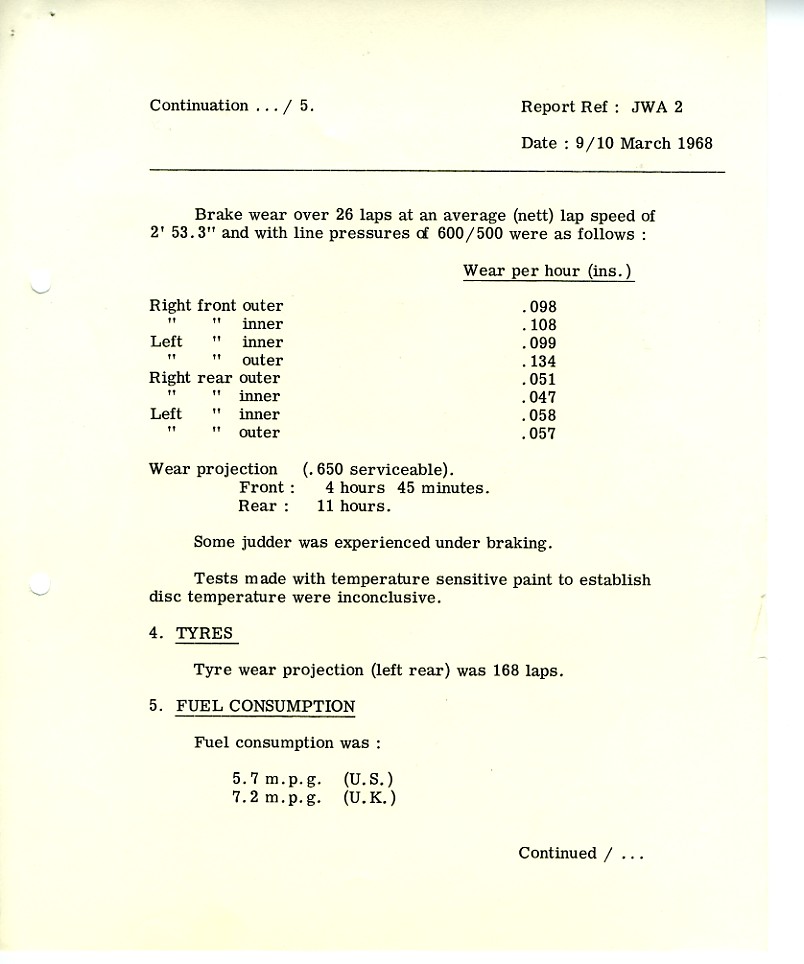

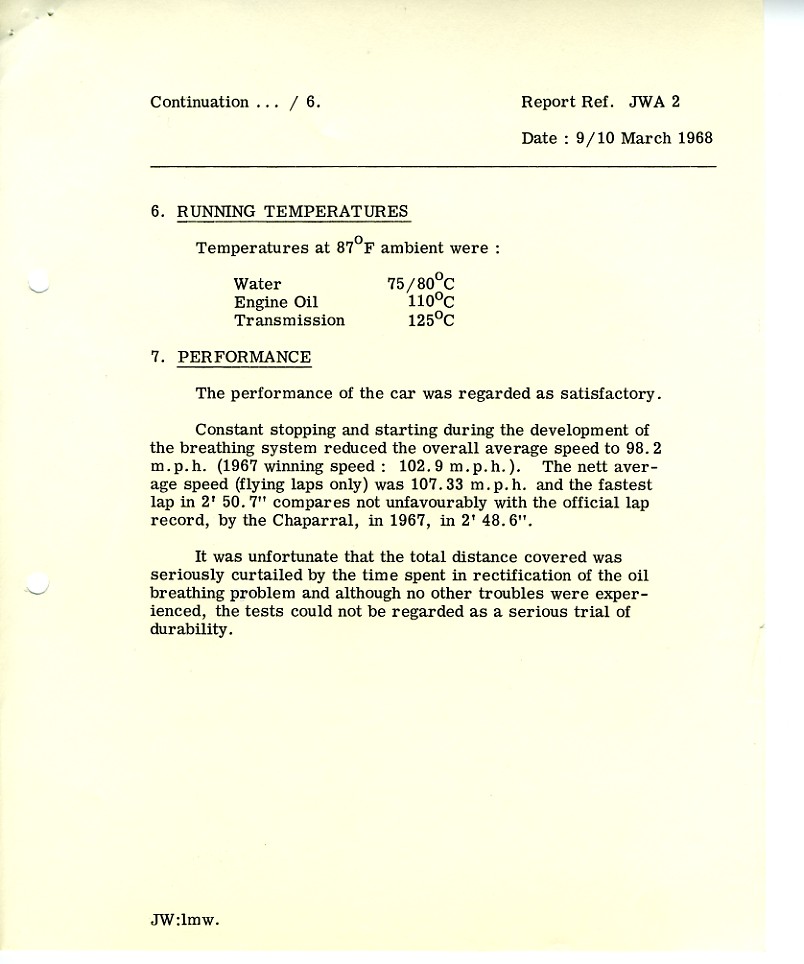

This is a JWAE Engineering Development Report on testing at Sebring on 9 & 10 March 1968. David Hobbs was the driver for this test session.


Attachments

  • GT40 Sebring 1.jpg

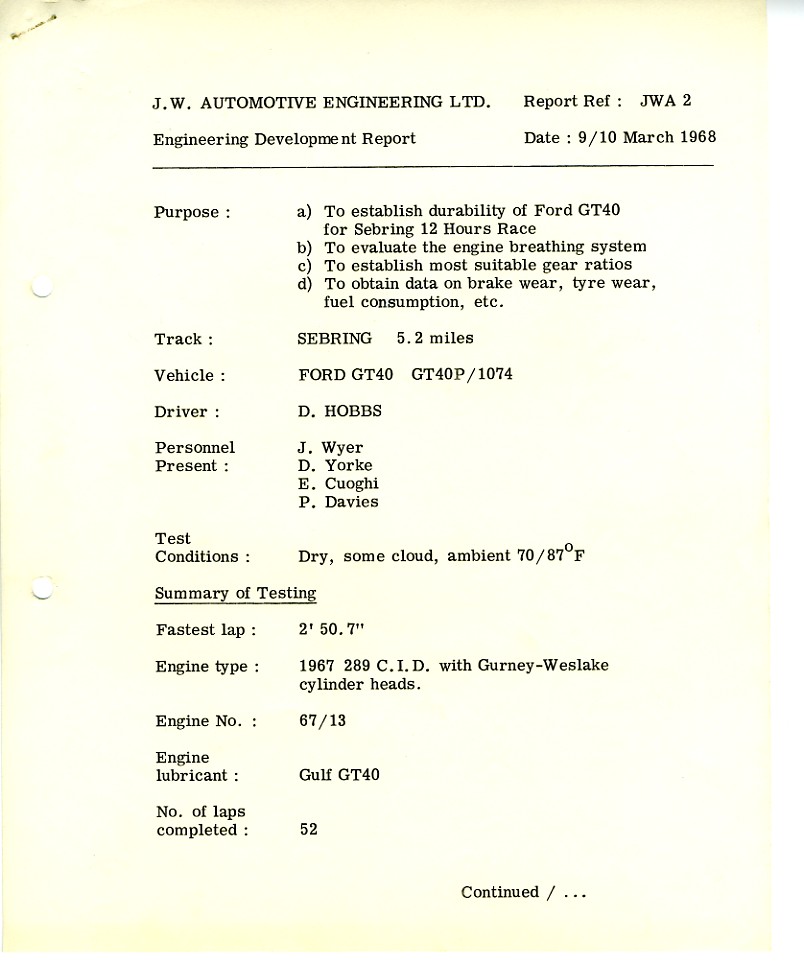

    GT40 Sebring 1.jpg
    100.8 KB · Views: 187
  • GT40 Sebring 2.jpg

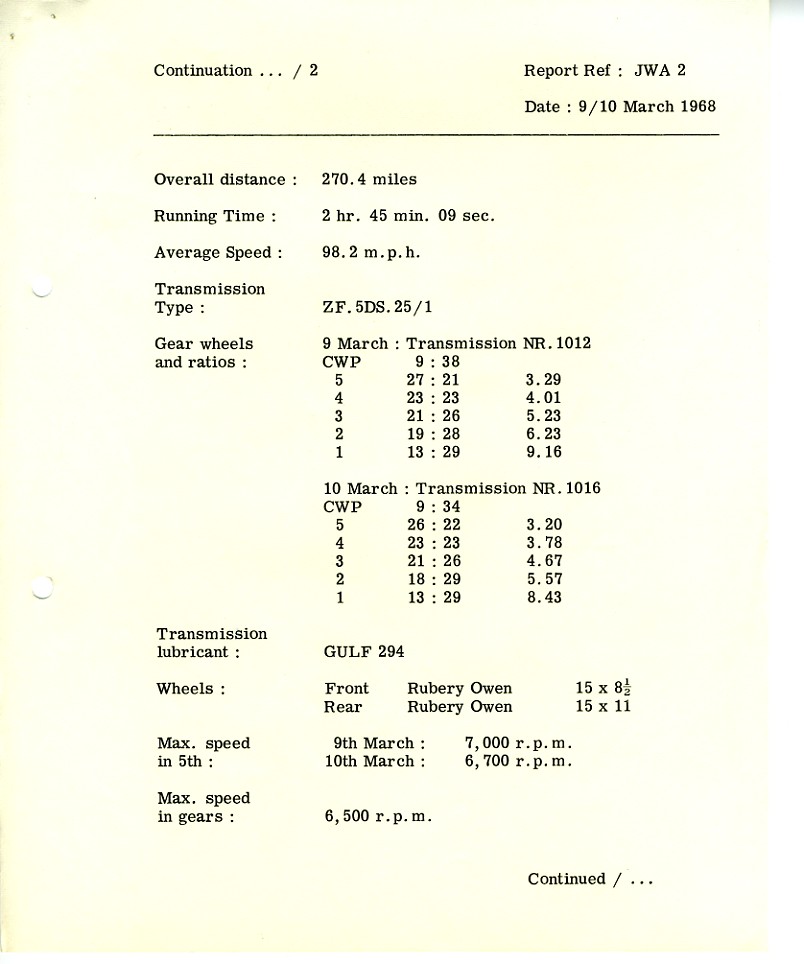

    GT40 Sebring 2.jpg
    91.2 KB · Views: 182
  • GT40 Sebring 3.jpg

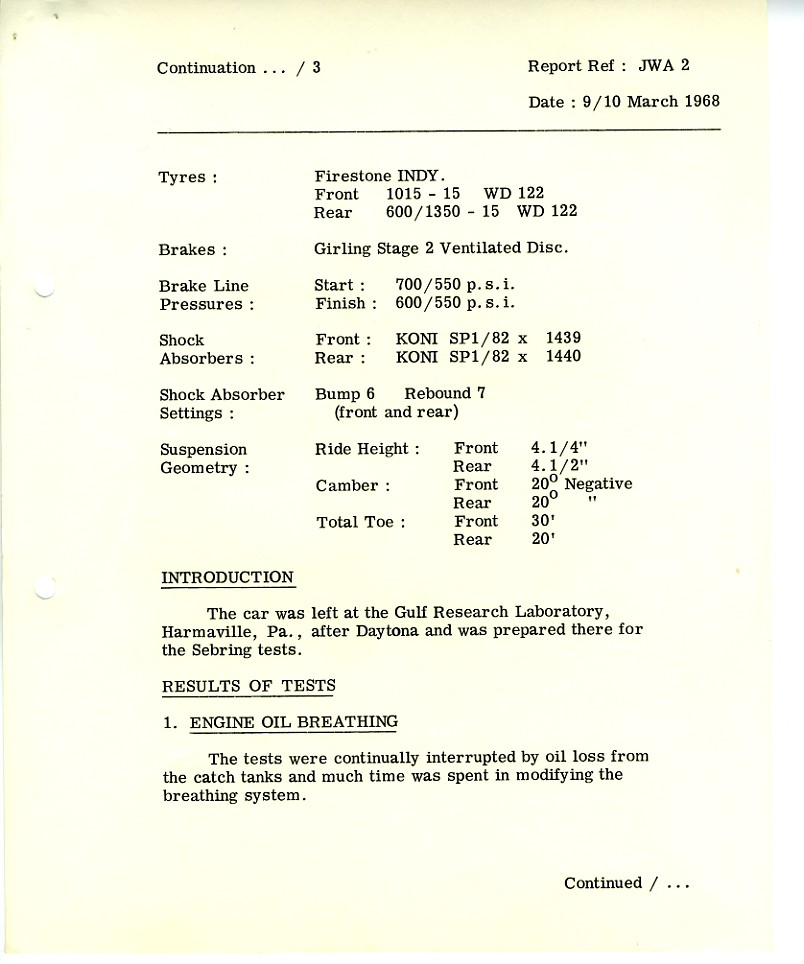

    GT40 Sebring 3.jpg
    113.6 KB · Views: 172
  • GT40 Sebring 4.jpg

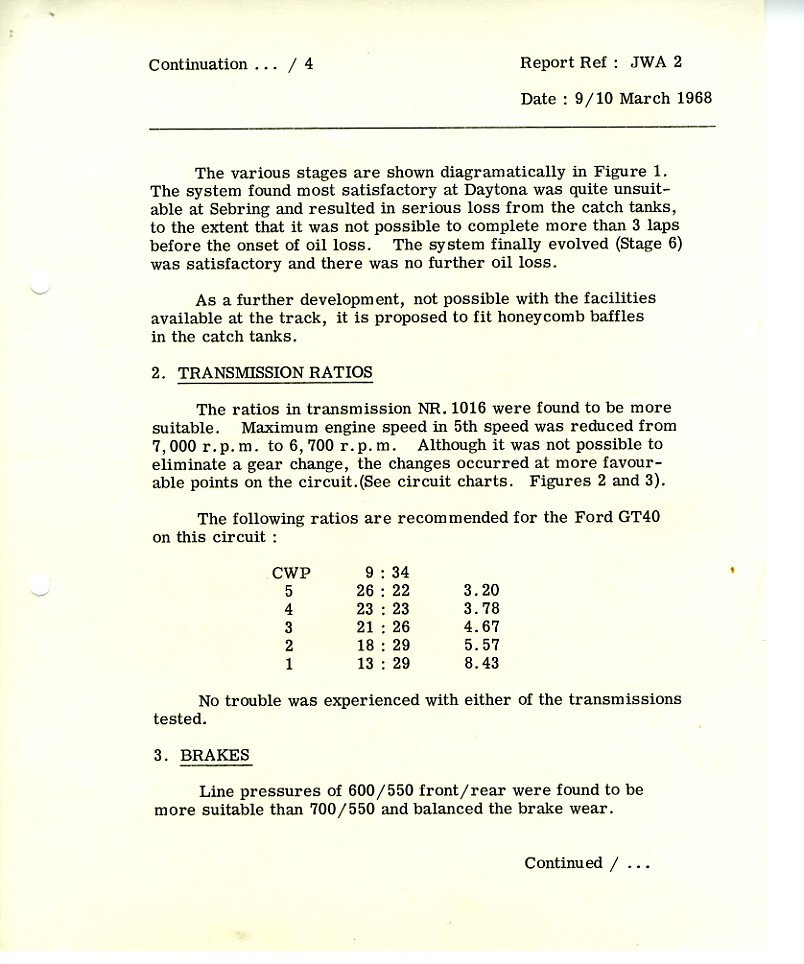

    GT40 Sebring 4.jpg
    149 KB · Views: 176
  • GT40 Sebring 5.jpg
    GT40 Sebring 5.jpg
    95.7 KB · Views: 187
  • GT40 Sebring 6.jpg
    GT40 Sebring 6.jpg
    113 KB · Views: 179

Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Quite interesting reads!
The oil breather issues were really front and center for these guys.
Thanks for posting!


Neil

Supporter
Can you imagine kneeling in the passenger seat facing backwards, watching the valve cover breathers while David Hobbs hurtles the car around Sebring?

Can you imagine kneeling in the passenger seat facing backwards, watching the valve cover breathers while David Hobbs hurtles the car around Sebring?

Working on the design of an early Lotus race car, Frank Costin has that topped.
Cutaways behind the front arches, to improve brake cooling, were the result of aerodynamic tests on the Mark VIII during which Frank Costin was strapped to the bonnet and driven up and down a Cheshire airfield. “Colin and I did the driving and Frank did the laying on the bonnet! He couldn’t have done that with the Mark IX works cars, neither of the bodies would have stood him. The wool tufts he was watching were all underneath the wheel arch — he wanted to see which way the wind was blowing behind and inside the wheel. We were getting up to 100mph or so.”

The narrator of that story is his brother Mike Costin, the "Cos" of Cosworth.


Neil

Supporter
Working on the design of an early Lotus race car, Frank Costin has that topped.


The narrator of that story is his brother Mike Costin, the "Cos" of Cosworth.
I might imagine Frank Costin doing that...but NOT me!
