HT Leads routing pics please

[Brett James-McCall]

Can people post some pics of how they have routed their HT leads around the headers. Also what angle of boot are people generally using? Thanks

Brett



[Mike Pass]

Hi Brett,

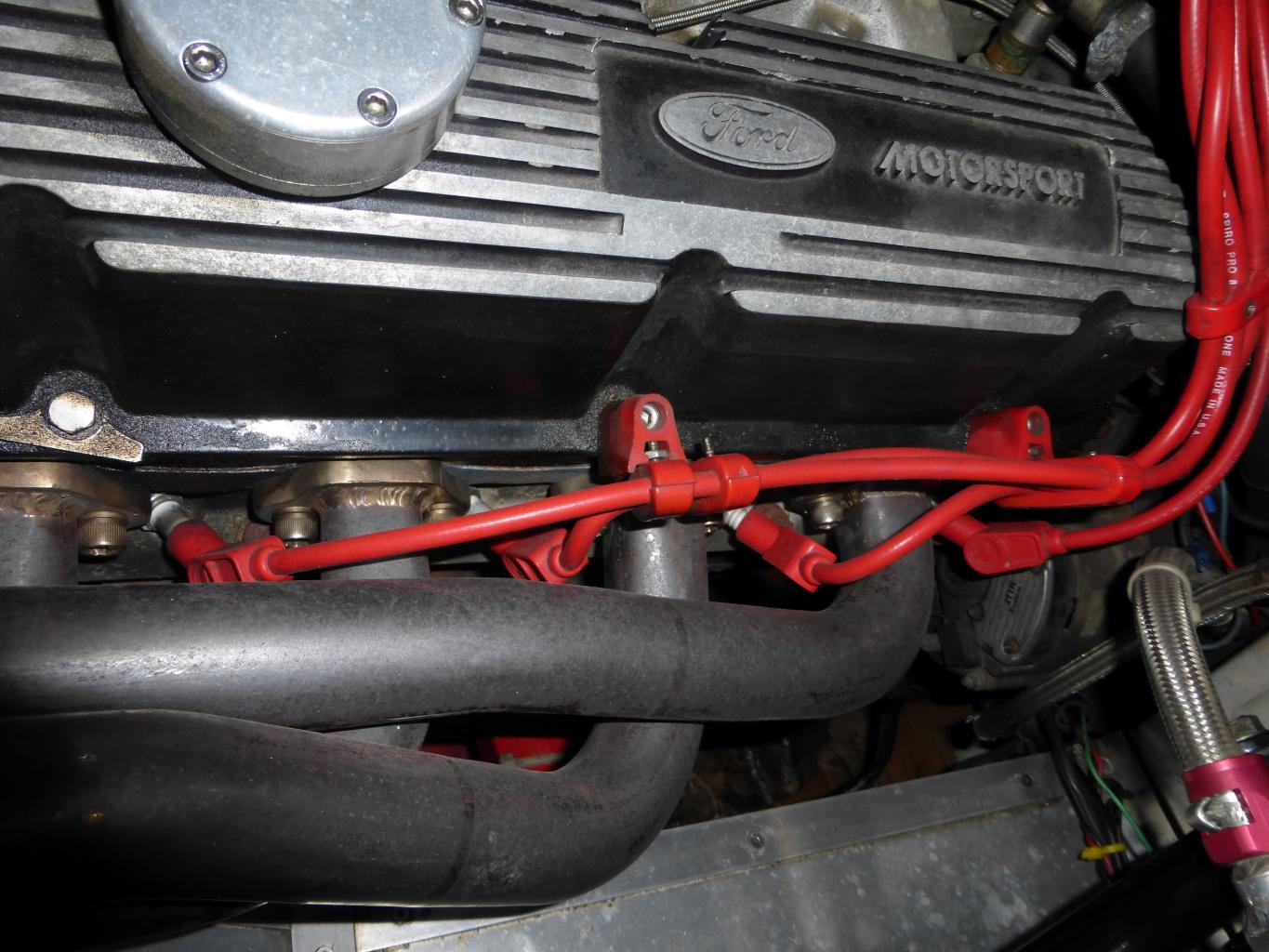

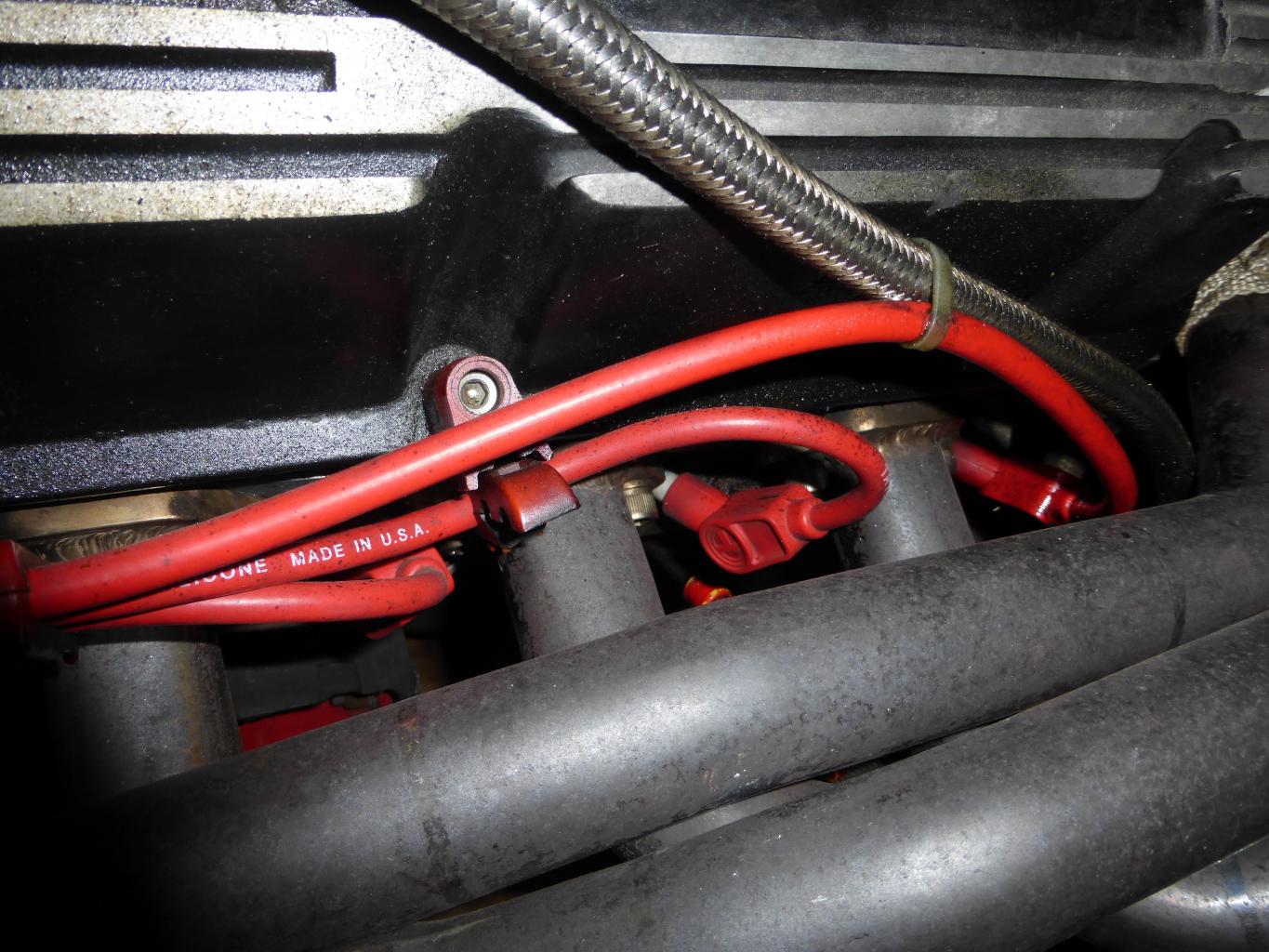

Here are a couple of pics of the ignition leads/headers on my car. I think the leads are Taylor and the headers are Hayward and Scott stainless. The plug caps seem to be angled at 45degrees from the straight ahead.
Cheers
Mike



[40 Bud]

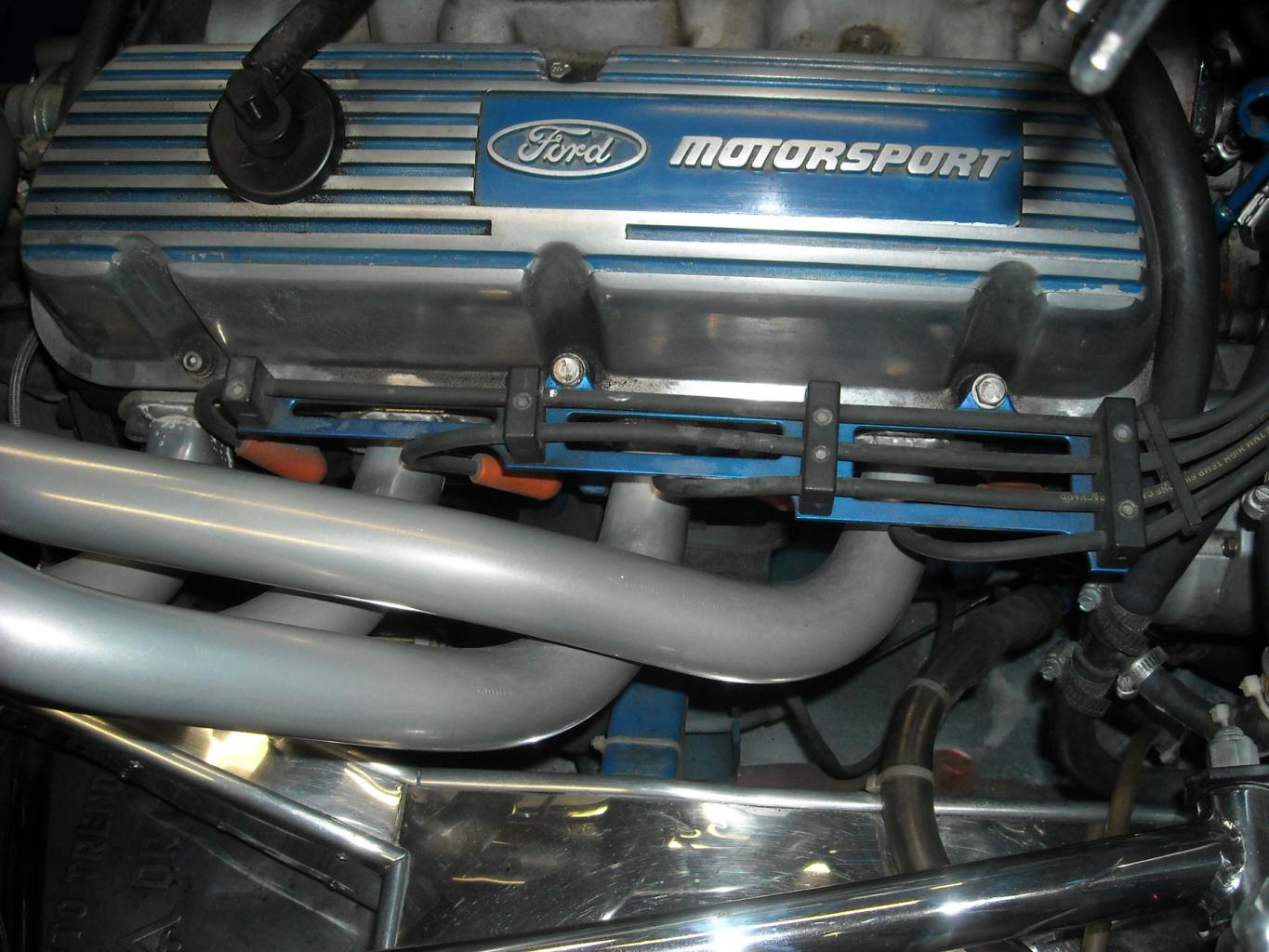

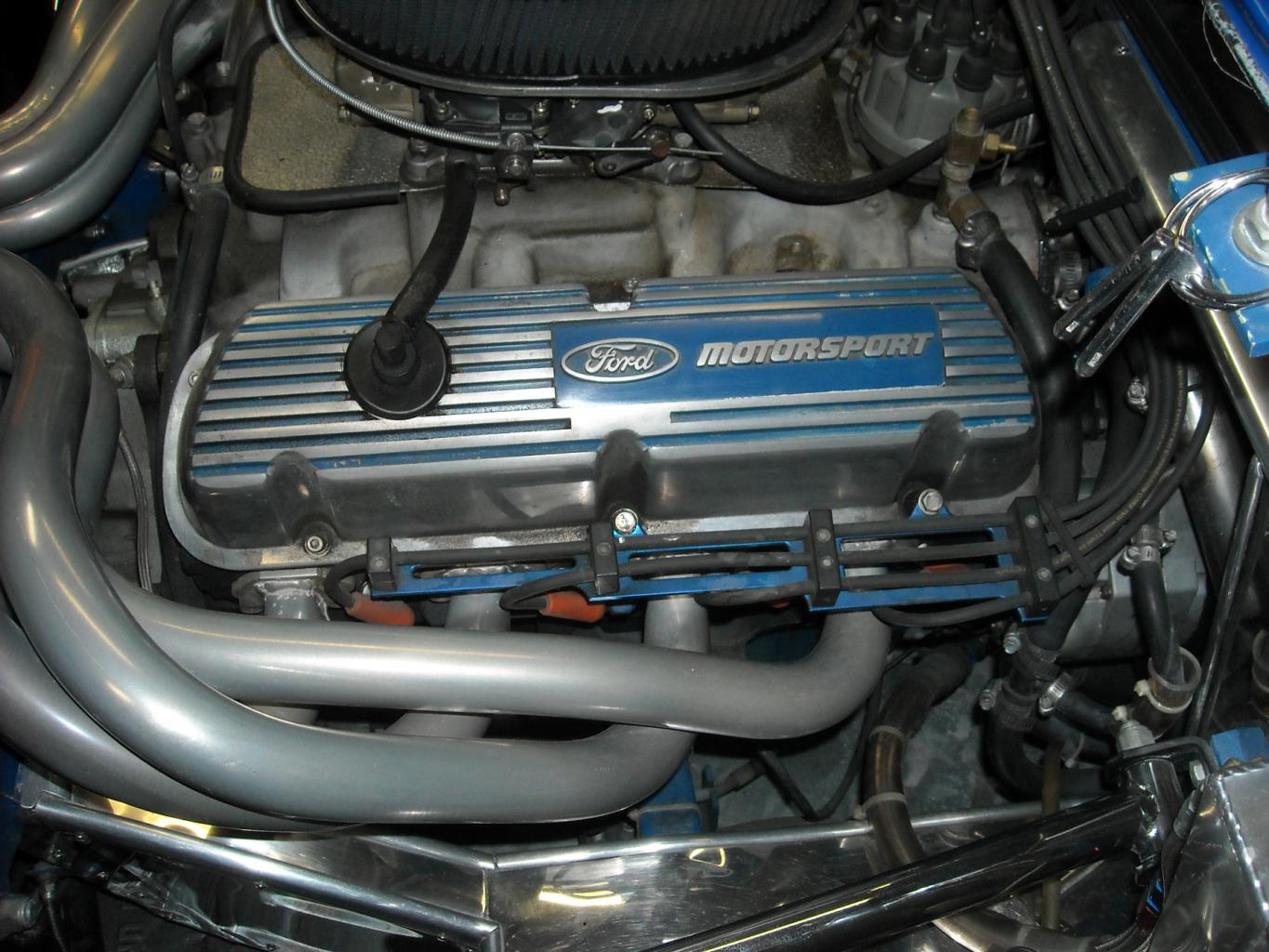

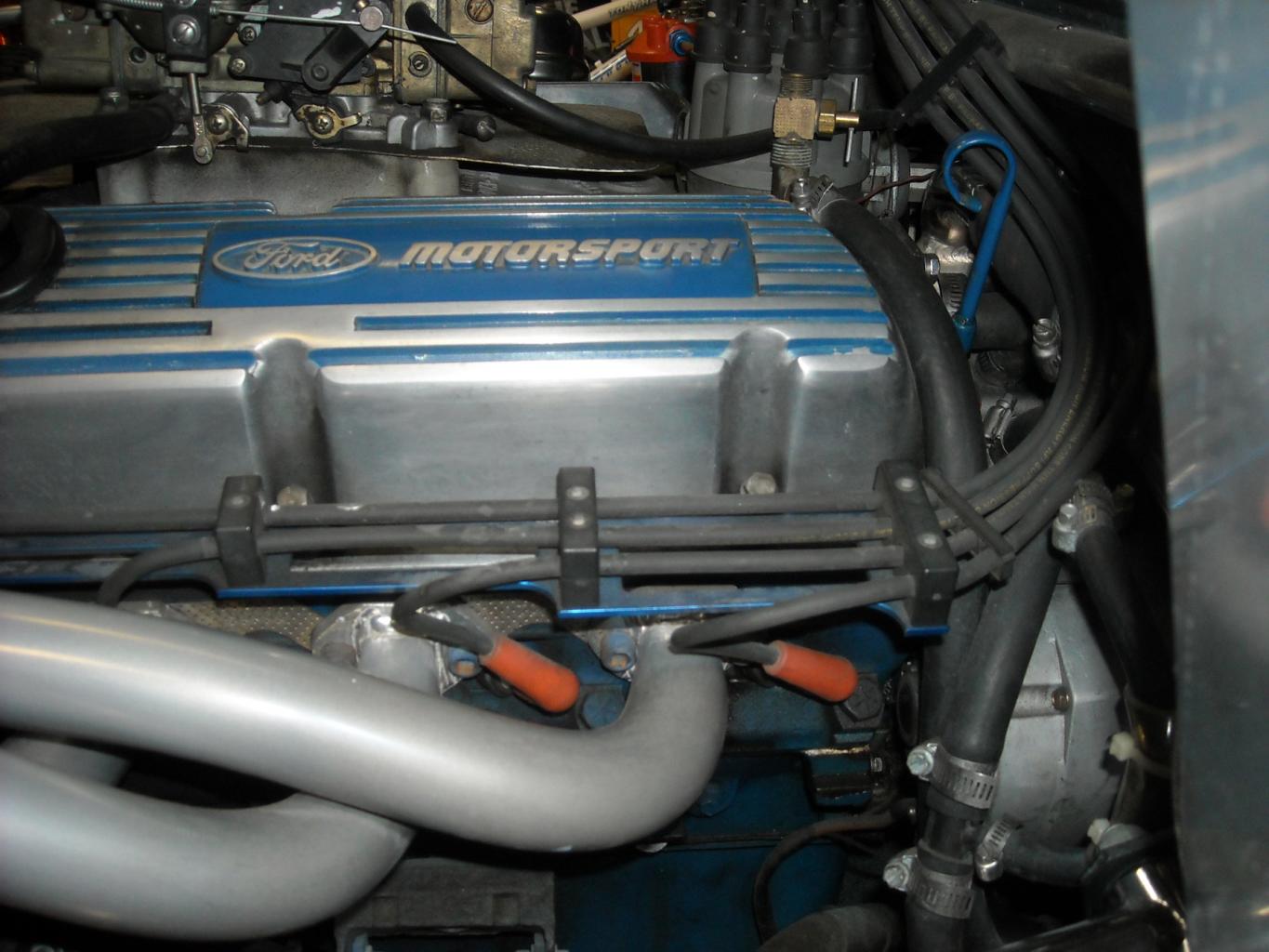

These are the best way that I have found to keep the leads off the headers.



[Brett James-McCall]

Thanks, I have some Moroso 135 (or 45) degree leads that I need to make up, so those help



[Bill Musarra]

If you have the sweep out headers like Bud's. I would agree. If you have the close headers like mine, then you have to go below and use seperators to keep them inline. Use of insulators will help a lot. I ran mine at first without and melted several of the boots. With stainless and no coatings they start to glow around 2500 rpm. So I run these all the time now.

Bill



[Graham Endeacott]

As heat rises, it's best to run the HT leads below the headers as Bill suggests. The original cars had them mounted on top of the engine bay metalwork.

Regards,



[Keith Stafford]

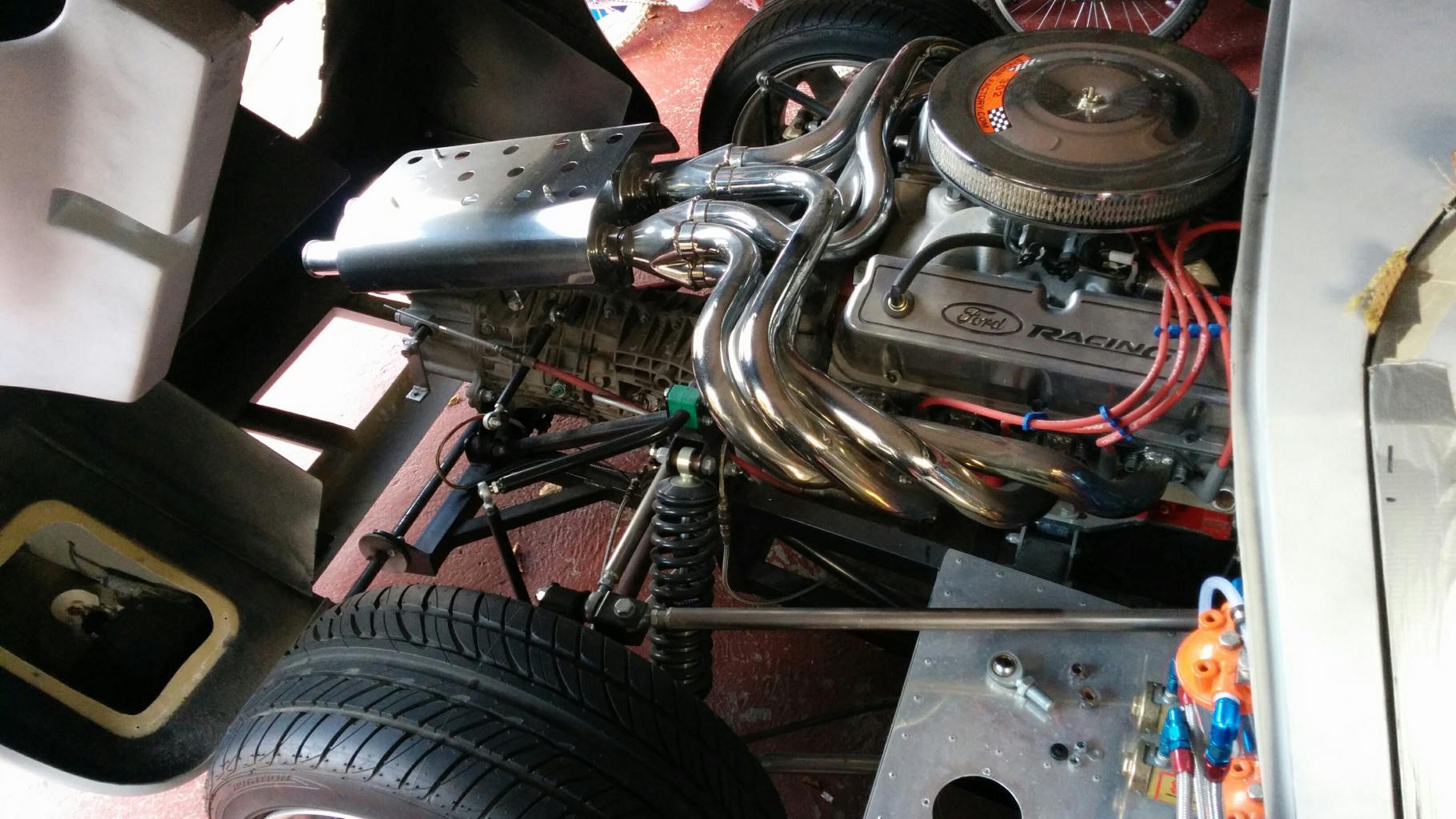

Brett, here are mine, FWIW. K
