FS USA (PA): Chrome 44IDF Setup (Complete)

Up for sale is a 44 IDF setup for Smallblock Ford 289-302cid. This is a nicely working set-up producing over 420hp/430lb-ft (flywheel) on my 347ci while providing over 17mpg highway. Very tractable and smooth from low RPM and strong all the way to 6000 RPM with no low/high transition issues. Cam used with this setup (important) is a special grind CompCams unit, Serial# M 5325-08. I have the spec card which can be made available upon request or simply call CompCams for it for comparing with your present cam. Up-graded features include Chrome Plated bodies and cold start enrichment valves.

Carbs are set up as follows: 36 Chokes, 4.5 Aux Chokes, 135 Mains, F11 eTubes, 175 Airs, 60 Idles, 1.75 Needles, 50 Pumps, 55 Pump Exh. Valve

Fun Video of the Carbs in action:



Included in the sale:

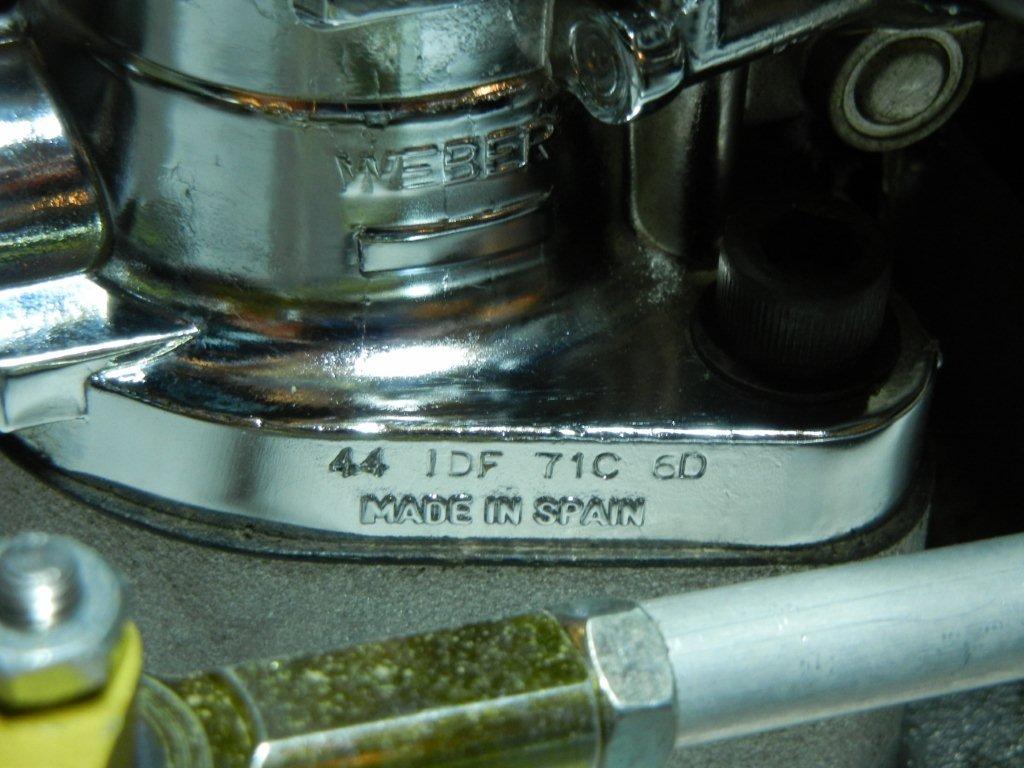

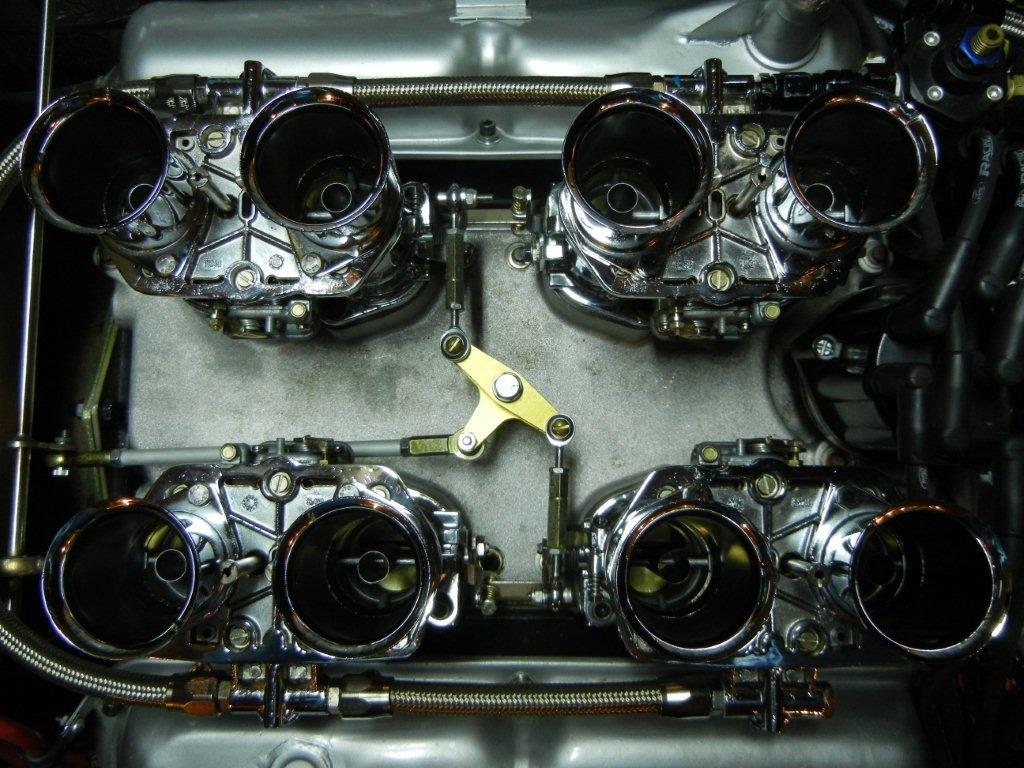

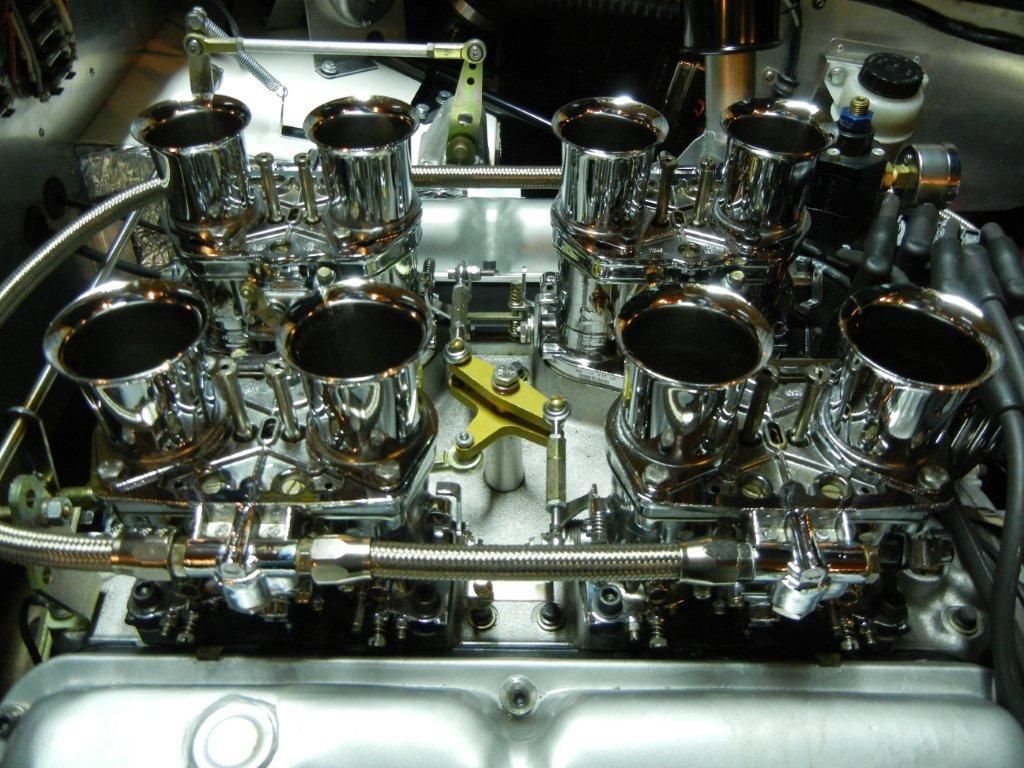

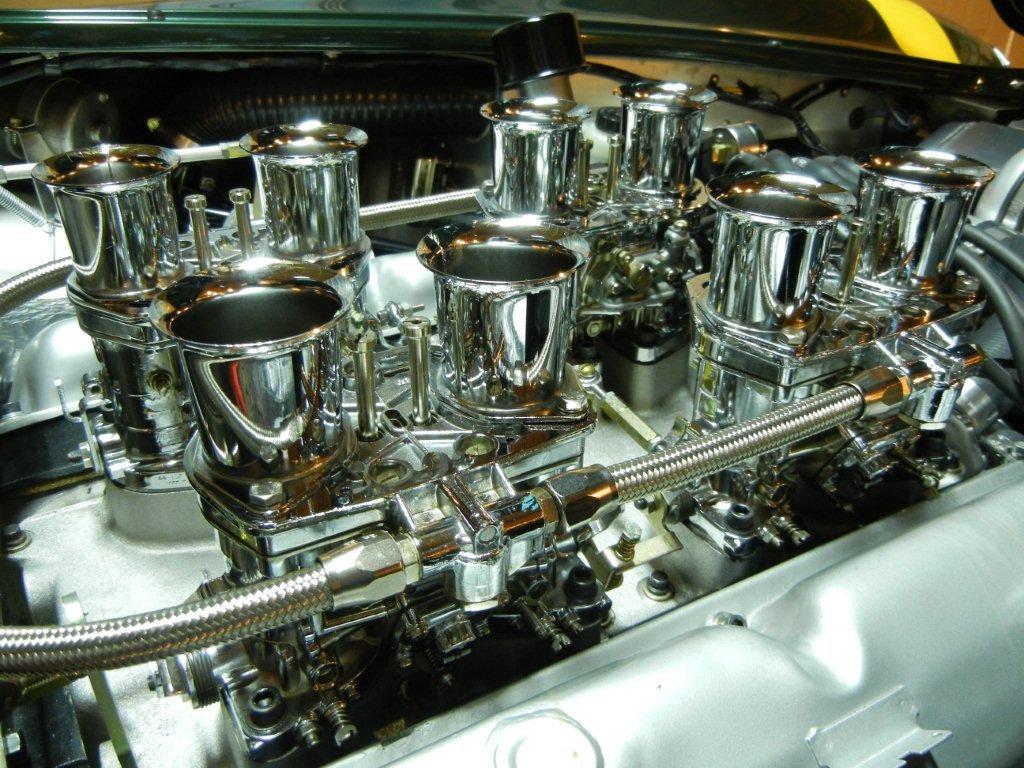

- (4) Chrome Plated 44 IDF Carburetors with cold start enrichment valves
- Aluminum IDF Intake Manifold for SBF, 289-302cid.

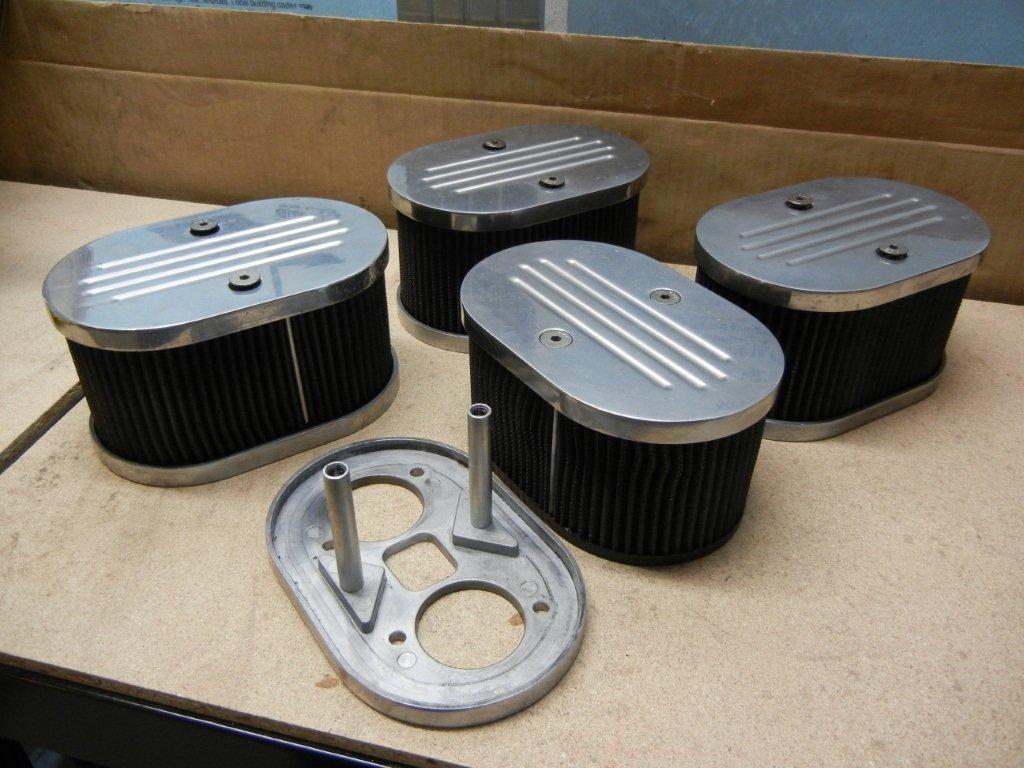

- (4) Oval Cast Aluminum Air Cleaners with K&N style filters.
- Linkages
- Braided Fuel lines
- Regulator
- Pressure gauge

I also have a Weber Performance Jet kit and Syncrometer that could be made available.

NOTE: I have been in touch with Jim Inglese (203) 623-0659 regarding these carburetors, and he has stated that he will provide any services as required by the buyer of this setup.

$3,200 Buyer pays ground shipping via FedEx from 17267. Please contact me for any questions.

- Allen. ([email protected])
