Rear clip support bracket

[Doc Watson]

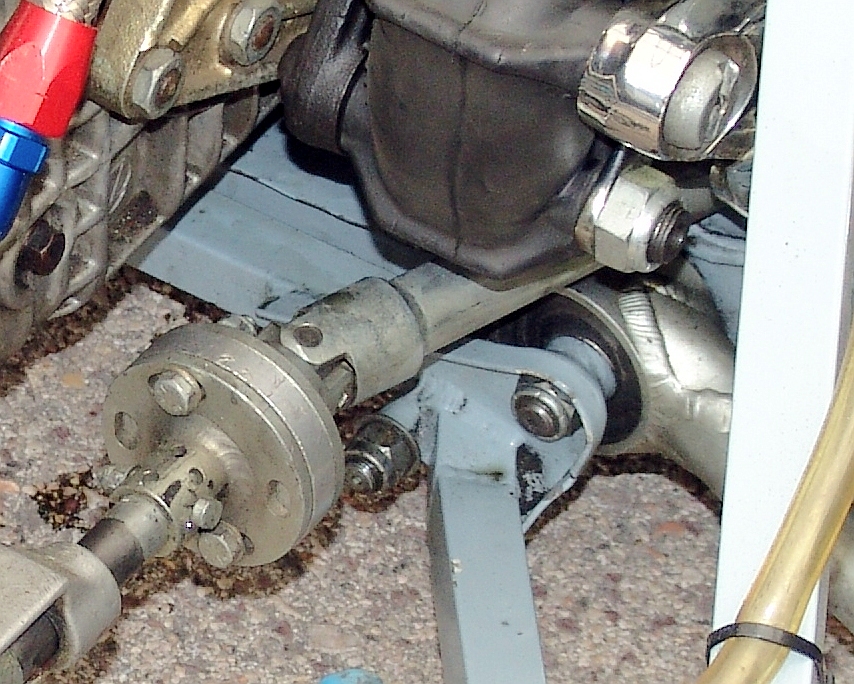

I have some photos and basic dimensions for the removable rear bracket that supports the rear clip. Does anybody have good photos (or a drawing) of the bottom plate that joins the lower two location points?. Is it 2mm steel sheet? I need to set up the rear clip to then set the bulkhead on my chassis.



[Doc Watson]

looks like steel box section in the middle with formed sheet steel at the two ends...



[Graham Endeacott]

Hi Doc,

7/8" square tube, 18g. The cantilever brackets for the rear suspension inboard mounts are 12g.

Regards,

Graham.



[Doc Watson]

Thanks Graham.



[Graham Endeacott]

Hi Doc,

Having been through the trials and tribulations of installing a roof spider and the rear bulkhead so I'll offer some simple advice: to set the spider properly you need to fit the front and rear clips, the doors and the windscreen. It's also handy to fit the sills so that the clips and doors sit properly.

I hope that helps.

If you need any help let me know.

Regards,


Graham.



[JimmyMac]

looks like steel box section in the middle with formed sheet steel at the two ends...

Andrew

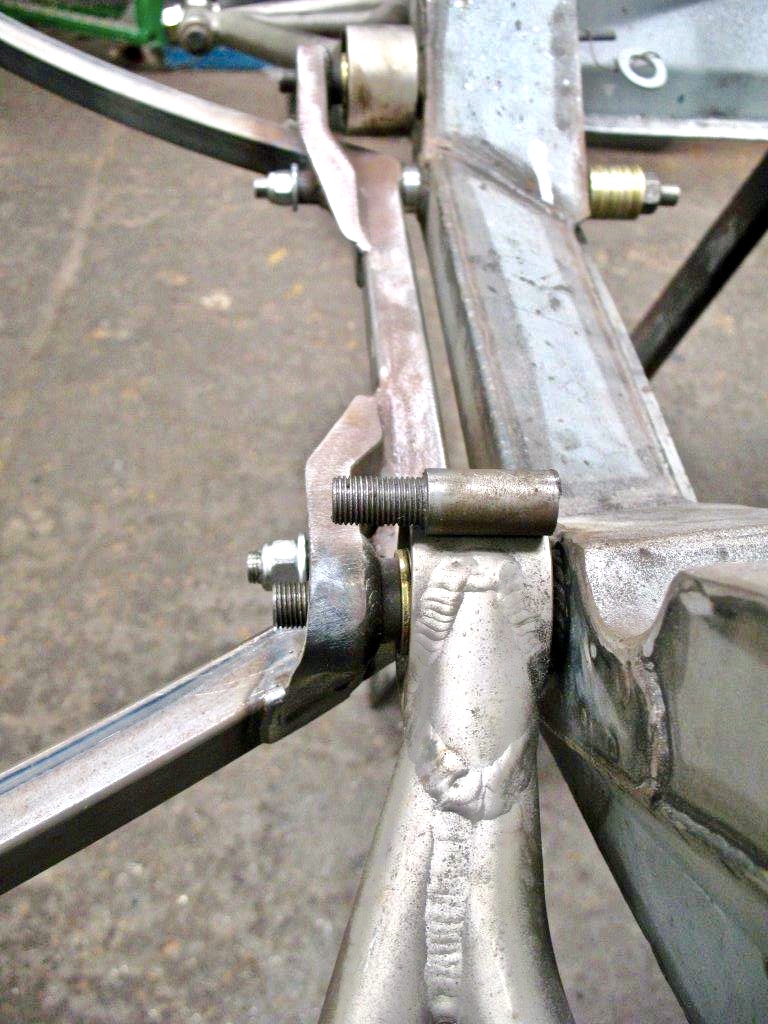

This is how I did mine.
PM me your email address and I will send you my cutting sketch of the parts for those two end brackets.
