Serpentine setups

I wonder if a few of you gents would mind posting some photos of serpentine setups.
I did a search, and found some good photos, but I am still having trouble locating the idler pulley with clearance for the bulkhead.
I am currently setup with the Ford Motorsport short pump, with standard rotation, but it puts my water tubes in a difficult place, the reverse rotation Ford Explorer pump is what the eventual plan is and I have the parts, just need some ideas on were I might put the idler/tensioner.
Thanks in advance
Cheers
Phil

Hi Phil

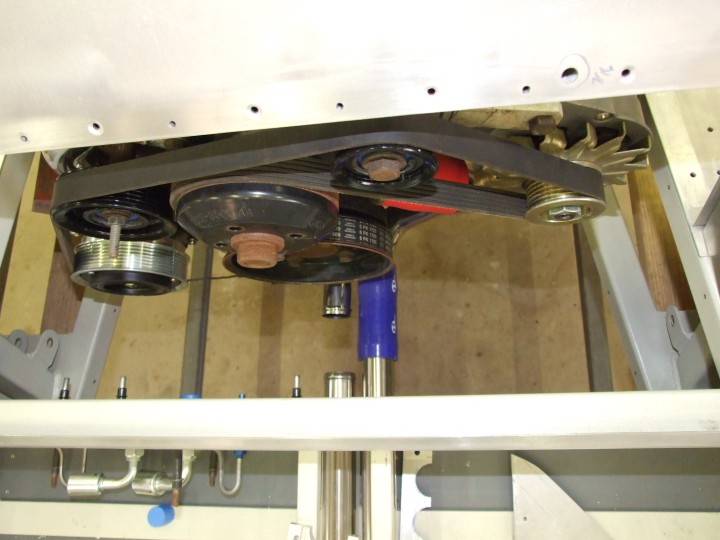

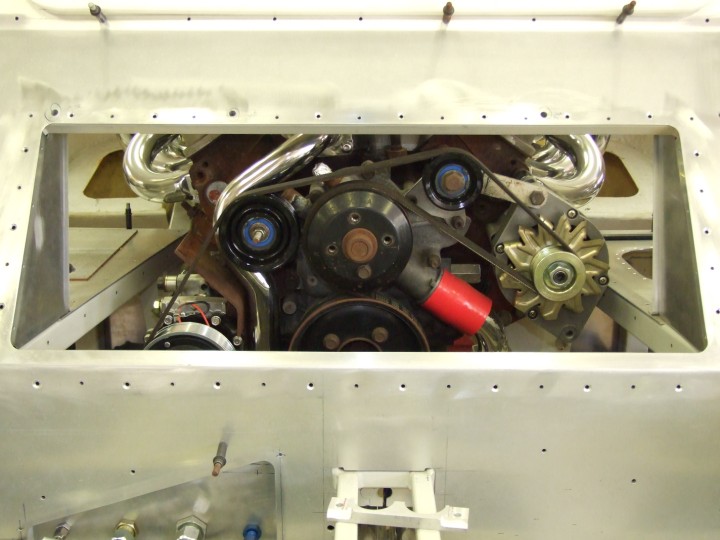

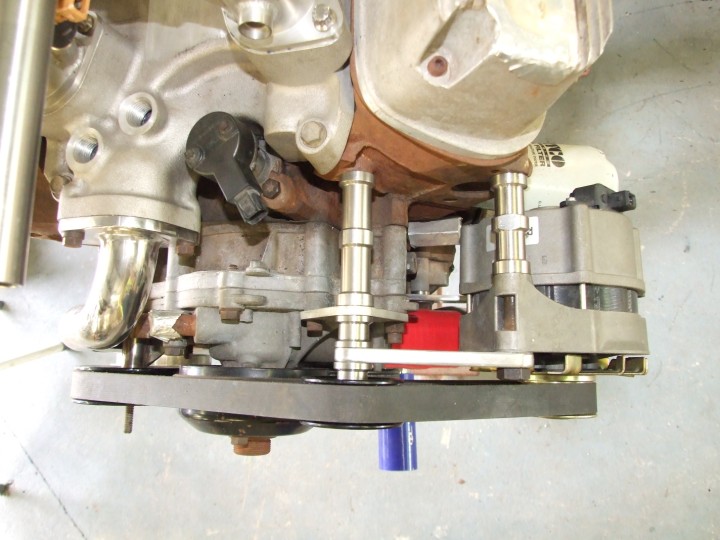

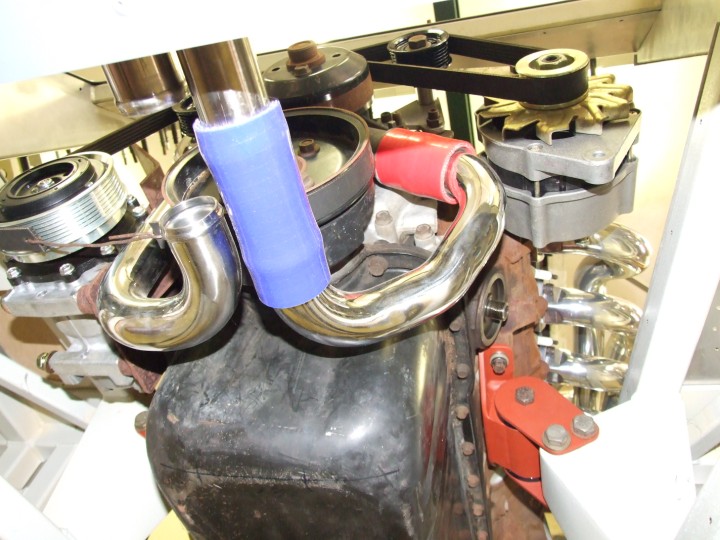

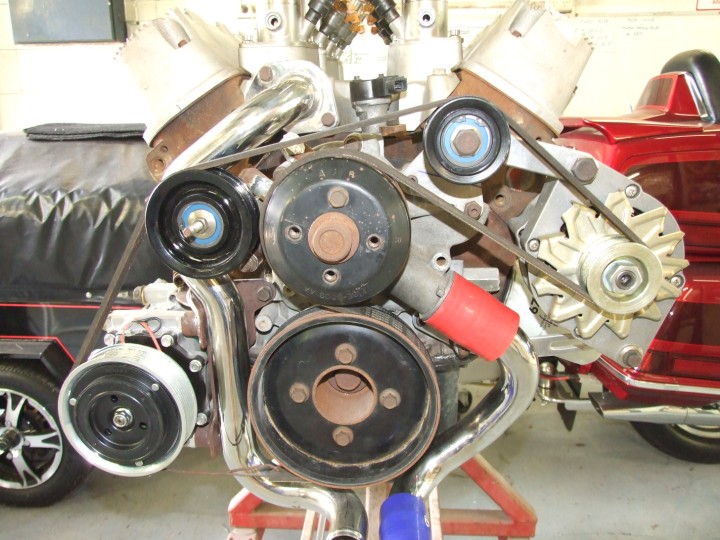

These were taken in the mock up stage, so still a few refinements to make.
Had an issue with the top left idler hitting the bulkhead panel. So fitted the smallest pulley on that side and had to fit a larger pulley on the ride side to stop the belts kissing.

Clayton


Attachments

  • 40 eng install 009.jpg
    40 eng install 009.jpg
    78.1 KB · Views: 285
  • 40 eng install 034.jpg
    40 eng install 034.jpg
    71.5 KB · Views: 269
  • update 26.03.11 013.jpg
    update 26.03.11 013.jpg
    118.3 KB · Views: 330
  • update 26.03.11 016.jpg
    update 26.03.11 016.jpg
    87.5 KB · Views: 308
  • 40 eng install 031.jpg
    40 eng install 031.jpg
    105.8 KB · Views: 299
Thanks Clayton:
I really like the way your water tubes came out, and I can tell you that looking at your detailed photos I probably need to re-think my alternator mounting. Mine is on the left side looking at the front of the motor.
Also, an issue I have is the proximity of the motor to the bulkhead..I am much closer to the firewall than your chassis, but I believe with a setup similar to yours it is do-able.
Thanks for the great photos.
Cheers
Phil

Thanks Phil

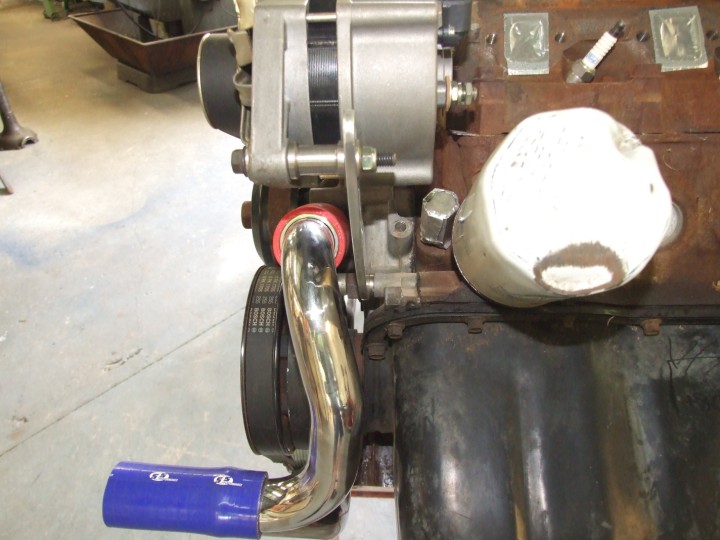

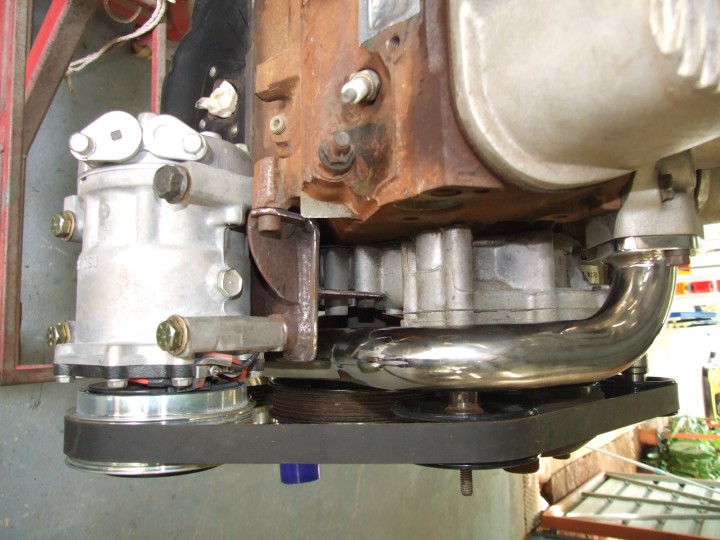

Here's a few more of the mounts
cheers

Clayton


Attachments

  • update 26.03.11 011.jpg
    update 26.03.11 011.jpg
    81.8 KB · Views: 231
  • update 26.03.11 015.jpg
    update 26.03.11 015.jpg
    94.3 KB · Views: 271

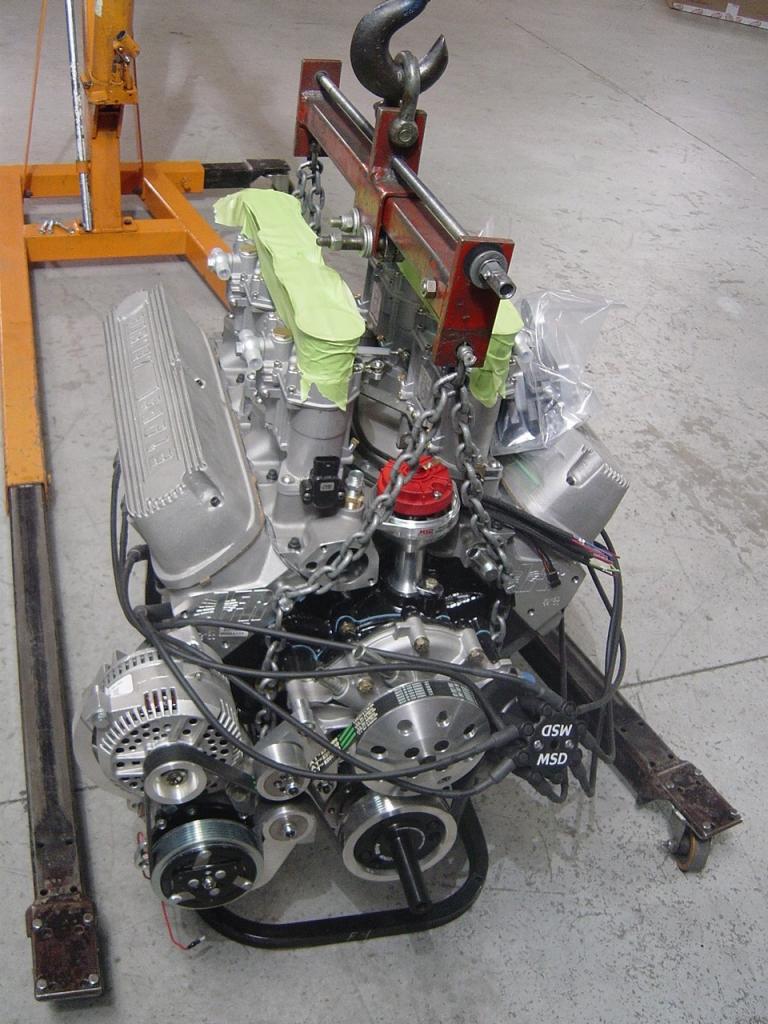

Thanks MMurphy, that I think is very close to what I might need to do, or at least a really good alternative.
I have a 302 block with the Explorer pump and timing cover mounted on it, I am hoping to get that all sorted out independent of starting the existing motor and later switch over to the serpentine setup.
Thanks for the photo and input.
Cheers
Phil

Clayton

I love those inlet and outlet coolant pipes you have there. My guess is they are custom made..... I would love a set.....

Clayton

I love those inlet and outlet coolant pipes you have there. My guess is they are custom made..... I would love a set.....

Thanks Dave
Yes they are, but with a few mandrel bends you could make a set of your own.... Here's the other end. Sorry for thread drift Phil

Clayton


Attachments

  • update 11.11.09 004.jpg
    update 11.11.09 004.jpg
    77.5 KB · Views: 222
