SLC Model for CFD

The existing 3D models that I have seen are not easily usable for CFD. We are currently working on some options between the track splitter and the full wing style splitter.

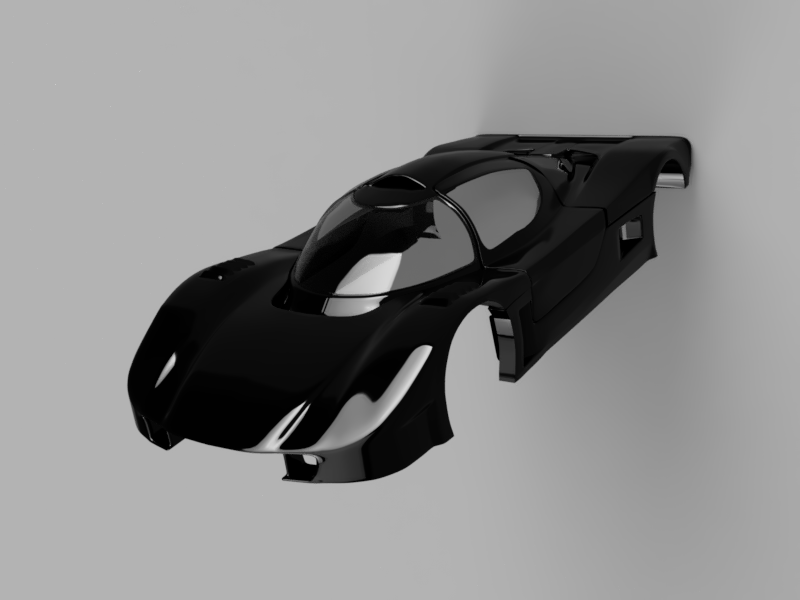

Here is what we are working off incase it's of any help to anyone. BTW, my son, Chris, is the CFD guy, so don't ask me any detailed questions. I can put you in contact with him if you have some applicable questions/comments.

Chris said he will do the street tail as well at some point.
