T70 spider doors

Hi guys

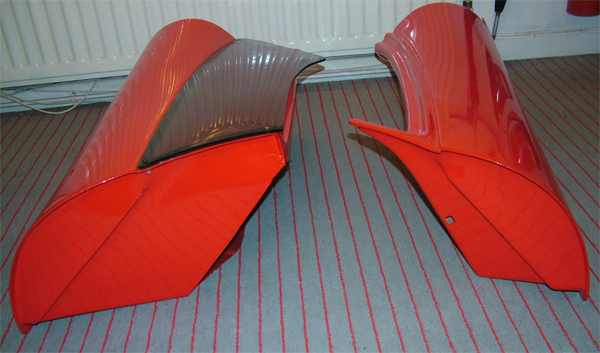

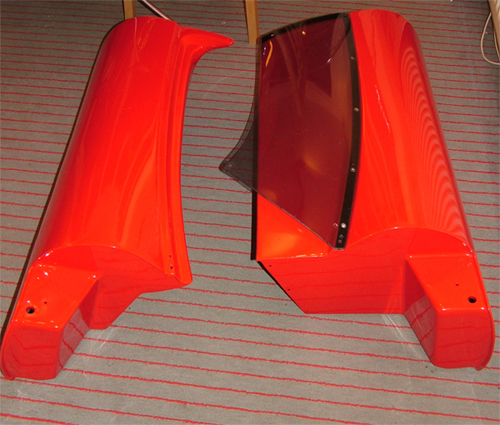

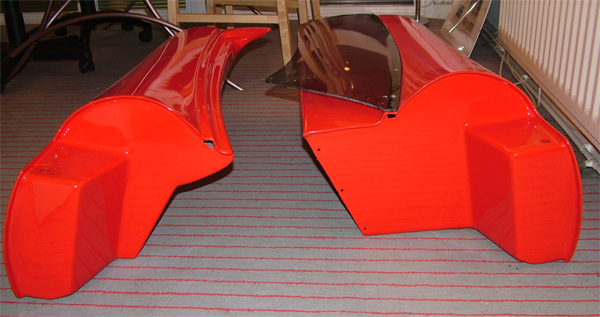

thought these pictures of my 1967 T70 doors might be of interest, the passenger side is almost twice as wide as the drivers i guess they didn't expect to carry many!!
I think some of the earlier cars are different perhaps the thicker door and wider side screen helped aerodynamics.



[Johan]

Cool. Thanks for the pictures.



[Fred W Ballinger]

Thanks also from me. Very helpfull

Cheers

Fred W B



No problem if you need any more or certain details let me know may as well take advantage while it' s apart!!
Cheers
Mark



[Fred W Ballinger]

Hi Mark

Any chance of some detail photos of the "bridge" section that the doors hinge to and the nose closes onto?

Cheers

Fred W B



interesting --- just measured the doors at the bottom on mine (t70 ) 180 on drivers 230 on pass. prob to give room for the gear change ass. steve



Hi Steve
The ones in my picture are 180mm driver side & 370mm passenger which is about the width of the sill.
mark



i'd say the door has been modified to reduce the open cockpit area.
the org. side screens would have been replaced. to. should be back on mine in a couple of weeks ( bloody work interfers )- though im trying to avoid it.
steve.



they are the original doors it is a 67 mk3 shell the eaarlier cars seem to have a thinner passenber door.

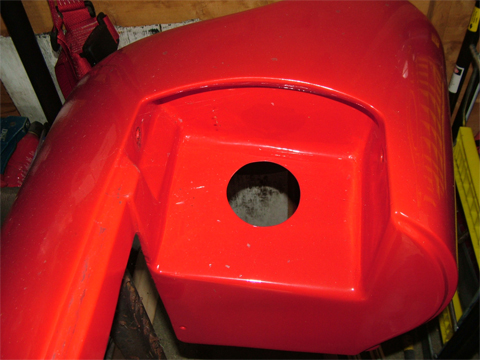

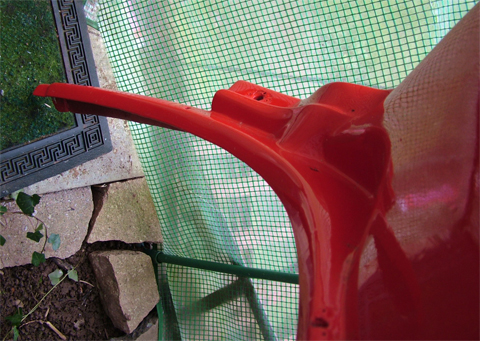

Here are some more detailed pics for you Fred if the weather is nice at the weekend i may drag the side panel out & get some better ones



[Fred W Ballinger]

Thanks Mark, very kind of you.

Cheers

Fred W B



[David Pozzi]

I believe the RH "deep" door was made to meet FIA or other regulations, it was the "Trunk" which had to be of a specified volume. I was told this and it makes sense to me, but I haven't read it anywhere.

It does seem that the early T-70's had a "normal" door.
David



[Johan]

I believe the RH "deep" door was made to meet FIA or other regulations, it was the "Trunk" which had to be of a specified volume. I was told this and it makes sense to me, but I haven't read it anywhere.

It does seem that the early T-70's had a "normal" door.
David

David, you are talking about the left hand or far side door I think.
