UN1 Output shafts

Mark

Silver Supporter
#1
I’ve just purchased MDA GT40 with a Renault UN1 gearbox, are the output shafts meant to float?
The hubs that slide over them appear to move horizontally on the output shafts too, this alone seems a little excessive as though the lock pins have been omitted?

Thanks in advance:uneasy:


Ian Anderson

Lifetime Premier Supporter
#3
Mine has roll pins that you tap into place

Also worth checking if your adaptors are sealed on the cv end
If not it is worth aralditing a large washer 2p into them to stop any oil that weeps along the splines from contaminating the cv grease


Ian

Last edited:

Mark

Silver Supporter
#4
Thanks Both for your input, are the roll pins readily available or standard off the shelf items?
Many thanks

Mark


Paul Hendrickx

Silver Supporter
#5
Hello all,

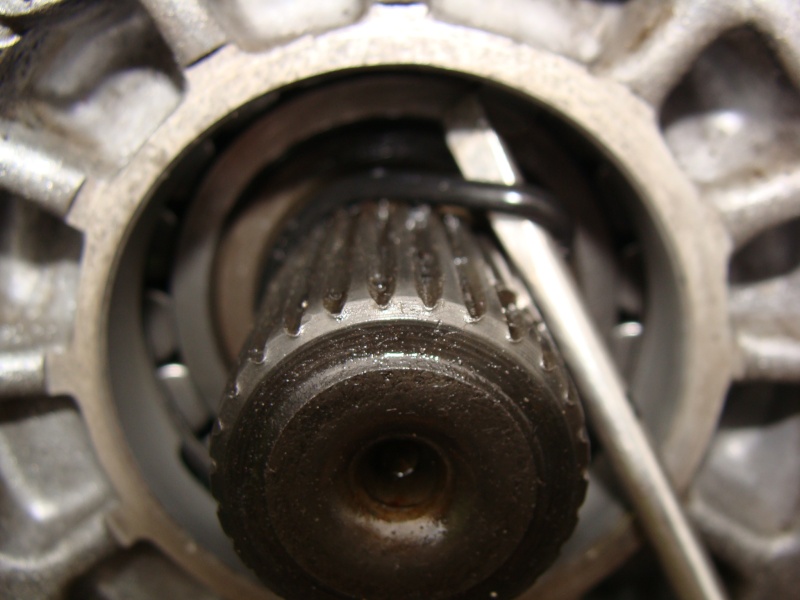

Float pins yes , but also look if you have the 3 oil seals to prevent leaks

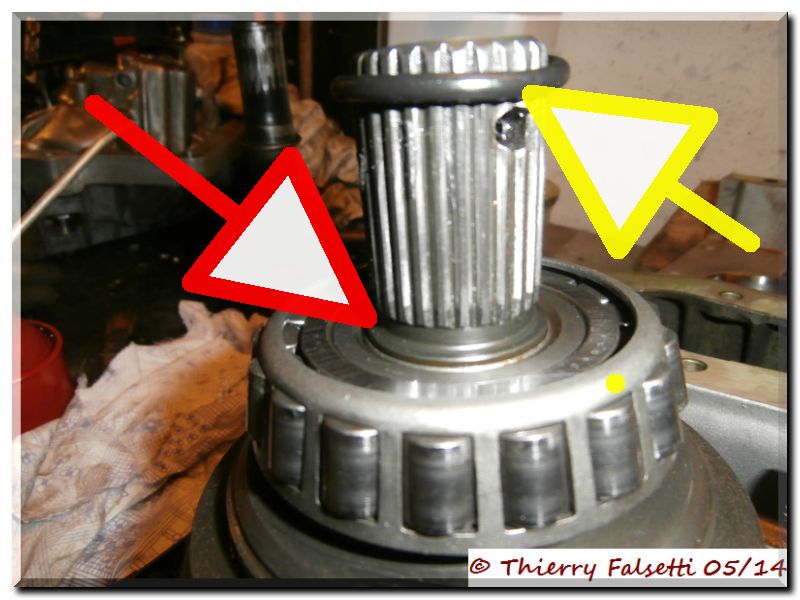

1) the gear box seal ref Renault :7703087188

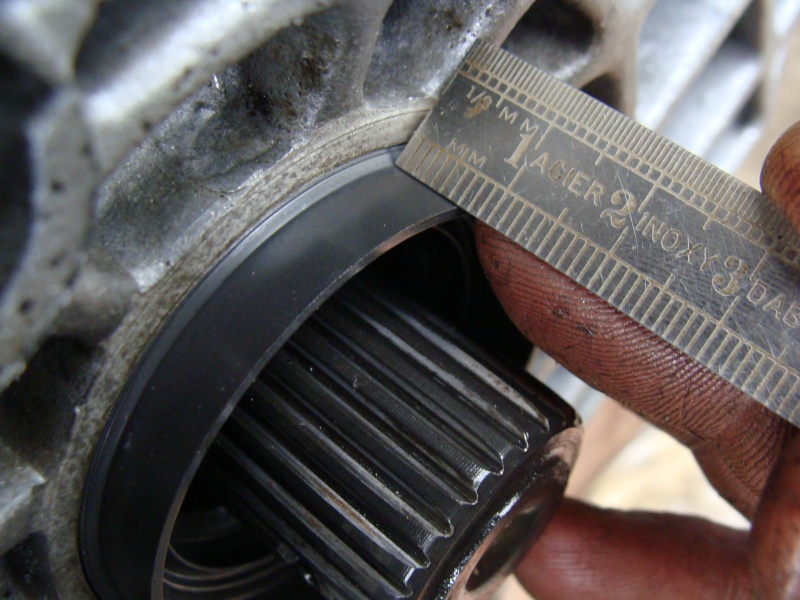

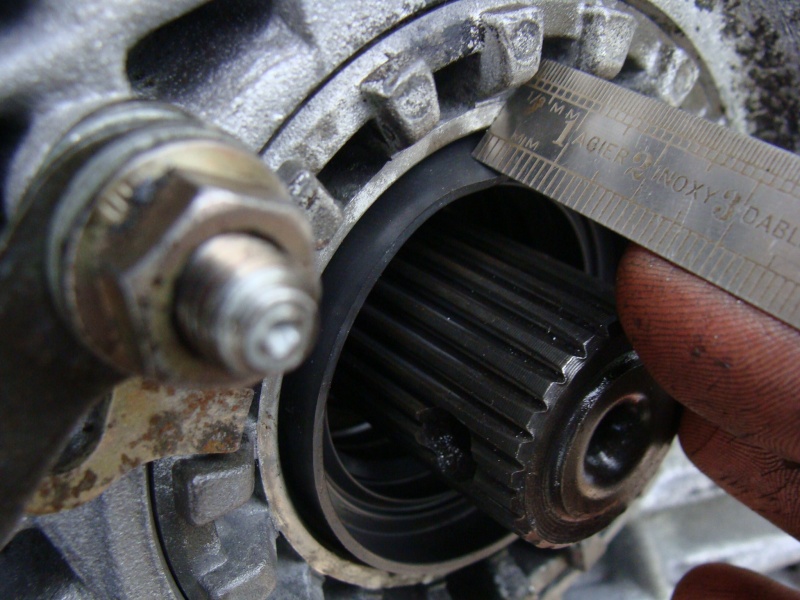

can be replaced by Peugeot 306 seal:référence 3121.44 sit tighter on the shaft and could help with used worn out drive shafts with signs of wear on the service contact. on diff side 4.5mm and opposite side 8mm

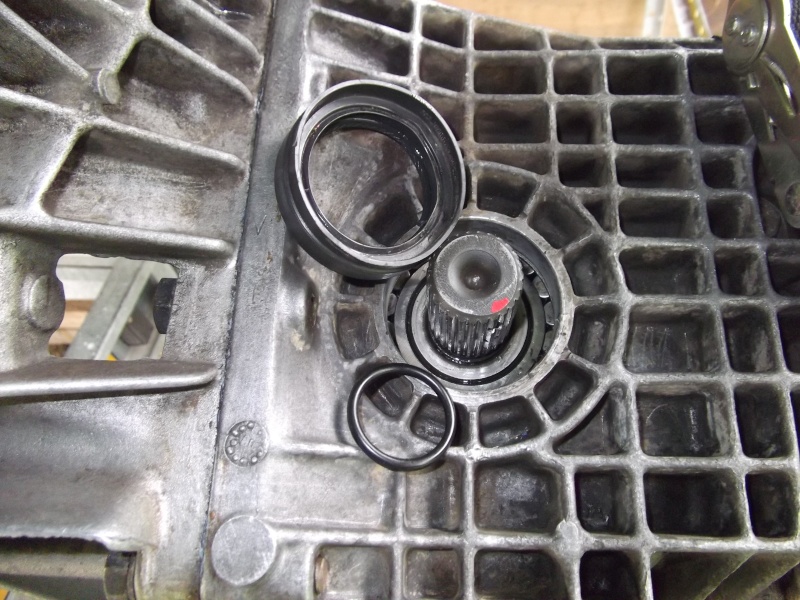

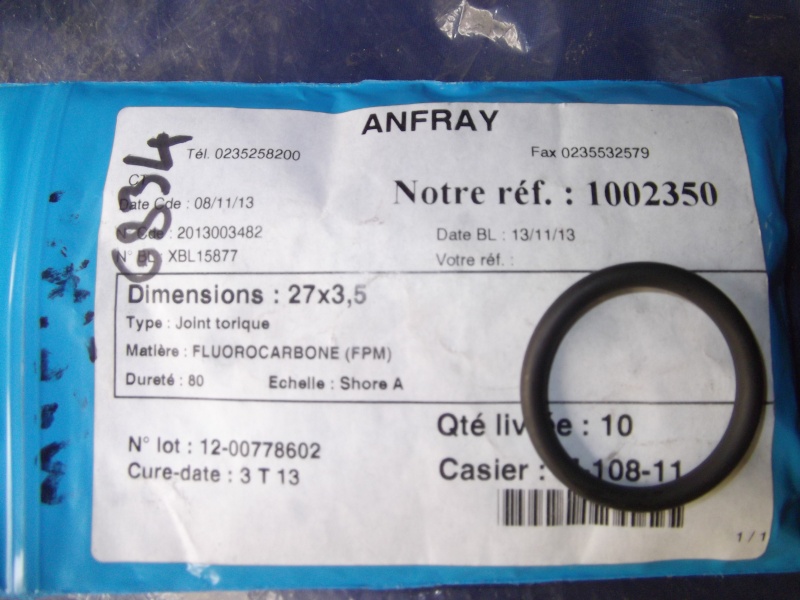

2) seal 83.2x89.2x3 7703065129 siting on the output shaft.

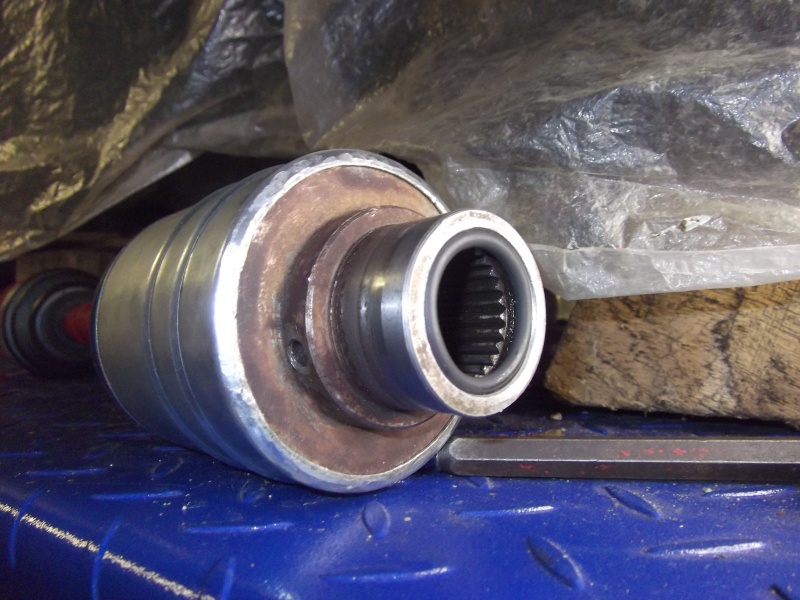

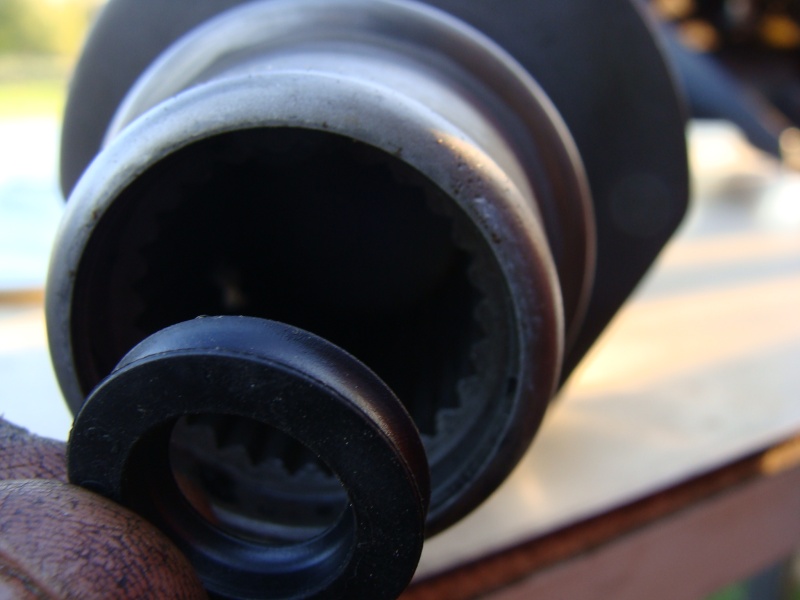

3) seal 26x34.4x3.6 7703065054 siting inside the drive shaft

with this 3 seals correctly set,no need to put sealant on the pin.

Hope this helps . experience from driving a Renault Alpine 310 for 15 years.... Keeping the rain out and the oil in....

Paul


Attachments

Ian Anderson

Lifetime Premier Supporter
#6
Re: UN1 Output shaft

Thanks Both for your input, are the roll pins readily available or standard off the shelf items?
Many thanks

Mark
I got some from a Renault main dealer a while back.
But then took one into a local hardware warehouse and they had the same things for a fraction of the price.

I do not have the size to hand though!

Ian


Howard Jones

Gold Supporter
#7
Before you drive the roll pins into place. Pack the inside of each pin with silicon. As the pins compress in place they will fill the remaining hole and seal the hole and the pin. This will prevent oil from finding it's way out the center of the roll pin and onto your garage floor.

Also install the roll pins so that split is not facing towards the gearbox but outboard towards the CV joint. This will also help prevent oil flow out of the gearbox, down the spline, into the roll pin, and out of the end to the garage floor.


Mark

Silver Supporter
#8
That’s a real help thank you :thumbsup:

Mark

Hello all,
Float pins yes , but also look if you have the 3 oil seals to prevent leaks
1) the gear box seal ref Renault :7703087188
can be replaced by Peugeot 306 seal:référence 3121.44 sit tighter on the shaft and could help with used worn out drive shafts with signs of wear on the service contact. on diff side 4.5mm and opposite side 8mm
2) seal 83.2x89.2x3 7703065129 siting on the output shaft.

3) seal 26x34.4x3.6 7703065054 siting inside the drive shaft

with this 3 seals correctly set,no need to put sealant on the pin.

Hope this helps . experience from driving a Renault Alpine 310 for 15 years.... Keeping the rain out and the oil in....

Paul


Mark

Silver Supporter
#9
That’s a great tip thank you, makes so much sense too :thumbs up:

Before you drive the roll pins into place. Pack the inside of each pin with silicon. As the pins compress in place they will fill the remaining hole and seal the hole and the pin. This will prevent oil from finding it's way out the center of the roll pin and onto your garage floor.

Also install the roll pins so that split is not facing towards the gearbox but outboard towards the CV joint. This will also help prevent oil flow out of the gearbox, down the spline, into the roll pin, and out of the end to the garage floor.


Paul Hendrickx

Silver Supporter
#10
Hi,
forgot about the oil level dont overfill the gearbox, the Renault Alpine /turbo 5 owners stay 3-5 mm under the flow-over level on the filling hole on the side of the gear box

if you need more good decent info on UN 013 gearboxes go tu the Uk Alpine owners forum, lots to learn, or if you manage french ,the French F.A.R: Alpine club&forum
But if i can help... welcome
with all these information , no need to put a carton under the car when parked


Dave Bilyk

Bronze Supporter
#11
George, two other things which I didn't see mentioned, both with a propensity to break the roll-pins;
1 As suspension moves between bounce and droop, the distance between the inner and outer cv joints changes, so the shafts accommodate this by sliding freely in the splines and must not bind when the distance is minimum. If they do bind, the roll-pin will break.

2 There may be some backlash in the inner splines or misalignment of holes in the splined hubs, and as a result, a roll-pin which is slightly larger diameter than the hole and has to be driven in hard may crack as it becomes loaded under acceleration torque. (I found this after curing 1, and still breaking roll-pins, maybe the holes weren't aligned well or hubs had been swapped). The cure for this is to choose a roll-pin diameter which gives a loose fit, with de-greased components, the silicone sealant will hold it in place, problem solved.

Dave

#12
If I remember correctly the roll pin is metric. If you try and put in a USA version it will be very tight. Too tight really and is hard to get out. Check with the UK guys they know more about these Renault gearboxes in GT40s than most.

Sometimes the holes in the adapters are not exactly symmetrical and will not line up perfectly with the shafts. Swapping them and rechecking roll pin hole alinement can help. Its worth a check if things seam to be tight on the first one.

#13
Hi Mark,

Seems like you're getting some input from the guys. If you want some input from the expert, then ring Chris Cole (01952 416051) the resident guru in the GT40 Enthusiasts Club. He has been rebuilding UN1 transaxles and supplying them for many years.
I note your intro states 'waiting IVA' ...... I too have an MDA based car and under the current IVA rules there are lots of things on the car that would now result in a major failure of the tests.
I presume you're on top of all the requirements ...... however, if you need input don't hesitate to ask.


Mark

Silver Supporter
#15
Hi Mark,

Seems like you're getting some input from the guys. If you want some input from the expert, then ring Chris Cole (01952 416051) the resident guru in the GT40 Enthusiasts Club. He has been rebuilding UN1 transaxles and supplying them for many years.
I note your intro states 'waiting IVA' ...... I too have an MDA based car and under the current IVA rules there are lots of things on the car that would now result in a major failure of the tests.
I presume you're on top of all the requirements ...... however, if you need input don't hesitate to ask.
Steve
Thanks for the info and contact details. The car is well on it’s way, just a few jobs left, the main headache is making the fuel caps compliant. The caps as you know are not particularly deep and therefore at present do not allow an internal lockable cap to be installed...I’m currently looking at putting a spacer under the filler housing and removing the original lid and then fixing the lockable cap in place..for now!

Regards

Mark


Mark

Silver Supporter
#18
Howard,

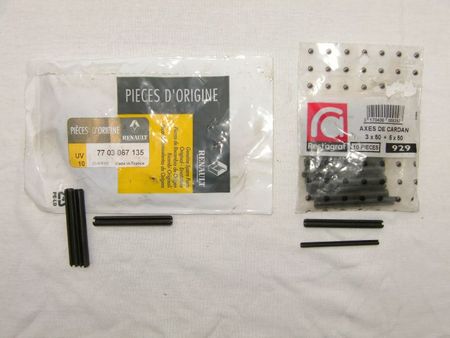

2pin asembly innnerpin :3mmx50mm outer pin 5mmx50mm,
when installing: first outer pin (5mm) and then the 3mm pin

greetings,
Paul
Great help thank you, I have just ordered seals from a Lotus specialist £37 all in! He did say that getting the seals in accordingly on the different sides certainly helps with the oil seal!

Many thanks once again
Mark

#19
Hi Mark,

Re your forthcoming IVA test. A few things to be careful of ...... the side windows as originally supplied with an MDA kit are no longer compliant. Also don't submit the car with the side windows not fitted - that will result in a fail.
Be very careful with regard to all the hoses on the car. Make sure they were designed for the purpose being used and are marked as such. Have supporting paperwork with you. Be careful with the rear number plate lights. If they impinge on any area that will be occupied by the number plate it will get a fail.
Be ultra careful with regard to the radius gauge tests. On the interior it is very easy to overlook something ...... handbrake levers are a classic failure. Also the bevels on some brands of gauges fail on the radius test.
Also make sure the headrests meet the current requirement. Tornado had to re-design theirs as they were deemed too small.
Please keep everyone posted as to how you get on as it helps build a pool of information.


Howard Jones

Gold Supporter
#20
Thanks Paul, that will be a lot of help the next time I take mine apart. As I said before the nearest inch sizes are very tight and can be very difficult to remove. IMHO the metric sizes must be used. Future searchers should heed this warning and use Paul's pin sizes.

Thanks again Paul
