Using Audi Quatro Transaxle (8HP55) with a V12 - Adaptors

The 8HP55 is an 8 speed automatic transaxle used in Audi Quatro vehicles. Its rated at 550 Nm and as its 8 speed, has very low 1st and 2nd, close ratio 3rd to 6 and overdrive 7 and 8th. Shift points can be programmed to match torque curves of the engine using a Turbo Lamic TCU. There is even provision to add a clutch pedal to this box to convert it to fully manual. This looks like an amazing candidate for a transaxle.

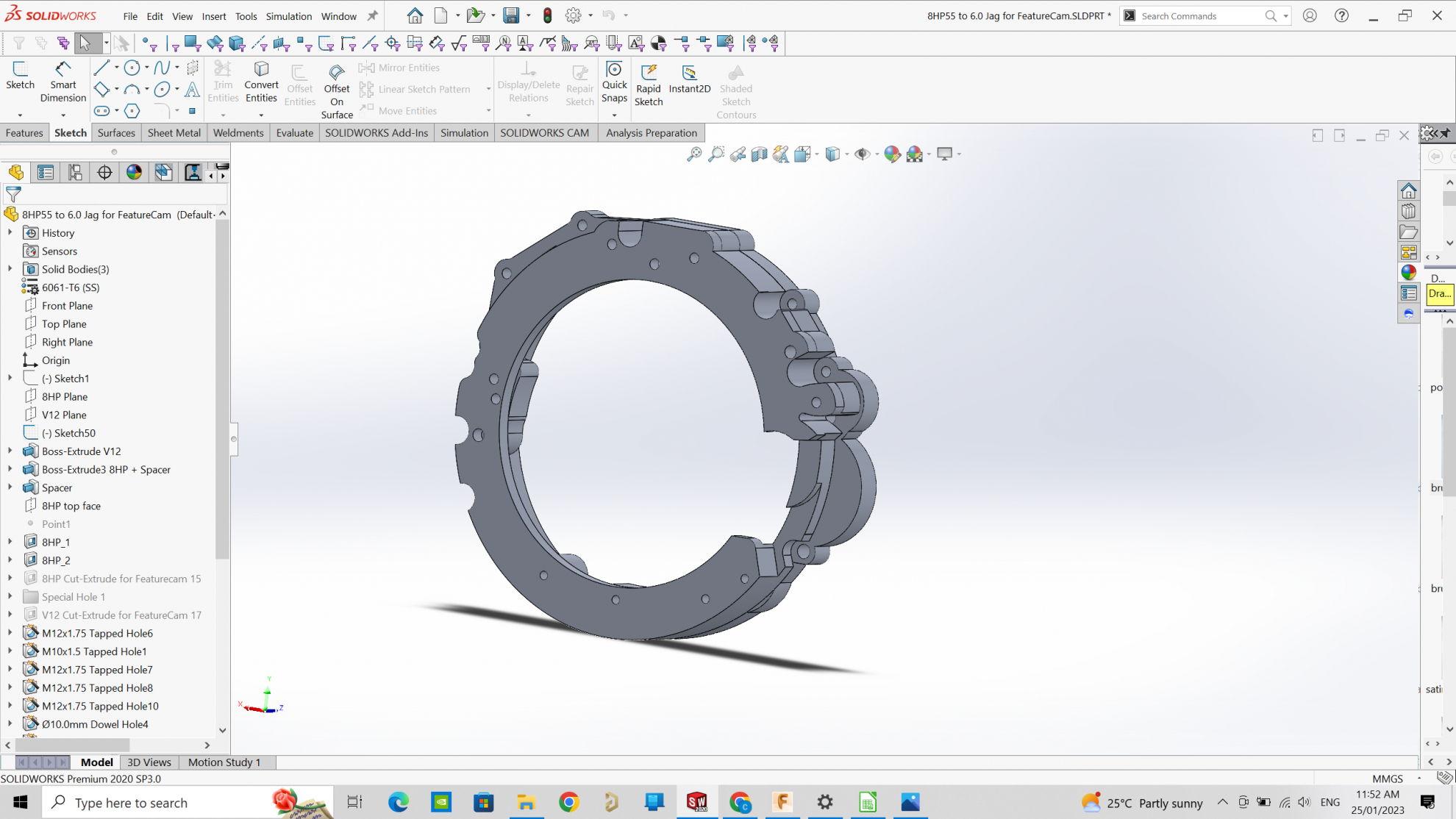

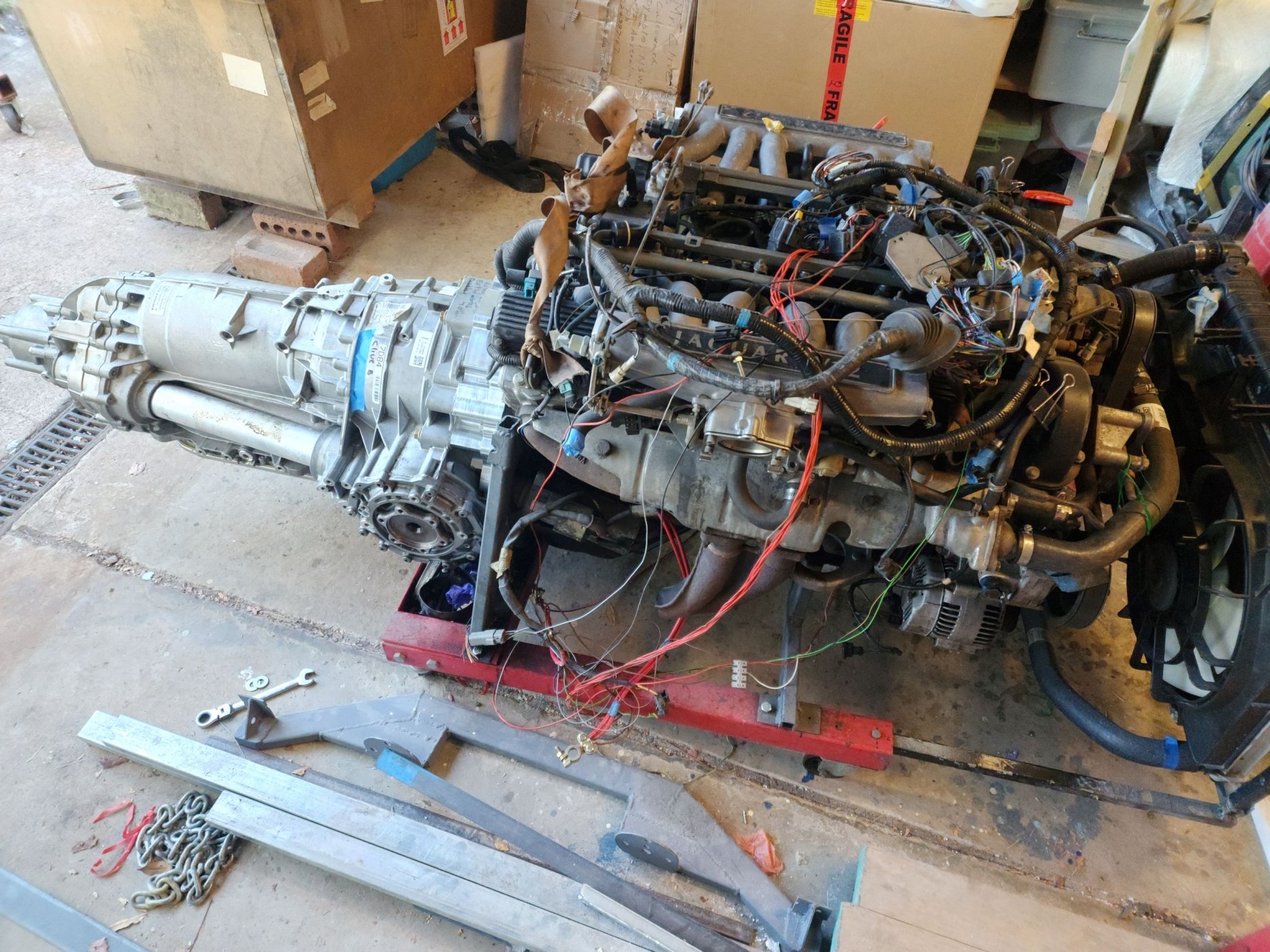

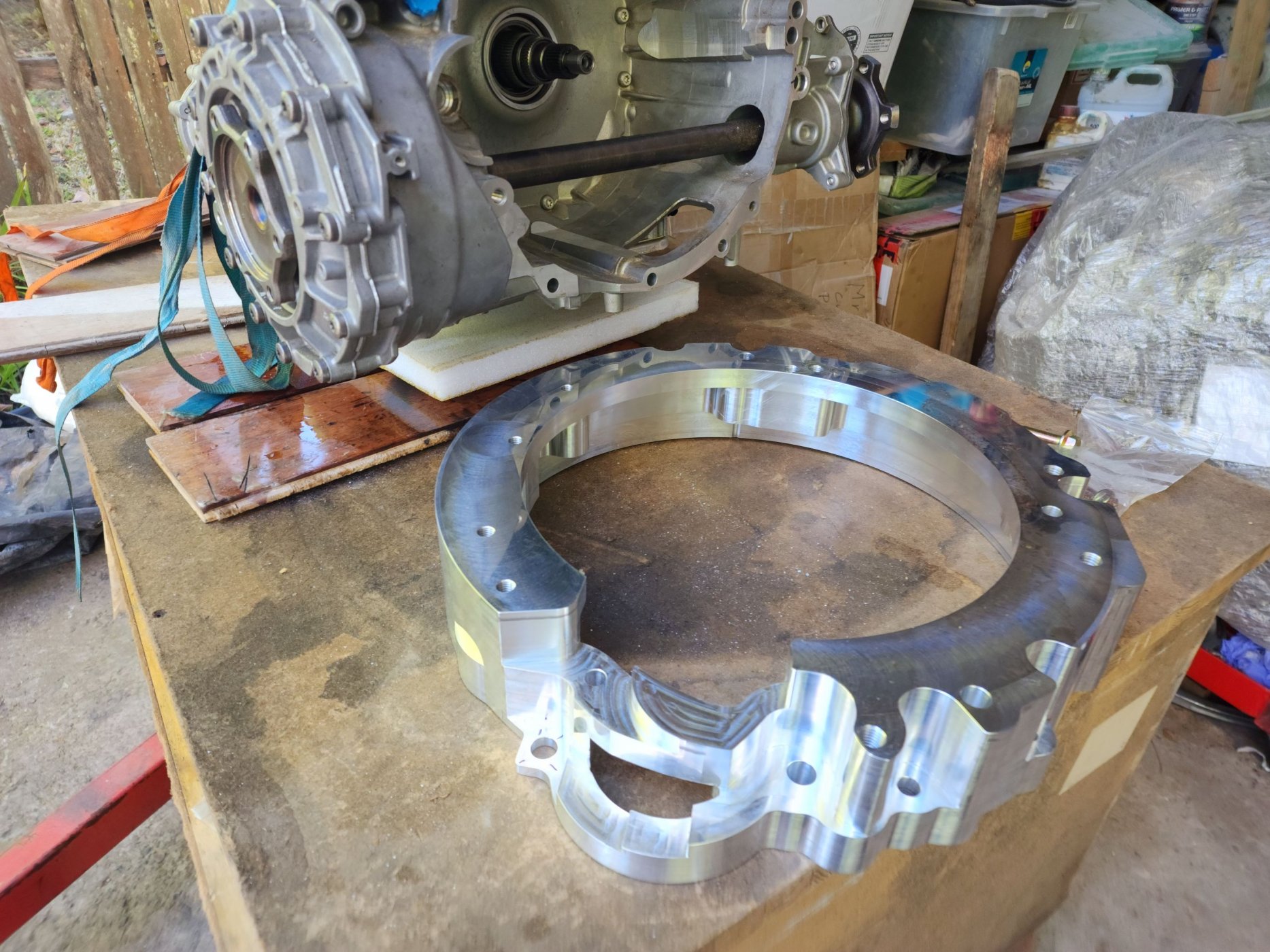

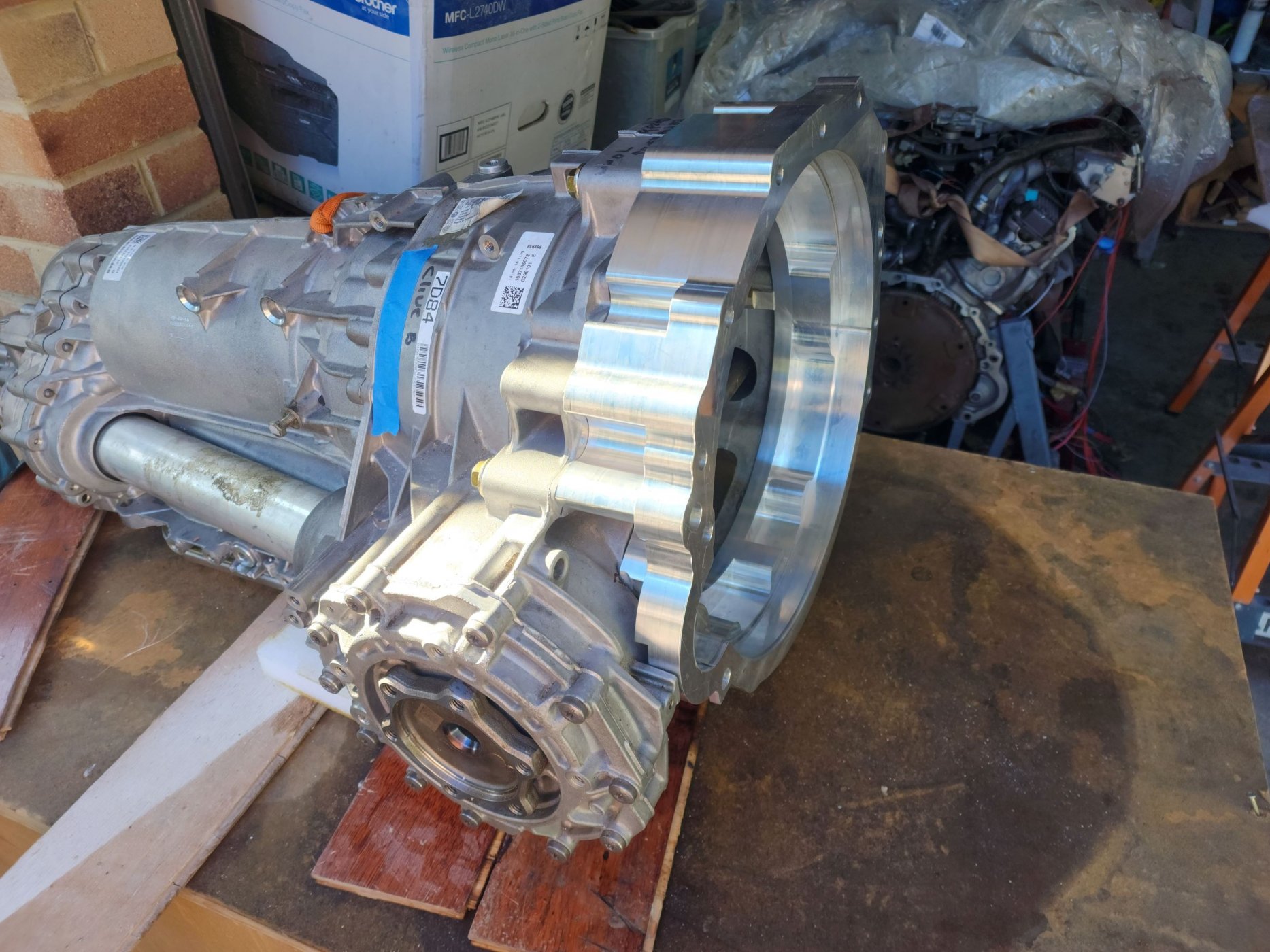

Im currently designing an adaptor to go with this transaxle and Im trying to mate it to a Jag V12 6.0 engine. As the front diff is mounted within the engine plane it requires a funky cutout for the diff and a depth of around 78mm to space it so it will fit.

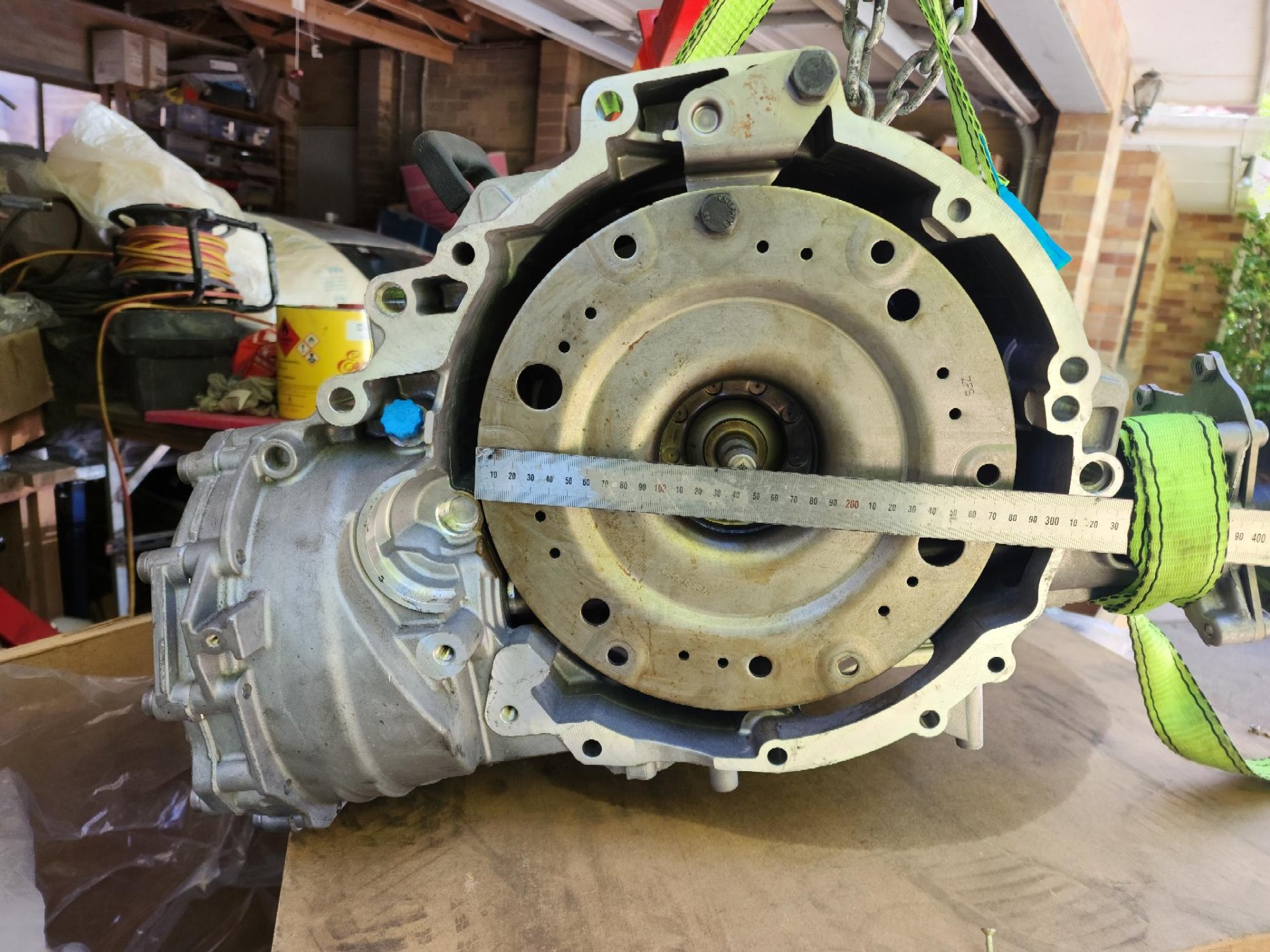

Im getting the transaxle measured by a third party and have measured my V12 using calipers. Im down to around 15 thou error (I think!) and I dont suppose anyone has the V12 6.0 bellhousing dimensions that I could use to crosscheck?



Attachments

Last edited:
I'm not sure it will work for a GT40. Depends on its length. As the differential output flanges are close to the bell housing face it's also going to need a fairly wide rear suspension frame. This will likely preclude its use in original style vehicles.
