| GT 40 from CAD to Metal

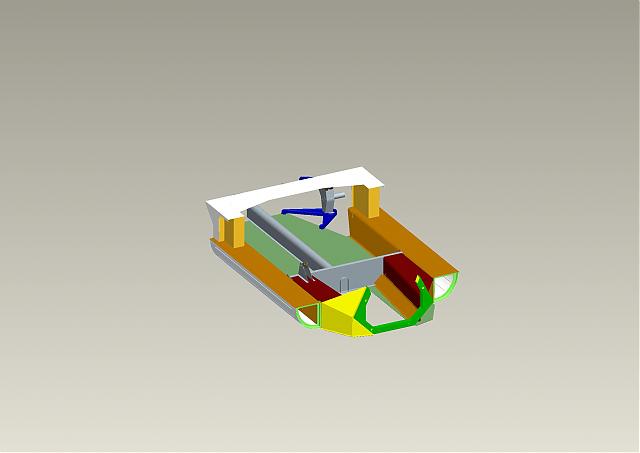

Watch the development of a Mono from CAD models thru FEA, suspension dynamics to finish.
__________________
Trevor Booth,
Finished assembling a pile of bits incl, mono, 302W on IDF's,ZF, 15" pin drive BRM. |
|  | |
01-03-08, 06:53 AM
|
#2 (permalink)
| | nota2266 Lifetime Premier Supporter
Join Date: May 2004 Location: Kurrajong, Aust GT40: Frank Wigg Mono
Posts: 464
| Re: GT 40 from CAD to Metal

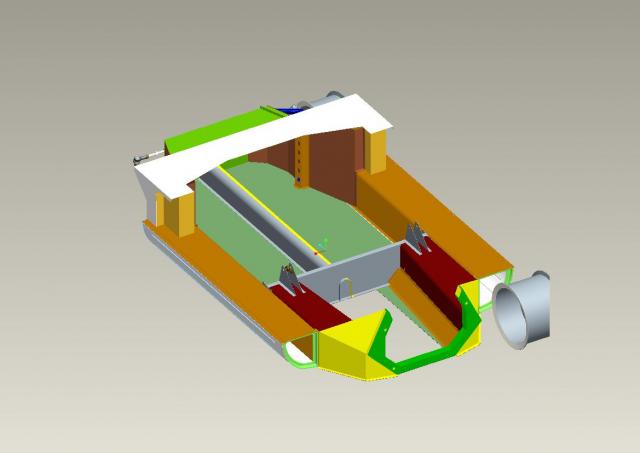

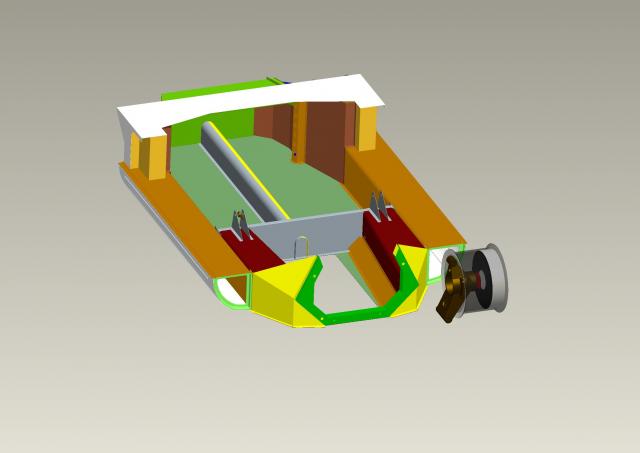

more bits
__________________
Trevor Booth,
Finished assembling a pile of bits incl, mono, 302W on IDF's,ZF, 15" pin drive BRM. | |
| | |
01-03-08, 07:43 AM
|
#3 (permalink)
| | nickgomez Rookie
Join Date: Dec 2007 Location: Malaysia GT40: None
Posts: 18
| Re: GT 40 from CAD to Metal
Trevor this is cool stuff! How did you get the dimensions?
__________________
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
| |
| | |
01-03-08, 03:07 PM
|
#4 (permalink)
| | nota2266 Lifetime Premier Supporter
Join Date: May 2004 Location: Kurrajong, Aust GT40: Frank Wigg Mono
Posts: 464
| Re: GT 40 from CAD to Metal
The dimensions came from a mono built in NZ in the early 90's. About six were built. I assembled one of them in 2004-2005. I believe the builder of them took measurements from an original car P1030 that was at one time in aust.
__________________
Trevor Booth,
Finished assembling a pile of bits incl, mono, 302W on IDF's,ZF, 15" pin drive BRM. | |
| | |
01-03-08, 10:22 PM
|
#5 (permalink)
| | nickgomez Rookie
Join Date: Dec 2007 Location: Malaysia GT40: None
Posts: 18
| Re: GT 40 from CAD to Metal
This is very interesting. Any possibility that there will one day be an 'open source' GT40 for builders around the world, following some sort of rigidly defined ISO document or set of drawings, just like what the Haynes 'Build Your Own Sportscar' by Ron Champion did for the 'Locost' type Lotus Seven inspired roadster brigade?
__________________
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
| |
| | |
05-09-08, 07:23 AM
|
#6 (permalink)
| | nota2266 Lifetime Premier Supporter
Join Date: May 2004 Location: Kurrajong, Aust GT40: Frank Wigg Mono
Posts: 464
| Re: GT 40 from CAD to Metal

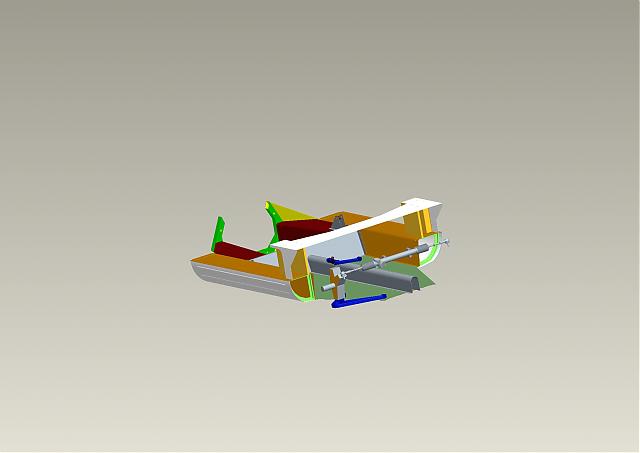

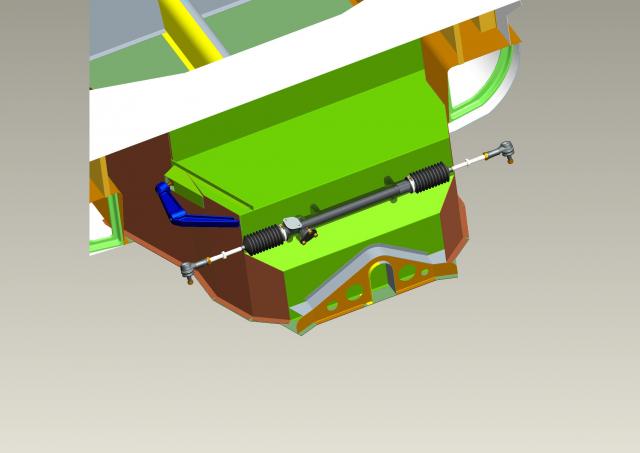

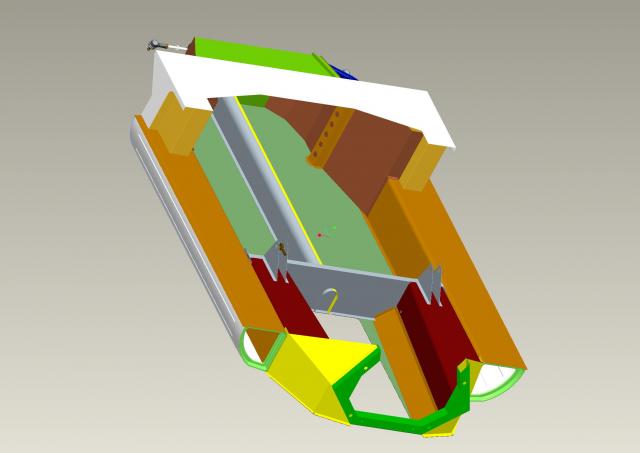

some more progress
__________________
Trevor Booth,
Finished assembling a pile of bits incl, mono, 302W on IDF's,ZF, 15" pin drive BRM. | |
| | |
05-13-08, 03:50 PM
|
#7 (permalink)
| | Bill D I Have No Life
Join Date: Sep 2001 Location: Earth
Posts: 2,515
| Re: GT 40 from CAD to Metal
That is soooo cool!! Have you many any parts yet? | |
| | |
05-13-08, 05:38 PM
|
#8 (permalink)
| | CharlieM Silver Supporter
Join Date: May 2004 Location: Massachusetts GT40: Scratch built
Posts: 302
| Re: GT 40 from CAD to Metal
Nice work Trevor. What CAD and FEA software do you use?
Charlie | |
| | |
05-13-08, 07:48 PM
|
#9 (permalink)
| | nota2266 Lifetime Premier Supporter
Join Date: May 2004 Location: Kurrajong, Aust GT40: Frank Wigg Mono
Posts: 464
| Re: GT 40 from CAD to Metal

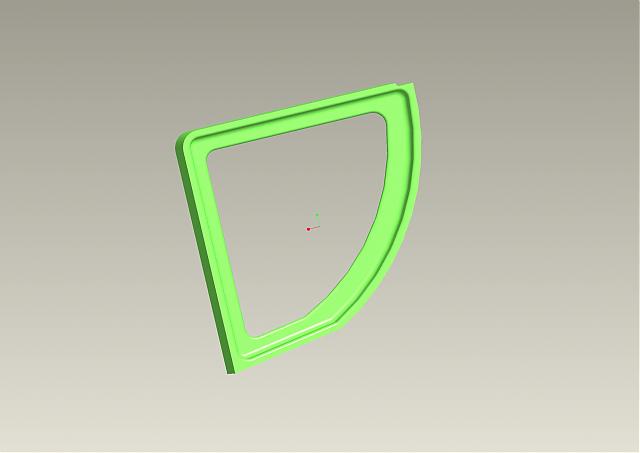

Pro Engineer WF 3 , ANSYS FEA . The model still has a lot of flanges for welded joints etc to be added and cutouts for overlaps to be tidied up.
I have not made any sheet metal parts as yet. Currently sorting suspension before finalising the pickup points and necessary reinforcing on the tub.
__________________
Trevor Booth,
Finished assembling a pile of bits incl, mono, 302W on IDF's,ZF, 15" pin drive BRM. | |
| | |
01-05-09, 12:40 PM
|
#10 (permalink)
| | Bram Boekestein Rookie
Join Date: Jun 2008 Location: Netherlands GT40: Project mid
Posts: 87
| Re: GT 40 from CAD to Metal
Hi Trevor,

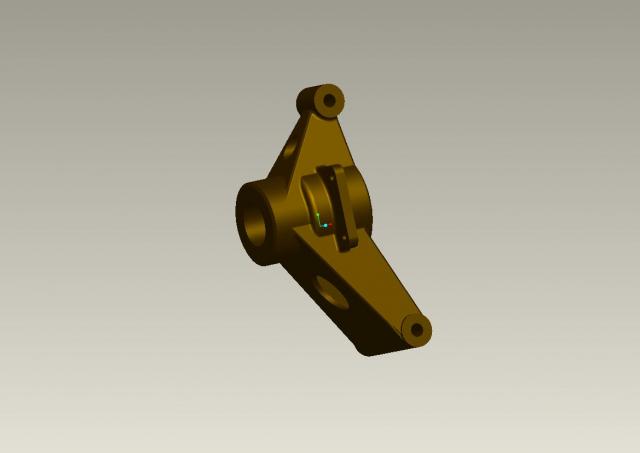

Are those upright's copies of the originals?
Would you mind sharing them for private use, possible for a small fee?
Greetings,
Bram Boekestein
The Netherlands | |
| | |
01-06-09, 07:17 AM
|
#11 (permalink)
| | fuoriserie A Tenth
Join Date: Feb 2007 Location: Italy GT40: none
Posts: 165
| Re: GT 40 from CAD to Metal
Very good work Trevor....  | |
| | |
