Cad Drawings and open frame design - Page 3

Paul Bearman · 04-07-07, 09:08 AM

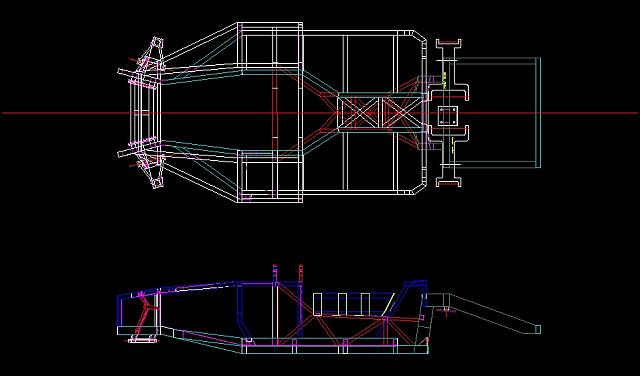

Here's the 2D dwg that I created to produce the 3D design for the chassis I intend to build.

SpeedQuest · 04-07-07, 10:16 AM

[
Here's my 2 cents.

"jpkuehne - to my mind push/pull rod type suspension is not used not to just lighten unsprungs which is very important in itself."

Beg to differ. You have actually increased unsprung weight. You have added the pushrods and the bellcrank to the equation. The all the mass that moves is reacted by the spring.

Paul Bearman · 04-10-07, 05:48 PM

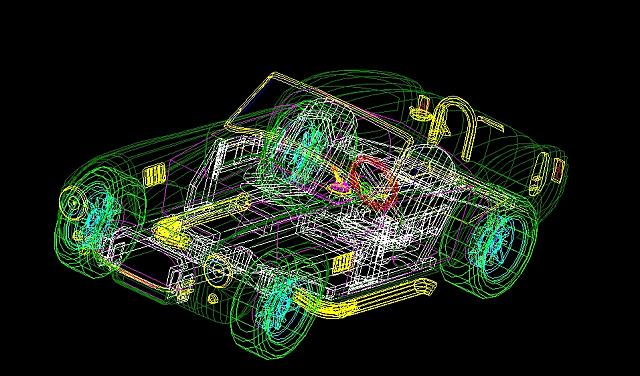

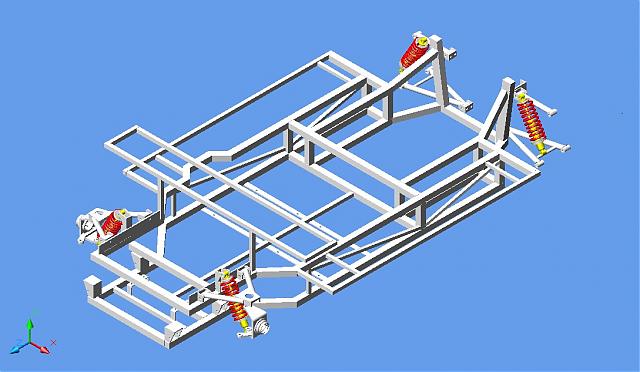

Just been rummaging through my files & found this on a CD containing chassis drgs I did many years ago. This was done in AutoCAD which although not a true parametric 3D package does help with visualisation. My latest attempt is in Inventor & I'll post this once complete.

Steve · 10-26-07, 08:59 AM

I am new to this site , and thinking about a scratch built gt-40. Just finished a scratch cobra( classic body, fe big block.) I was thinking the mustang II front and thunderbird rear also. Wanted to know if you got anywhere on chassis design , and where is the best place to purchase a body. Can you give me a ballpark figure on what a body will cost?

Cushmancompetition · 10-26-07, 10:48 AM

I have an original body as well as exact replacement bodys available on my website.

Home

Steve · 01-07-08, 02:31 PM

Has anyone found any big dimension errors on the Brian Wolff plans. I too am using them as a bassis for my plans, and any info would be appreciated. Also, does anyone know if original body measurements will fit this frame?
Thanks Steve;

FRPGUY · 01-08-08, 08:02 AM

Steve, I would double check anything and everything Brian Wolf has done. I've had some dealings with him. A long story! A total wast of time! Email me if you like at; datonabill at msn dot com

Paul Bearman · 01-09-08, 02:13 PM

Quote:

Originally Posted by stevy_joe

Has anyone found any big dimension errors on the Brian Wolff plans. I too am using them as a bassis for my plans, and any info would be appreciated. Also, does anyone know if original body measurements will fit this frame?
Thanks Steve;

Drop me an email if you need to confirm any specific dimensions.

venom · 01-20-08, 01:51 AM

hi, my name is david from melbourne australia.

first timer, I have bean building cars for most of my life, and i would love to build the mono chassis of the gt40.
i payed for some jigs a few years ago but didint get all the items i needed to build the chassis.
i finaly got a mould this week, so its time to start all over again.
all i know its a mk1 body.

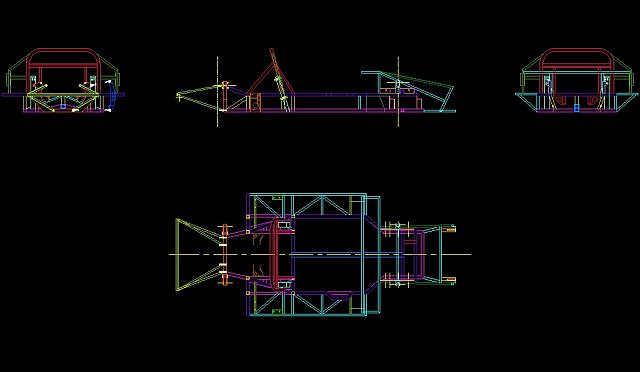

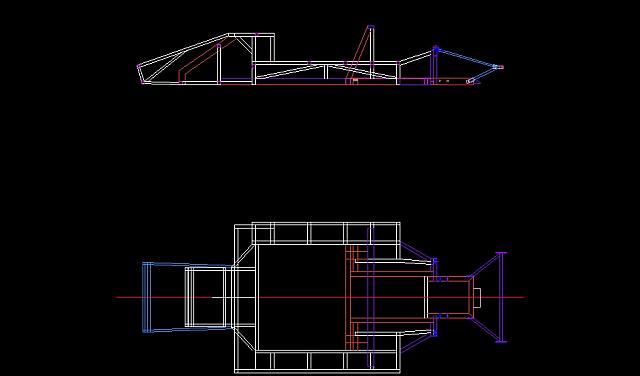

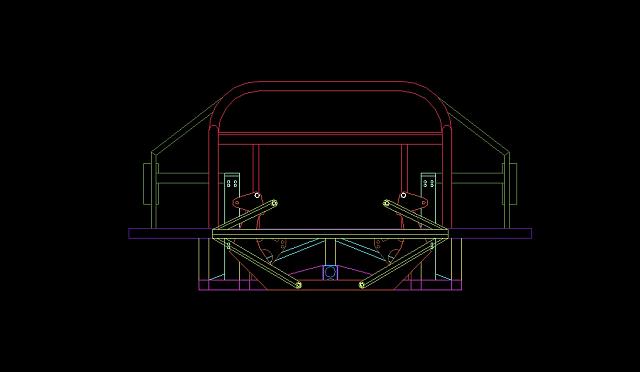

listed are some drawing i did years ago.

anyone how wants to exchange ideas and drawings please contact me on venom_00427 at hotmail.com.

i will be building the first one in rhs, but the next one i would love to build it in sheet form.

starting this week. i hope?

venom · 01-20-08, 06:04 AM

thanks for the site. will try it out against my drawings. should be close.
http://www.webguy.ca/downloads/kitcarplans/kitplans.php.

this site gives you the way to make the buck and the chassis.

if its drawn in cad, and you have the basic demensions, you could scale the drawing to suit?

big week ahead.

thanks again.

great site.

regards
