Purist question re: "Bundle of Snakes"

I am a bit bemused by the use of this expression applied to any exhaust scenario that features a "crossover" system.

As far as I recall, the term was first (and correctly) used to describe the exhaust configuration of the Ford Indy DOHC motor as it exited the centre valley, and could TRULY be worthy of the description, which is very different in appearance to the regular exhaust crossover design on a conventionally fueled and exhausted V8.

Or, am I being trivial, anal and nit picking? And if you want to call your exhaust a "nest of vipers" why shouldn't you?

Eh?
__________________
Moderation in all things - resistance is futile
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 01:32 PM   #2 (permalink)
Mark Worthington's Avatar
Mark Worthington
10 tenths
United States

Join Date: Dec 2001
Location: Massachusetts
GT40: RF No. 36
Posts: 1,928
Re: Purist question re: "Bundle of Snakes"

I vote for trivial and nitpicking.
__________________
Regards,
Mark

RF Chassis No. 36 still under construction
347, MoTeC EFI, pin drives, leather, etc.
Mark Worthington is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 01:54 PM   #3 (permalink)
Big-Foot's Avatar
Big-Foot
Super Moderator
United States

Join Date: Jan 2007
Location: Kenyon, MN
GT40: RCR40 - #45
Posts: 5,224
Re: Purist question re: "Bundle of Snakes"

Quote:
Originally Posted by Mark Worthington View Post
I vote for trivial and nitpicking.

X2
__________________
Regards - Randy
GT40 RCR40 #45 G50-331-Weber IDAs
My build site:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Big-Foot is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 03:46 PM   #4 (permalink)
Russ Noble's Avatar
Russ Noble
Lifetime Premier Supporter
New Zealand

Join Date: Jul 2004
Location: Christchurch,NZ
GT40: Scratch Kiwi 40
Posts: 2,033
Re: Purist question re: "Bundle of Snakes"

Yeah, I think the correct terminology is "a can of worms"

Cheers
__________________
Kiwi 40. Scratchbuilt Gulf Mk1, forged, dry sumped 351W. 930 LSD & spraybar, 10s & 14s.It goes, now to make it faster!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Russ Noble is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 04:02 PM   #5 (permalink)
jac mac's Avatar
jac mac
I Have No Life
New Zealand

Join Date: Dec 2005
Location: Gore, NZ
Posts: 3,580
Re: Purist question re: "Bundle of Snakes"

Having built these and most other types of systems over the years I can tell you that 'A Bundle of Snakes' or a 'Nest of Vipers' is very mild terminology to describe them by!

Jac Mac
jac mac is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 05:25 PM   #6 (permalink)
Keith1's Avatar
Keith1
1st Paddock Light Horse
United Kingdom

Join Date: Mar 2004
Location: Wessex
GT40: MKVII
Posts: 9,045
Re: Purist question re: "Bundle of Snakes"

Good, thanks. More now please....anal is good it seems...

(easy)
__________________
Moderation in all things - resistance is futile
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 05:37 PM   #7 (permalink)
John Lowe's Avatar
John Lowe
Bronze Supporter
United Kingdom

Join Date: Apr 2006
Location: Lindfield, UK
GT40: RCR MK1
Posts: 324
Re: Purist question re: "Bundle of Snakes"

Good, thanks. More now please....anal is good it seems

My mom said I should'nt try that whatever it means
John Lowe is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 06:08 PM   #8 (permalink)
Doc Watson's Avatar
Doc Watson
Lifetime Premier Supporter
United Kingdom

Join Date: Feb 2005
Location: England
GT40: mono Mk I, zf-0
Posts: 649
Re: Purist question re: "Bundle of Snakes"

"The firing order of all production V8s, regardless of make, has one cylinder in each bank that will fire within 90 degrees of crankshaft rotation of another cylinder in the same bank. This occurs twice during completion of the entire firing order. These two cylinders will be exhausting almost simultaneously into the same exhaust manifold system.

Full-length four-tube headers help separate these pulses until the collector is reached. If this is a full race car running "open exhaust", you will notice the collector dumps into a short open pipe at least 2.5 times the size of the header pipes, or the header pipes dump direct without a collector. This is done to avoid the conflict of pressure caused by the timing of the 2 counter firing cylinders, which will create back pressure and degrade torque, horsepower and general performance, especially at higher RPM.

On a full exhaust system, after the header tubes dump into the collectors, the two close firing cylinders are fighting each other for space in the collector and exhaust pipe. The result is reflected pressure waves traveling back up the exhaust system, backpressure, lost power and poor economy.

At the same time two cylinders exhaust in one bank, there is no activity in the opposite bank.

The traditional H-pipe equalizer allows some of the excess pressure to bleed over to the 'quiet side' of the exhaust system, resulting in some low and mid-range torque improvements. At high RPMs, however, in traditional exhaust systems, the gases cannot bleed across the H-pipe fast enough to help power significantly. Performance systems with the H pipe design, attempt to over come this by using a shorter cross over pipe which is also slightly larger in diameter as the main exhaust, then would be used in a standard exhaust.

To overcome the power loss of "over loading" the H pipe design, Exhaust manufacturers came up with the X pipe design, which features a tangentially Siamese crossover junction to synchronize exhaust pulses. The X-pipe concept is to split the flow in the crossover junction, so the pressures on both banks will be equal and pulse-free after the crossover, regardless of the rpm. Volumetric efficiency and power are therefore improved at all engine speeds. The negative aspect to the X pipe design is, because of the crisscrossing of the flow stream, harmonic pulsations will develop on some systems at certain RPMs, which will be perceived as a buzzing or humming sound."

Taken from...

Cross Over Exhaust Pipe Explained...

The GT40 system isnt a H or X system, it takes the exhaust from the 2 cylinders and puts one through each of the the 2 collators eliminating the increased pressure which occurs when both are joined in the same collator.

I think.... I also seem to remember that the crossover also makes the effective length of the exhaust the correct length, anybody know anything about this?

Andy
__________________
Andy
Doc Watson is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 06:52 PM   #9 (permalink)
jac mac's Avatar
jac mac
I Have No Life
New Zealand

Join Date: Dec 2005
Location: Gore, NZ
Posts: 3,580
Wink Re: Purist question re: "Bundle of Snakes"

Quote:
Originally Posted by Doc Watson View Post

I think.... I also seem to remember that the crossover also makes the effective length of the exhaust the correct length, anybody know anything about this?

Andy
That would have been the case with the rev limits of the 289 thru 427 the cars ran in their original form ,ie flat tappet & Non-Roller rocker setups. With the upper rev range & limits being used today the calculated length is shorter than it is possible to acheive on the crossover system, however there is an old school of thought here that a bit of extra length never really hurt anybody & helps build a bit more low to mid-range torque which at the end of the day is more useful to most 'really good' drivers .

Jac Mac
jac mac is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 07:30 PM   #10 (permalink)
Iain Pretty's Avatar
Iain Pretty
3 Tenths
Australia

Join Date: Aug 2006
Location: Sydney
GT40: RF # 117
Posts: 344
Re: Purist question re: "Bundle of Snakes"

Whilst I, like most of us I expect, want to maximise power and torque, one of my primary requirements is to minimise noise from the system, could someone just confirm that the "cross over" system is the best way of acheiving this ?

Thanks

Iain
Attached Thumbnails
Click image for larger version

Name:	Exhaust3.JPG
Views:	834
Size:	153.0 KB
ID:	23182   Click image for larger version

Name:	Exhaust4.JPG
Views:	638
Size:	151.3 KB
ID:	23183
Iain Pretty is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 30th August 2007, 07:51 PM   #11 (permalink)
jac mac's Avatar
jac mac
I Have No Life
New Zealand

Join Date: Dec 2005
Location: Gore, NZ
Posts: 3,580
Re: Purist question re: "Bundle of Snakes"

8 into 1.

Jac Mac
jac mac is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 04:32 AM   #12 (permalink)
Brett James-McCall Moderator
brettmcc's Avatar
brettmcc
I Have No Life
United Kingdom

Join Date: Jan 2003
Location: Essex, UK
GT40: RSGTD
Posts: 2,292
Re: Purist question re: "Bundle of Snakes"

Quote:
Originally Posted by Doc Watson View Post
I think.... I also seem to remember that the crossover also makes the effective length of the exhaust the correct length, anybody know anything about this?
Andy,
Do you remeber Adam C's work on pipe length found here: Primary pipe length formula

Brett
brettmcc is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 04:59 AM   #13 (permalink)
Malcolm's Avatar
Malcolm
Gold Supporter
United Kingdom

Join Date: Jun 2003
Location: Surrey, UK
GT40: GTD
Posts: 2,347
Re: Purist question re: "Bundle of Snakes"

Quote:
Originally Posted by Iain Pretty View Post
Whilst I, like most of us I expect, want to maximise power and torque, one of my primary requirements is to minimise noise from the system, could someone just confirm that the "cross over" system is the best way of acheiving this ?

Thanks

Iain
I have run both non cross over and cross over systems on my car. There definately is a difference in noise output but is one quieter than the other? I think smoother is a more useful word here as the riffling of the gases was possible on the cross over and not in the non cross over system. Maybe that did make it a little quieter? Both systems passed the Goodwood static noise test. And both systems need repacking every so often especially if you go to high RPM regularly if you want to keep meeting the circuit noise regulations.
__________________
Malcolm
GTD40, Porsche 996 C4S, MX5 race car, MX5 J2, TVR, 4.0 pre cat Griffith
Malcolm is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 06:25 AM   #14 (permalink)
Keith1's Avatar
Keith1
1st Paddock Light Horse
United Kingdom

Join Date: Mar 2004
Location: Wessex
GT40: MKVII
Posts: 9,045
Re: Purist question re: "Bundle of Snakes"

This is very evocative stuff, as half the battle is in the "noise". However, my question was as to the correct terminology as applied to crossover systems in general rather than their technical attribues.

I suppose my question should have read:

"Why do owners of mid-engined cars consistently and erroneously (in my view) refer to their crossover exhaust systems as a "bundle of snakes exhaust" when this terminology was applied to the appearance of the DOHC exhaust configuration of the Ford Indy engines - a very different configuration from a crossover exhaust in a conventionally exhausted V8" ?

Just a debate, is all folks.....
__________________
Moderation in all things - resistance is futile
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 07:24 AM   #15 (permalink)
David Morton's Avatar
David Morton
Lifetime Premier Supporter
United Kingdom

Join Date: Nov 2002
Location: Marlow, England
GT40: The Jewel on th
Posts: 5,945
Re: Purist question re: "Bundle of Snakes"

finger trouble...
David Morton is online now
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 07:25 AM   #16 (permalink)
David Morton's Avatar
David Morton
Lifetime Premier Supporter
United Kingdom

Join Date: Nov 2002
Location: Marlow, England
GT40: The Jewel on th
Posts: 5,945
Re: Purist question re: "Bundle of Snakes"

Hi Keith,
IMHO, firstly the exhaust headers/ primary's on a gt40 and any lookalike cars could never be described as a 'bundle of snakes' and the orderly manner in the way they are frequently designed is a very clever skill. (visualize some of the really good ones that Tony Law made). Secondly, any V8 with twin silencers/mufflers with 2 left and two right side cylinders into each silencer sounds (SOUNDS: A VERY SUBJECTIVE TERM) so much better than any other configuration. In fact it's almost a sexual thing.
Almost........

Mine looked like this before it was taken apart (again)

Last edited by David Morton; 31st August 2007 at 07:44 AM.
David Morton is online now
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 12:27 PM   #17 (permalink)
bchildress's Avatar
bchildress
3 Tenths
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 301
Re: Purist question re: "Bundle of Snakes"

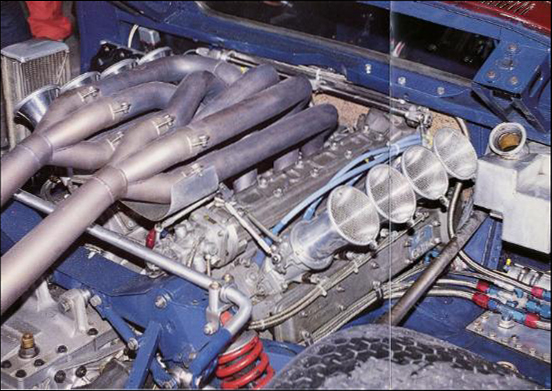

Here is a picture of a Ford DOHC Indy engine in car GT40/103. It is easy to understand why later GT40s with conventional V8s continued to have the crossover headers called a barrel of snakes. I think that description is part of the lore of GT40s including other “special words” like twin nostrils and Gurney Bubble.
Attached Thumbnails
Click image for larger version

Name:	103-gt40 -102.jpg
Views:	611
Size:	211.7 KB
ID:	23199
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 05:41 PM   #18 (permalink)
Keith1's Avatar
Keith1
1st Paddock Light Horse
United Kingdom

Join Date: Mar 2004
Location: Wessex
GT40: MKVII
Posts: 9,045
Re: Purist question re: "Bundle of Snakes"

It's a "Wonder" they ever fitted under a rear clip Bob!

I'm a real fan of The DOHC Indy motor and so I guess I'm a bit prickly when folks refer to their "bundle of snakes" which are, in reality, just 180 degree crossovers.

Dave, that's a really neat installation - no snakes there......

Talking of which, here is one of my all time favourite photos. No need of a caption - just look at the faces......if you believe every picture tells a story, then there's a library here, and there's a bundle of snakes etched in both those faces.....
Attached Thumbnails
Click image for larger version

Name:	vm6.jpg
Views:	476
Size:	16.7 KB
ID:	23213
__________________
Moderation in all things - resistance is futile
Keith1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 31st August 2007, 07:06 PM   #19 (permalink)
Dalton's Avatar
Dalton
10 tenths
Australia

Join Date: Jul 2005
Location: Sydney, Aust.
Posts: 1,432
Re: Purist question re: "Bundle of Snakes"

Keith, it sounds like you are being correct, but most folks are not really concerned as long as the system performs. However, it is interesting to read the performance reasons for the order of exhaust connections. Acoustic questions are a bit more tenuous.

Dalton
Dalton is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 1st September 2007, 08:49 PM   #20 (permalink)
Dalton's Avatar
Dalton
10 tenths
Australia

Join Date: Jul 2005
Location: Sydney, Aust.
Posts: 1,432
Re: Purist question re: "Bundle of Snakes"

A little bit more info, Keith, just to stir the kettle. In an historical article that I have (uncertain of the authenticity), within the description of the Mk III they say "The complex exhaust extractor manifolds - 'the serpent's nests' (sic) as the designers at Derrington called them - were dispensed with and replaced by a far simpler design which no longer wound its way over the gearbox but came out under the carbody instead"

So we now have the options "bundle of snakes", "nest of vipers", "serpent's nests", or just "cross-over system".

Dalton
Dalton is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 04:34 AM.
