stripes

Can anyone tell me the dimensions of center double stripes for my CAV gt?.
sibbat2 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-19-06, 12:04 PM   #2 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

Hi Syed2,

I am not sure if example pictures of stripes will help or not but here are a few of my car. The top stripes are painted on and the side rocker panel stripes are vinyl.

Last edited by bchildress; 05-02-06 at 06:43 PM.
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-19-06, 12:05 PM   #3 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

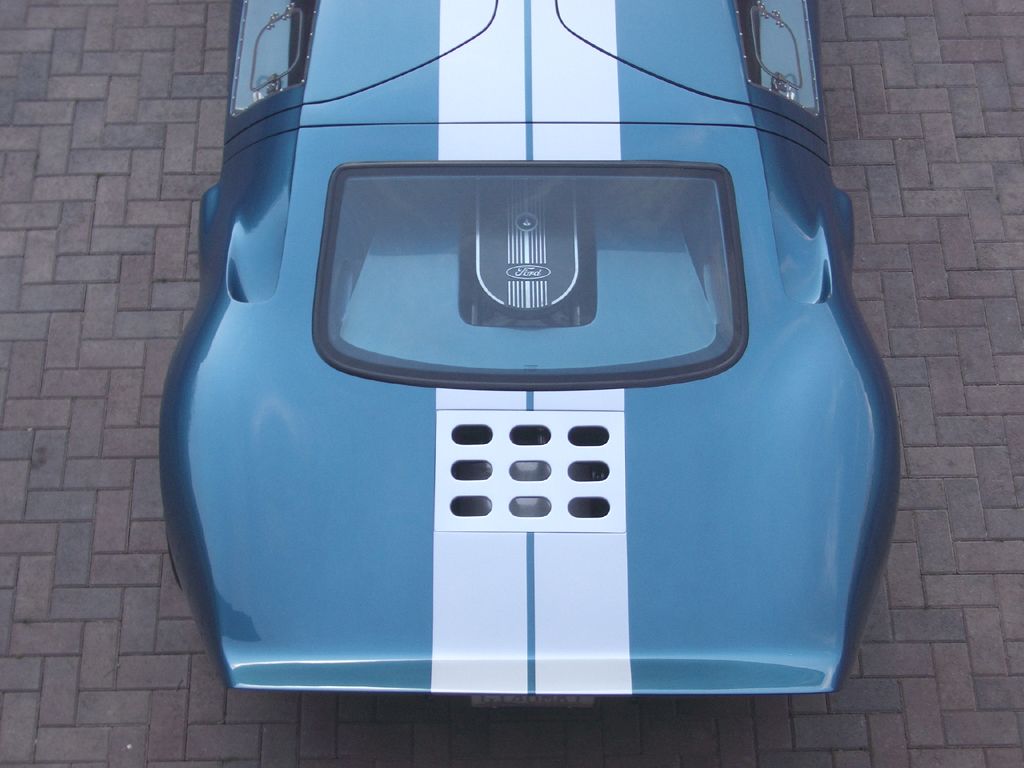

Note that the outside width of the stripes have been set to exactly match the width of the oval vent plate on the rear clip (18 inches).
Attached Thumbnails
Click image for larger version

Name:	80190-TwinTopStripes-4.JPG
Views:	88
Size:	81.0 KB
ID:	13475
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-19-06, 12:06 PM   #4 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

Likewise the space between the stripes has set to match the nose width of the NACA duct just in front of the windshield (3/4 inch).
Attached Thumbnails
Click image for larger version

Name:	80191-TwinTopStripes-5.JPG
Views:	89
Size:	89.9 KB
ID:	13476
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-19-06, 12:07 PM   #5 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

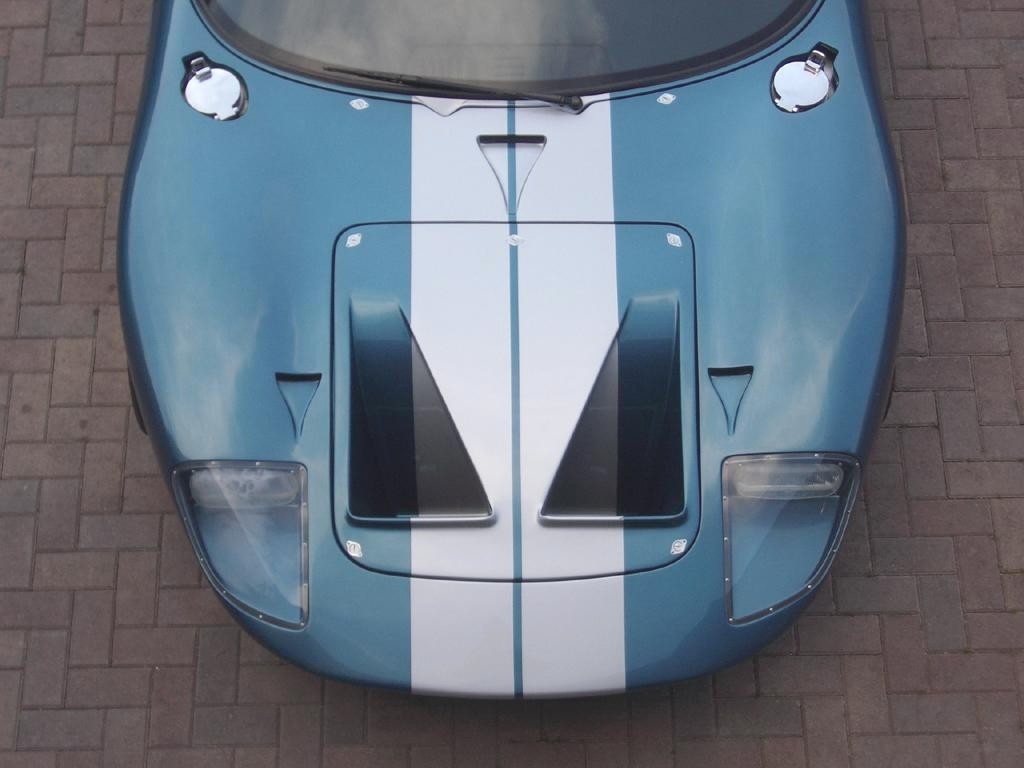

Note that as the stripe dips off into the nostril, the side of the stripe continues to appear straight and square. This is an optical trick. To make the stripe appear straight, the side line was actually angled to compensate for the compound surfaces of the car.

Last edited by bchildress; 05-02-06 at 06:43 PM.
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-19-06, 12:09 PM   #6 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

Finally here is a picture of another car with two main wide stripes and two additional side accent stripes. This style goes good with the original rocker panel stripe design. On this car, the side of the stripe is a taped straight line as it goes down into the nostril.

Good luck with your car and let us see how it turns out when you are done.

Bob

Last edited by bchildress; 05-02-06 at 06:43 PM.
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-20-06, 06:15 AM   #7 (permalink)
Rookie
United States

Join Date: Oct 2005
GT40: bristol uk
Posts: 88
Rep Power: 4 sibbat2 is on a distinguished road
Re: stripes

Thanks for the info. Bob. Your car looks fantastic!.Now I have to decide on the colour of stripes; white or silver. My CAV is also blue.
By the way I noticed that you have an oval Ford air filter. I had been thinking of installing a round K&N filter, but if fit is not a problem then I would rather usean oval filter. Can you supply me the part number for your air filter?.
sibbat2 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-20-06, 12:23 PM   #8 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

Hi again Syed2,

The additional stripe and air cleaner information you want is in the following GT40s forum thread:

http://www.gt40s.com/ubbthreads/showflat...=true#Post59787

Note the comments that the oval air filter will not fit a standard configuration Getrag transmission car because the engine is higher than on a ZF equipped car and the filter will not clear the rear window.

As for the color details, my car is Guardsman Blue and the second car is Lemans Blue. Both cars have the stripes painted in BMW Titanium Silver. Here are some of the paint colors I considered

Last edited by bchildress; 05-02-06 at 06:43 PM.
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-20-06, 12:24 PM   #9 (permalink)
bchildress's Avatar
bchildress
Gold Supporter
United States

Join Date: Aug 2004
Location: U.S.A.
GT40: CAV w/Roush 342
Posts: 292
Rep Power: 8 bchildress is a name known to all
Re: stripes

This picture is also of a Guardsman Blue car but with white stripes just for comparison.

Bob

Last edited by bchildress; 05-02-06 at 06:43 PM.
bchildress is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Old 04-20-06, 01:27 PM   #10 (permalink)
car guy's Avatar
car guy
A Tenth
United States

Join Date: Dec 2005
Location: San Diego, CA
GT40: Bailey Edwards
Posts: 110
Rep Power: 5 car guy is on a distinguished road
Re: stripes

Where can one buy the vinyl side stripes?
