A quick shot of the chassis.
Thanks, |
|  | |
01-18-07, 12:27 PM
|
#22 (permalink)
| | 40bud 7 Tenths
Join Date: Nov 2001 Location: San Francosco a GT40: GTD Finished in
Posts: 703
Rep Power: 14 | Re: D&d Ttr Chassis N#002
Is that a completed frame or a work in progress? | |
| | |
01-18-07, 12:34 PM
|
#23 (permalink)
| | mj_duell Rookie
Join Date: Nov 2004 Location: Rochester, New GT40: TTR/GT
Posts: 63
Rep Power: 0 | Re: D&d Ttr Chassis N#002
Quote: |
Originally Posted by 40bud Is that a completed frame or a work in progress? | This roller frame is still under construction.
--Mike / Turn Ten Racing, Inc. | |
| | |
01-19-07, 01:53 PM
|
#24 (permalink)
| | ddcobra Rookie
Join Date: Mar 2006 Location: Chambly Qc, Canada GT40: D&D
Posts: 32
Rep Power: 3 | Re: D&d Ttr Chassis N#002
Hi guys,

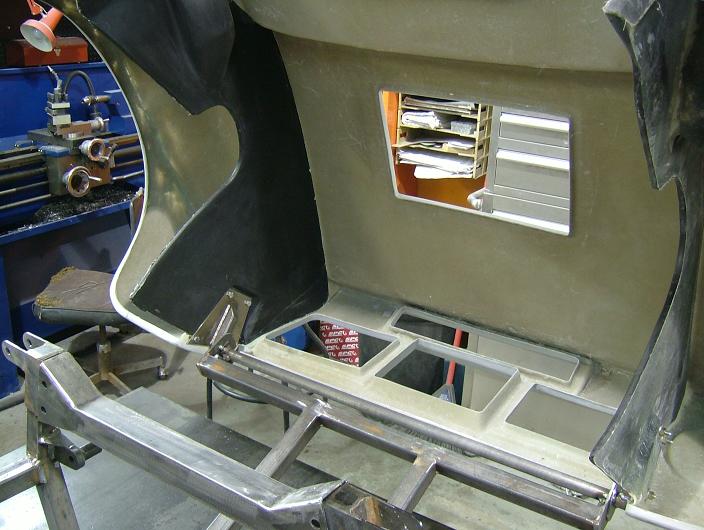

We want to show you how we made the back hinges with stoppers for the rear clip.
Thanks,
Don.
Last edited by ddcobra; 01-19-07 at 02:43 PM.
| |
| | |
01-26-07, 10:34 AM
|
#25 (permalink)
| | ddcobra Rookie
Join Date: Mar 2006 Location: Chambly Qc, Canada GT40: D&D
Posts: 32
Rep Power: 3 |  Re: D&d Ttr Chassis N#002

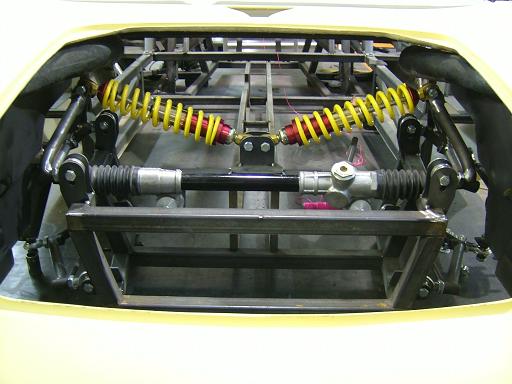

Just a quick shot of the front suspension.
Thanks,
Don. | |
| | |
01-26-07, 02:52 PM
|
#26 (permalink)
| | tmck
Join Date: Sep 2006
Posts: 1
Rep Power: 3 | Re: D&d Ttr Chassis N#002
very nice
(pressis) | |
| | |
01-26-07, 11:58 PM
|
#27 (permalink)
| | Russ Noble Lifetime Premier Supporter
Join Date: Jul 2004 Location: Christchurch,NZ GT40: Building scratc
Posts: 1,375
Rep Power: 20 | Re: D&d Ttr Chassis N#002
Now that's a bit tricky and nicely done!
The top outer heim joint will need to be fairly beefy though, lots of bending loads in it's shank that you don't normaly get in a GT40 top arm. No doubt you've done your homework.
Keep up the good work.
Cheers | |
| | |
01-27-07, 08:01 AM
|
#28 (permalink)
| | Dalton 4 Tenths
Join Date: Jul 2005 Location: Sydney, Aust.
Posts: 422
Rep Power: 8 | Re: D&d Ttr Chassis N#002
Guys, as Russ says, no doubt you've done your homework. However, the pivot axis of the top suspension arm appears to be about parallel to the pivot axis of the bottom arm on the chassis. Typically the top axis is quite inclined, for anti-dive geometry, such that the rotational moment when the brakes are applied tends to push the nose upwards, balancing the inertial forces pushing it down. Just my 0.02.
Dalton. | |
| | |
01-27-07, 11:39 AM
|
#29 (permalink)
| | Lifetime Premier Supporter
Join Date: Jul 2002 GT40: New York
Posts: 734
Rep Power: 15 | Re: D&d Ttr Chassis N#002
Just curious, how much clearance is there between the front suspension and the fiberglass nose? | |
| | |
01-29-07, 08:48 AM
|
#30 (permalink)
| | ddcobra Rookie
Join Date: Mar 2006 Location: Chambly Qc, Canada GT40: D&D
Posts: 32
Rep Power: 3 | Re: D&d Ttr Chassis N#002
Quote: |
Originally Posted by Gregg Just curious, how much clearance is there between the front suspension and the fiberglass nose? | Hi Gregg,

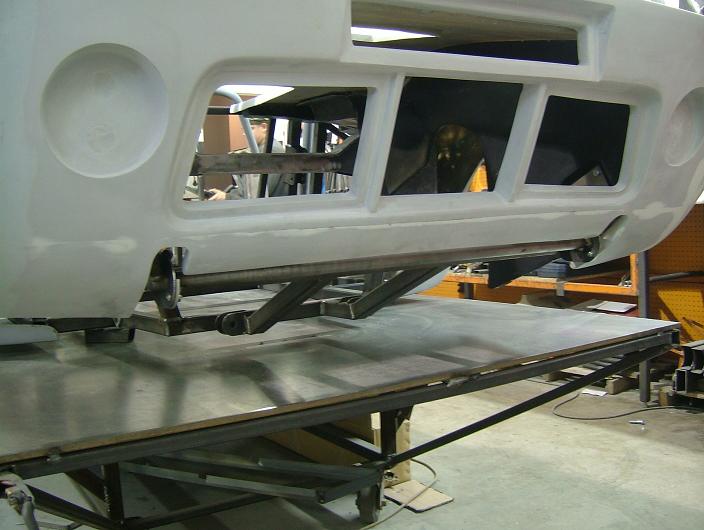

I just take a picture to show you how much clearance is there between the front susp. and the fiberglass.
Thanks,
Don. | |
| | |
01-29-07, 10:00 AM
|
#31 (permalink)
| | ddcobra Rookie
Join Date: Mar 2006 Location: Chambly Qc, Canada GT40: D&D
Posts: 32
Rep Power: 3 | Re: D&d Ttr Chassis N#002
Quote: |
Originally Posted by Dalton Guys, as Russ says, no doubt you've done your homework. However, the pivot axis of the top suspension arm appears to be about parallel to the pivot axis of the bottom arm on the chassis. Typically the top axis is quite inclined, for anti-dive geometry, such that the rotational moment when the brakes are applied tends to push the nose upwards, balancing the inertial forces pushing it down. Just my 0.02.
Dalton. | Hi Dalton,

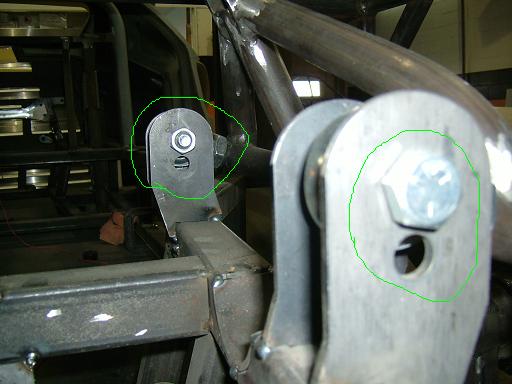

I want to show you a picture of the two front pivot points of the control arm
with height adjustement,for anti-dive geometry.
Thanks,
Don. | |
| | |
01-29-07, 02:16 PM
|
#32 (permalink)
| | OhioMark Rookie
Join Date: Oct 2006 Location: Medina, Ohio
Posts: 40
Rep Power: 3 | Re: D&d Ttr Chassis N#002
Don:
Your front suspension looks similiar to the rear suspension of my
Formula Vee/ Formula First (FST), except we use one shock &
one spring ( 180#'s) etc.... Nice design !
Mark | |
| | |
01-30-07, 12:25 PM
|
#33 (permalink)
| | Lifetime Premier Supporter
Join Date: Jul 2002 GT40: New York
Posts: 734
Rep Power: 15 | Re: D&d Ttr Chassis N#002
Don, thanks for the photo. Nicely done. Keep the photo's coming. | |
| | |
02-07-07, 06:51 AM
|
#34 (permalink)
| | Big-Foot Gold Supporter
Join Date: Jan 2007 Location: Minneapolis, MN GT40: Replica
Posts: 1,390
| Re: D&d Ttr Chassis N#002
How's the project going Don? Any new Pics to share?  | |
| | |
04-05-07, 12:31 PM
|
#35 (permalink)
| | mj_duell Rookie
Join Date: Nov 2004 Location: Rochester, New GT40: TTR/GT
Posts: 63
Rep Power: 0 | Re: D&d Ttr Chassis N#002
Quote:

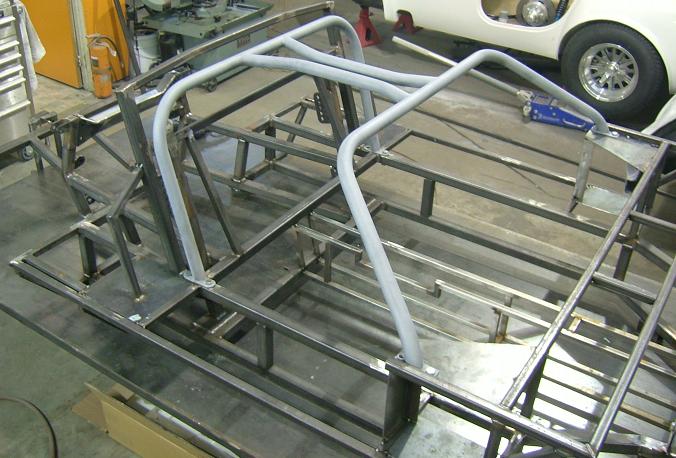

Originally Posted by Big-Foot  How's the project going Don? Any new Pics to share? | We have a few more. Here are a couple I have at the office of a finished GT space frame. You can also find some over at Club Cobra ( Club Cobra Photo Gallery - Turn Ten Racing and D&D Cobra - Powered by PhotoPost ). I will post a few more later this week when I get back from my business trip.
--Mike / Turn Ten Racing, Inc. | |
| | |
04-07-07, 08:12 AM
|
#36 (permalink)
| | Big-Foot Gold Supporter
Join Date: Jan 2007 Location: Minneapolis, MN GT40: Replica
Posts: 1,390
| Re: D&d Ttr Chassis N#002
It looks like Don's doing a great job on this.. I looked over all the pictures on CC too.. Looking forward to how he finally sorted out the front suspension and steering..
Thanks for the update! | |
| | |
04-24-07, 05:02 PM
|
#37 (permalink)
| | Ron Earp Site Administrator
Join Date: Sep 2001
Posts: 3,929
Rep Power: 57  | Re: D&d Ttr Chassis N#002
You guys made any more progress with the body on the latest chassis picture?
R | |
| |
