D&d Ttr Chassis N#002

[Don.]

A quick shot of the chassis.
Thanks,



[40 Bud]

Is that a completed frame or a work in progress?



[Mike Duell]

Is that a completed frame or a work in progress?

This roller frame is still under construction.

--Mike / Turn Ten Racing, Inc.



[Don.]

Hi guys,

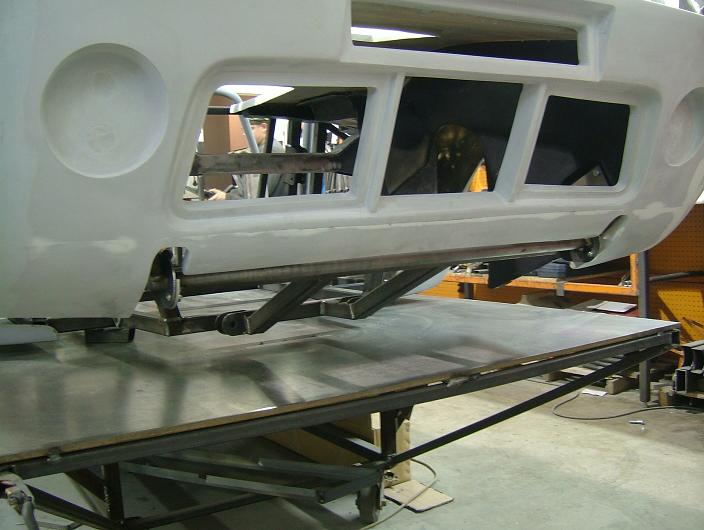

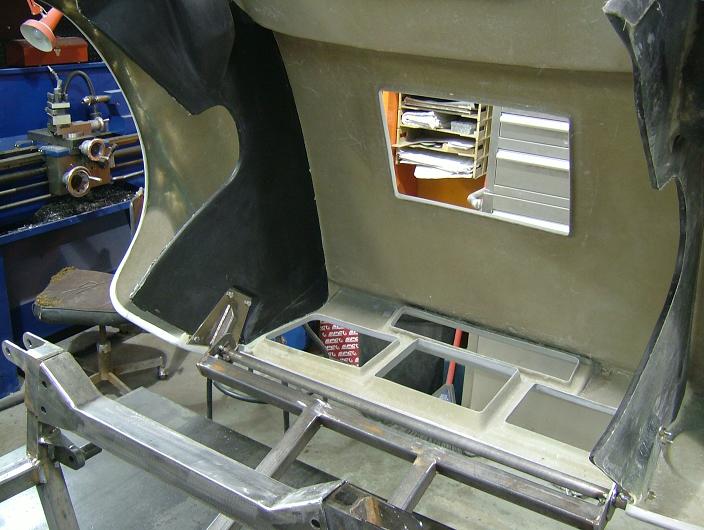

We want to show you how we made the back hinges with stoppers for the rear clip.
Thanks,
Don.



[Don.]

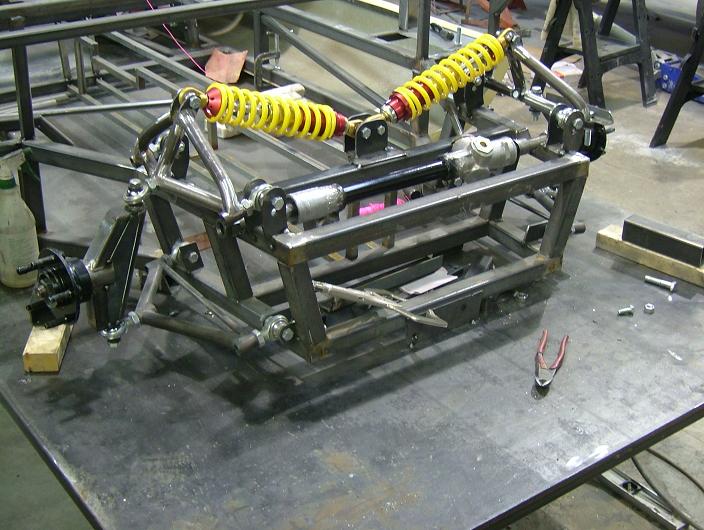

Just a quick shot of the front suspension.
Thanks,
Don.



[tom]

very nice


(pressis)



[Russ Noble]

Now that's a bit tricky and nicely done!

The top outer heim joint will need to be fairly beefy though, lots of bending loads in it's shank that you don't normaly get in a GT40 top arm. No doubt you've done your homework.

Keep up the good work.

Cheers



[Dalton Veitch]

Guys, as Russ says, no doubt you've done your homework. However, the pivot axis of the top suspension arm appears to be about parallel to the pivot axis of the bottom arm on the chassis. Typically the top axis is quite inclined, for anti-dive geometry, such that the rotational moment when the brakes are applied tends to push the nose upwards, balancing the inertial forces pushing it down. Just my 0.02.

Dalton.



[Gregg]

Just curious, how much clearance is there between the front suspension and the fiberglass nose?



[Don.]

Just curious, how much clearance is there between the front suspension and the fiberglass nose?

Hi Gregg,

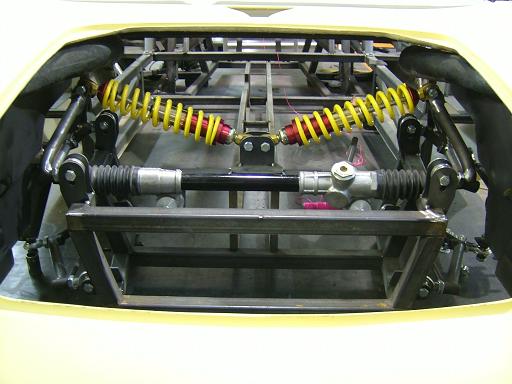

I just take a picture to show you how much clearance is there between the front susp. and the fiberglass.

Thanks,
Don.



[Don.]

Guys, as Russ says, no doubt you've done your homework. However, the pivot axis of the top suspension arm appears to be about parallel to the pivot axis of the bottom arm on the chassis. Typically the top axis is quite inclined, for anti-dive geometry, such that the rotational moment when the brakes are applied tends to push the nose upwards, balancing the inertial forces pushing it down. Just my 0.02.

Dalton.

Hi Dalton,

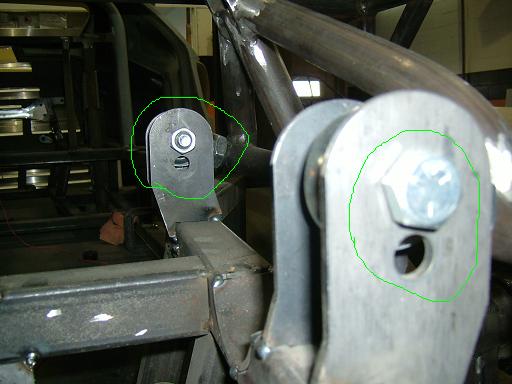

I want to show you a picture of the two front pivot points of the control arm
with height adjustement,for anti-dive geometry.
Thanks,
Don.



[OhioMark]

Don:

Your front suspension looks similiar to the rear suspension of my
Formula Vee/ Formula First (FST), except we use one shock &
one spring ( 180#'s) etc.... Nice design !

Mark



[Gregg]

Don, thanks for the photo. Nicely done. Keep the photo's coming.



[Randy V]

How's the project going Don? Any new Pics to share?



[Mike Duell]

How's the project going Don? Any new Pics to share?

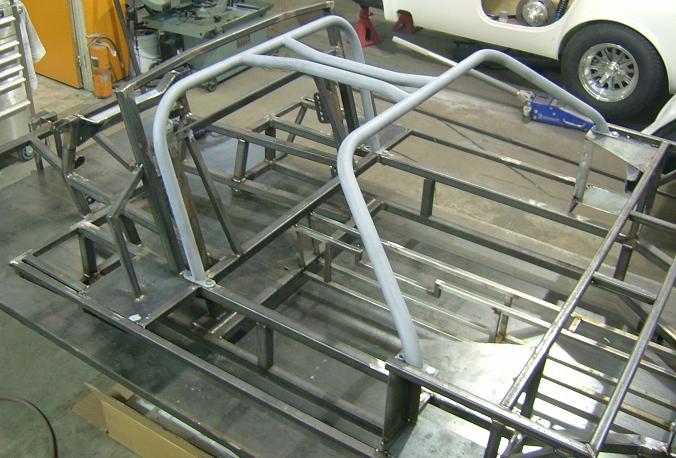

We have a few more. Here are a couple I have at the office of a finished GT space frame. You can also find some over at Club Cobra (Club Cobra Photo Gallery - Turn Ten Racing and D&D Cobra - Powered by PhotoPost ). I will post a few more later this week when I get back from my business trip.

--Mike / Turn Ten Racing, Inc.



[Randy V]

It looks like Don's doing a great job on this.. I looked over all the pictures on CC too.. Looking forward to how he finally sorted out the front suspension and steering..
Thanks for the update!



[Ron Earp]

You guys made any more progress with the body on the latest chassis picture?

R
