RCR40 Steering Column

[Rod Dittmar]

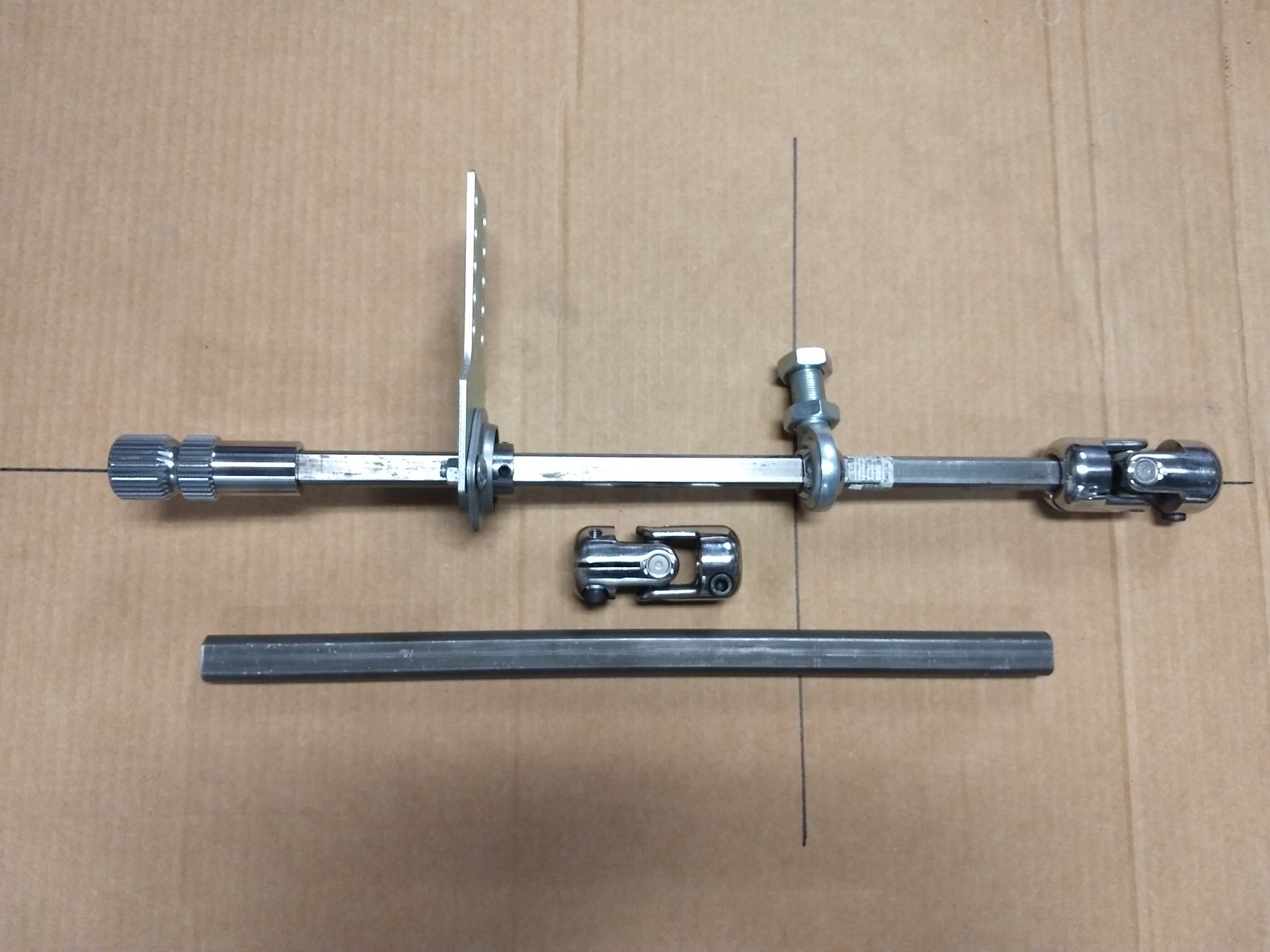

I'm looking for some help on how the RCR40 Steering Column assembles. I've searched the Forum, but don't see where anyone addresses this item specifically. I have some of it figured out as shown in the attached picture. I also know that I have to cut some of these pieces, and that's where I come to the Forum experts before I make a mistake. If this is supposed to be a collapsible column, where do I cut/join the solid shaft & the outer shaft? A rough sketch of the assembly (if someone has one) would be really nice.

Regards, Rod



[bryanf]

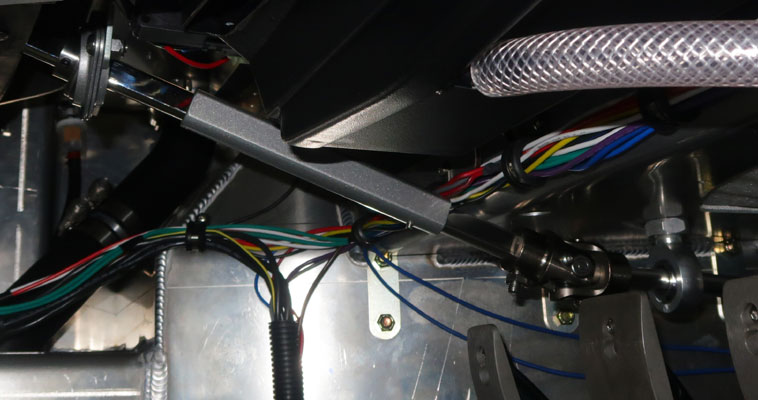

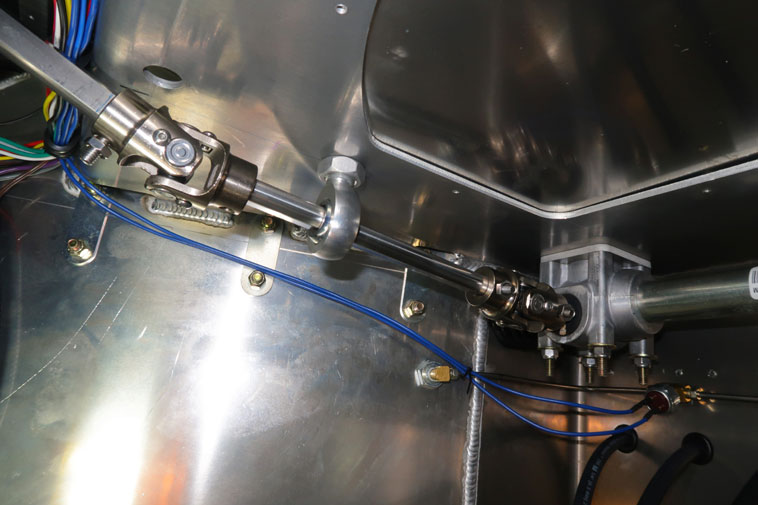

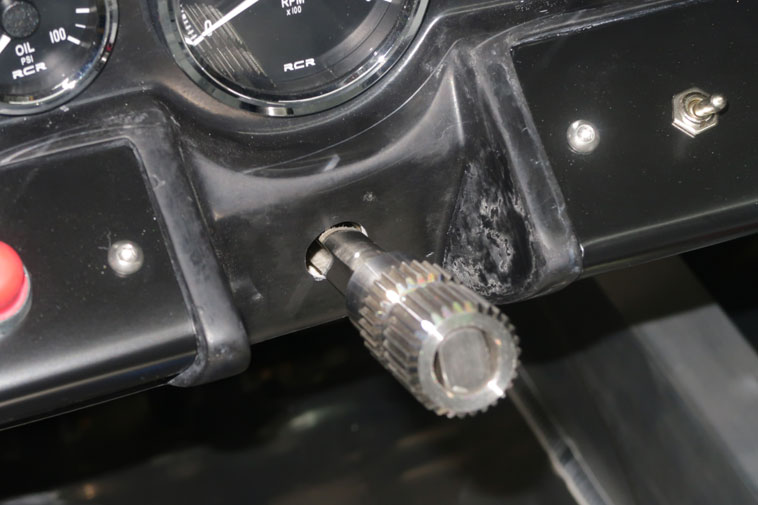

Here is how I did mine. The photos don't include a 3/4" locking collar that I installed in front of the bearing so the rearmost shaft can't be pulled out of the female collapsible part.



[Rod Dittmar]

Bryan, many thanks for the help. Like they say, "A picture is worth a thousand words". These are really helpful and I think I can now forge ahead with confidence.
Happy Holiday, Rod
