RF Muffler Supports

[Jim Dewar]

I need a photo of the later style rear muffler supports that bolt to the rear of the transmission. I have been looking at my brackets for several evenings and I am certain they must be manfactured wrong. I've finally realized the puzzle cannot be solved by me! Pics Please!!!!!!!!!

[Kym Haines]

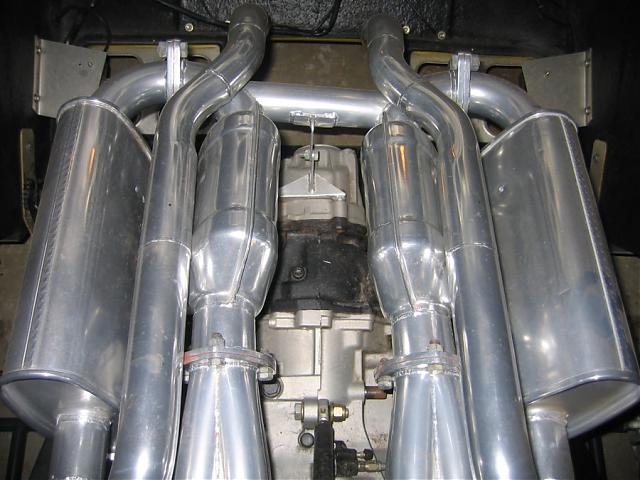

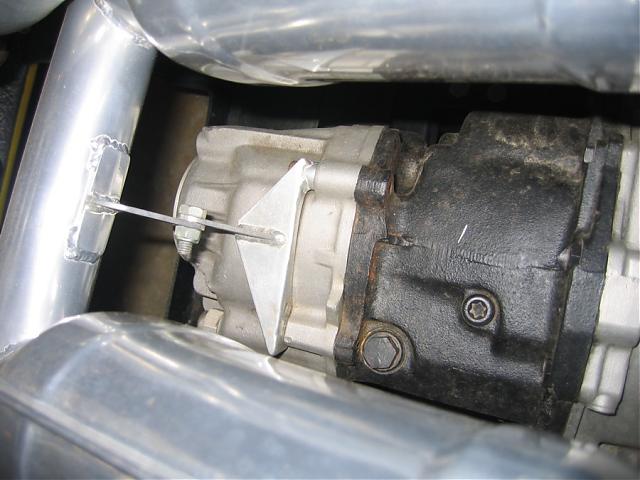

Here is my set up - done in the factory.

[Jim Dewar]

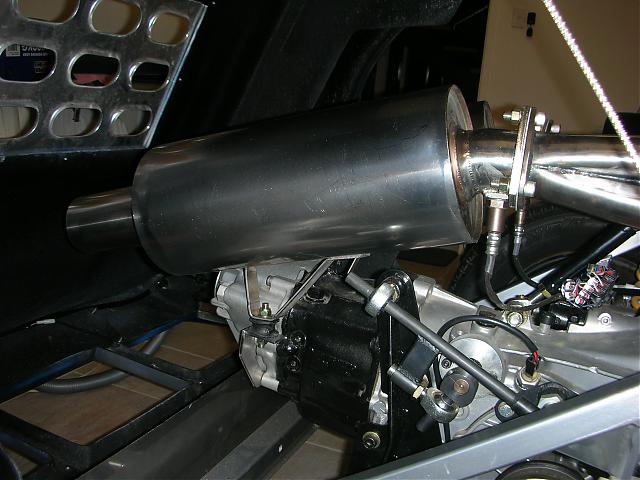

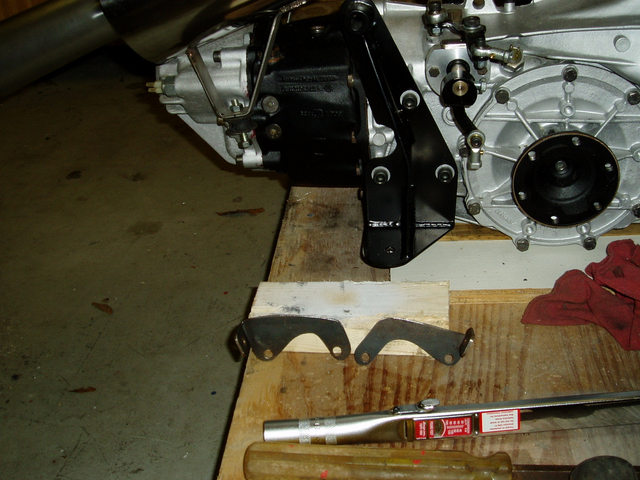

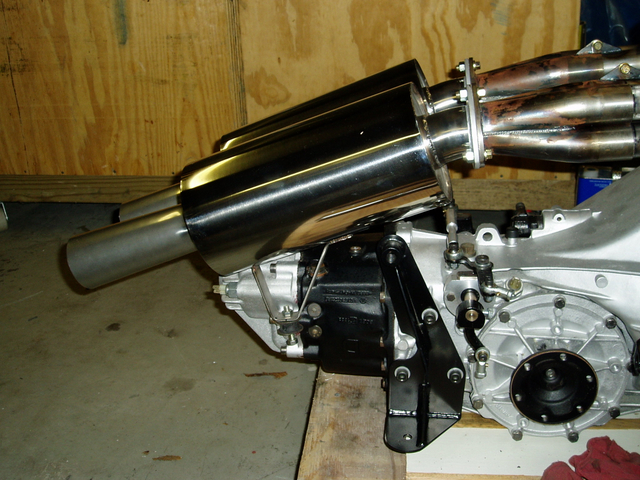

Thanks Kym, My configuration is different. Here are some pics of my system and the 2 brackets that won't fit.

[HILLY]

Jim,
For some reason the standard RF brackets place the isolation mounting points at different heights and the brackets on the mufflers are also different lengths to match. From memory I think that the drivers side mount sits lower. I manufactured new SS brackets that made the mounting points level and shortened the muffler mounting bracket to suit. I have attached the drawings that I made the brackets from. One shows the new bracket detail and the other shows the conparison between new and old. I still had some minor mods after fabrication but they were reasonably close. Hope it is of some use.

[Jim Dewar]

Thanks Peter, From the looks of your brackets I will need to fabricate. My brackets are made to hang from the top and interfere with the muffler support. I appreciate the photo. Someone was on the wrong page (again) at RF when they made mine. Jim
