The bellcrank sits on a post via a roller bearing
Down the centre of the bellcrank and fixed to the post I will be attaching the TPS shaft (that is stationary), the switch mount will on the top of the bellcrank under the 4 screws.

I have dyno figures from not so long ago when I was playing with few exhaust combo's.
It was consistent from the time before.

Syncing can always take time but I dont think it will be to bad.

Jim



[Jim Cowden]

More progress

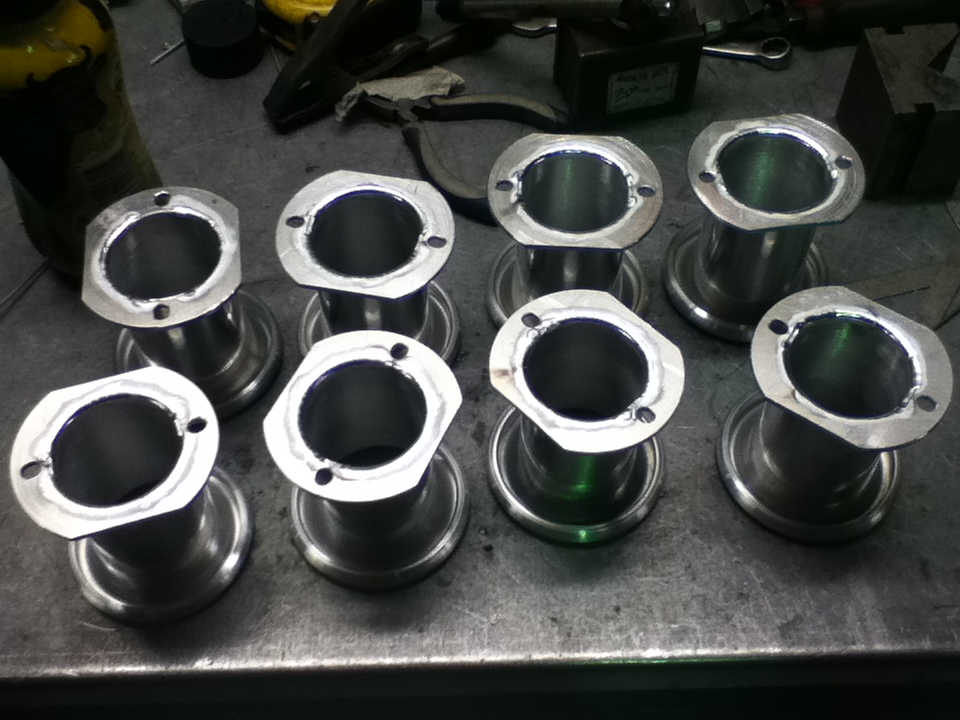

Put the trumpets on the flanges.
Welded them on the inside to keep them tidy.

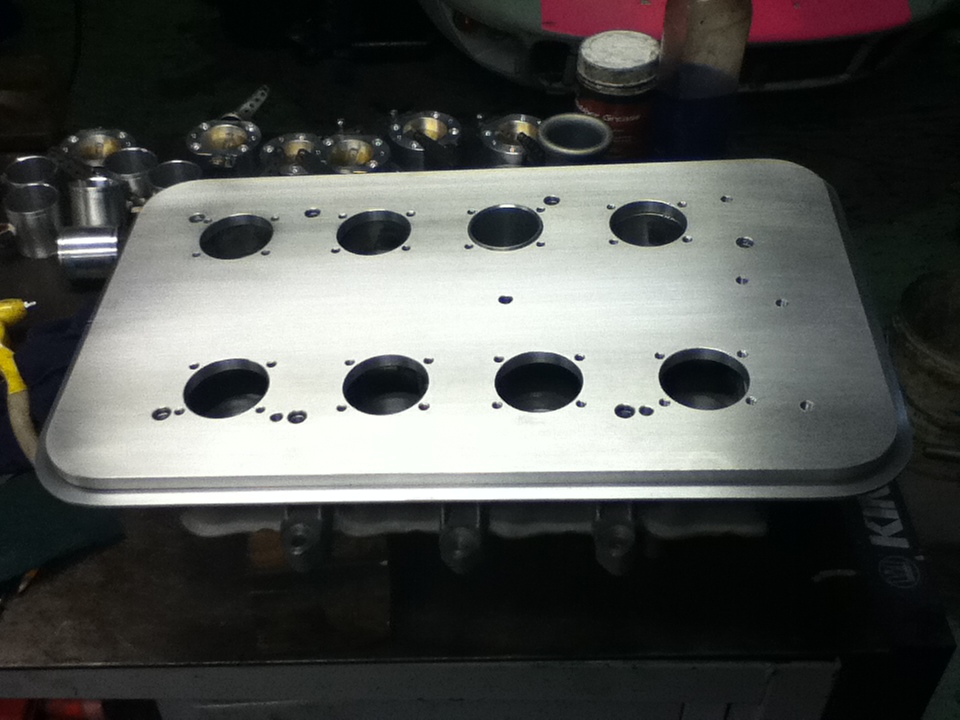

Put a radius on the base plate and riveted a flange plate from underneath to mount the air box onto.

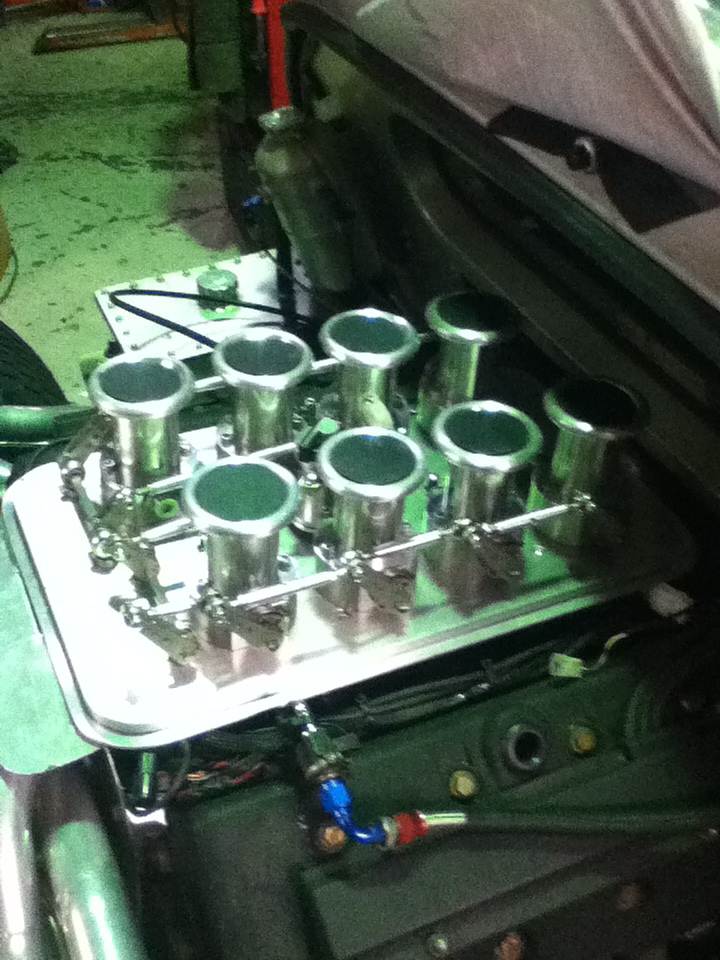

Did the final assembly.



[Jim Cowden]

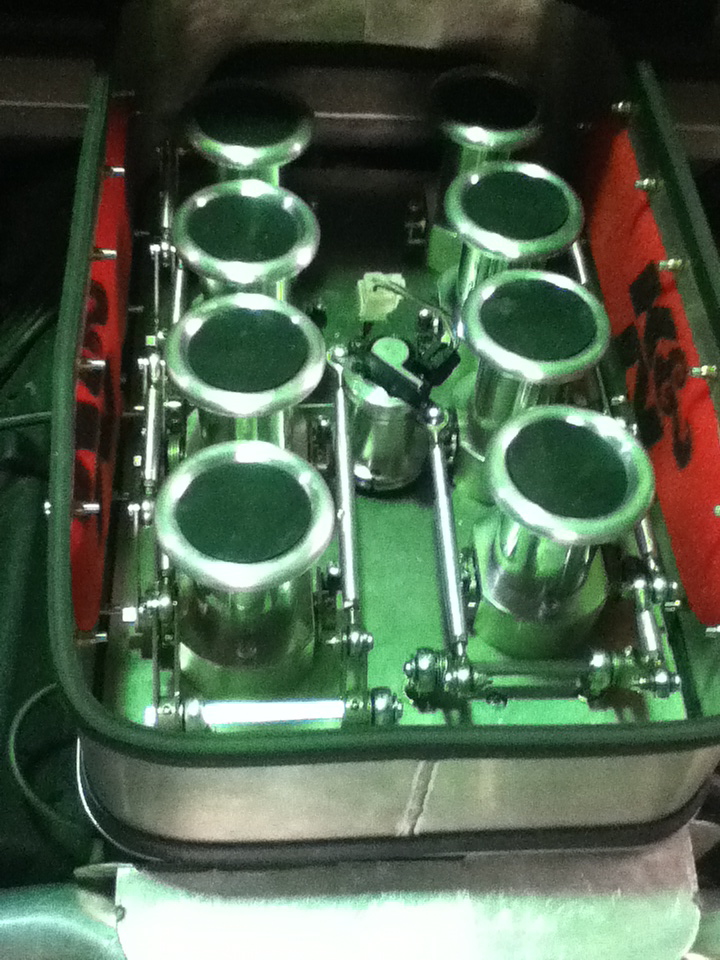

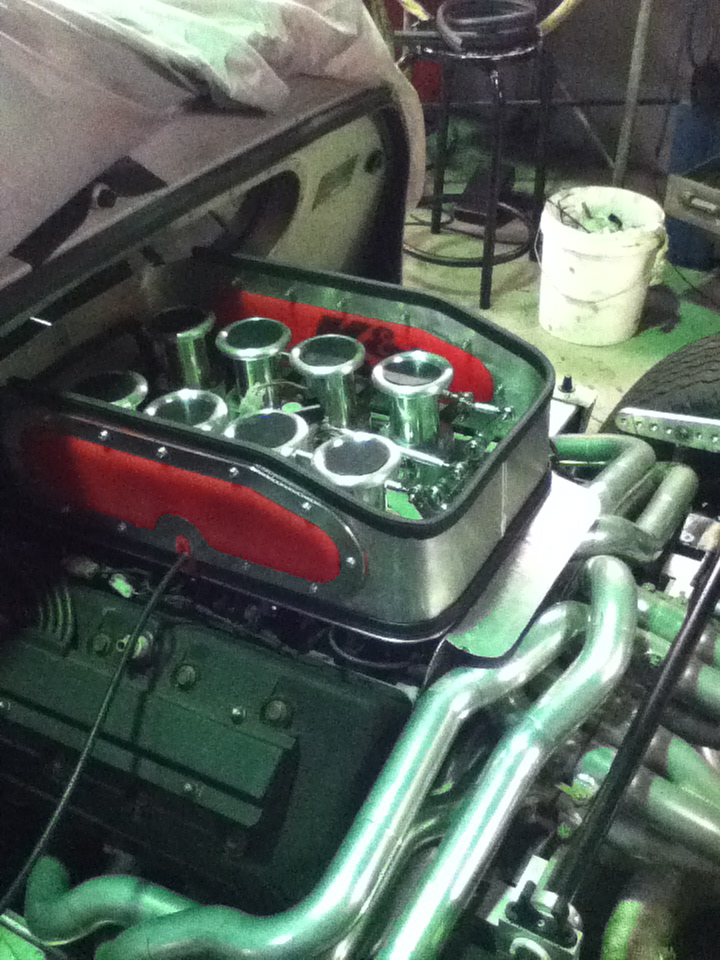

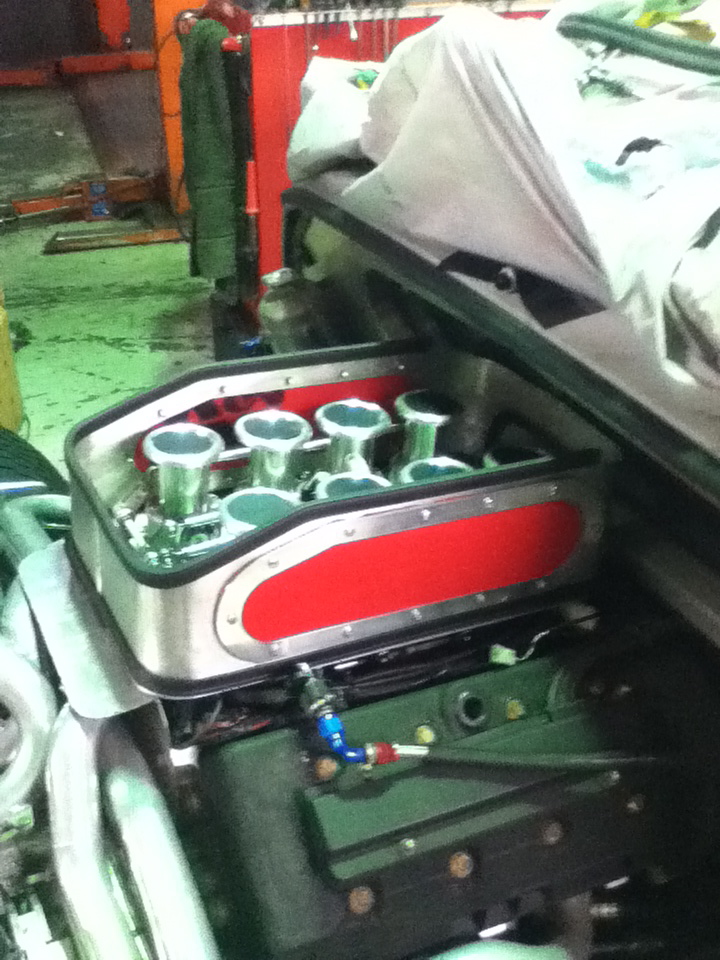

Made the air box ,I still have about another days work on this then it is ready for a start up and retune.

The lid is polycarbonate and the box and the lid are held down on the base via torno cover straps.
I am waiting for mesh to go on the inside of the filters to stop them sucking in.

Jim



[Joe]

Brilliant!



[Terry Oxandale]

Gread Job!



[Jim Cowden]

Thanks Joe and Terry

I have booked a track day in Nov so I am real interested in the throttle response that this will bring, not to mention the noise.

I will post some dyno figures in about 2 weeks.

Jim



[Eddie]

Jim,
Where did you buy your throttle shafts?...I have a Toyota 4age set up...but I,m not happy with my design as I,ve had to run my main throttle spindle off the back of my airbox...works great..but impractable..to build a center spindle set-up I need to buy a set of longer shafts to suit my tb,s.
Cheers Eddie.



[Jim Cowden]

Eddie

The shafts and butterflies are from a company called Injection perfection here in Sydney.

The rear shafts connected to the centre pivot in the middle photo on post #23 I made out of 5/16 316 SS rod and milled the flats on them.
