Internal door mechanism

[Simon]

I posted this before, I know but does anyone have any pictures of the way the internal door mechanisms work? PLEASE don't post any pictures of Tornado build manual instructions as they got removed last time I asked at the request of Tornado.
Any GT40 rep will do. Have the latches (mini) am getting the handles by themselves but no way of attaching the two.
Thanks

Simon



[SteveB]

Hi Simon

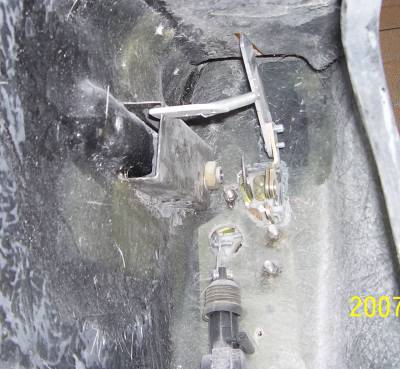

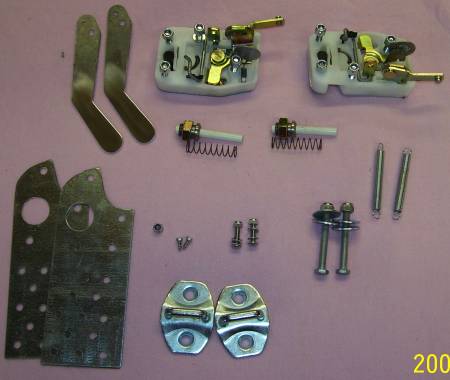

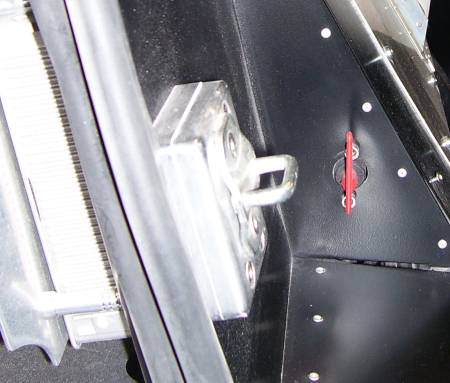

Here are some pictures of the bits that MDA supply and inside of the door when fitted. Hope these help

Steve
