FS USA SVO 351 W

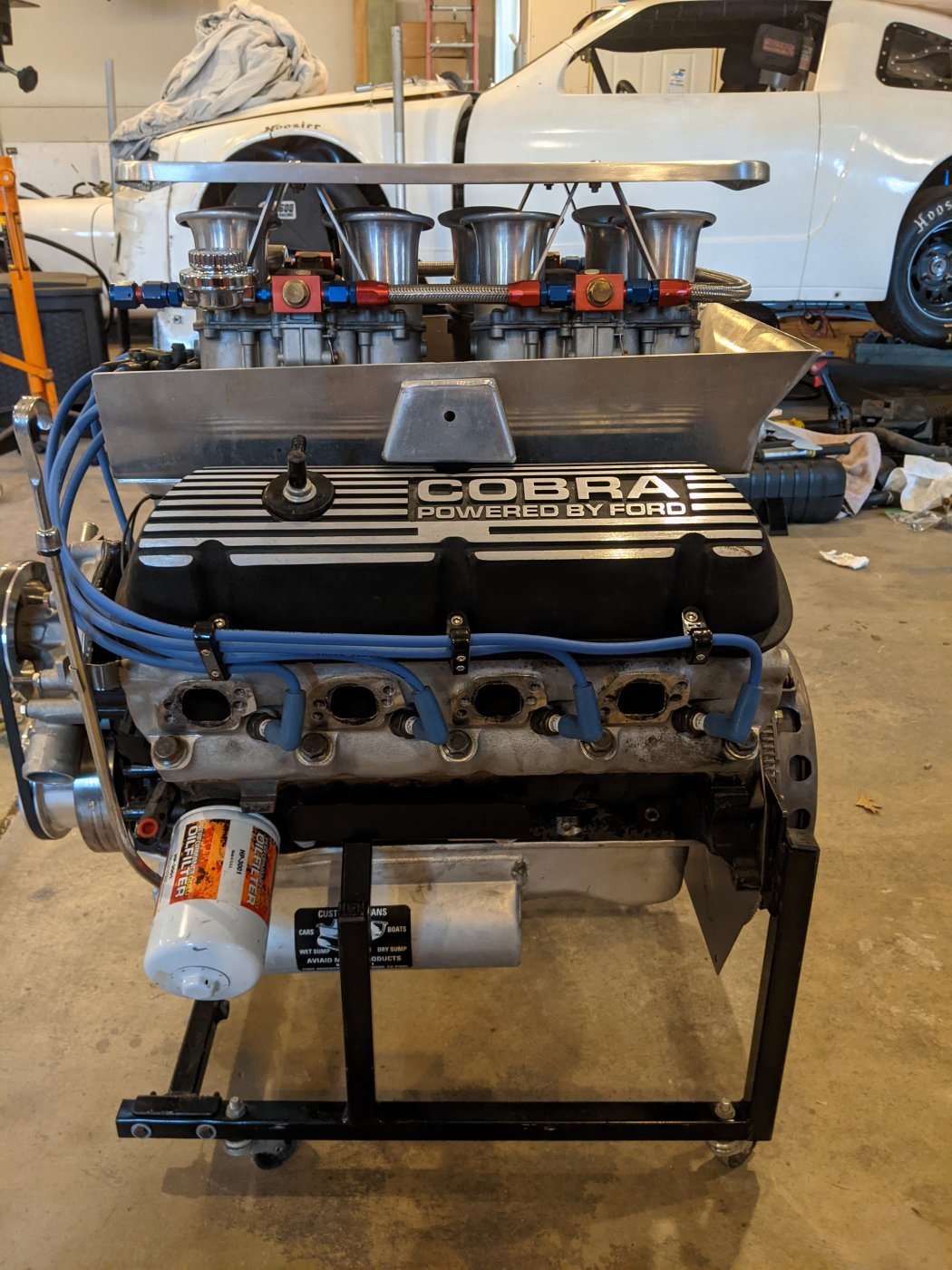

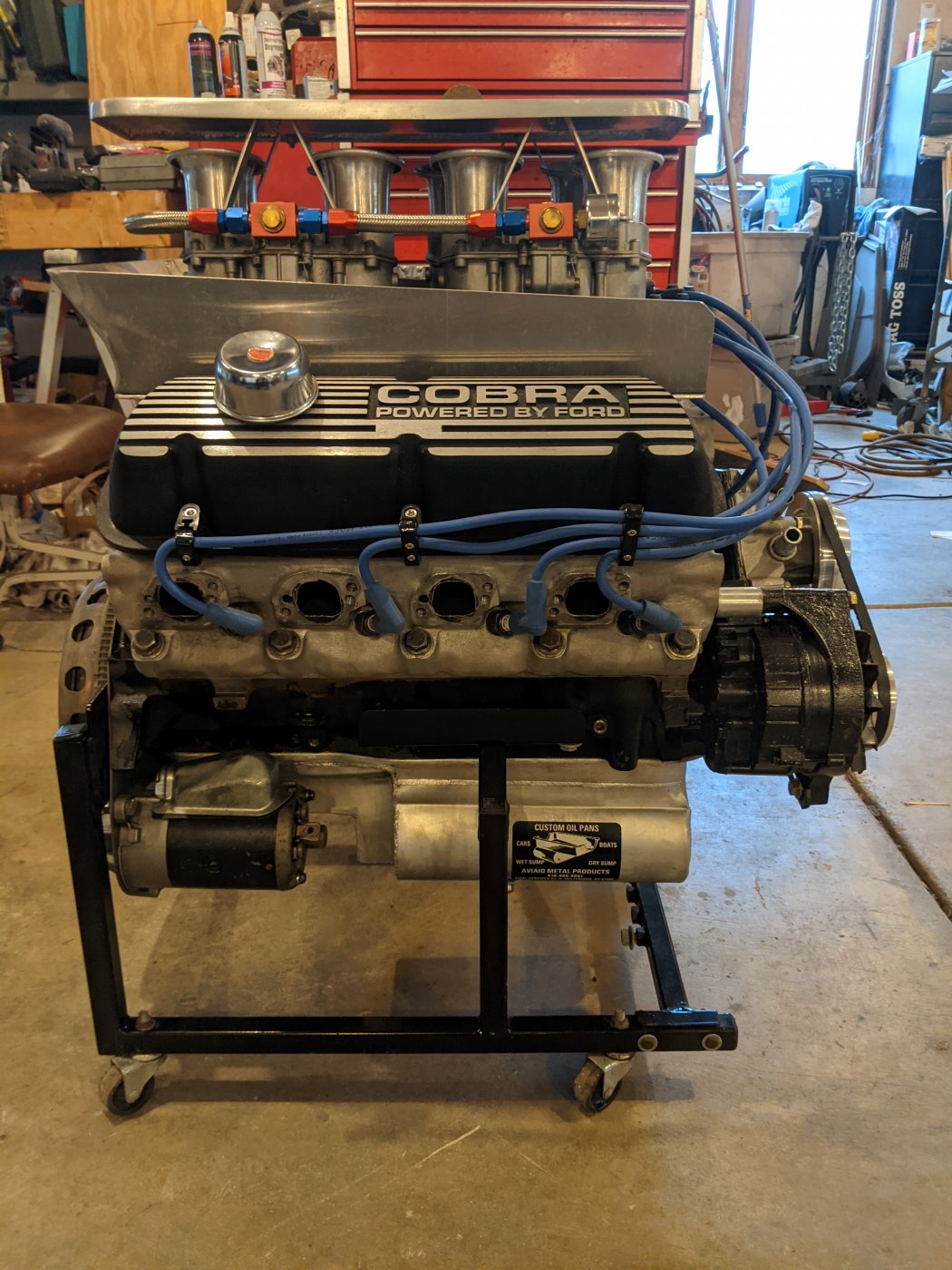

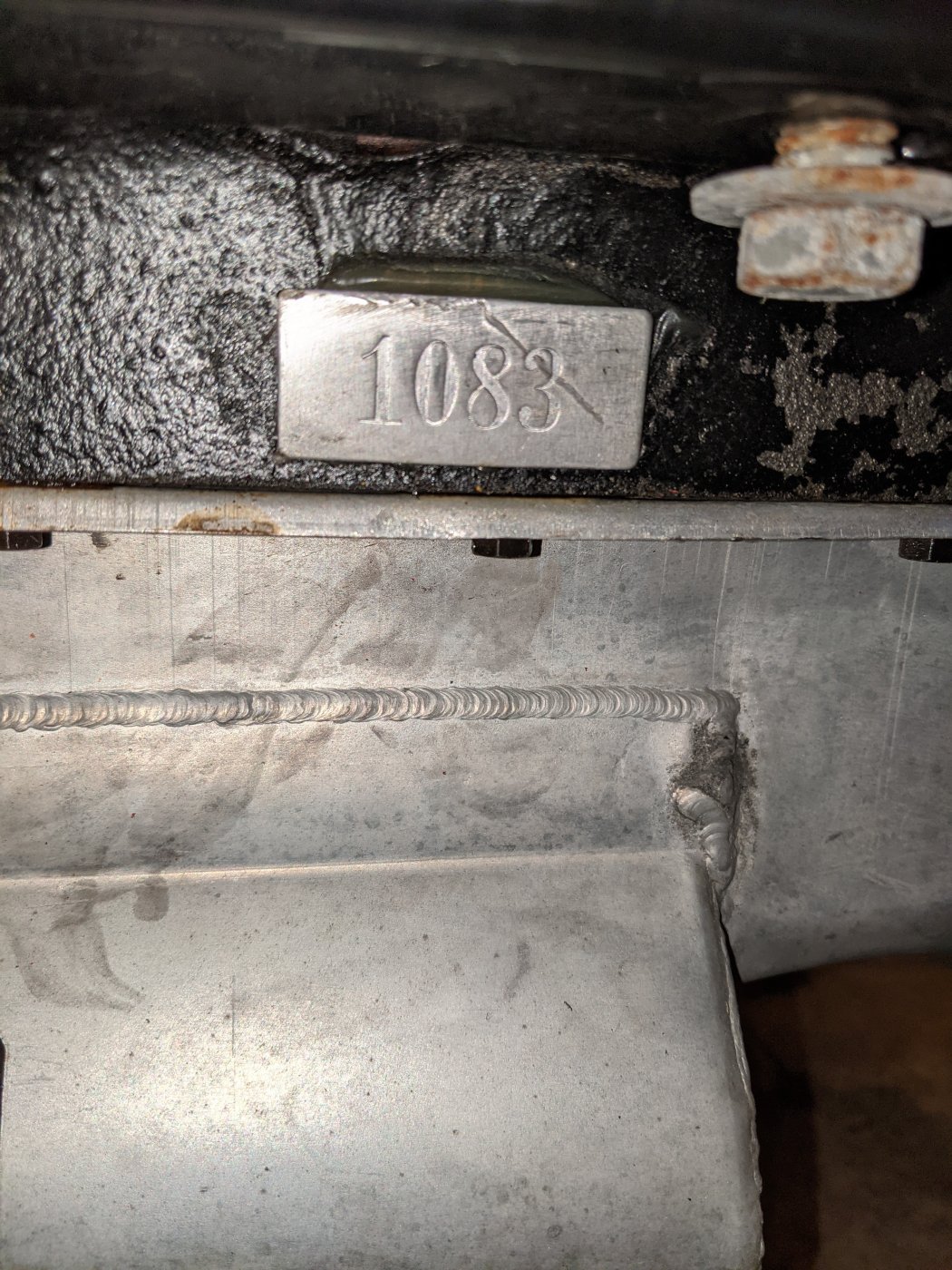

Ford H.O. 351 SVO crate engine #1083 with under 200 miles.

2 bolt main block with nodular iron crankshaft, hypereutectic high silicone pistons and heavy duty truck rods with spot faced seats for 3/8" cap bolts.

SVO (M-49J302) GT40 "turbo swirl" aluminum heads with SVO stainless steel valves (1.94" intake\1.54" exhaust)

Aluminum COBRA valve covers

SVO (M-6250-A351) hydraulic flat tappet cam dual grind (Lift- 0.520 in\0.538 ex Duration- 236* in\246* ex @0.050" valve lift

SVO (M-6268-A302) multi-index true roller timing chain and gears

SVO (M-6500-A303) solid lifters

SVO forged aluminum roller rockers (1.60:1 ratio)

SVO dual valve springs

Ford high volume oil pump

SVO (M-6605-A341) chrome moly pump drive shaft

SVO (M-6375-A302) billet steel flywheel

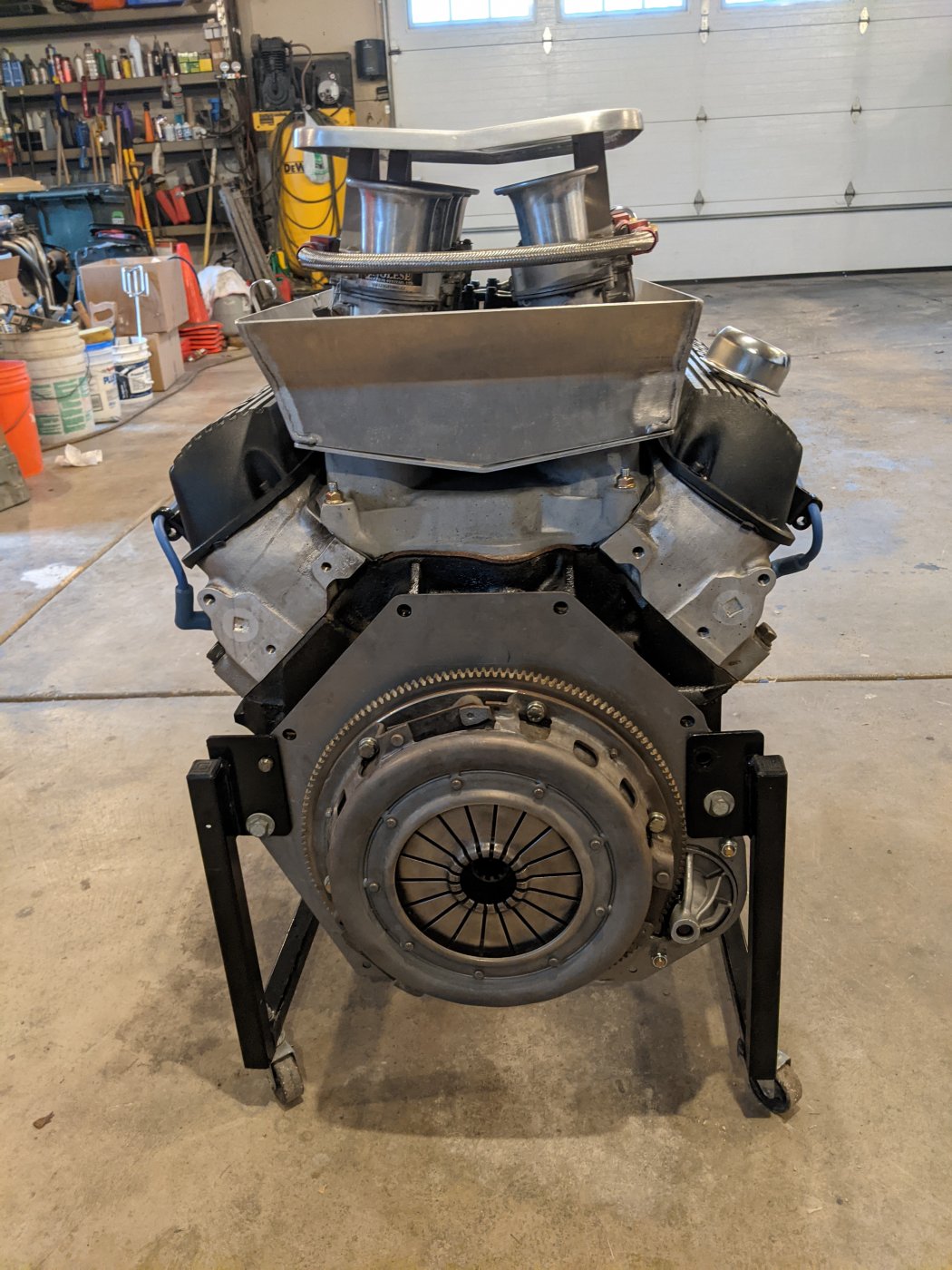

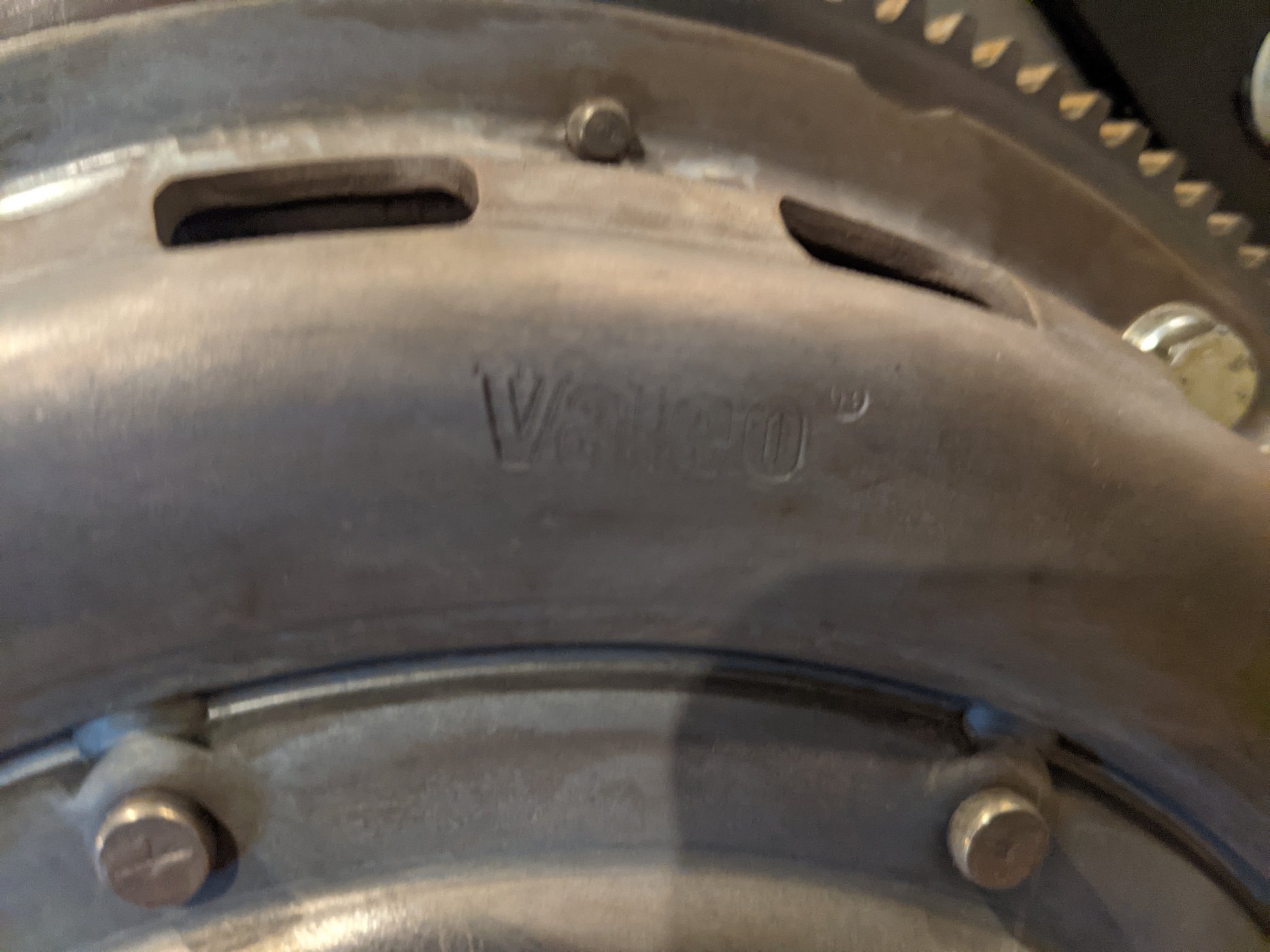

Valeo 10-1/2" diaphragm clutch and pressure plate

SVO (M-6316-A521) SFI spec 18-1 4-bolt crankshaft damper

Ford Motorsports (M-8501-E351S) standard rotation short water pump

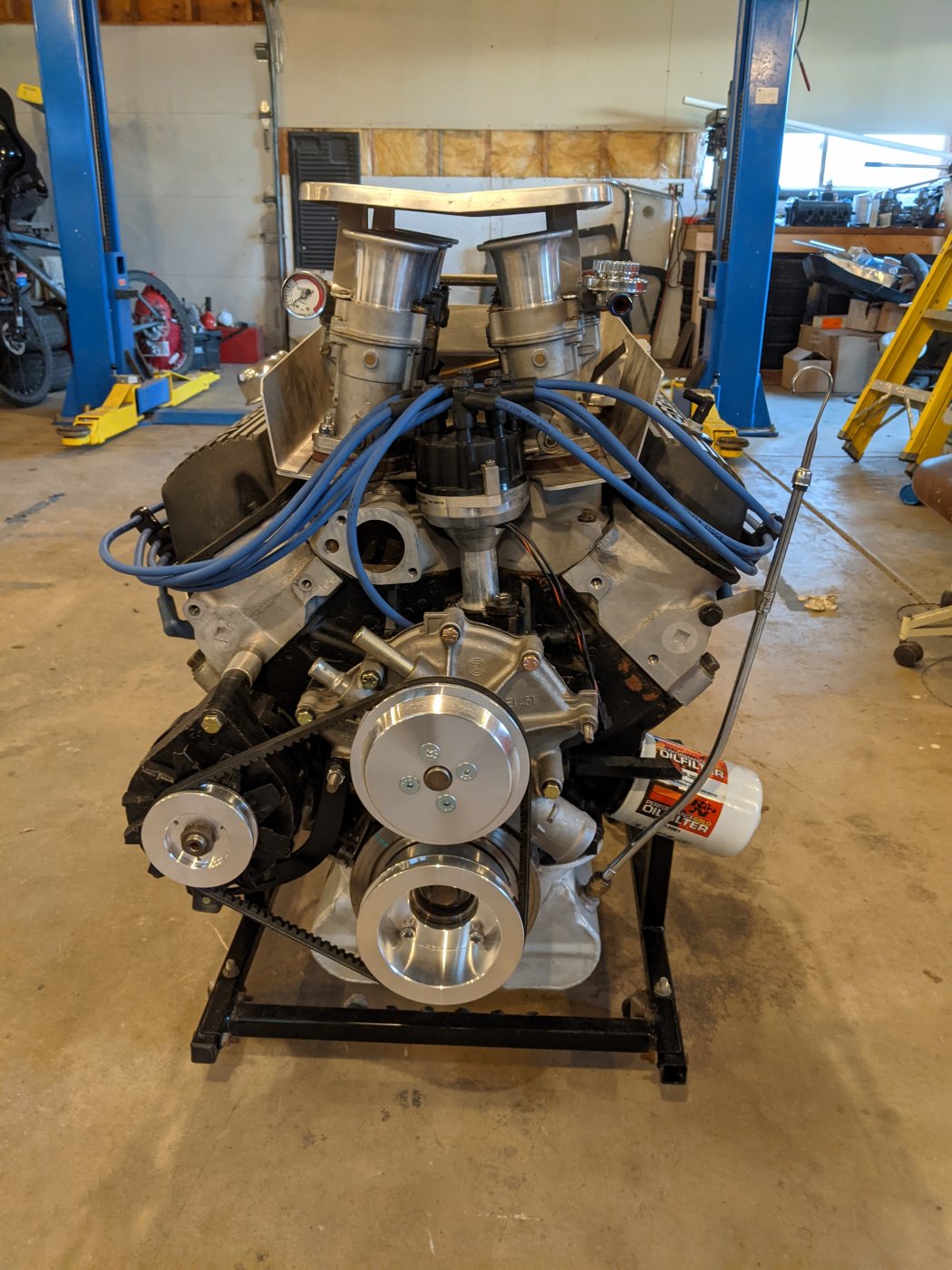

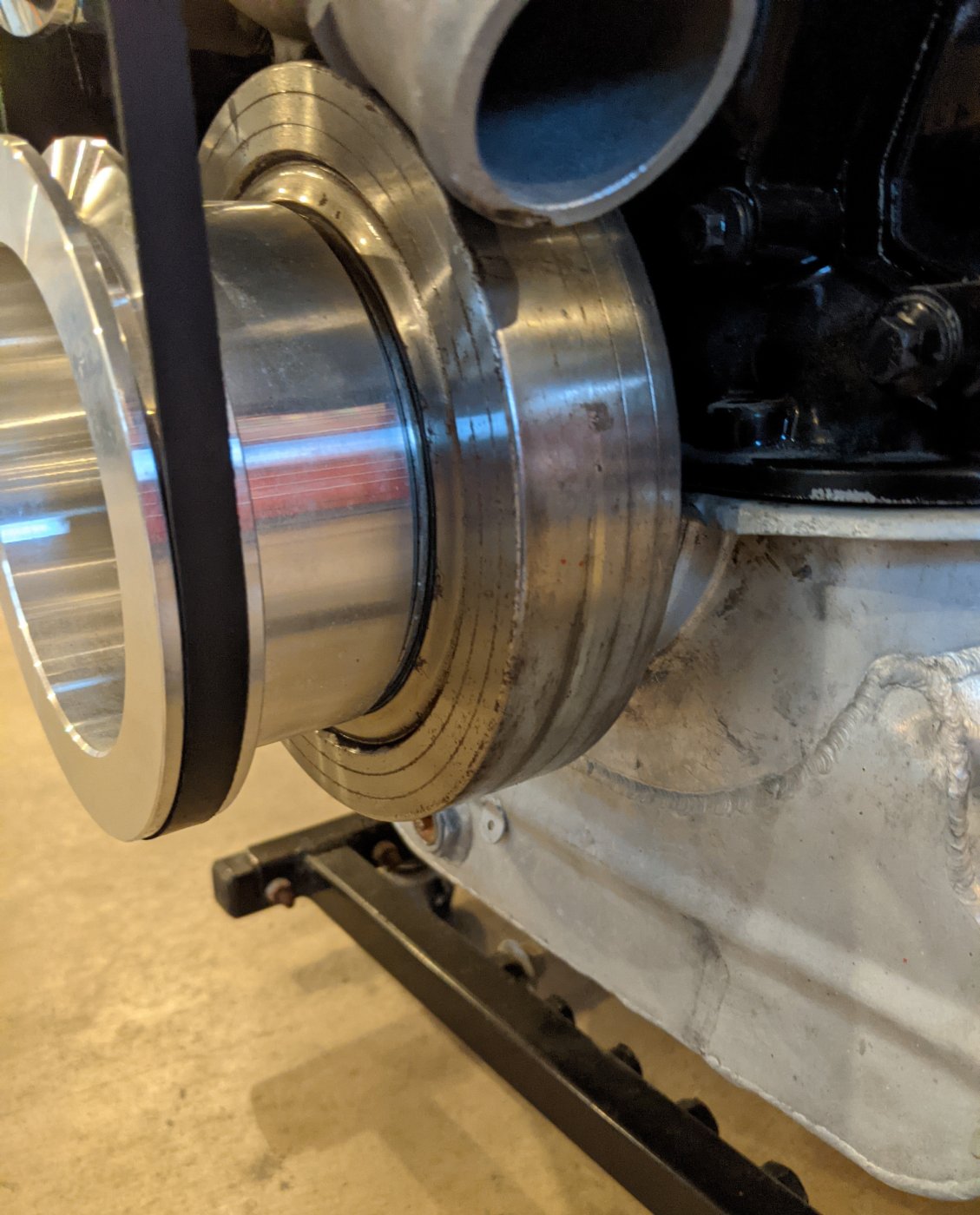

CFI custom billet aluminum pulleys

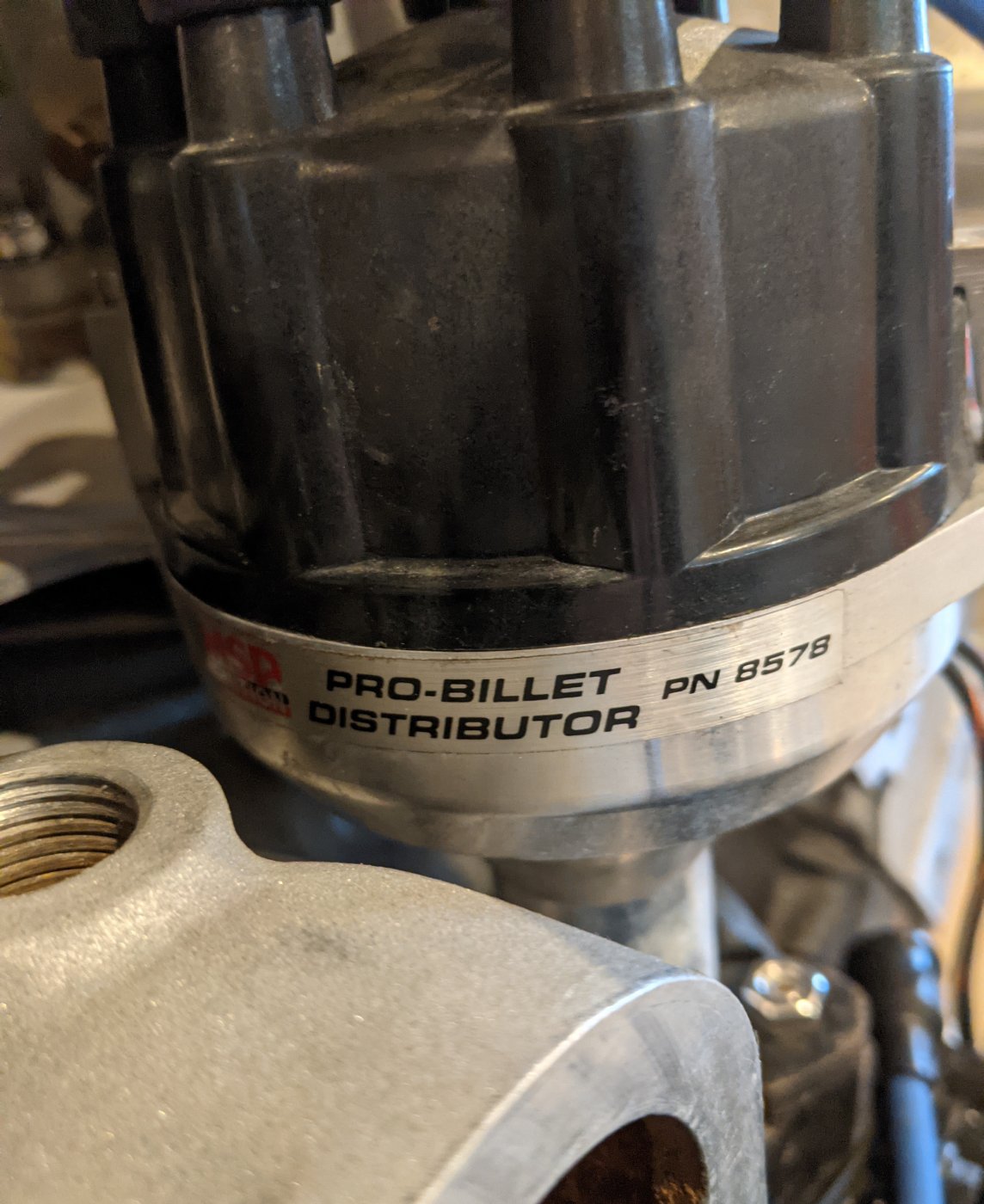

MSD (#8578) Pro Billet, small cap, HEI distributor

Accel 8mm copper core silicone wire set

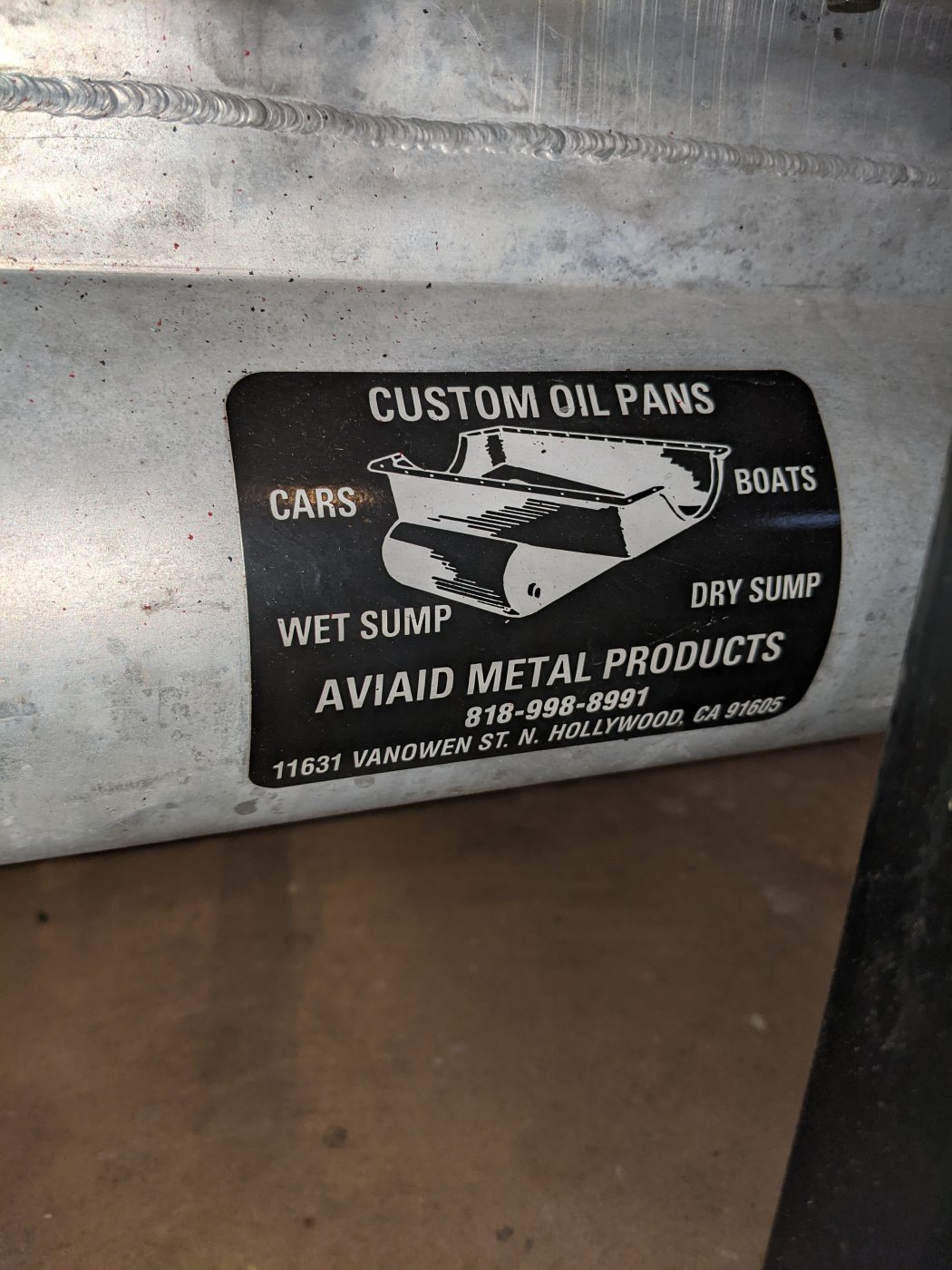

Aviaid (155-55361) GT40 6 qt, boxed wet sump, road race oil pan with windage tray, scraper and dipstick

Ford OEM starter (2 included)

Ford OEM alternator

Rolling engine stand

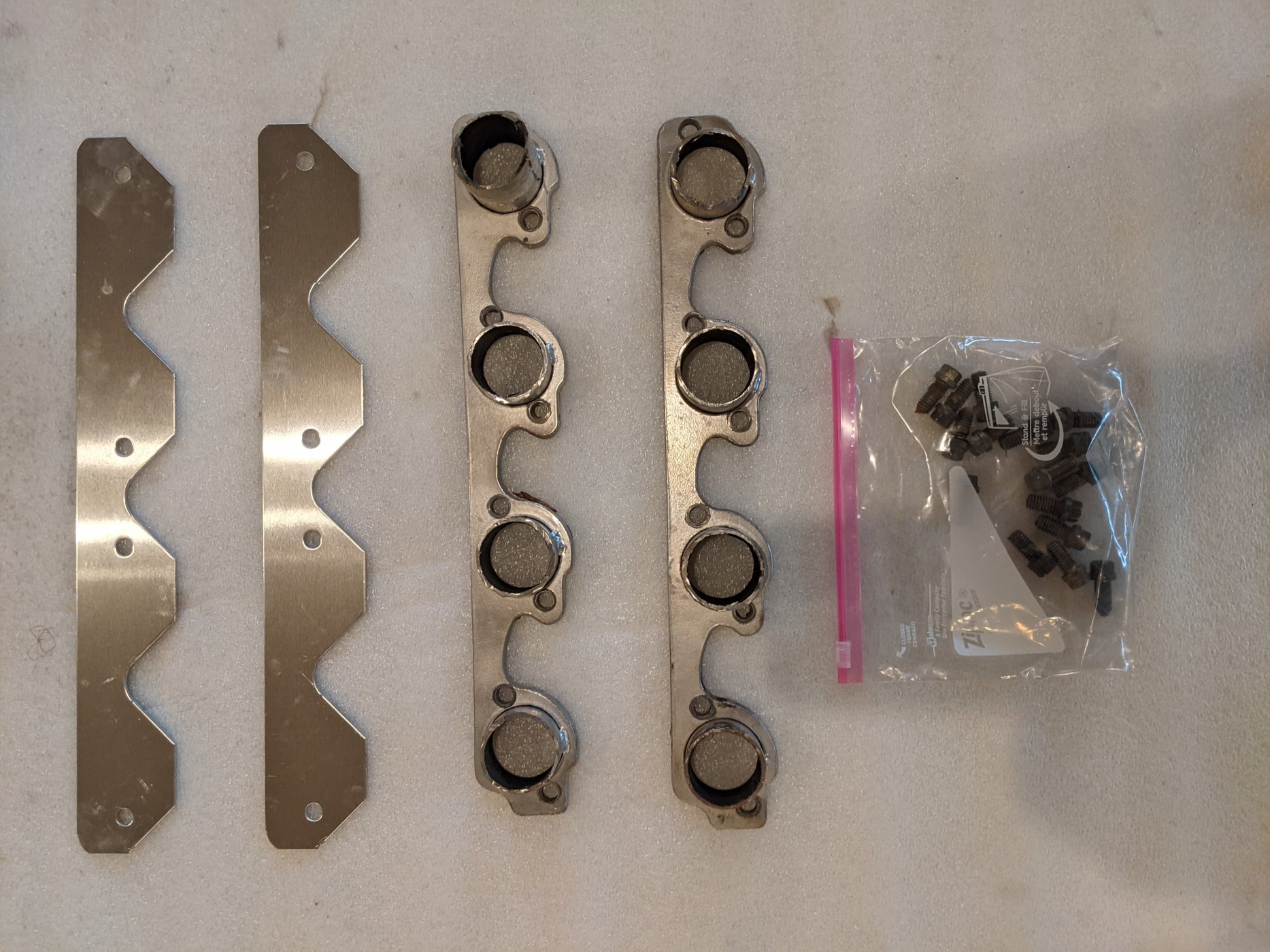

Exhaust header flange set (to make your cross over exhaust system if needed)

Isolated runner IDA Weber intake manifold purchased from Holman Moody has carb mounting pads machined at 10 degree angle to facilitate fitting a MK1 GT40 airbox

Custom fabricated aluminum turkey pan, backfire plate

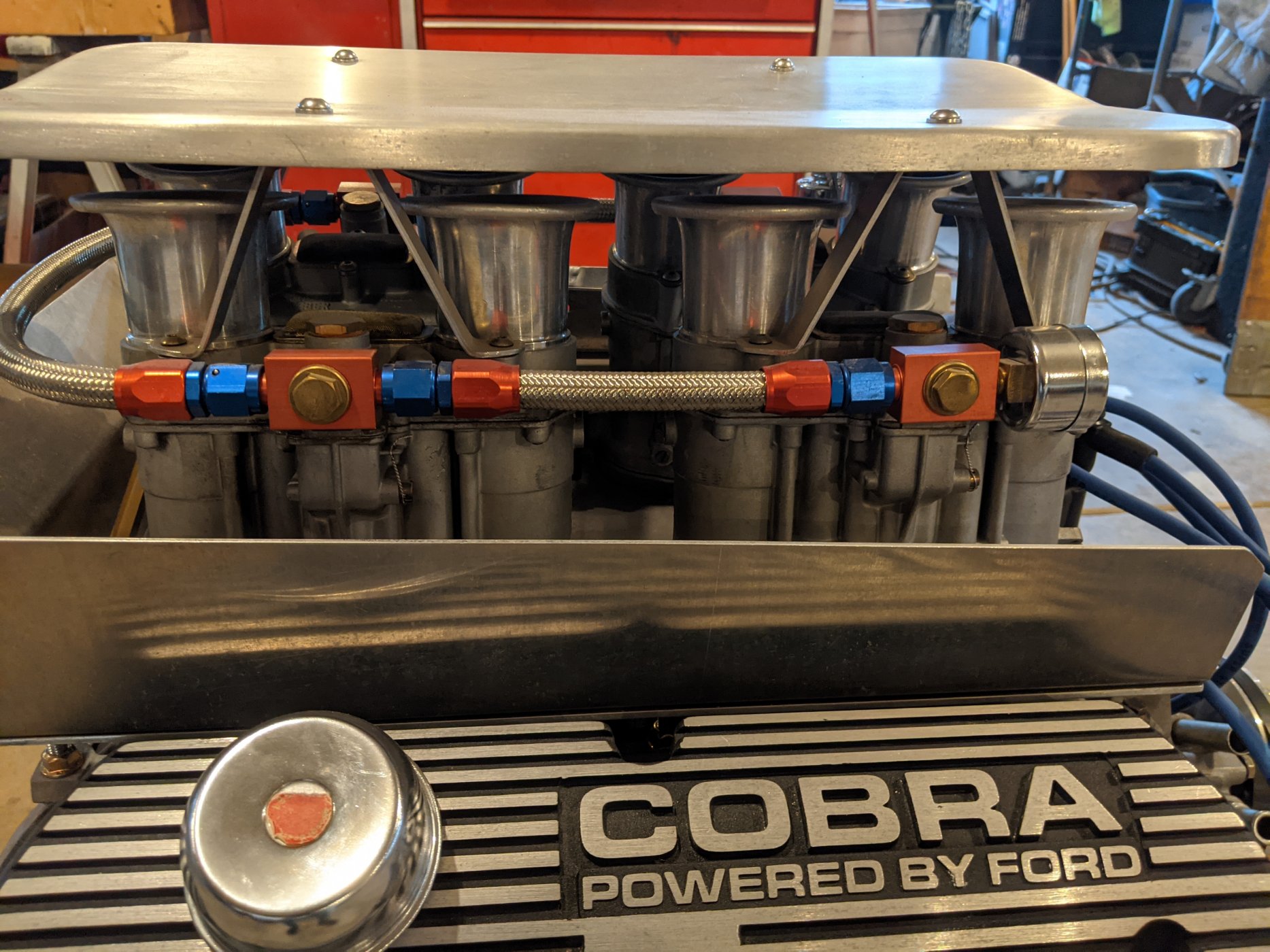

6AN fuel supply line with pressure regulator, gauge and linkage.

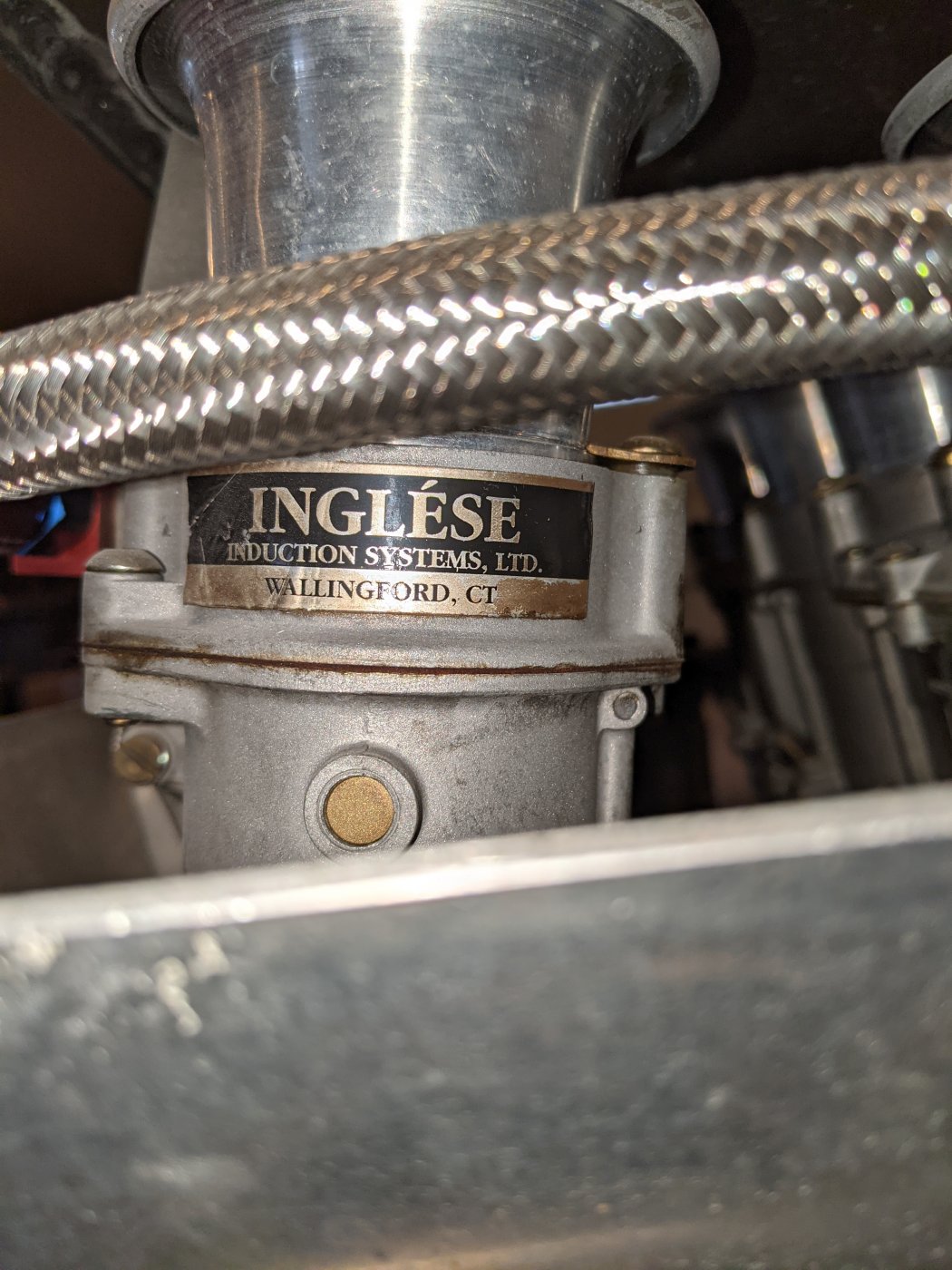

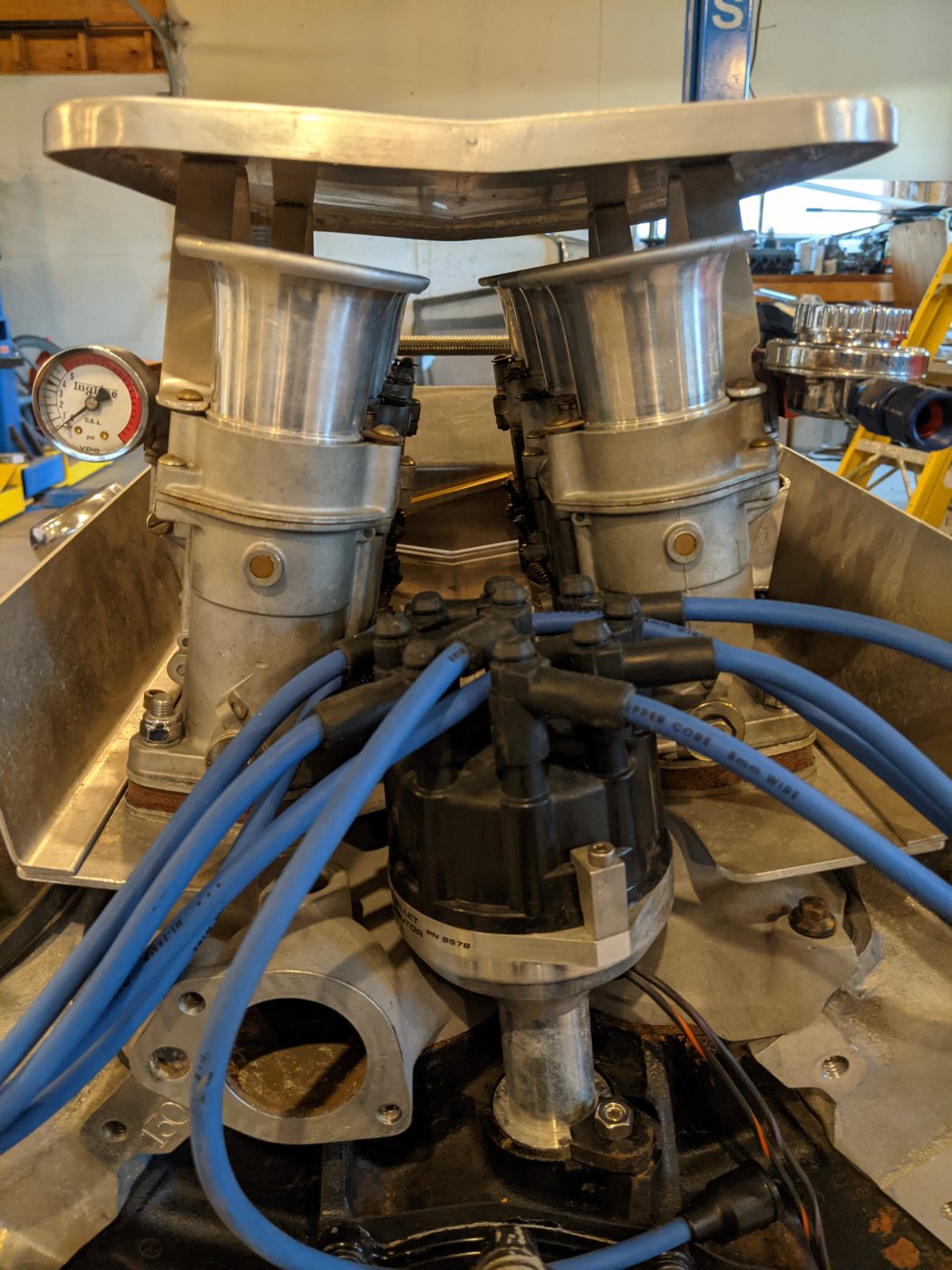

Genuine vintage 48IDA Weber carbs sandcast in Italy. All are 48IDA-4, numbers 4572, 4747, 4778 and 4886, rebuilt and setup by Inglese Induction Systems in Wallingford CT. and dyno tuned at Opel Engineering in Streamwood, IL with 2.5" spun aluminum velocity stacks installed.

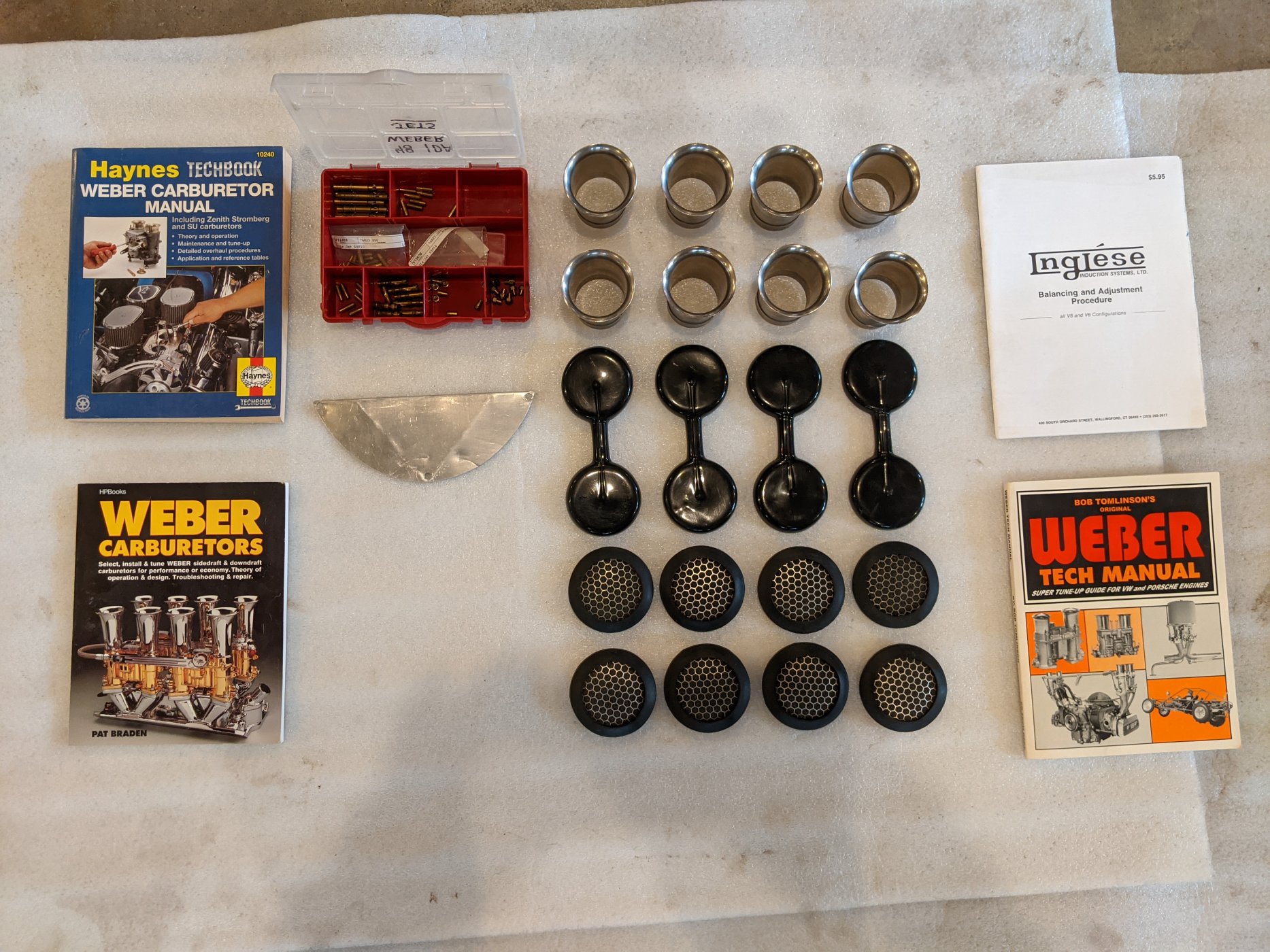

Chrome steel velocity stacks with caps, box of idle and main jets, air correctors and emulsion tubes for tuning, air filters, rings and screens are also included. 3 books on Weber carburetors and Inglese setup manual



$25,000.00+shipping


Attachments

  • PXL_20211129_205815503.jpg
    258.5 KB · Views: 195
  • PXL_20211129_205846323.jpg
    268.1 KB · Views: 192
  • PXL_20211129_211447983.jpg
    272 KB · Views: 175
  • PXL_20211129_211458981.jpg
    261.5 KB · Views: 172
  • PXL_20211129_210021253.jpg
    332.1 KB · Views: 173
  • PXL_20211129_210046438.jpg
    218.6 KB · Views: 155
  • PXL_20211129_210121335.jpg
    229.4 KB · Views: 156
  • PXL_20211129_214606264.jpg
    513.6 KB · Views: 168
  • PXL_20211129_215403315.jpg
    430.3 KB · Views: 173
  • PXL_20211129_210148211.jpg
    245.9 KB · Views: 158
Very nice Mark!!!

Regards Brian
Thanks Brian! It is a nice piece! I was saving this for my next 40 but I've got too many other projects. Love to see it go to a good home
